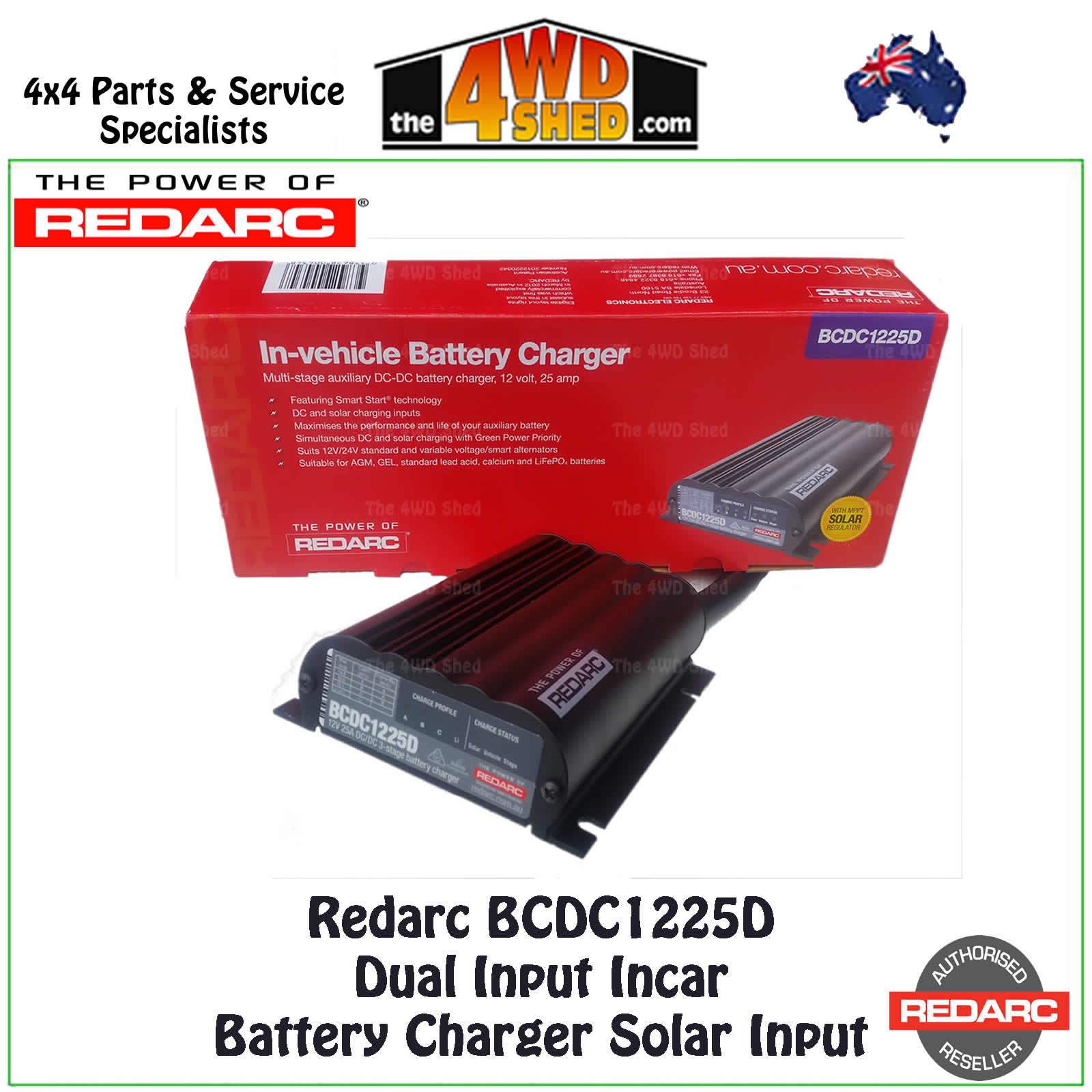

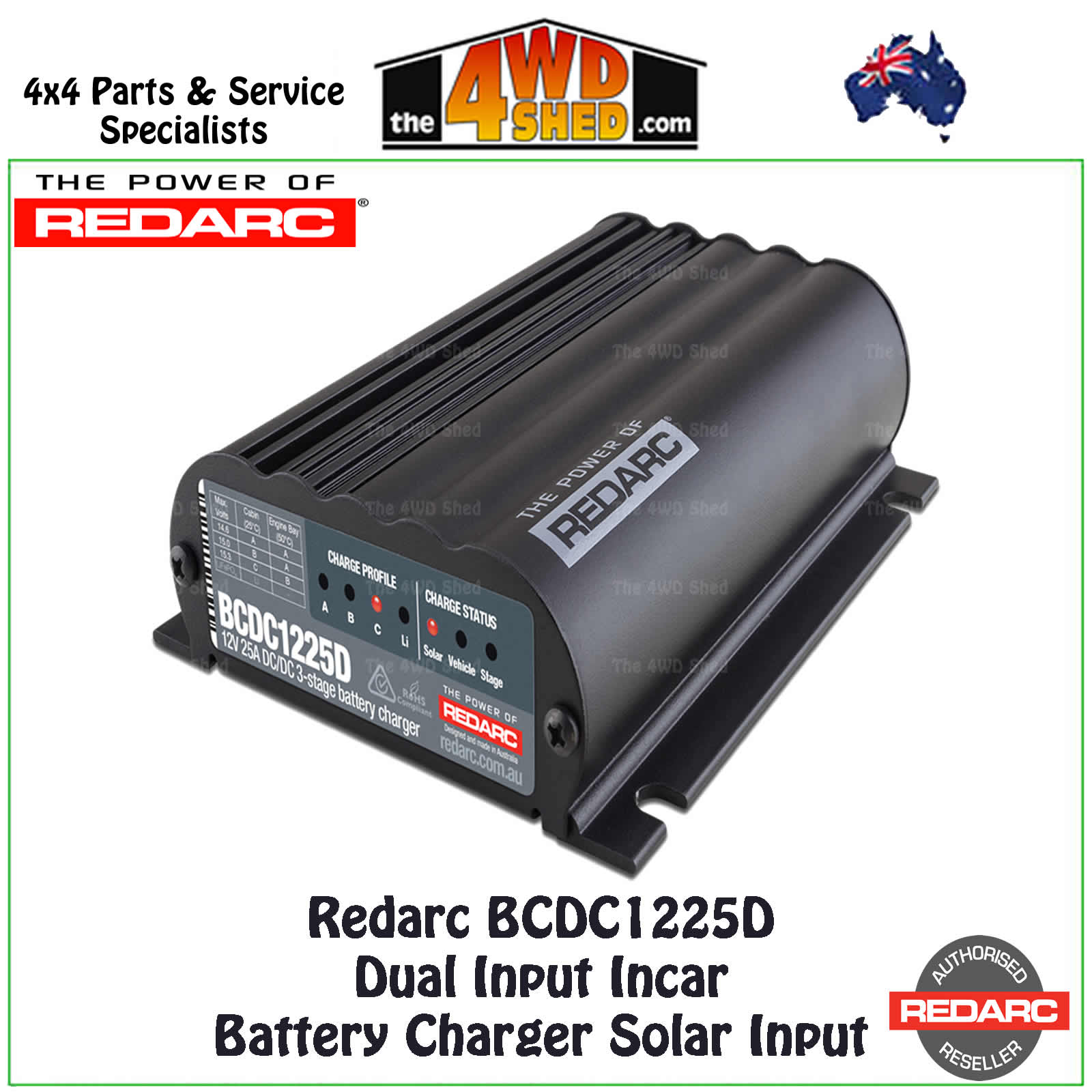

Dual Input 25A In-Vehicle DC Battery Charger
More infoThe REDARC BCDC1225D is a 12V 25A In-vehicle DC to DC battery charger. It features the next generation in REDARC In-vehicle charging technology, charging from Solar and DC inputs simultaneously.
The REDARC BCDC1225D In-vehicle Battery Charger is the next generation in REDARC's DC to DC charging technology, with additional features that make it the most advanced dual battery charger on the market.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1225D will charge from both solar and the alternator simultaneously. And, with built in "GREEN PRIORITY" it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24 volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1225D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.
Proven and Tested
The award winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.
Trusted for its Australian design and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and LiFePO4 batteries
The 4WD Shed is an Authorised Online Reseller for Redarc.
We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply
| Input (Operating) Voltage | 9 - 32VDC |
| Output System Voltage | 12VDC |
| Maximum Charging Voltage | 15.3V |
| Output Current Rating (Cont.) | 25A |
| Input Current (Max.) | 25A |
| Input Fuse Rating | 40A |
| Output Fuse Rating | 40A |
| Warranty | 2 Years |
| Standby Current Draw | <100mA |
| Output Power | 375W |
| Width (mm) | 120 |
| Height (mm) | 37 |
| Type Approval | CE |
| Length (mm) | 165 |
| Weight (kg) | 0.85 |
(BCDC1225D)
| SKU | BCDC1225D |
| Barcode # | 9338628004348 |
| Brand | Redarc |
| Shipping Weight | 0.9000kg |
