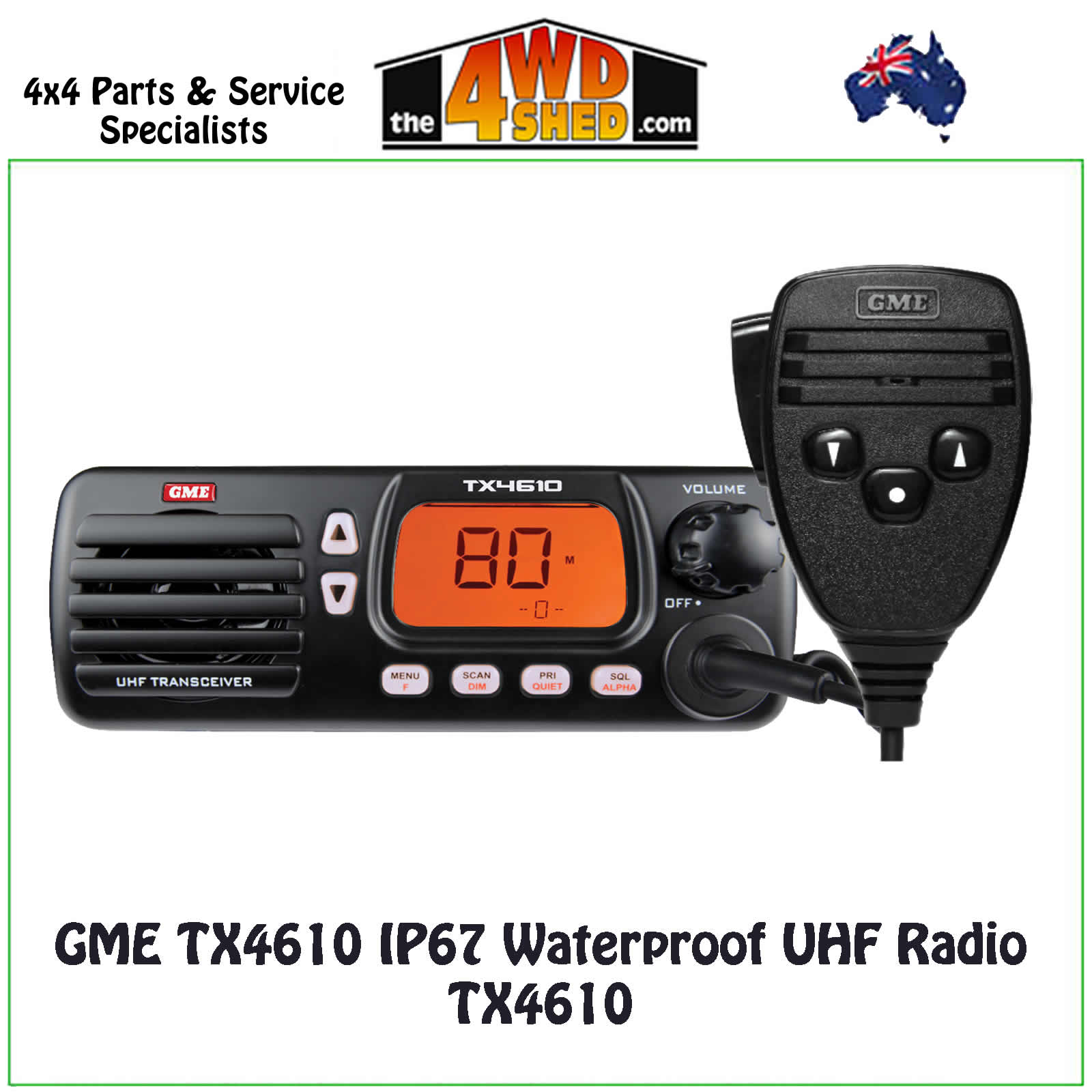

GME TX4610 IP67 Waterproof UHF Radio
More infoGME TX4610 IP67 Waterproof UHF Radio - TX4610
A trusted UHF radio, built for the harsh Australian climate
The TX4610 is ideal for the most rugged environments and is especially suited for use on ATVs, quad bikes and tractors. The TX4610 packs a lot of features into a compact chassis including a large, tri-colour backlit display, selcall and programmable channels.
The all-new IP67 microphone includes channel up/ down keys and a priority channel button making these functions a simple one-handed operation within a modern, waterproof and dustproof chassis. The TX4610 can be installed using either the supplied metal mounting bracket, or flush mounted with the optional MK008B flush mount kit to suit the user’s individual installation requirements.
The TX4610 is proudly designed and made in Australia, ensuring the rugged, high-quality design will offer years of reliable operation in ATV and farming vehicles.
Product Details
-
Compact size
-
Ingress protection to IP67
-
User Selectable Priority Channel
-
User Selectable Open and Group Scan
-
User Adjustable Squelch
-
5 Digit Selcall with Quiet Mode
-
50 In-Built CTCSS Codes
-
10 Selcall Memories
-
Tricolour Backlighting
-
ANI (Automatic Number Identification) and Alpha Labelling for Selcall.
-
19 Extra User Programmable Receive Channels (403-520 MHz).
-
Australian Made
-
5 Year Warranty
In the Box:
-
TX4610 UHF CB Radio
-
IP67 Microphone (MC610)
-
Metal Mounting Bracket
-
Microphone Clip
-
12V DC Lead
-
Screw Pack
GENERAL
Compliant Specification - Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX - 476.425-477.4125 MHz
Number of Channels - 80 UHF CB + 19 Receive only
Channel Spacing - 12.5 kHz only
Operation Mode - Simplex Ch1 - 80 Semi Duplex Ch 1 - 8, 41 - 48
Scanning Speed - 20 channels per second
Antenna Impedance - 50 Ohms nominal
Nominal Battery Voltage - 13.8 volts DC
Operating Voltage Range - 10 - 15 volts DC
Overvoltage Protection - 30 Volts DC max. At 18 Volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection - In-line 3A Fuse
Frequency stability - ± 2.5 PPM
Modulation - FM
TRANSMITTER
RF Output - 5.0 watts max
Spurious Emission - < - 26 dBm
Maximum Deviation - < ± 2.5 kHz at + 20 dB
Transmit Frequency Response - + 6 dB per octave 300 Hz to 3 kHz + 1 - 3 dB
Current Consumption - < 260 mA muted 600 mA @ max. A.F Output
RECEIVER
Intermediate Frequencies - 1st - 21.4 MHz 2nd - 450 kHz
Sensitivity - - 123 dBm for 12 dB SINAD unweighted
Selectivity - - 6 dB at ± 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity - 73 dB
Blocking Immunity - 100 dB
Spurious Response Immunity - 70 dB
Audio signal to noise: 12.5Khz - > 45 dB
Current consumption - 1.7 amps with 50 Ohm termination
Conducted Spurious Emission - < - 57 dBm
MECHANICAL SPECIFICATIONS
Dimensions - 65 (H) x 165 (L) x 56 (D) mm
Weight - 472 grams
Storage temperature - -10°C to +60°C
We stock, supply & fit a large range of GME UHF Radios & Accessories. Fitting is available at our Bayswater, Vic workshop. Additional costs may apply.
