If you are performing an engine conversion in your GQ or GU Patrol or simply chasing a little more performance or economy. This is the High Flow airbox for you!!

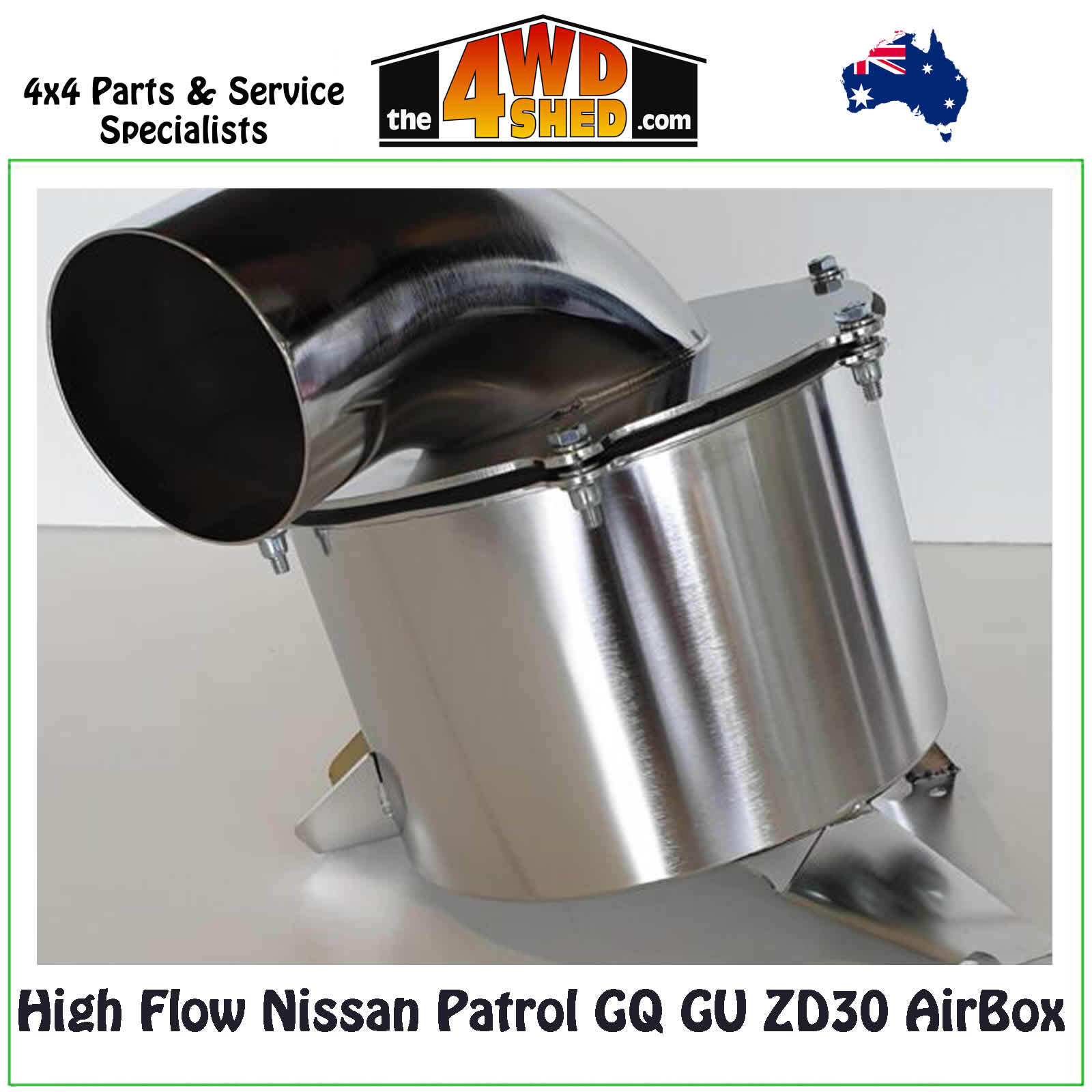

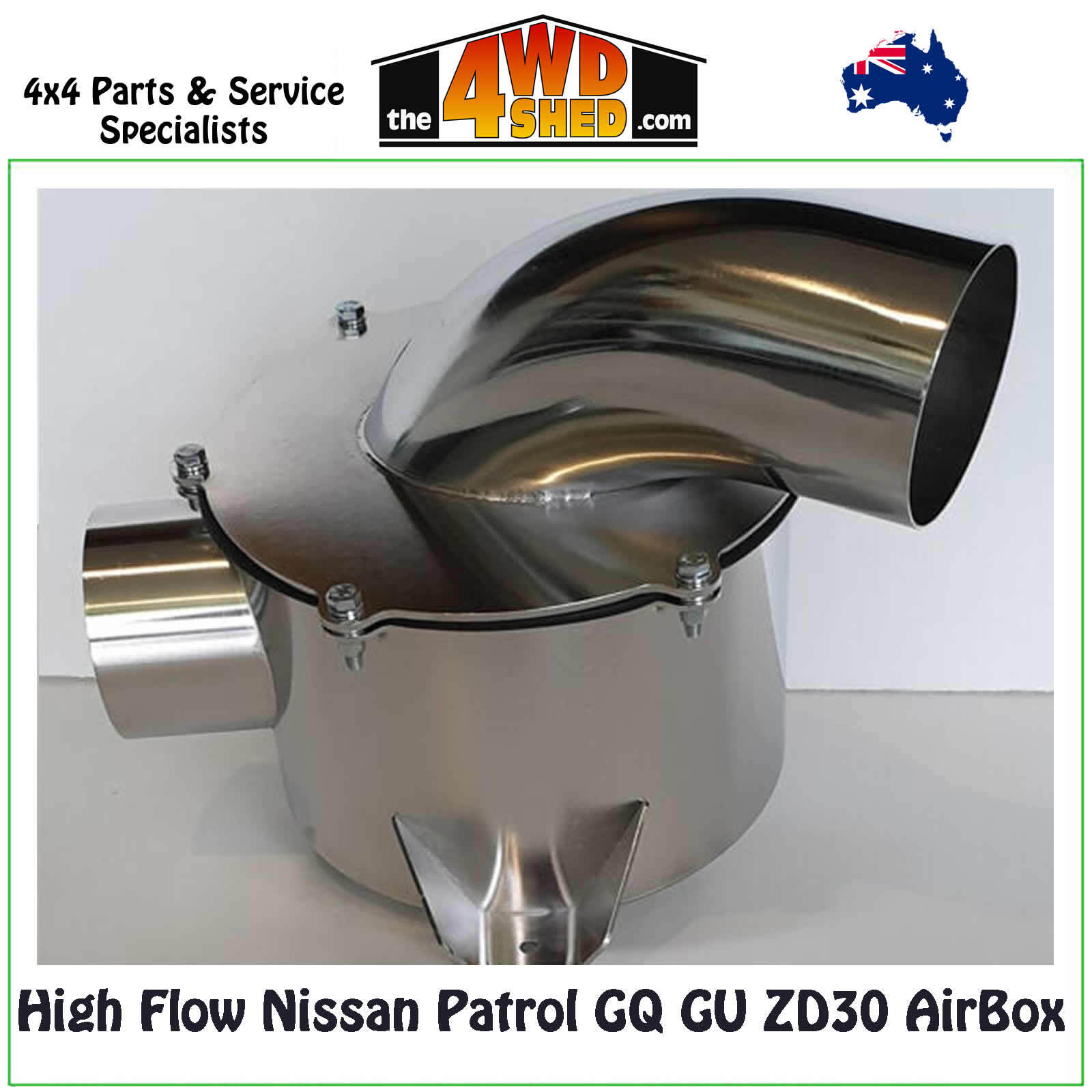

It is well known across the Patrol community that the Nissan GU Patrol ZD30/TD42T airbox seems to be made for this task. Our Stainless Steel airbox is modelled around the popular ZD30/TD42T Airbox but includes these key features!

  • Simple to mount; requires only one 6mm hole to be drilled in inner guard
  • Utilises 2 existing holes behind the headlight.
  • Mounts on 3 rubber cushion mounts to prevent fatiguing of the inner guard.
  • Installed with a genuine Donaldson VacuatorTM Valve to drain any water that may find its way into your airbox.

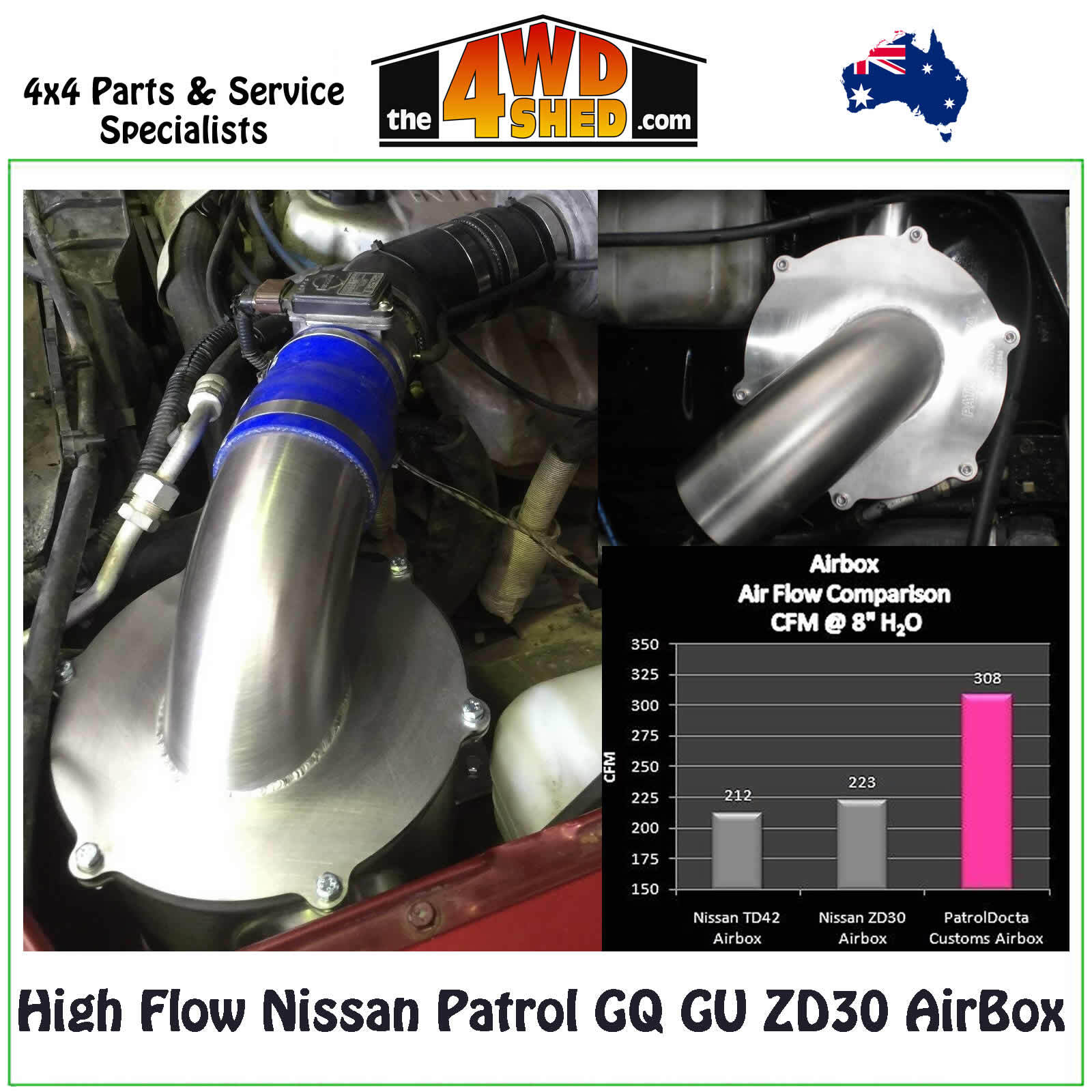

  • Flows a massive 308CFM @ 8" H2O, 38% flow increase over standard ZD30 airbox and 45% increase over the TD42 airbox.
  • Retains the readily available Nissan style ZD30/TD42 filter element. Supplied with a high quality filter element.
  • 3.5" mandrel bent unrestricted outlet. ZD30 and TD42 airboxes both have significant airflow restrictions in their outlets. 3.5” inlet.
  • Manufactured from 304 Stainless Steel
  • Australian Made

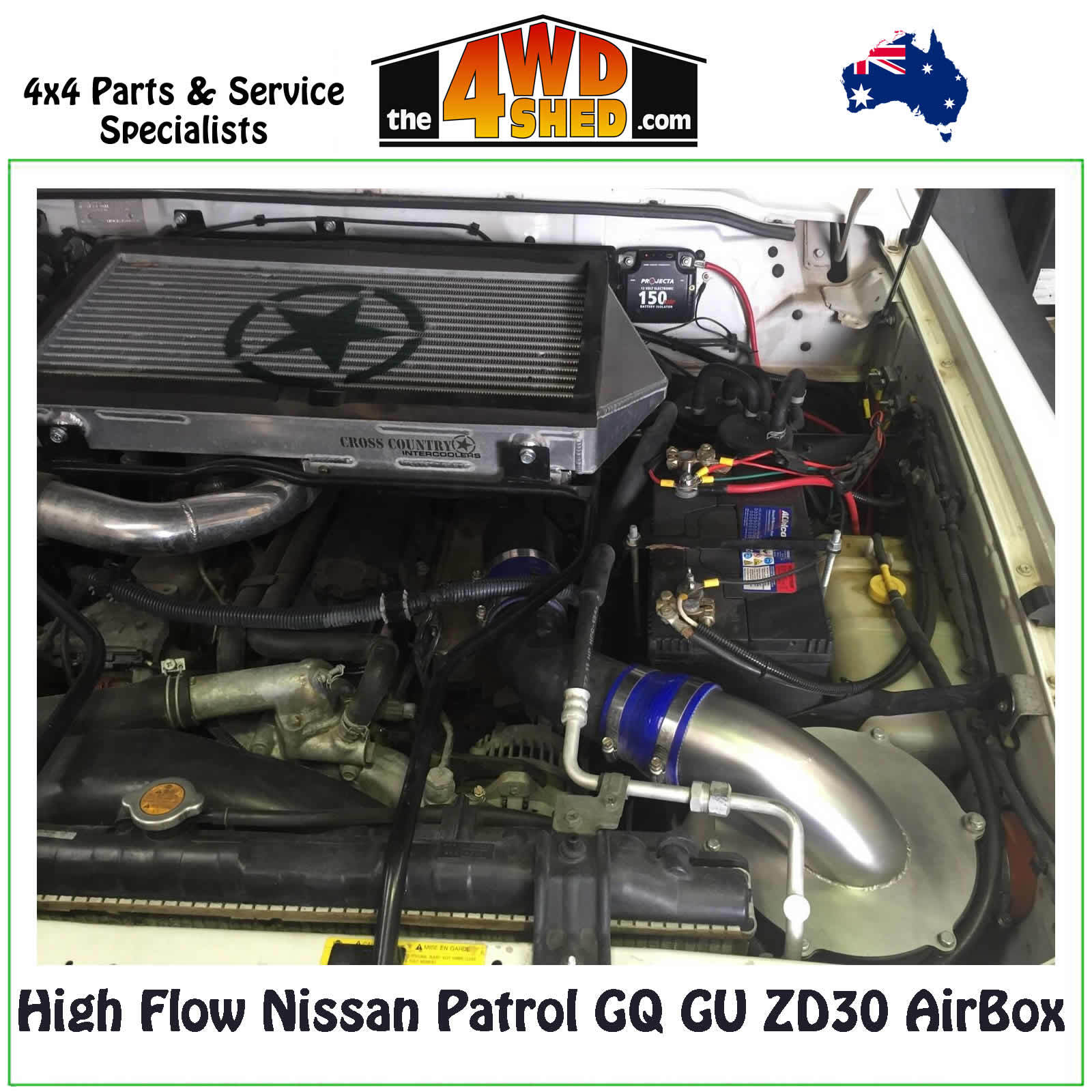

Most snorkels are easily connected by using a rubber joiner and hose clamps to join to our airbox inlet. Some dual battery setups have to be shifted rearwards by around 40mm to clear the upper mount on the airbox. This Airbox fits both GU and GQ patrols. This installation does require custom plumbing to connect the airbox to your intake. Factory pipes will not connect.

Please Note: Though we try to keep the popular movers in stock at The 4WD Shed some PDC products are ordered in as required. We will be in contact to let you know lead times on your order.

The 4WD Shed can supply & install all Patroldocta Customs products in our Bayswater workshop. Please contact us for a quote (03) 9720 8783.


Brand Patroldocta PDC
Shipping Weight 7.0000kg
