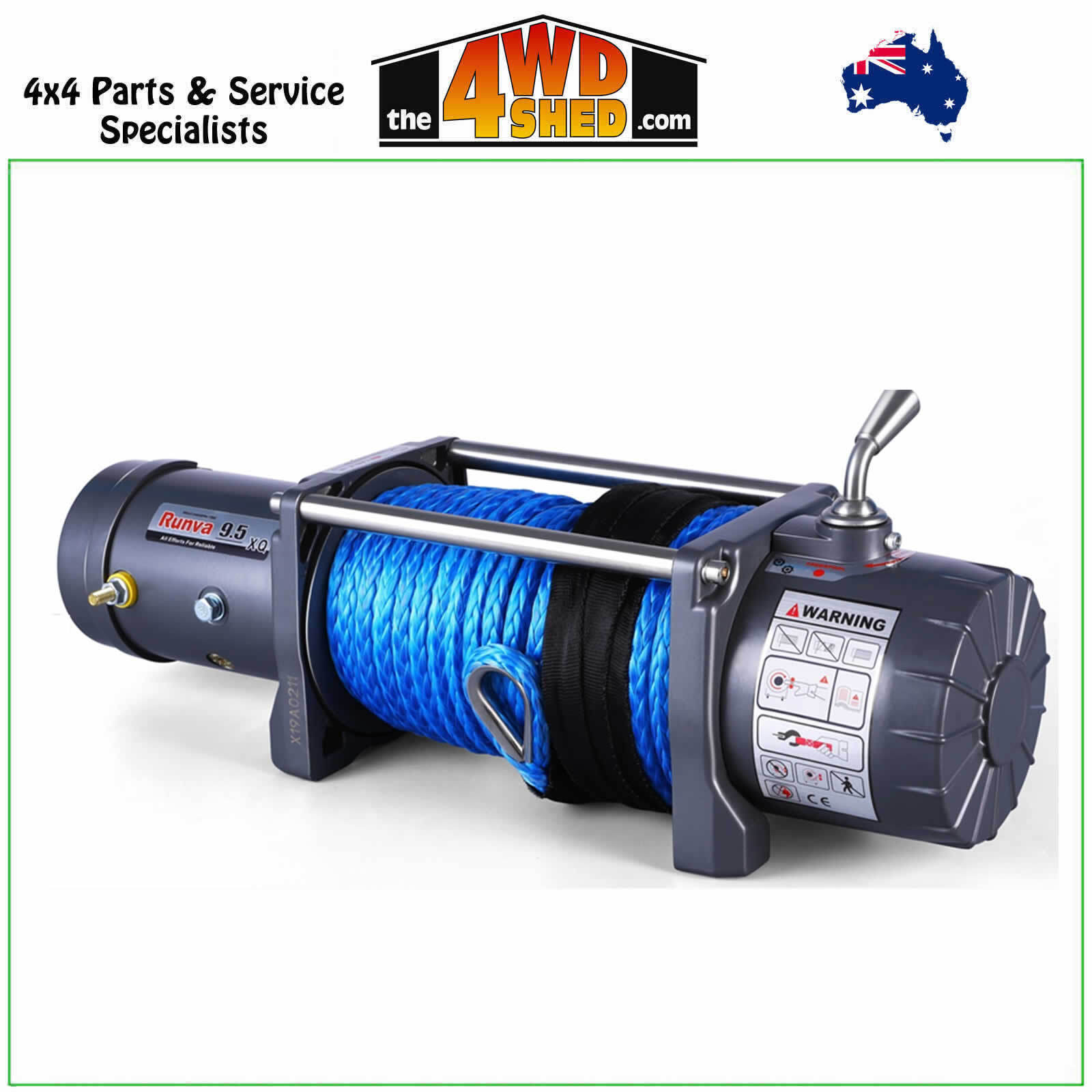

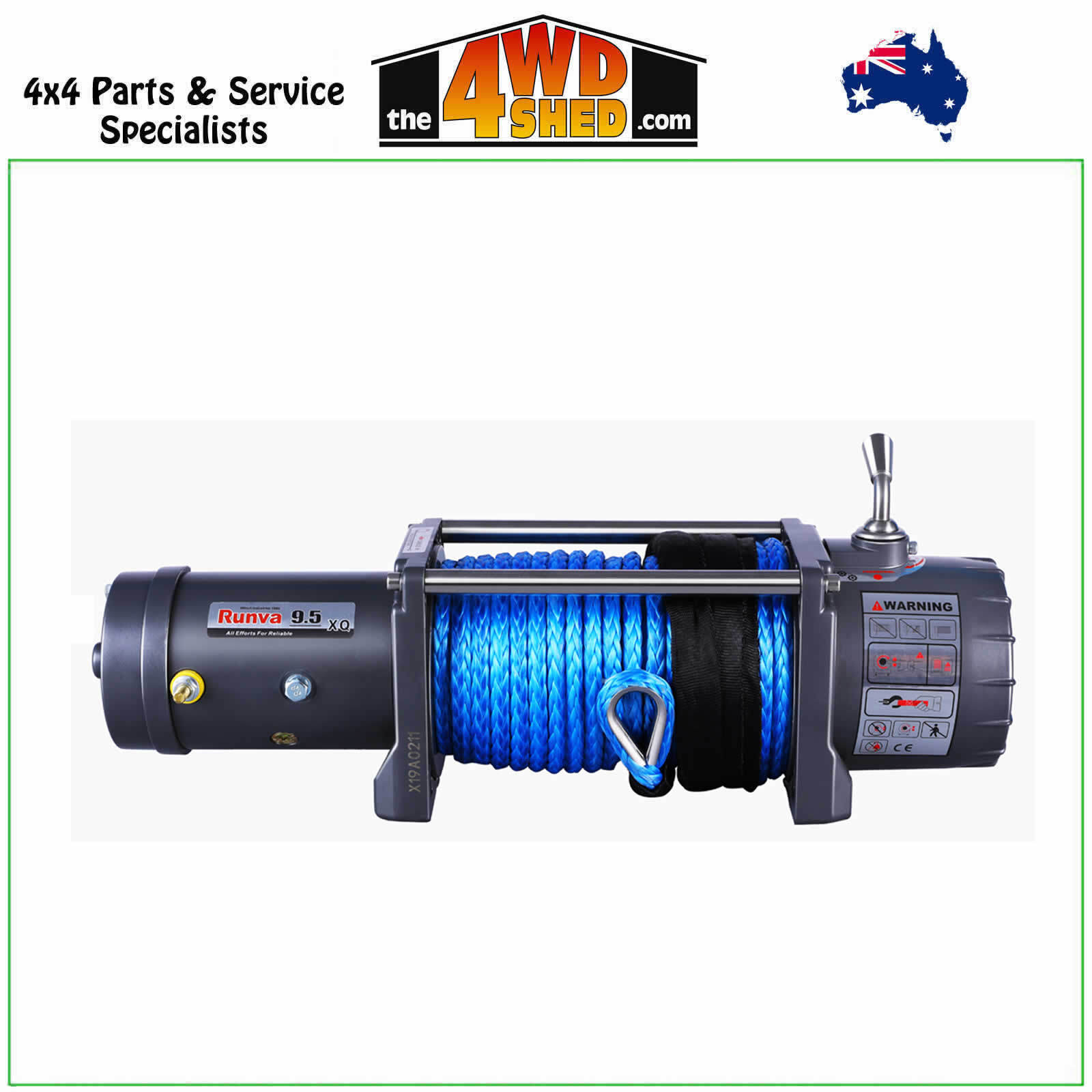

Runva EWX9500-Q 12V EVO with Synthetic Rope

Competition proven in the harshest terrain around Australasia, this winch is sure to impress. Designed for speed and power.

The drum diameter on this model is larger than all the others for increased line speed. You need to use a minimum battery size of 1000CCA with this winch.

Package includes:

Winch with Dyneema Winch Rope
Solenoid (12V/600A or 24V/400A)
Heavy Duty 1.8m Battery Leads
Heavy Duty Leads from Solenoid to Winch Motor
3.7m Handheld Remote
Wireless Remote
Aluminium Hawse Fairlead
Clevis Style Safety Hook
Mounting Bolts

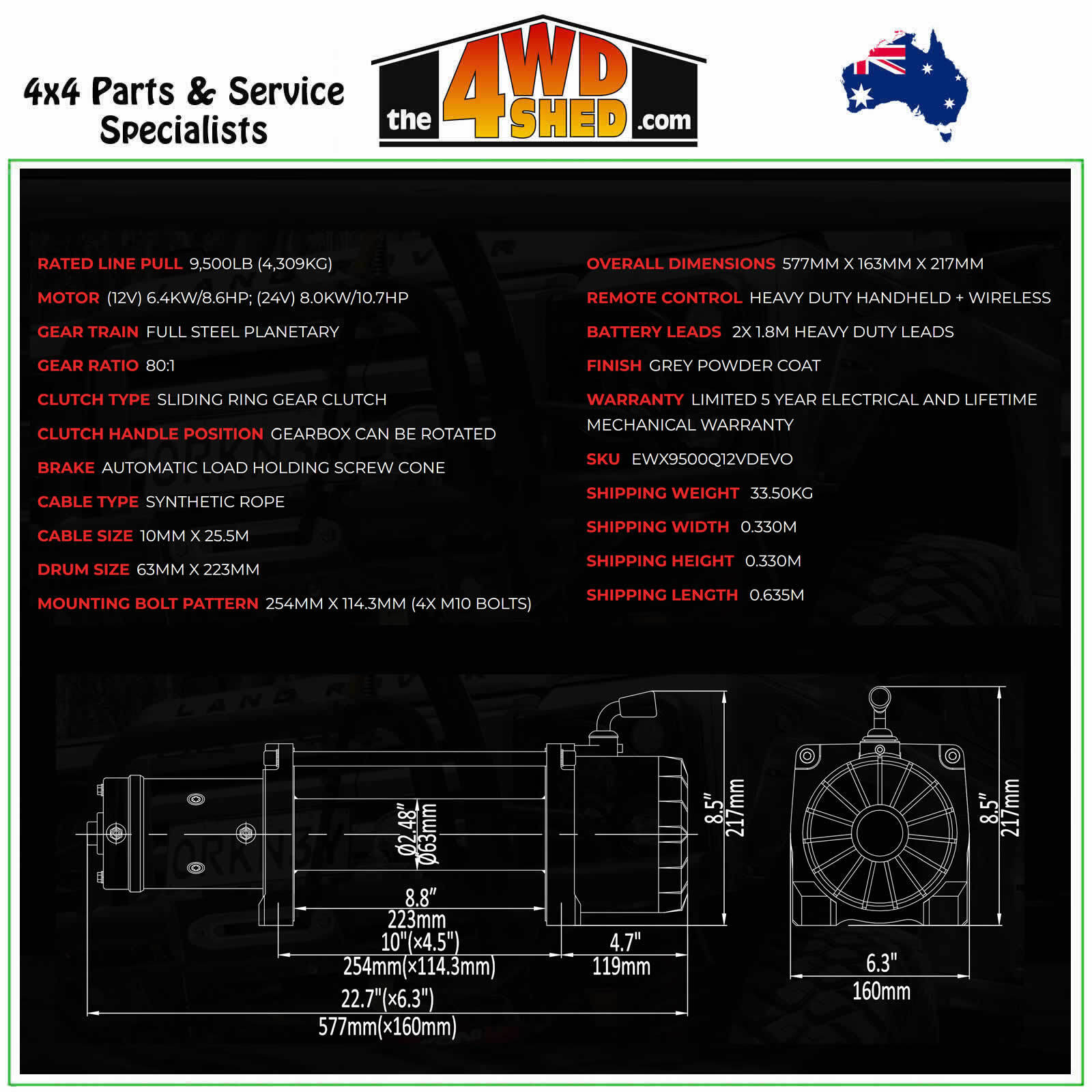

Specifications:

RATED LINE PULL 9500LB (4309KG)
MOTOR SERIES WOUND (12V) 6.4KW/8.6HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 80:1 – EXTRA LOW FOR EXTRA SPEED
BRAKE AUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 26.5M
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 577MM X 163MM X 217MM
REMOTE CONTROL 3.7M HANDHELD REMOTE/WIRELESS REMOTE
BATTERY LEADS ALL FACTORY SUPPLIED CABLES MUST BE UPGRADED TO A MINIMUM SIZE OF 70MM2
FINISH GREY POWDER COAT
NET WEIGHT 31kG
GROSS WEIGHT 33KG (INCLUDES PACKAGING)
WARRANTY LIMITED LIFETIME

*8000lb Rated Line Pull with standard electrical cables.

To achieve 9500lb Rated Line Pull, we recommend all the electrical cables be upgraded to 70mm².

Fitting of Runva products can be done in our workshop located in Bayswater, Vic Additional costs may apply.

The 4WD Shed is an Authorised Dealer for Runva Winches & Accessories

**Free shipping may exclude some regional and remote areas, please contact us PRIOR to purchase to check eligibility specifically customers from Western Australia, Northern QLD & Northern Territory**

Line pull	Line speed ft/min (m/min)		Current draw Amps (max)		Layer of Cable	Rated line pull Per layer lb’s (kg)
lb	DC 12V	DC 24V	DC 12V	DC 24V
0	67.5 (20.6)	70.5 (21.5)	75	50	1	8000 (3629)
4000	32.3 (8.2)	33.8 (8.6)	430	340	2	6529 (2962)
6000	24.8 (6.3)	26.6 (6.7)	520	400	3	5515 (2502)
8000	17.7 (5.4)	18.7 (5.7)	580	450	4	4773 (2165)
