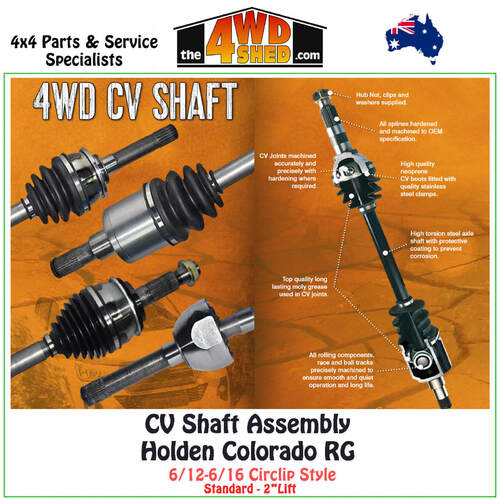

CV Shaft Assembly Holden Colorado RG 6/2012-6/2016 Lifted Vehicles (Circlip Style)
Length: 625mm OEM Length Fitment: Suits Standard Height - 2" Lift
*This is for a SINGLE CV Shaft Assembly to suit Left or Right-hand side.
Please Note: Earlier models have a Circlip type CV assembly (this one being sold) the later models have a nut (this will not suit) Be sure to check your vehicle before purchasing.
Roadsafe CV Shaft Assemblies are manufactured using "high quality" CV Joints, Boots and Axles etc. All components are machined on the latest CNC equipment using top quality materials and coatings which will ensure long life and reliable performance in all conditions.
The CV Joint Boots used on the GSP CV Joints are made from quality Neoprene which lasts much longer than the standard rubber boots many other manufacturers use.
Roadsafe CV Shafts are tested for shear & load strength and also have a rust preventative coating.
Our Roadsafe CV Shafts assemblies are supplied complete to include all necessary hardware and are guaranteed to fit correctly as per OEM Specs.
To suit
- Holden Colorado RG 6/2012-6/2016
Fitment
- Left (Passenger)
- Right (Driver)
Transmission
- Manual Trans
Features
- CV joints machined accurately and precisely with hardening where required.
- High torsion steel axle shaft with protective coating to prevent corrosion.
- All rolling components, race and ball tracks precisely machined to ensure smooth and quiet operation and long life
- All splines hardened and machined to OEM spec
- High quality neoprene CV boots fitted with quality stainless steel clamps.
- Top quality long lasting moly grease used in CV joints
- 12 month (20,000km) warranty
12 month (20,000km) warranty. Guaranteed to fit correctly as per OEM specifications. CV Shaft assemblies include necessary hardware. Full technical support Australia wide.
The 4WD Shed is an Authorised Stockist of Roadsafe 4WD
driveshaft geometry in the vehicle. The CV joints must be inspected after the driveshaft is fitted to ensure the joints do not bind, over-extend or bottom-out from the suspension lift. This can be achieved by removing the nut or circlip retaining the outer CV joint to the hub and pushing it back towards the differential while the vehicle is on level ground. There should be around 25mm of movement before the inner joint bottoms out. The CV boots must also be inspected and adjusted if required with the wheels on level ground to prevent the bellows from rubbing each other. Failure to follow these precautions may result in CV joint or boot failure which will not be covered by warranty.
*A professional fitter is recommended when fitting CVs to avoid tearing of the rubber boot or damage to the shaft either during the installation or when in use after installation. Warranty of damage caused by self fitment may not be processed.
(RCVS.384S)
SKU | RCVS.384S |
Barcode # | 9319478680494 |
Brand | RoadSafe 4WD |
Shipping Weight | 8.9000kg |
