20 Amp Solar Regulator

$139.00

More info.

Make 4 interest-free payments of $34.75



In Stock


Calculate Shipping

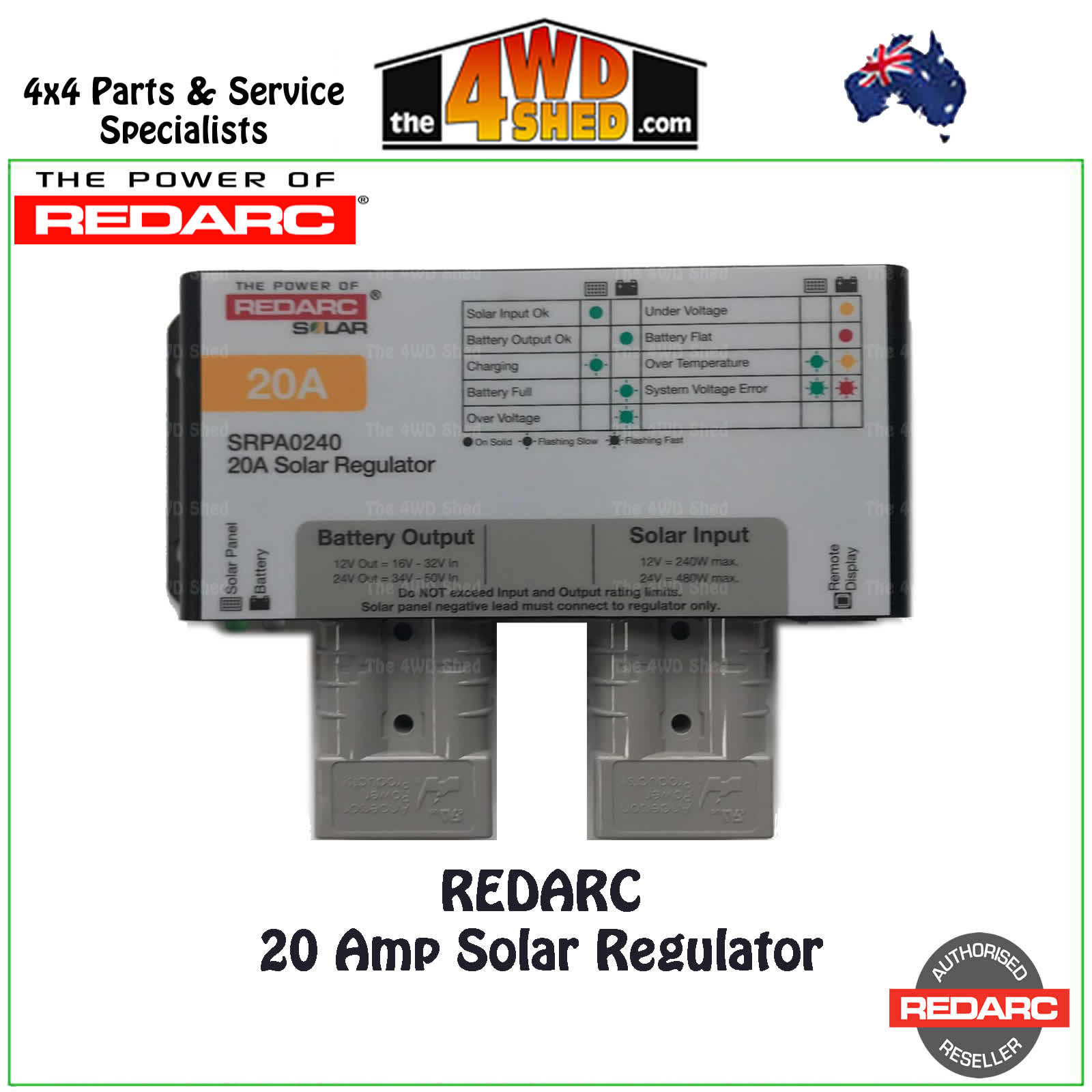

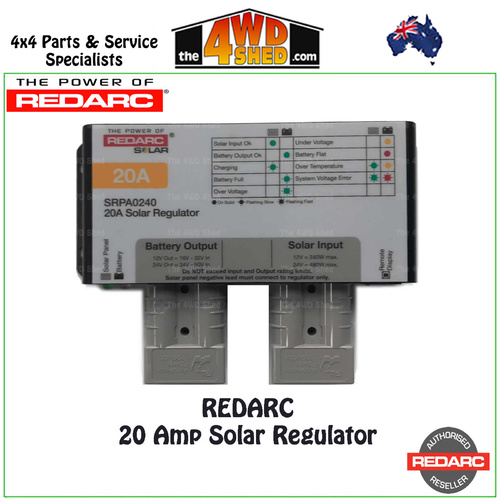

20 Amp Solar Regulator

The REDARC 20A Solar Regulator ensures the correct charge is supplied safely and efficiently to charge an auxiliary battery. Available with Anderson™ SB™50 connectors.

REDARC’S newly designed 20 Amp Solar Regulator comes with the Anderson™ SB™50 connectors and works with the 150W and 190W SunPower® cell blanket. REDARC’s 20 Amp Solar Regulator acts as the go between to transfer power generated from solar panels to the battery.

Featuring multistage charging; boost, absorption and float, REDARC’s 20 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.

It will work with multiple chemistry batteries including AGM, Standard and Calcium*, and is ideal for permanent installation or portable systems, and has multiple levels of protection including over temperature, over charge and reverse polarity.

What’s more set up is now even easier thanks to genuine industry standard Anderson™ SB™50 connectors. These high quality Anderson™ plugs are simple and fast to connect with no screw terminals and no risk of poor connections from frayed wires or loose terminals – just plug and play!

*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.

Features

  • Multi-stage charging- boost, absorption, and float
  • Works with multiple battery types (REDARC Solar Remote Monitor required)
  • Ideal for permanent installation or portable systems
  • Multiple levels of protection – over temperature, over charge, reverse polarity
  • Genuine Industry Standard Anderson™ SB™50 plug connection

The 4WD Shed is an Authorized Online Reseller for Redarc.

We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply

Input (Operating) Voltage 12V/24V
Maximum Power Rating 240/480W
Output Current Rating (Cont.) 20A
Charge Type PWM 50Hz
Waterproof IP rating Yes - IP55
Operating Temperature -35°C to +55°C
Height (mm) 28
Length (mm) 153
Width (mm) 103
Weight (kg) 0.52
Warranty 2 Years

(SRPA0240)

SKU SRPA0240
Brand Redarc
Shipping Weight 0.5000kg
