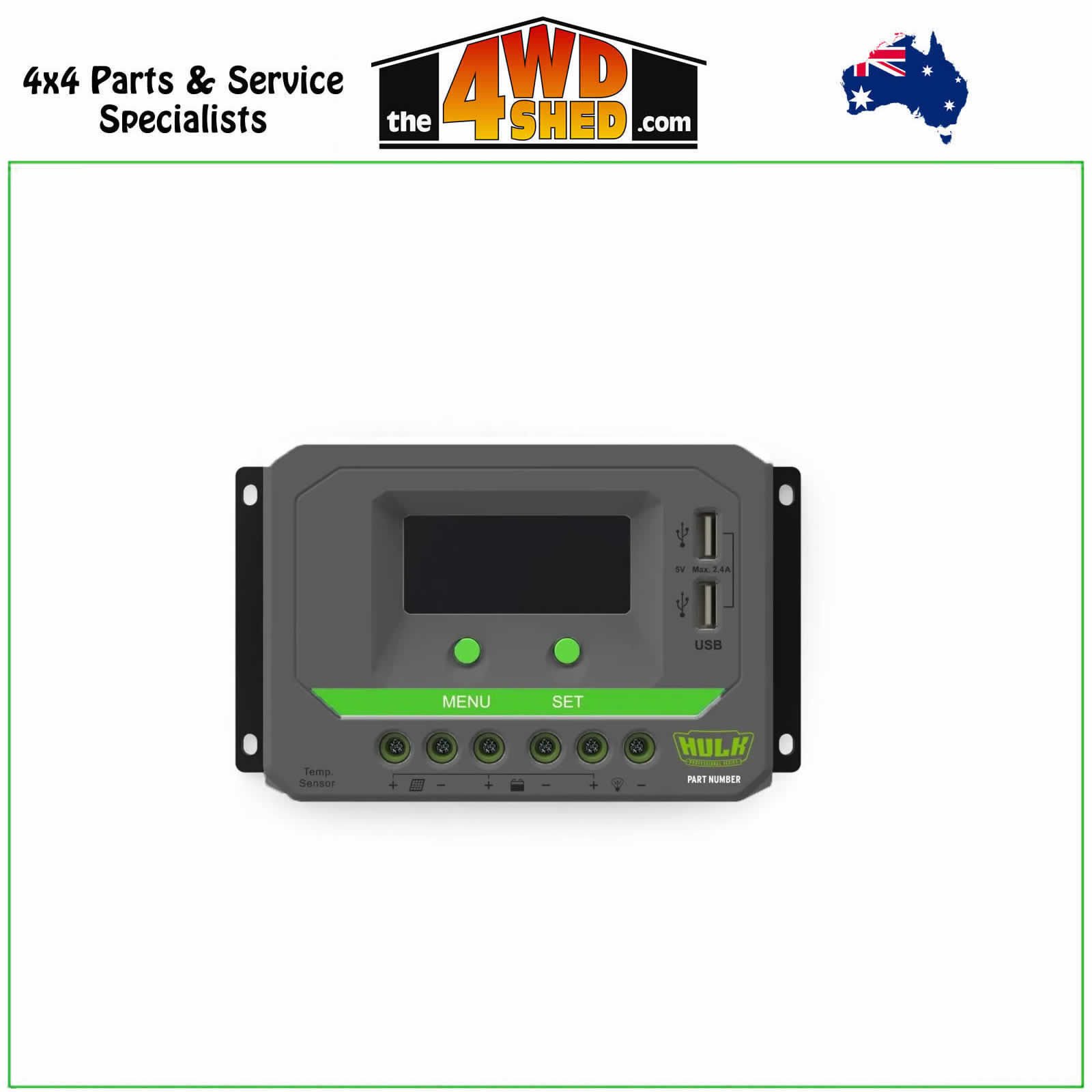

30A PWM Solar Charge Controller

The HULK Professional Series Solar Charge Controllers offer efficient solar power management and reliable performance for all types of charging needs.

The HULK Professional Series Solar Charge Controller range offers both PWM and MPPT controllers. The PWM controllers are available in 30 Amp and 60 Amp configurations and feature a built-in LCD display, multiple load control modes, and high-quality components for enhanced durability. They also have extensive electronic protection and support various battery types.

The MPPT controllers utilise an advanced algorithm for maximum power point tracking and are available in 20 Amp and 40 Amp configurations. They have increased energy utilisation compared to PWM charging and offer self-adaptive three-stage charging and comprehensive electronic protection. The MPPT controllers are suitable for various applications and offer programmable temperature compensation and real-time energy statistics.

The HULK Professional Series Solar Controller utilises advanced MPPT control algorithm to maximise the energy from your solar array under any conditions. Compared to the PWM charging method, it can increase the ratio of energy utilisation by 20% - 30%. In high-temperature environments, the controller limits the charging power and current, and reduces charging power functions to ensure stability in high-temperature environments. CE certified with IP33 ingress protection and isolated RS485 design, it offers improved reliability and meets diverse application requirements. Equipped with a self-adaptive three-stage charging mode, this controller prolongs battery lifespan and improves system performance. Comprehensive electronic protection safeguards against overcharge, over-discharge, PV & battery reverse polarity, and more, ensuring a reliable and durable solar system.

Features

• Utilises high-quality components from ST, IR, and Infineon for extended product lifespan
• UL and VDE certified terminals ensure safety and reliability
• Can operate continuously at full load within a temperature range of -25 to 55°C
• 3-Stage intelligent PWM charging mechanism for efficient charging
• Supports 3 charging options: Sealed, Gel, and Flooded batteries
• Provides extensive electronic protection for enhanced safety

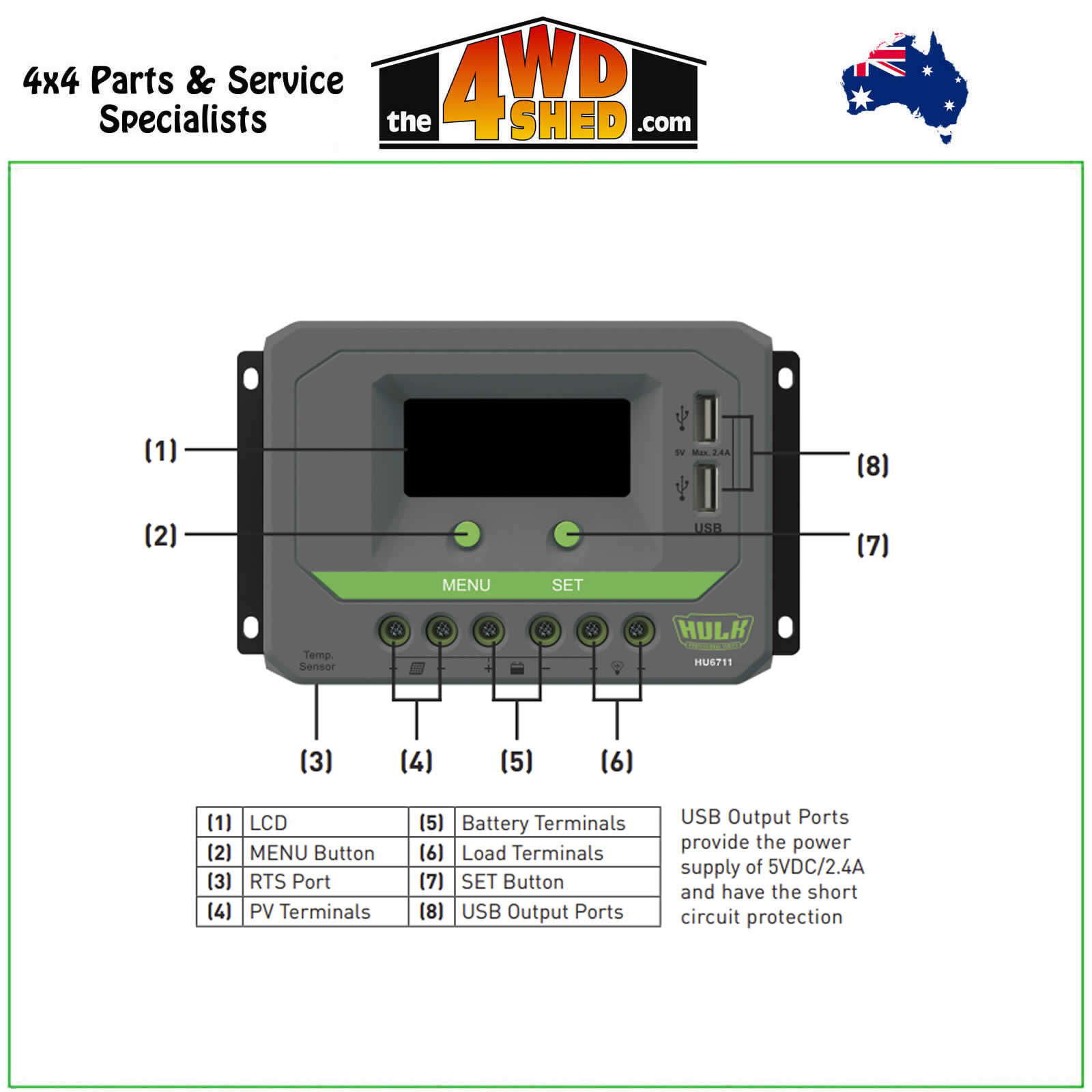

• Backlit LCD display shows operating data and working conditions in real time
• Dual USB ports with 2.4A output for charging electronic devices
• Multiple load control modes for versatility
• Energy statistics function for monitoring power usage
• Battery temperature compensation for improved performance

Additional features include selectable battery type, and compatibility with 12V, 24V, 36V, and 48V systems. The controller also offers electronic protections against various faults, including reverse polarity, overvoltage, over discharge, short circuit, overload, and overheating.

The 4WD Shed is an Authorised Stockist of Hulk 4x4

* The above parameters are in the 12V system at 25°C, twice in the 24V system, triple in the 36V system and quadruple in the 48V in system.
