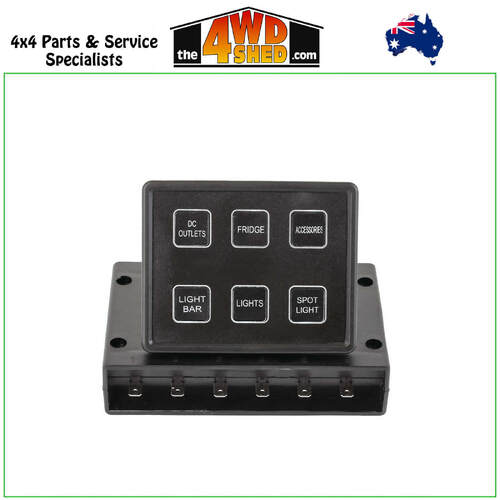

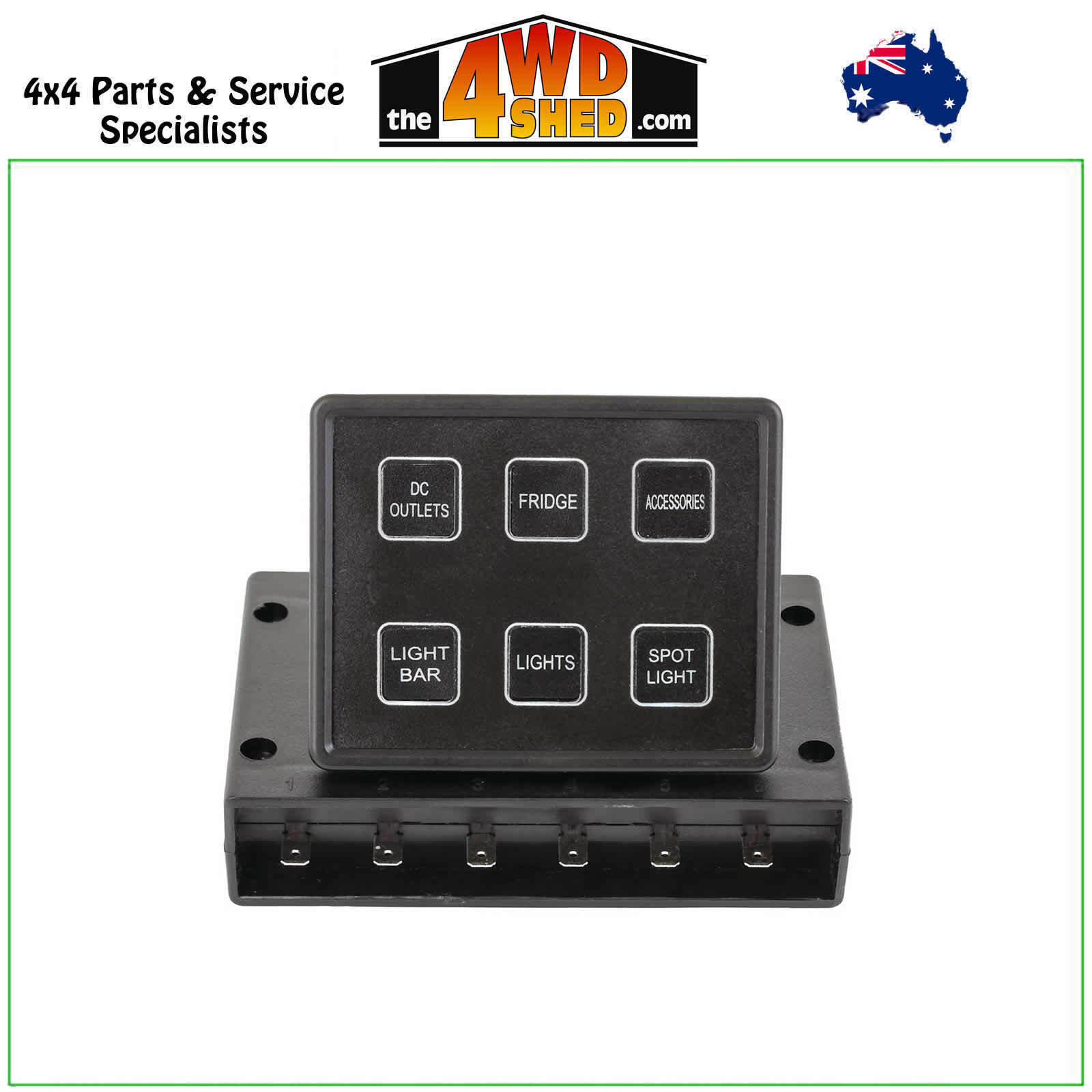

6 Way 12/24v Switch Touch Panel Control Box
More infoThunder 6 Way 12/24v Switch Touch Panel Control Box
Limited Stock Only
An easy to mount and simple to connect 6 way switch panel with single power input and 6 circuit protected outputs. It has a remote stick-on and waterproof switch face| 1m VGA lead and reverse polarity| overvoltage and overcurrent protection.
• 12/24V input voltage, 60A
• 1,200W maximum power for 24V, 600W maximum power for 12V
• Reverse polarity, over voltage and overcurrent protection
• IP65 environmental rating
• Blue LED background illumination
Contains:
- Switch control box
- Switch panel
- Brackets
- Wiring harnesses
- Ties
- Voltage protection 80A switch
- Self-adhesive decal labels

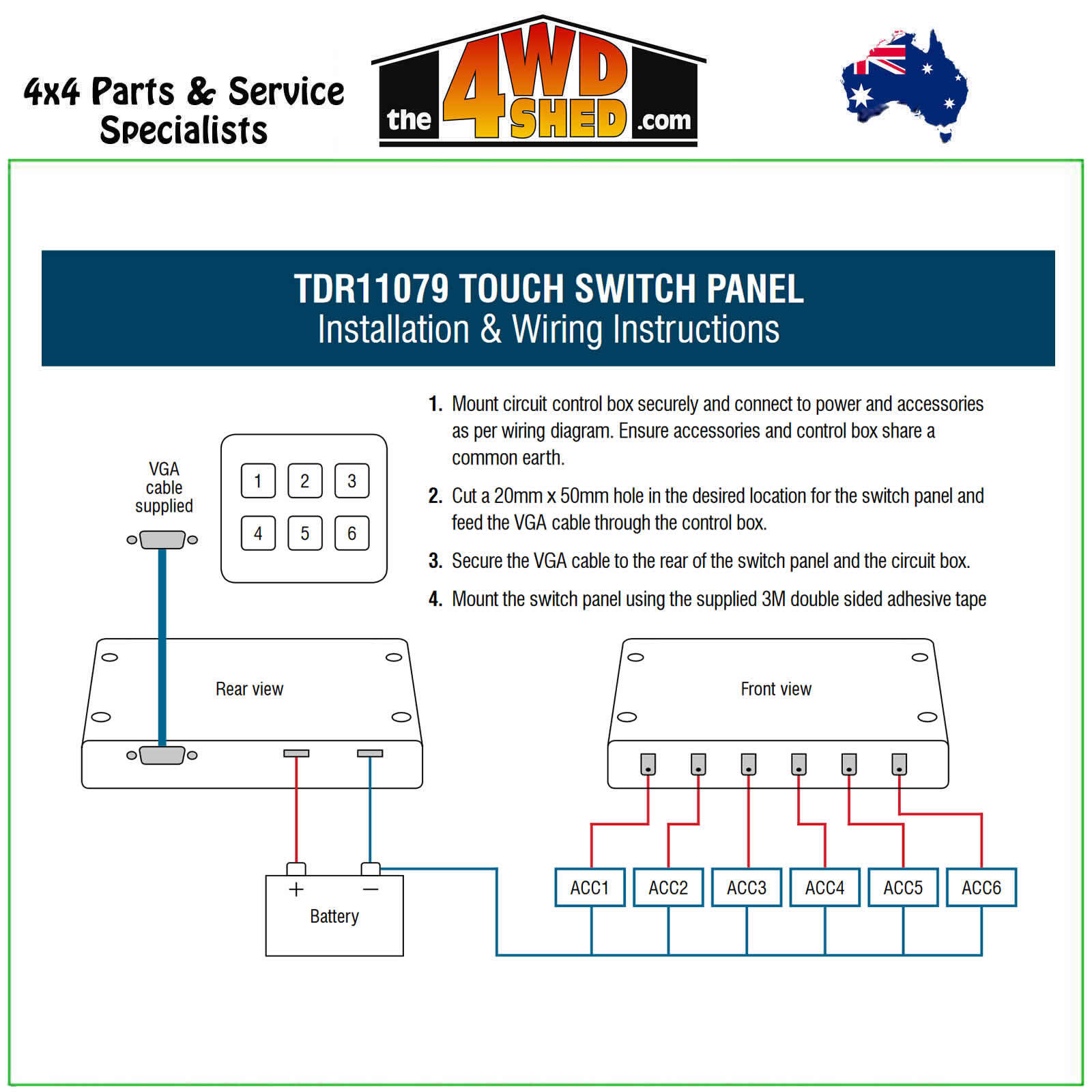

- Wiring diagram
Specifications:
- Voltage: 12V
- Power Rating: 10A x 6
- Base Depth: 137mm
- Base Width: 105mm
- Base Height: 85mm
- Base Weight: 0.2kg
- Switch Illumination: Blue LED
(TDR11079)
| SKU | TDR11079 |
| Brand | The 4WD Shed |
| Shipping Weight | 1.5000kg |
