7" Round LED Headlight - EACH

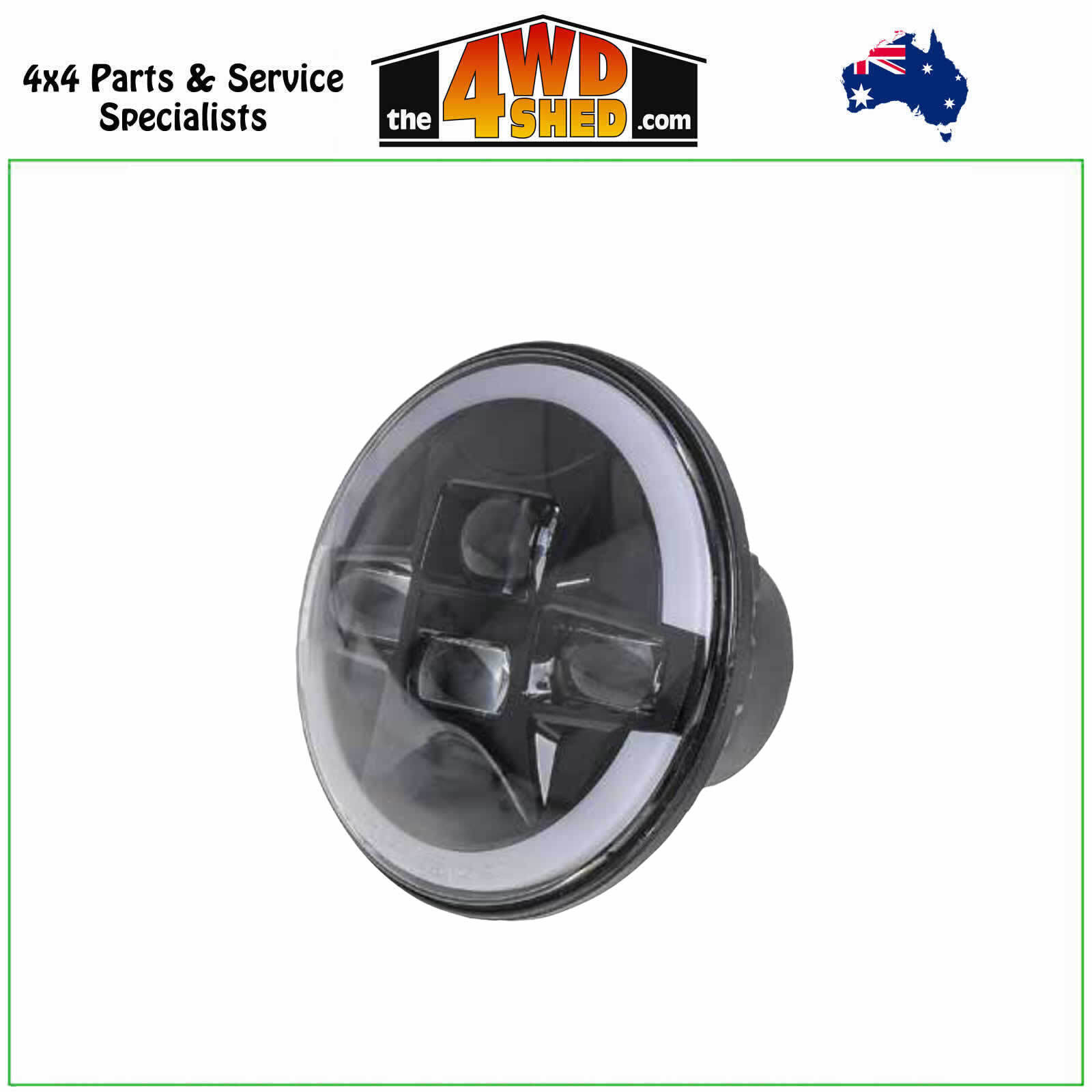

Drivetech 4x4 7-inch Round LED Headlight

4WD enthusiasts and truck drivers are in need for greater visibility on and off the road. Drivetech 4x4’s 7" LED Headlight fits in existing 7" round housings/buckets, incorporating high, low, park and indicator lights in one sealed, ADR approved unit.

ADR approved for on road use, fully sealed to IP67 with a polycarbonate lens. High quality aluminium housing allows for cool operation and longer operating life. Can be used for both CAN Bus and negative switching applications.

Features

• 7 Inch Headlight
• 6000K Colour Temperature
• H4 Connector, High/Low Beam

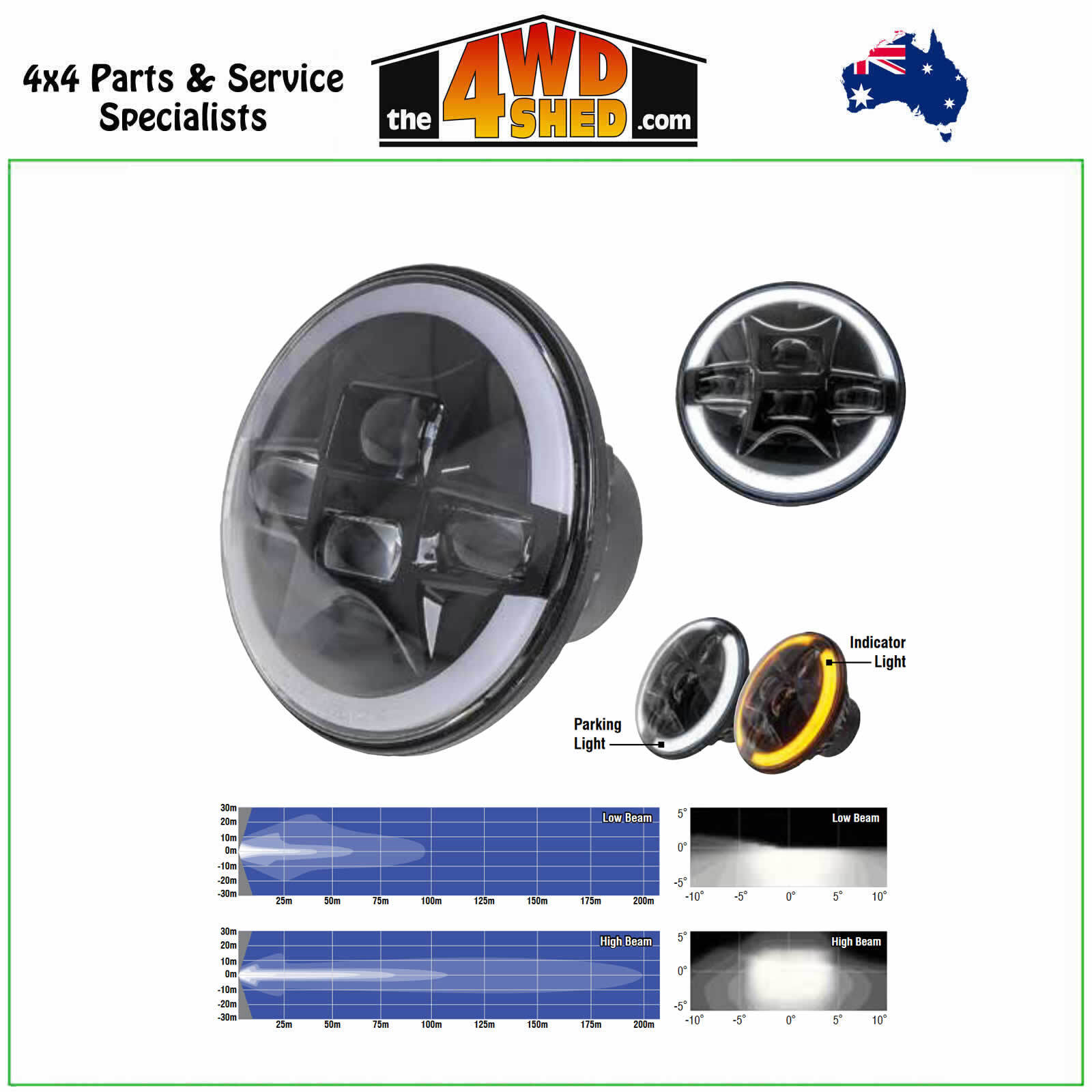

• Integrated Park Light and Indicator
• 12/24V Compatible
• IP67 Rated
• ADR Approved
• 3 Year Warranty

Specifications
Watts

• 40W (High beam)
• 30W (Low beam)

Volts

• 12V/24V

Current

• 2.70A @ 12V, 1.38A @ 24V (High beam)
• 1.91A @ 12V 1.01A @ 24V (Low beam)
• 0.58A @ 12V, 0.31A @ 24V (Parking light)
• 0.58A @ 12V, 0.31A @ 24V (Indicator)

Size (LxDxHmm)

• 177x177x116mm

Colour Temperature

• 6,000K

Lens Material

• Polycarbonate

Body Material

• Aluminium

Connection

• H4

Environmental

• IP67

Warranty

• 3 Year

Note Comes with module for negative switching and CAN Bus controlled headlights

Sold as EACH
