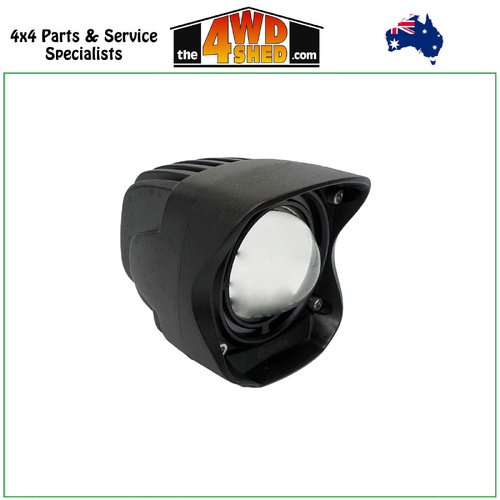

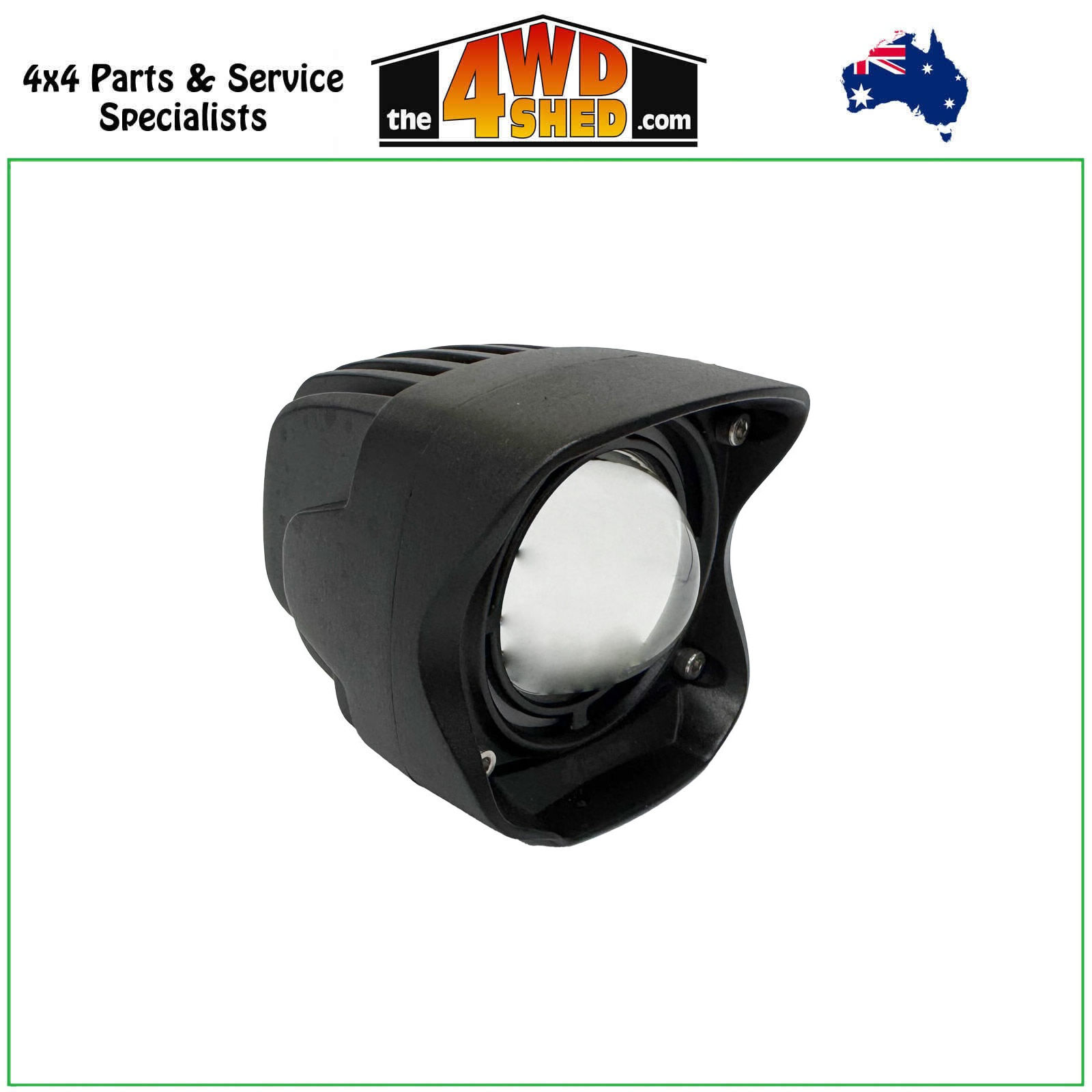

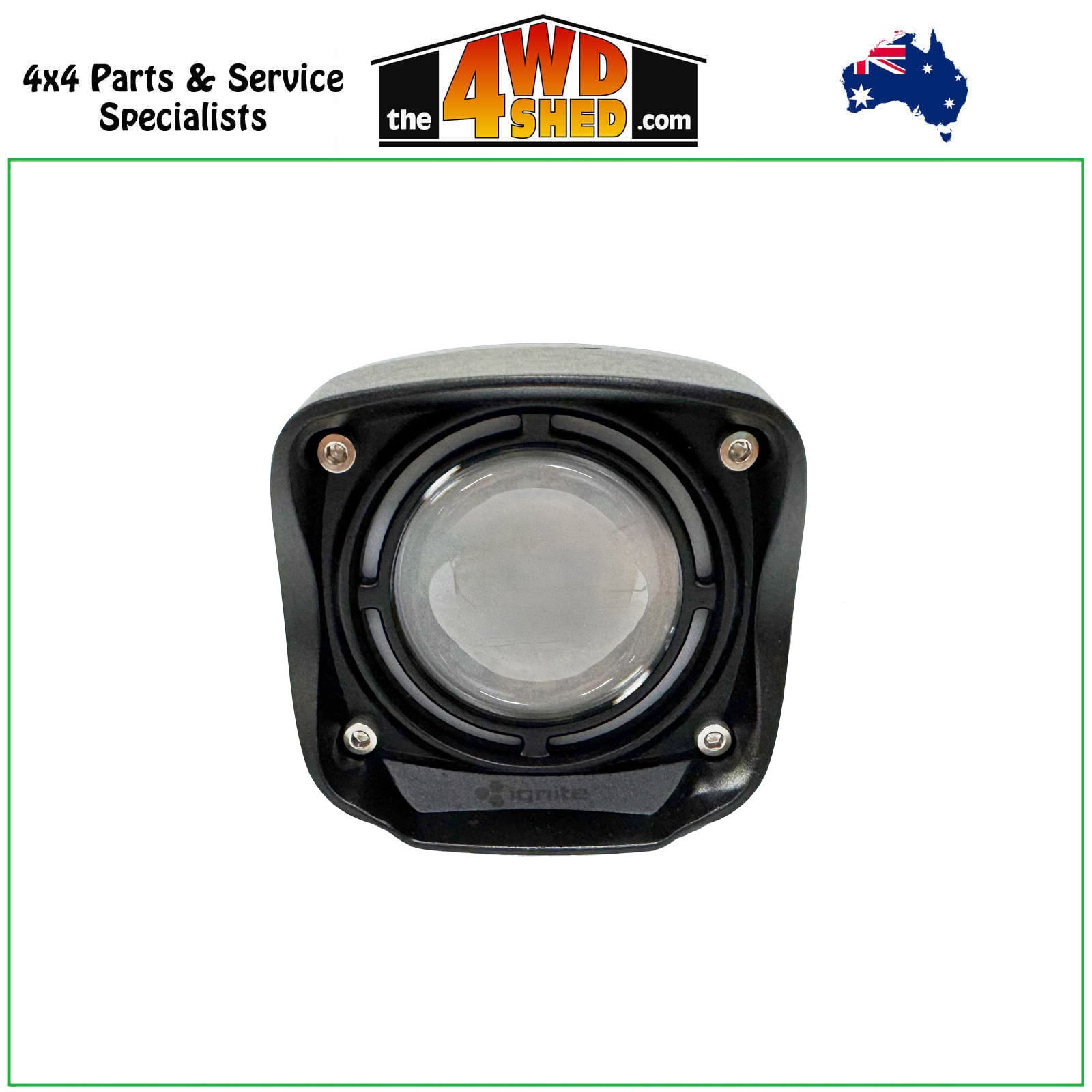

Alpha Miniature LED Tri Colour 36W Driving Light 3.6" - Single
More infoAlpha Miniature LED Tri Colour 36W Driving Light 3.6" - Single
The Ignite Miniature LED Driving Light is built for compact mounting locations where strong long-range visibility is still required. Small in size but engineered to perform, this 3.6" single led driving light delivers a focused spot beam, durable construction and a built-in tri-colour position lamp.
The integrated position lamp can be set to white, amber or blue using a momentary switch, then retains the selected colour on the next power-up. It can also be left unwired where the position lamp is not required.
Features
- 36W main light output with 3,500 lm raw lumens
- 346 m beam reach at 1 Lux
- 8° Spot (Pencil) beam pattern
- Tri-colour position lamp: white, amber or blue
- 9-36V DC multi-volt operation
- Black powder coated die cast aluminium alloy housing
- Lexan polycarbonate lens
- 500mm lead with 4 pin Deutsch plug
- IP68 rated with 20G shock resistance
- ECE R149, ECE R10, CE and RoHS approvals
Specifications
- Effective lumens: 1,800 lm
- Peak beam intensity: 120,000 cd
- Colour temperature: 5,700K
- Main draw: 3.06A @ 12V / 1.53A @ 24V
- Position light LEDs: 8 x 0.4W SMD
- Position draw: 0.33A @ 12V / 0.16A @ 24V
- Dimensions: 97.3 mm W x 89.3 mm H x 58.8 mm D
- Weight: 760 g
- Operating temperature: -40°C to +60°C
- LED lifespan: 50,000 hours
- Warranty: 3 years
(IDL0136S)
| SKU | IDL0136S |
| Brand | Ignite |
| Shipping Weight | 1.3000kg |
