Upper Control Arm Lift Correction Kit Mitsubishi Triton MQ MR


More info.

Make 4 interest-free payments of $256.28

In Stock

Calculate Shipping

1 x Upper Control Arm Lift Correction Kit Mitsubishi Triton MQ MR delivered to , AU

Collect from our Bayswater VIC Store - $0.00
We will call when item is ready for Pick Up

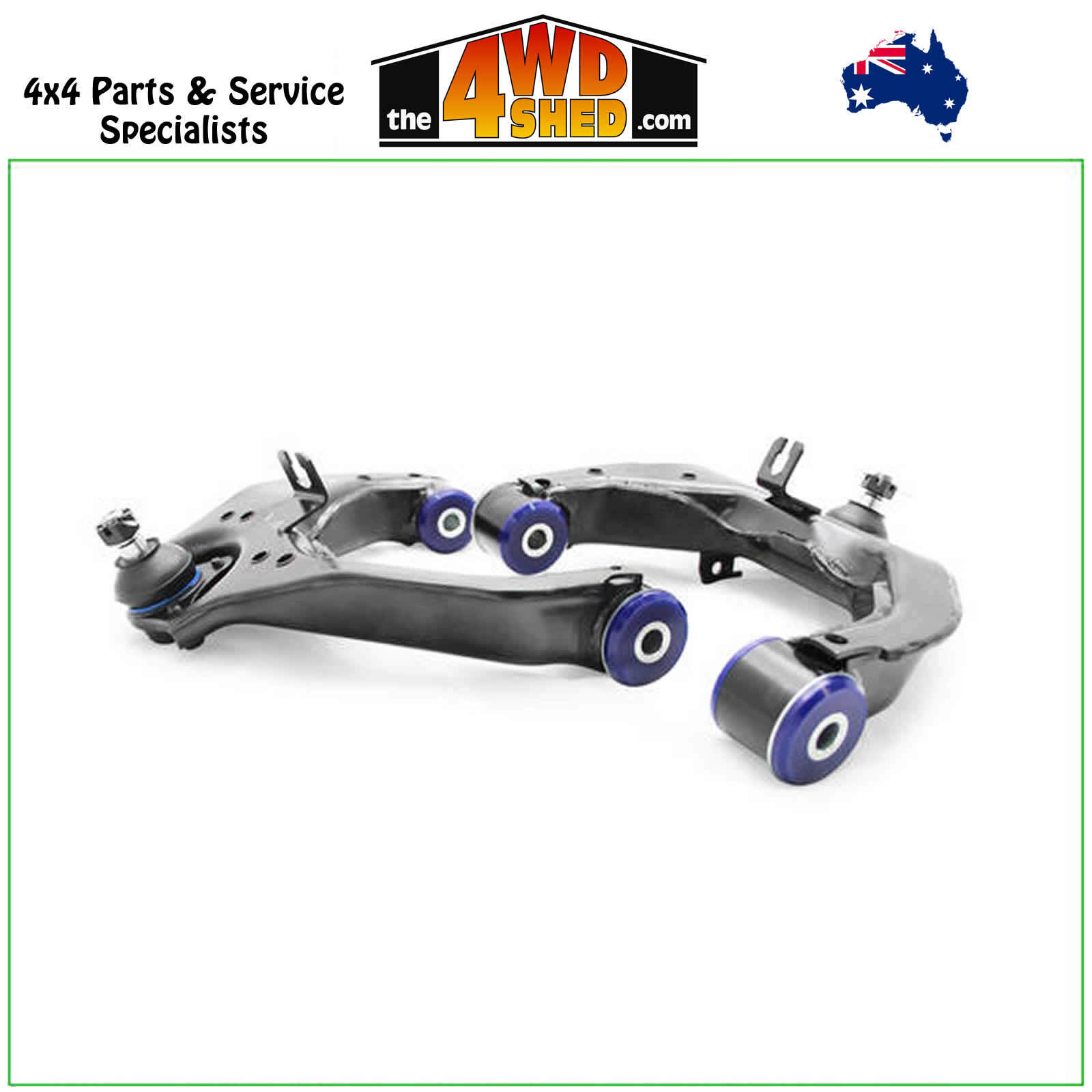

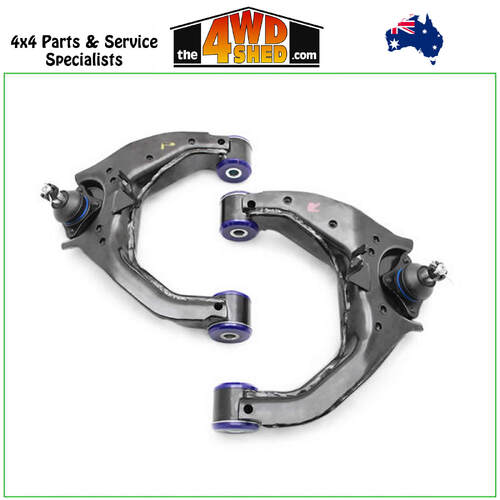

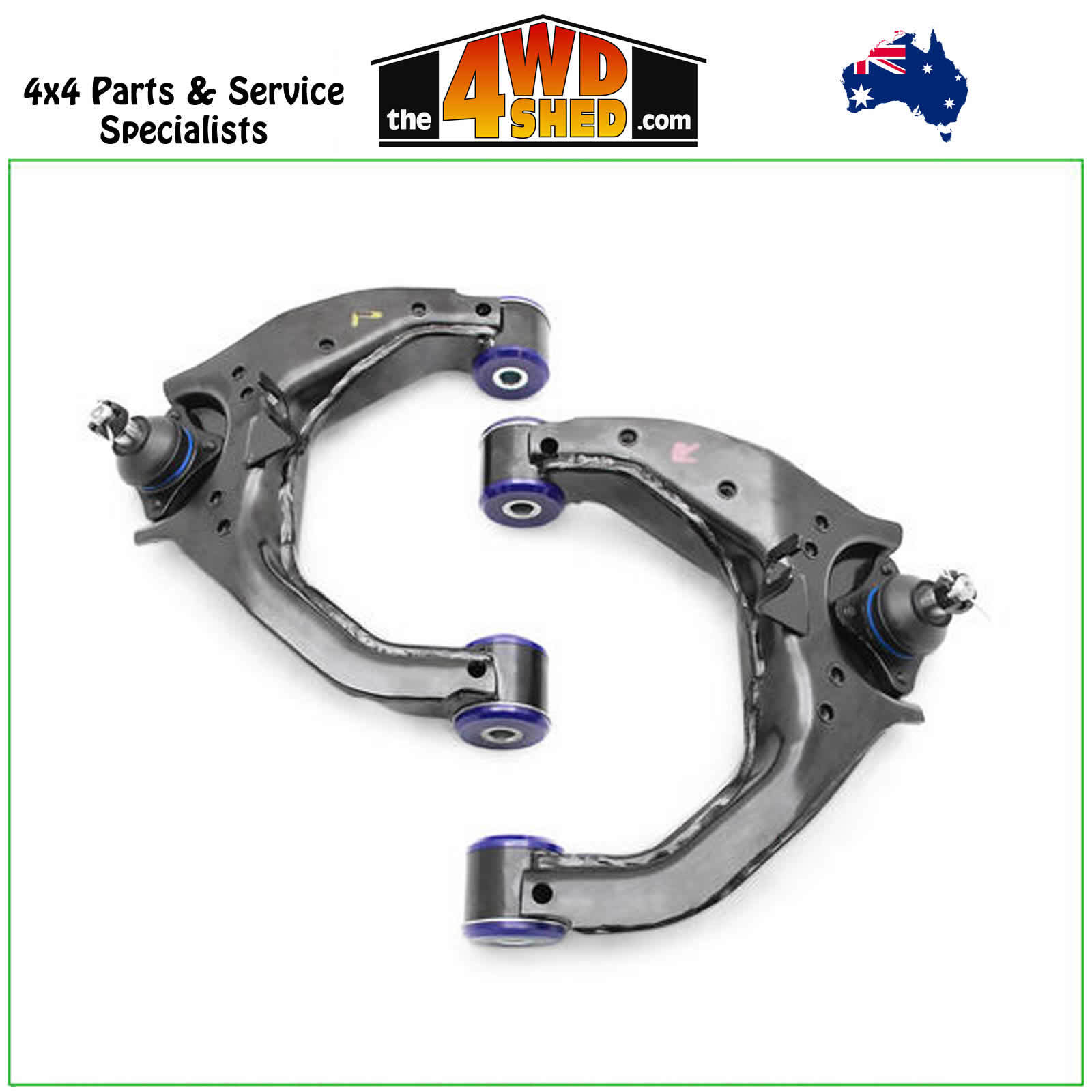

SuperPro Control Arm Upper Complete Assembly - TRC501

There must be at least 30mm of clearance between the droop stop and the chassis at ride height to avoid any damage to the arms. Left and Right Arms for Lifted Vehicles with Caster and Camber Correction Headlight sensor bracket on RH Arm

Product Specifications:

  • Components Per Product: 2ARMS

Vehicle Application Information:

  • Based on a standard 2" lift - Approx 2 degrees of caster and approx an extra 1.5 degrees of camber

Suits Vehicles with Headlight Sensor.

Arms fitted with Uprated Ball joints and SuperPro Bushes to reduce Arm movement.

Droop Stop included.

Getting the correct alignment is no longer a problem. Not only do these arms provide for better wheel alignment settings, they have been designed to include increased droop and clearance between the arm and strut. These arms deliver up to 2 degree of caster along with extra camber, allowing for the optimum alignment settings for a 2" lifted vehicle.

Key Features
  • In-built camber and caster change to suit lifted vehicle
  • In-built droop increase of approx. 10mm
  • Extra Droop clearance with included SuperPro shortened Droop Stop
  • Increased clearance between spring and Control Arm at full articulation
  • OE quality ball joint
  • SuperPro Bushings
  • Made in Australia


  • Fitting Time [min.]: 180
  • Fitting Position: Front
  • Axle alignment required after fitting
  • Fitting Difficulty: difficult

When you get a lift kit installed, you deserve the best. Why do half the job correcting your wheel alignment with a control arm that only offers static caster correction? Get the job done properly with SuperPros fully adjustable 4x4 control arms! Our arms come with complete camber and caster control. Designed to give your 4WD the best wheel alignment settings and increased clearance.

The modern trend to fit accessories, larger tyres, rims and suspension lift kits to the modern 4 X 4 has exposed the lack of Camber and, particularly, Caster Adjustment required to return the suspension geometry to OEM settings.

This leads to undesirable handling and driveability issues such as wandering all over the road, uneven and premature tyre wear, along with the steering wheel vibrations. SuperPro Roll Control Arms are manufactured from a hybrid of high stress, cold formed steel tube and forged steel, with an adjustable position Ball Joint and are fitted with SuperPro bushes


Brand SuperPro
Shipping Weight 8.3000kg
