Diff Drop Kit - 300 Series Toyota Landcruiser

When lifting the 300 series cruiser, the Constant Velocity (CV) joints are put on an increased angle. This  increased angle of the CV joint during operation can accelerate the wear on the joint, as well as putting  additional stress on the CV boots leading to splitting and eventually premature failure of the CV. The wear  is accelerated further if larger (wider) wheels and tyres are fitted.

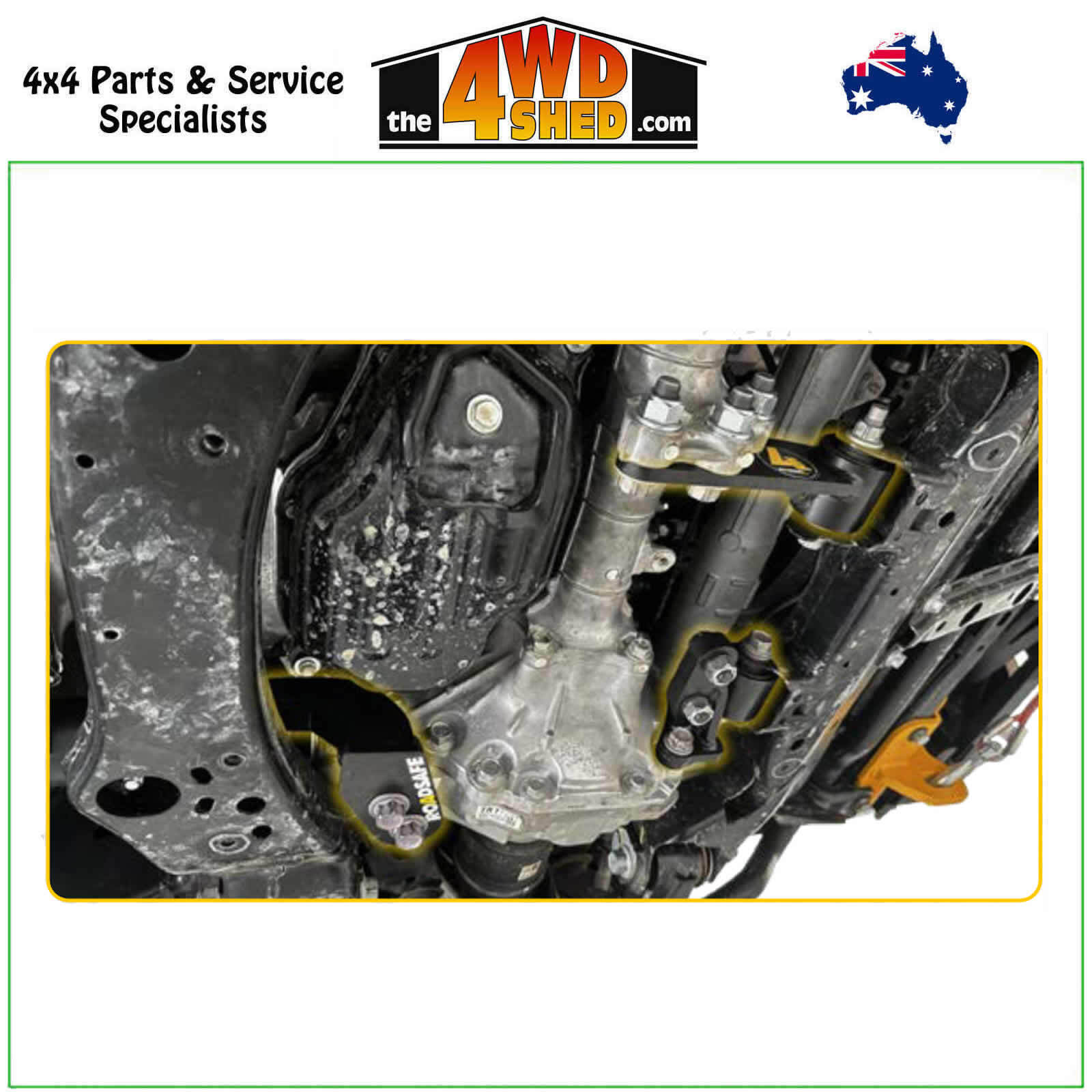

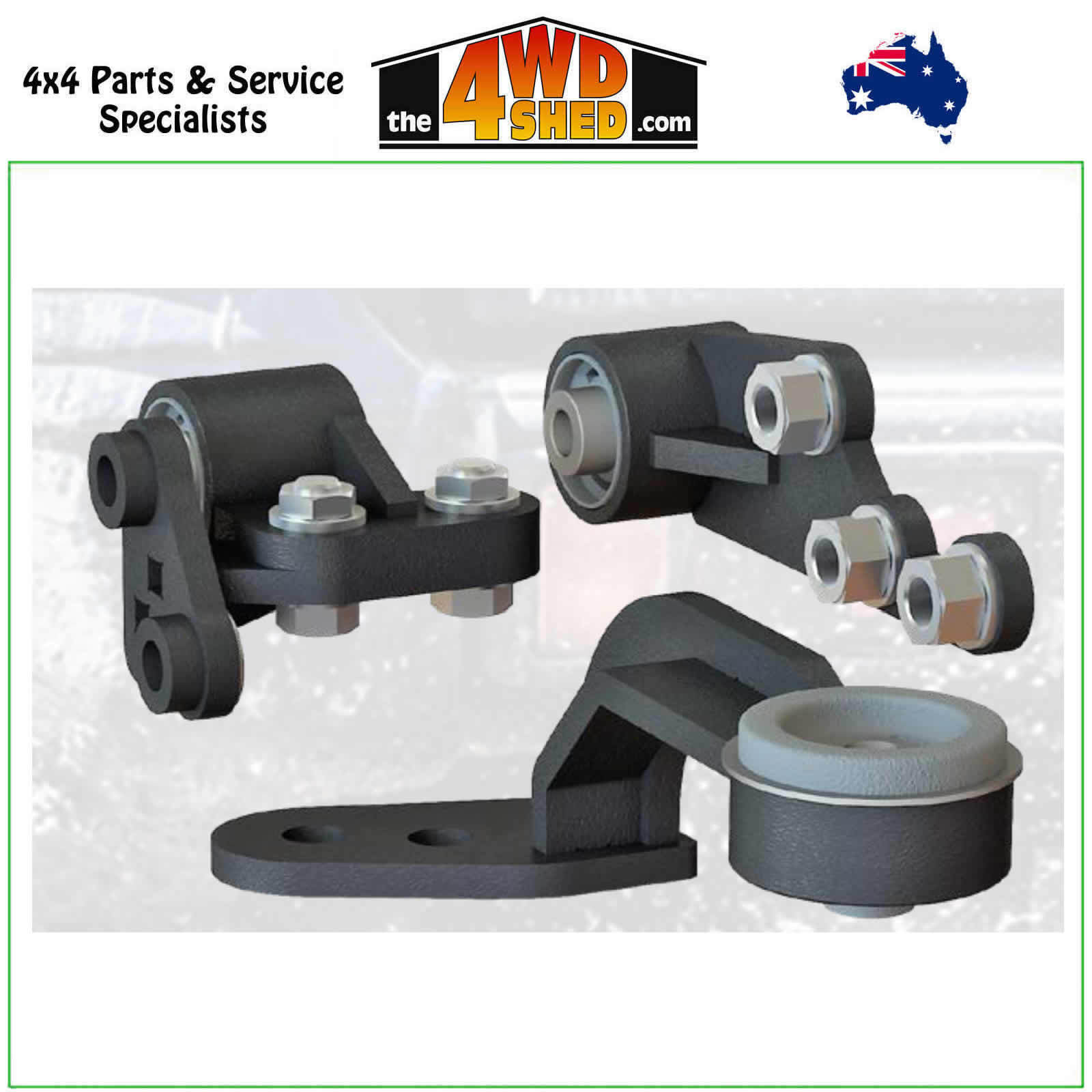

The Roadsafe Diff Drop Kit is supplied complete with CNC Machined spacers and fitting kit.The bolt-on kit  corrects the geometry of the front driveshaft and CV's, lowering the diff by approx. 25mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV's and boots.

This bolt on kit suits the following

• Toyota Landcruiser 300 Series

Kits Features

• Engineered from 10mm steel plate
• E-coated for heavy-duty corrosion resistance
• Bolt in design utilises factory mounting points
• Rubber bushings manufactured to OE specifications

The 4WD Shed is an Authorised Stockist of Roadsafe 4WD.
