Digital Airbag Inflation Control Kit PX01 Compressor with 3 Button Control

Digital Airbag Inflation Control Kit PX01 Compressor with 3 Button Control.

This Digital kit is used to control Boss Load Assist Kits or airbag suspension from inside your cab without the need for a tank and running air line inside. Simple installation with control of airbags UP and DOWN as well as SIDE to SIDE using our PX01 compressor. Comes with twin LED 200psi readout gauge.

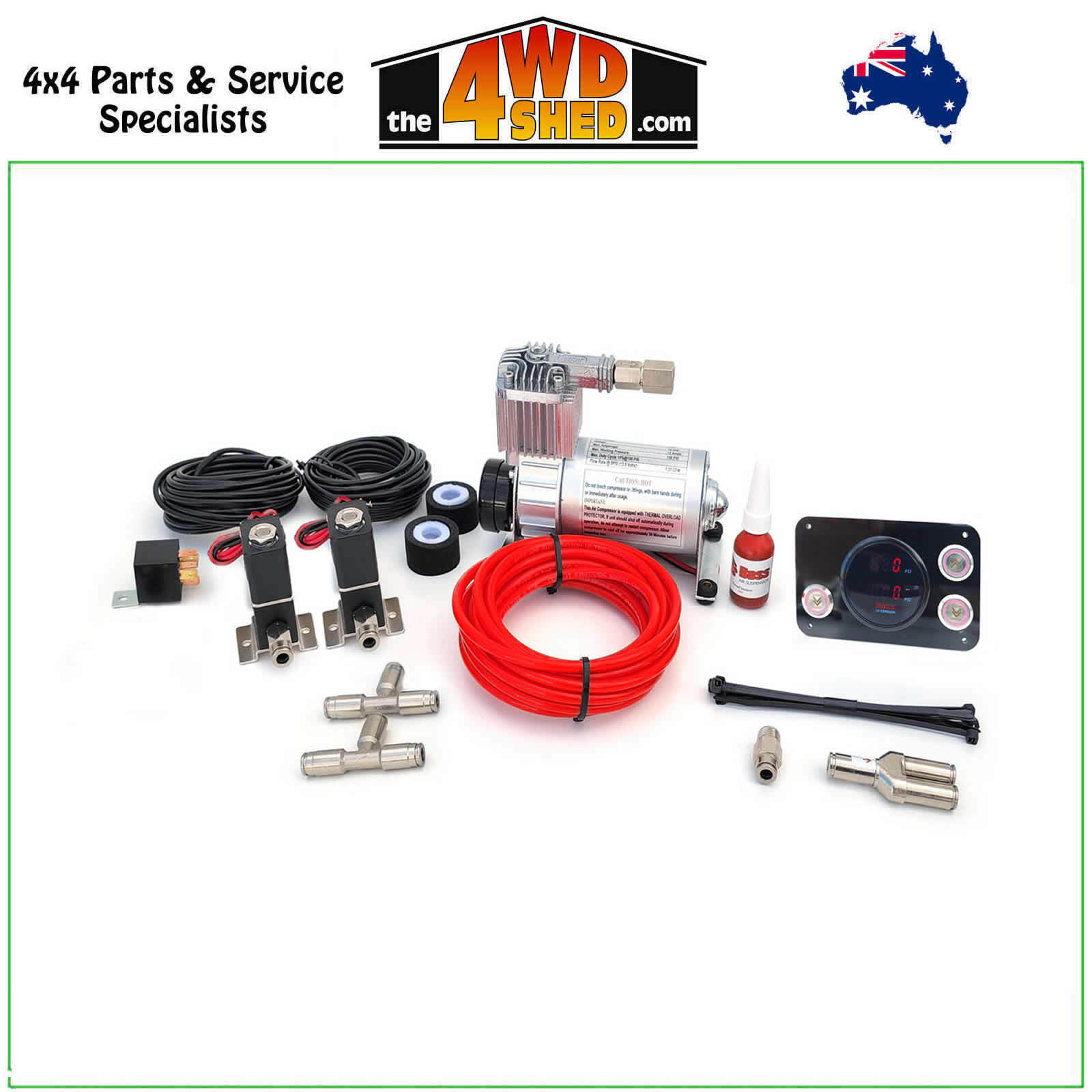

Includes

• 1 x PX-01 12V BOSS Air Compressor
• 1 x Gauge panel, 122mm x 78mm
• 3 x Red LED Push buttons for up and down
• 1 x BOSS 200psi Twin readout digital gauge
• 2 x Boss Mini 12v air valves with fittings
• 10 meters of 1/4” J844 DOT Air brake line
• 1 x 1/4” push connect Y check valve
• 2 x T Connectors for sender units
• 4 x T Connectors
• 10 x Cable Ties
• 1 x tube sealant
• Instruction Sheet

Boss Compressor

BOSS Air Suspensions 12v air compressors are the industry leader.

We designed and began manufacturing our range of air compressors after trying many other brands only to be let down time and time again. Performance of other brand compressors are sometimes impressive, however they wear out quickly and take longer and longer to recover your air needs, that's if they re-start under load!

Other popular 12 volt air compressors just don't stack up to the BIG BOSS compressor. Make sure the alternator is up to the task because the bigger the compressor the more amps it will need! BOSS 12V air compressors do not require oil!

The designs are quick and easy to mount. Engine driven compressors available upon request, brackets are up to the installer.

BOSS Air Compressors use the latest technology to deliver compressors that perform tirelessly for many years of service.

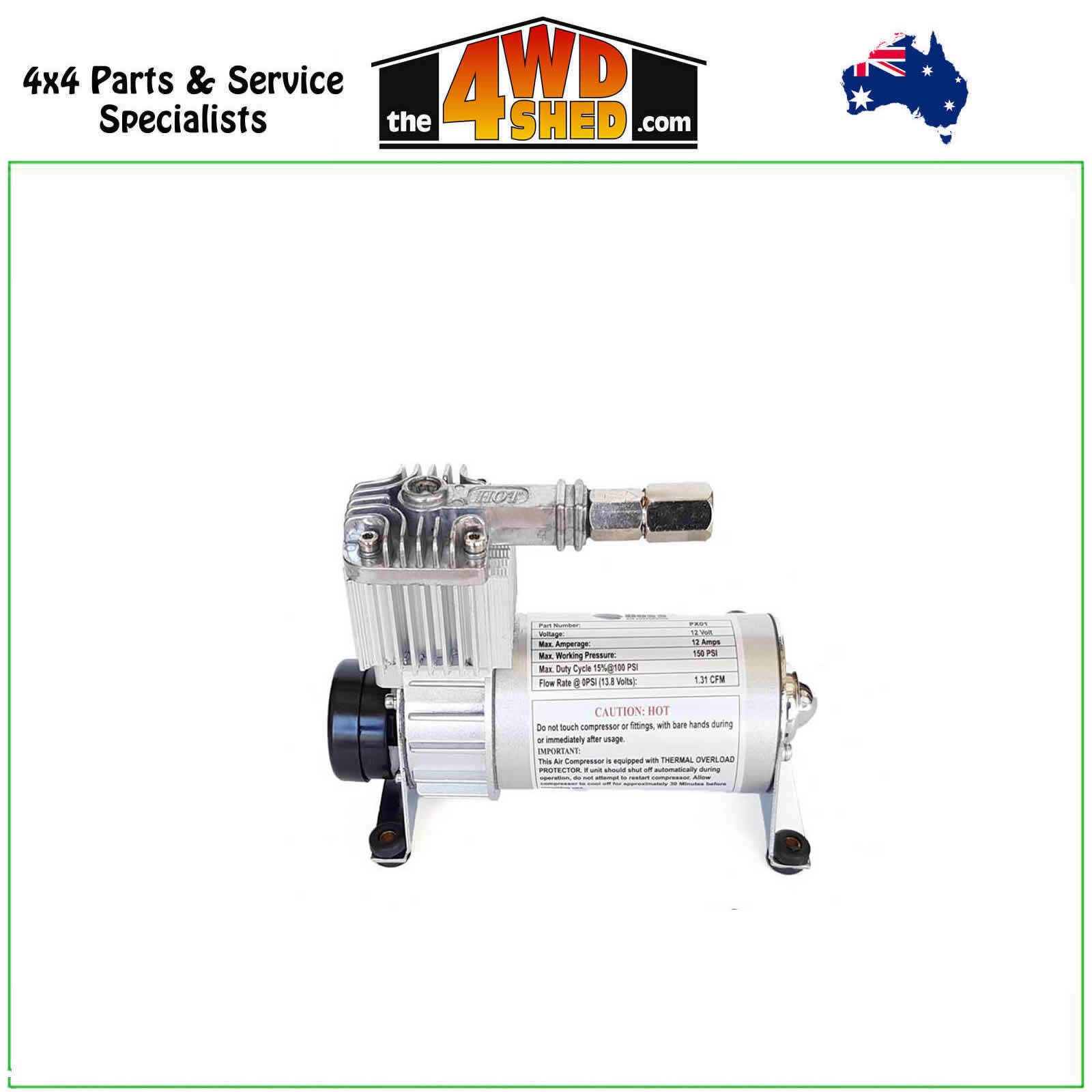

Small PX-01 12v Air Compressor Oil less compressor can be mounted vertical or horizontal for easy installation

• PX-01 Compressor
• Duty Cycle 15%@100psi
• Max working pressure 150psi
• 1.31cfm
• Rubberised mounting feet
• Amp draw Max 12amps
• Check Valve Installed
• 1/4″NPT fitting.
• Air Filter

Mounting sizes are 70mm centres wide and 145mm centres long

Please Note: Though we keep the popular movers in stock ready to supply & fit, we may need to order in some product lines as required. If you require shipping, we may ship directly from the warehouse to expedite your order. If you require pick up from us in Bayswater, Victoria, please contact us for an ETA.
