Formula 4x4 F4R 3700kg GVM Upgrade Mazda BT50 TFS 2020-On
More infoFormula 4x4 F4R 3700kg GVM Upgrade Mazda BT50 TFS 2020-On
GVM Kits purchased from us can only be installed by The 4WD Shed in our Vic workshop. Installation of the GVM suspension upgrade costs start from $1458
Designed specifically for the BT-50 and benchmarked against the industries best. This Formula F4R Remote Reservoir lift kit, offer the best performance and the most comfortable ride onroad and offroad, bar none.
- An ultra-adjustable remote reservoir shock, valved to maximise comfort & performance in all types of terrain.
- Improved Cavitation resistance, giving greater driving consistency on the roughest roads and toughest tracks.
- Built tough with a 7075 aviation aluminium body, massive bore, custom piston & light 6061-T6 aluminium supports.
- Designed to provide sharp handling on and off road, whilst giving an extremely comfortable ride.
- Precisely calibrated, with vehicle specific damping and a large custom piston to control performance + comfort.
- Increased oil volume and thermal capacity, providing consistent and dependable performance.
- The F4R damper adjustment range is designed to accommodate a variety of springs, loads & heights.
- Fully Customisable & Rebuildable

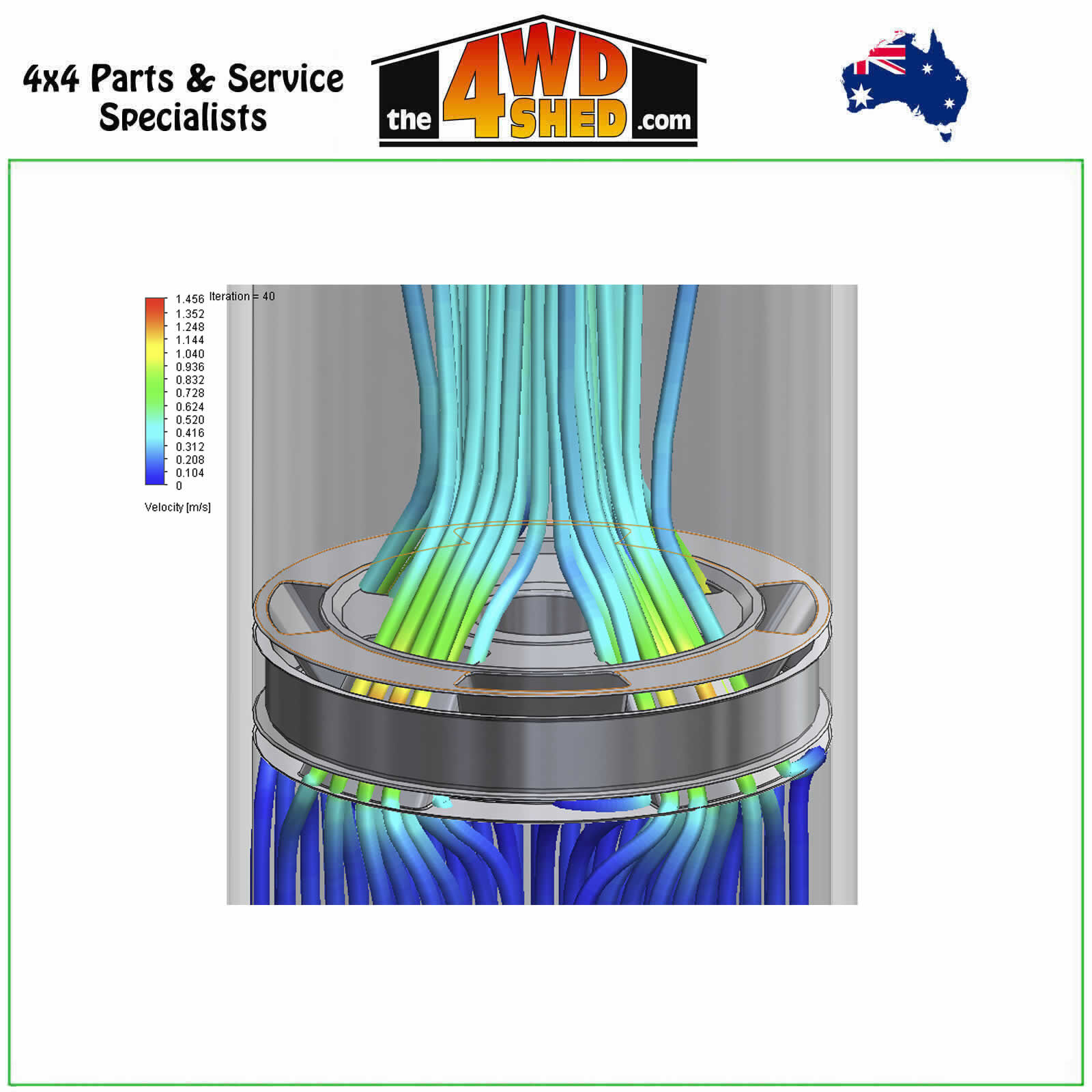

The Formula F4R lift kit for the BT-50 is a 3-way adjustable remote reservoir coil-over system in the front and a 2-way adjustable remote reservoir shock in the rear, specifically designed to suit your vehicle. The damper uses Fulcrums own high flow digressive piston with carefully chosen shim stacks to create the best damping characteristics for each vehicle.
The front damper is 3-way adjustable, spring pre-load, compression bypass and rebound bypass. The rear damper is 2-way adjustable, compression bypass and rebound bypass.
The adjustment clickers allow the user to carefully control how much oil is allowed to bypass the shim stacks in each direction. Opening the clickers allows more oil to bypass, reducing the damping effort in either compression or rebound. This allows tuning for different load scenarios and road conditions.
This Formula F4R Adjustable Remote Reservoir Kit is pre-set to:
- Front: 40mm
- Rear: 40mm
*3 inches of lift is not road legal unless mod plated. If you set your ride height to 3 inches, then it should only be for offroad use. Fulcrum Suspensions does not take responsibility for the incorrect usage of this lift kit.
Formula F4R 4x4 GVM upgrades require engineering and/or mod-plating to be signed off. This means that this GVM upgrade can only be installed by us at our workshop in Bayswater, Vic.
We will be in contact to confirm your order details, your requirements, and your vehicle specifications. All to ensure that we give you the right product. There is a pre-inspection that will be required before the kit can be ordered so we can determine that the GVM upgrade is correct for you.
High Level Product Details
- Pre-set to 40mm lift (fitted with a Steel Bull Bar)
- Preload Adjustable Spring to adjust Vehicle Height
- 3 way Adjustable Remote Reservoir Front Damper
- 2 way Adjustable Remote Reservoir Rear Damper
- 8 low speed compression, 6 high speed compression & 12 rebound settings front & rear
- Heavy Duty 22mm Damper Shaft
- 7075 aviation aluminium body and supports

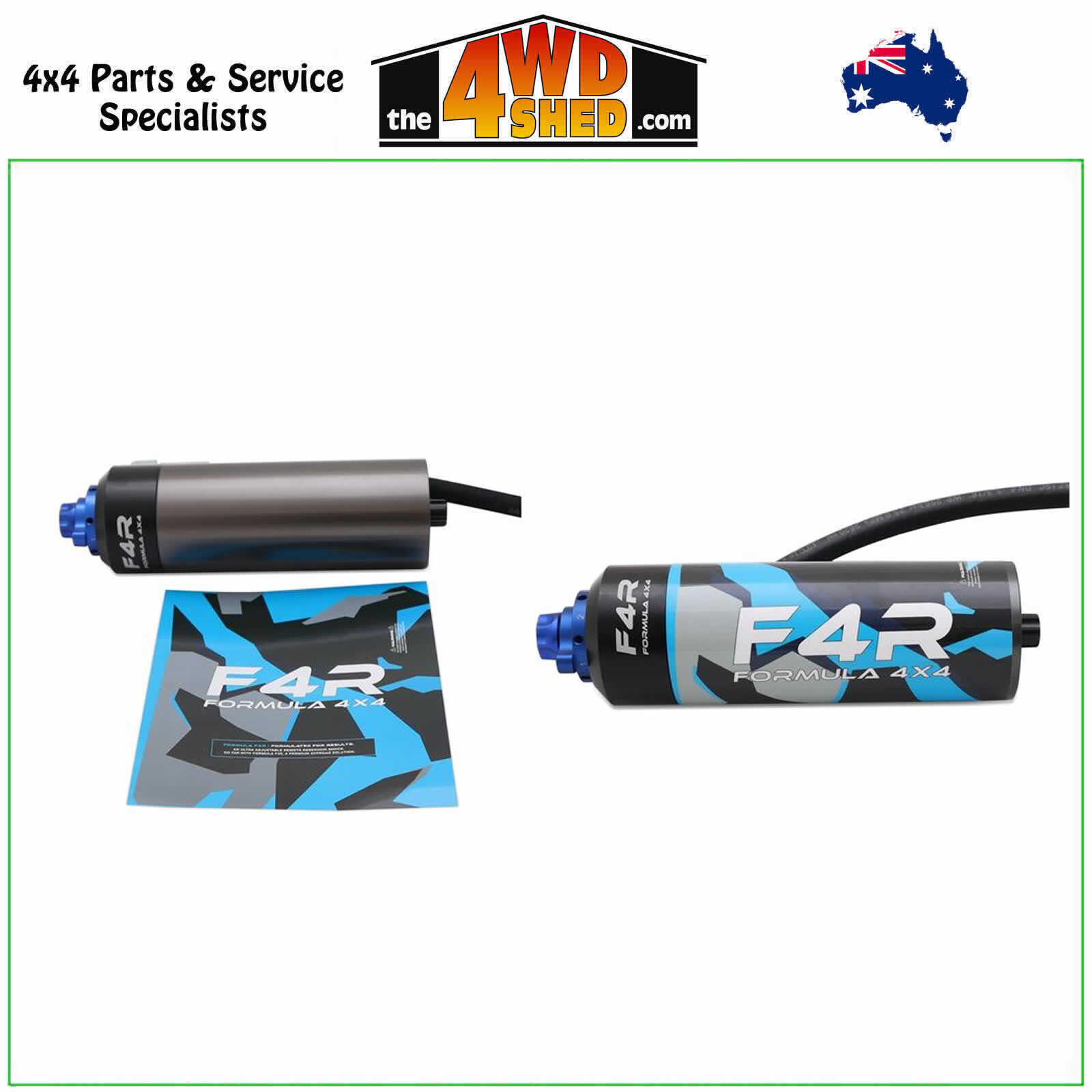

- Mono Shock Design with Remote Reservoir
- SuperPro Top & Bottom Shock Bushes Rear (Lifetime warranty)
- Custom Brackets for Front Reservoir Mount
- Shock body mounting brackets for rear reservoir
- Unlimited Kilometre warranty. Just activate your warranty online
Vehicle Compatibility
- Mazda BT50 TFS 2020-On
Applicable Variants: XS, XT, XTR, GT, SP (All 4x4 Cab Chassis & Utility)

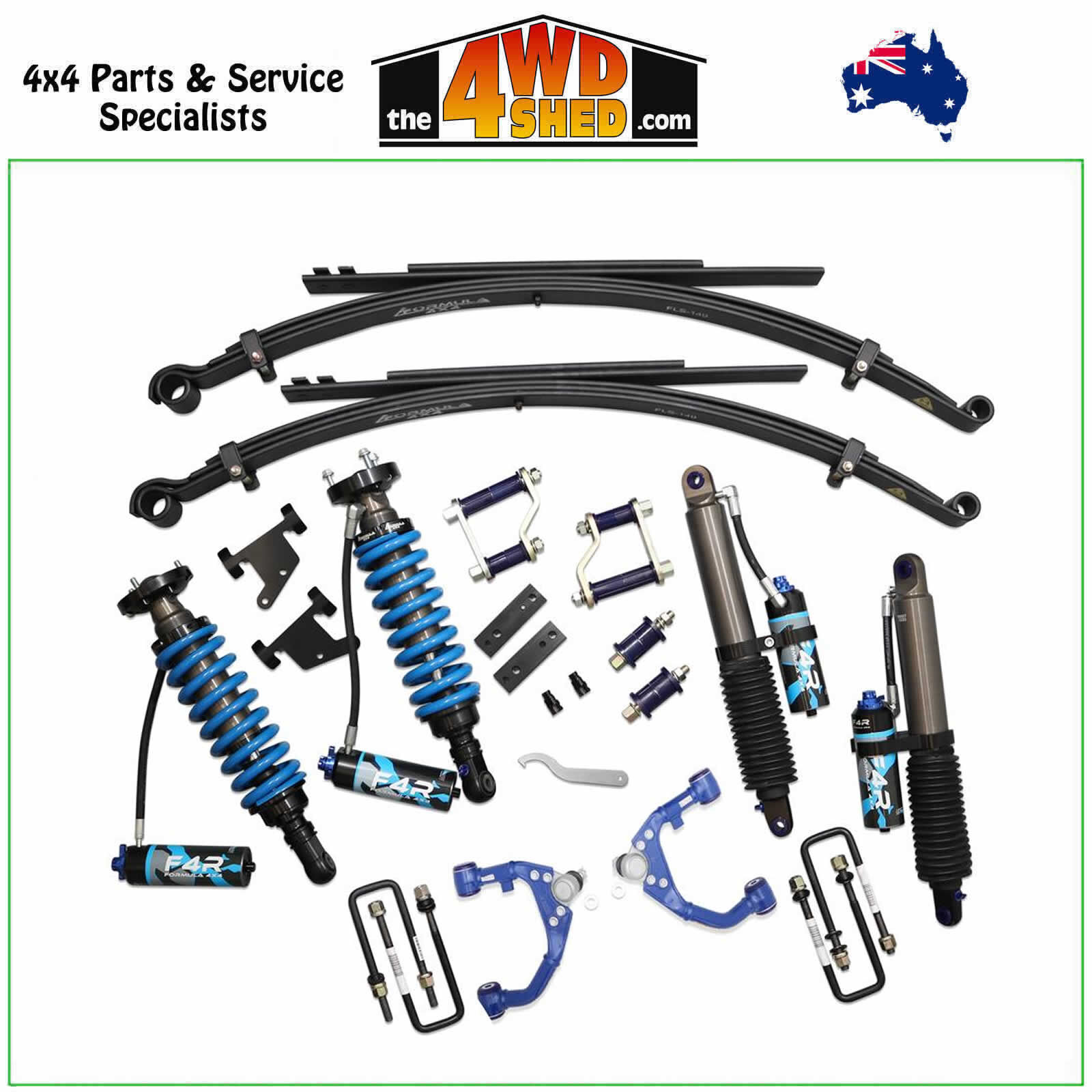

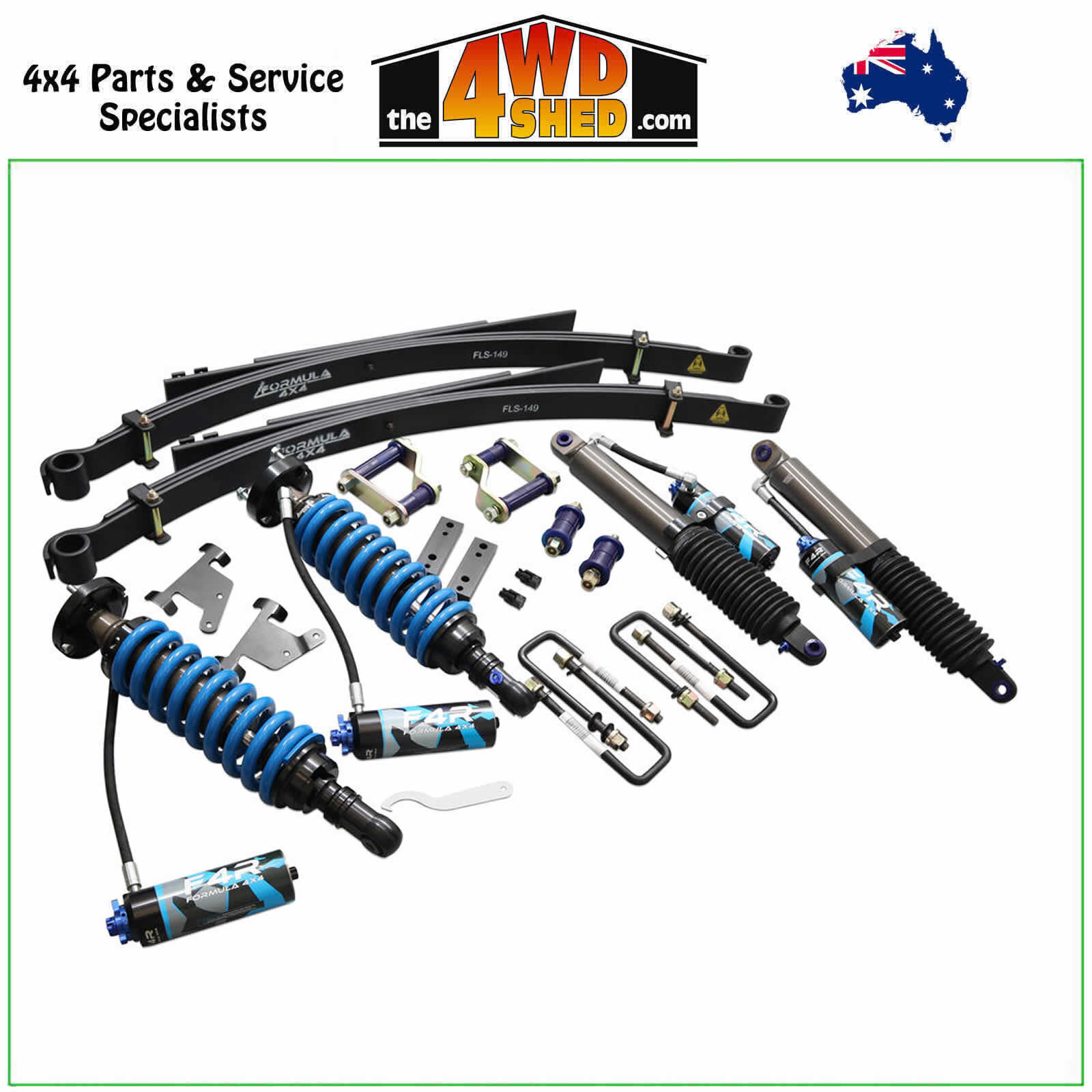

Kit contains:

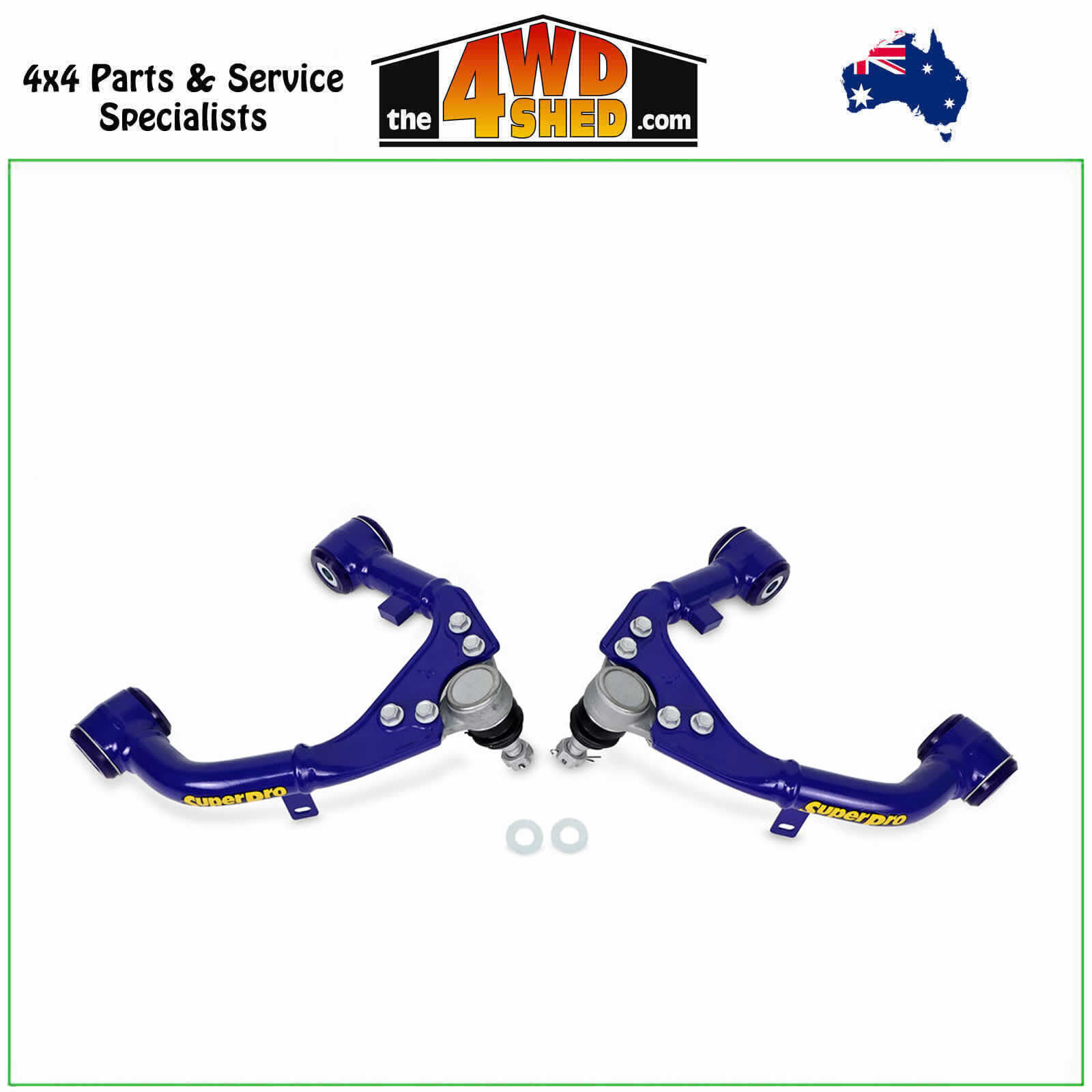

Formula F4R 91028 x 1, 92028 x 1, Fixed Offset Upper Control Arm TRC6590 x1, Formula 4x4 Leaf Springs FLS-150 x 2, Formula 4x4 U-Bolts FUB-006 x 4, SuperPro Shackle, Pin & Bush Kit KIT246SK x 1, SuperPro Rear Brake Line Spacer SPF5319K x 1, Tyre Placards BT50PLACARD x 1, Load Capacity Label BT50LOADCL x 1, Cat 6 Indicators 77ACM2-GVM-IND x 1. Kit includes sway bar relocation kit
Upgrade Specifications
- GVM Upgrade Limit: 3700kg (OE Spec 3100kg)
- Front Axle Limit: 1650kg (OE Spec 1450kg)
- Rear Axle Limit: 2050kg (OE Spec 1910kg)
Due to NB1 category change, CAT 6 side indicators are required.
Features
- GVM Increase to 3700kg
- No GCM increase.
- Includes Low Pressure Nitrogen for fade free Big Bore shocks
- Designed and built for Australian conditions
- Tested fitted and supported by 4WD 24/7
- Specifically designed for each application and vehicle performance
- The most comfortable GVM Kit on the market
- Big Bore shock design for improved heat dissipation, giving longer performance.
- Tapered pegs on Front Struts for increased strength
- Unlimited Kilometre warranty. Just activate your warranty online.
All GVM Upgrade Kits are supplied with appropriate documentation and can only be fitted by an authorised and approved Fulcrum Workshop.
Prices listed are for the GVM Suspension kit only, please contact us for fitting & engineering costs.
Formula 4x4 Warranty
Formula 4x4 GVM kits come with a 5 year / Unlimited Kilometre warranty. Just activate your warranty online. Learn more here.
The 4WD Shed is an Authorised Stockist & Installation Facility for Formula 4x4 GVM Upgrade kits.
For pre-rego vehicles (before the vehicle is first ever registered) the GVM upgrade is applied & the ROVER database is updated. There is no charge for this service, as an external engineer is not required to inspect the vehicle. Approvals are done all in-house at The 4WD Shed in conjunction with Fulcrum Suspension.
(MAZDA-BT50GVM-F4R)
| SKU | MAZDA-BT50GVM-F4R |
| Brand | Formula 4x4 |
| Shipping Weight | 100.0000kg |
