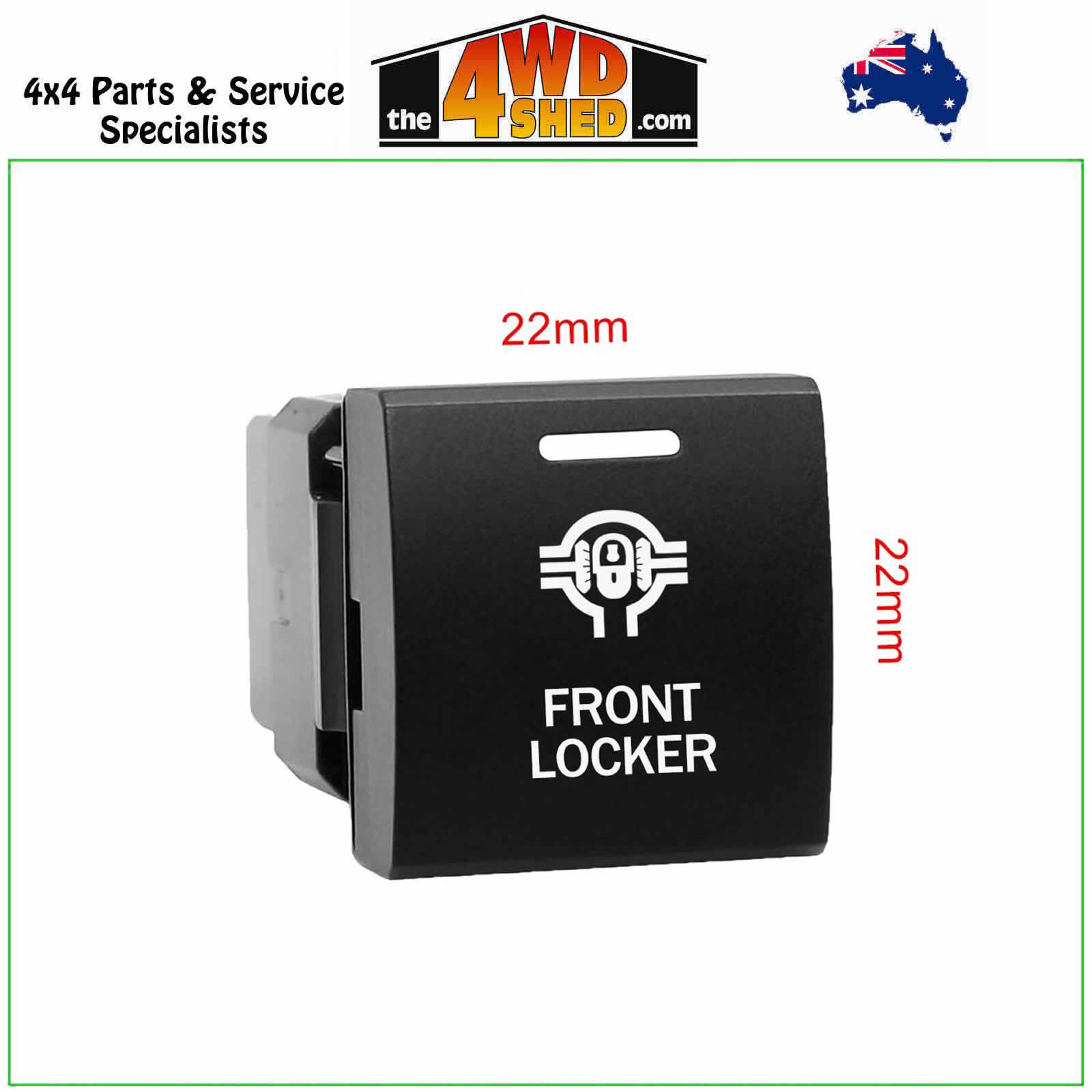

Front Locker Switch Toyota Landcruiser 76 78 79 300 Series Prado 150 250 - WHITE

AOB Front Locker Switch Toyota Landcruiser 76 78 79 300 Series Prado 150 250 - WHITE

12V 3A Laser etched ON-OFF OEM Replacement Push Switch with dual white LED lights. Direct OEM Replacement Style ON-OFF Push Switch With Dual LED lights in WHITE

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 22 mm x 22 mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 minutes.

• Single Pole Single Throw ON - OFF PUSH switch
• Black hard surface
• Laser etched Legend
• Single upper L.E.D light in WHITE
• Single lower L.E.D light in WHITE
• Upper light is ON when the switch is pressed IN
• Lower light can be wired to separate dash light circuit
• Rated at 3Amp 12V

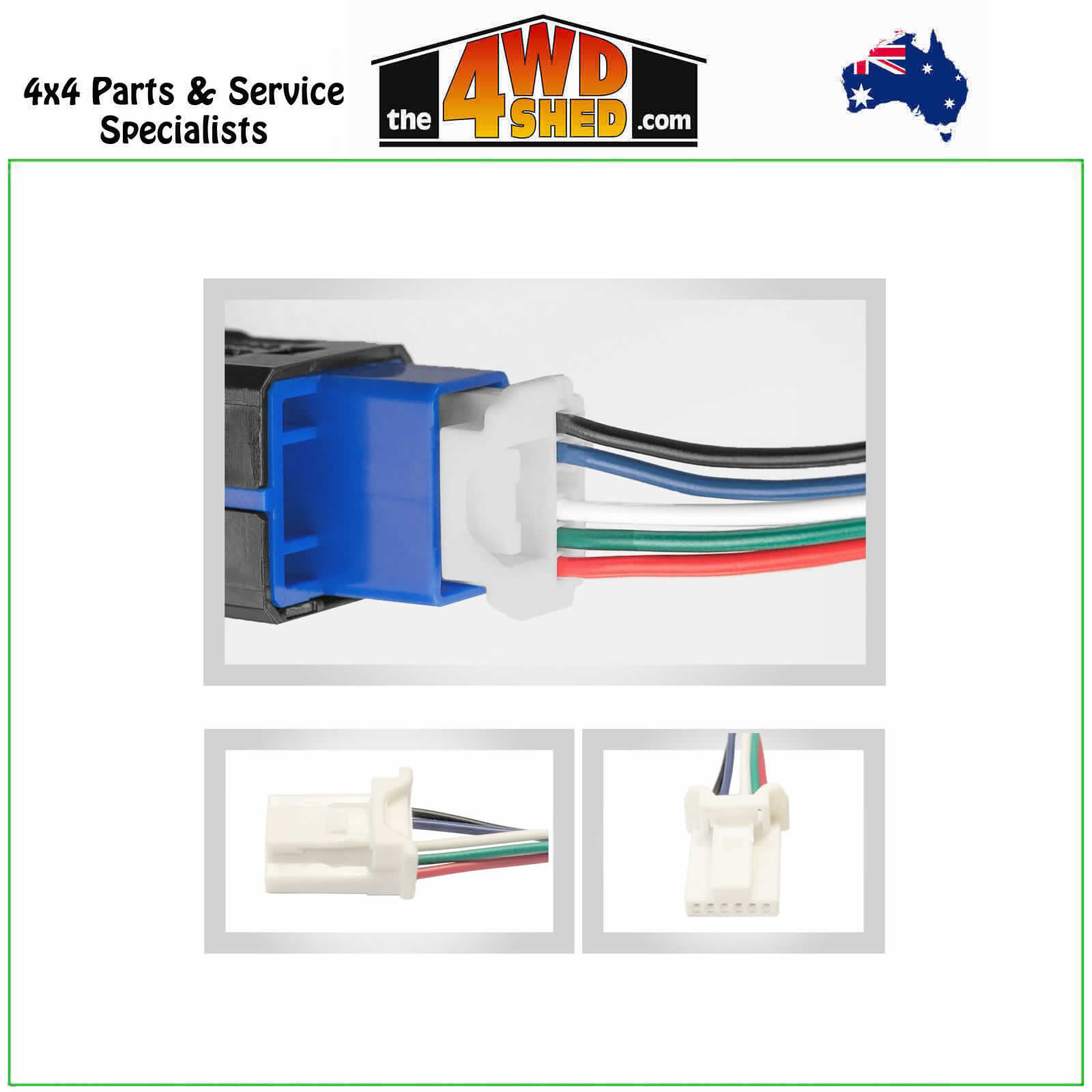

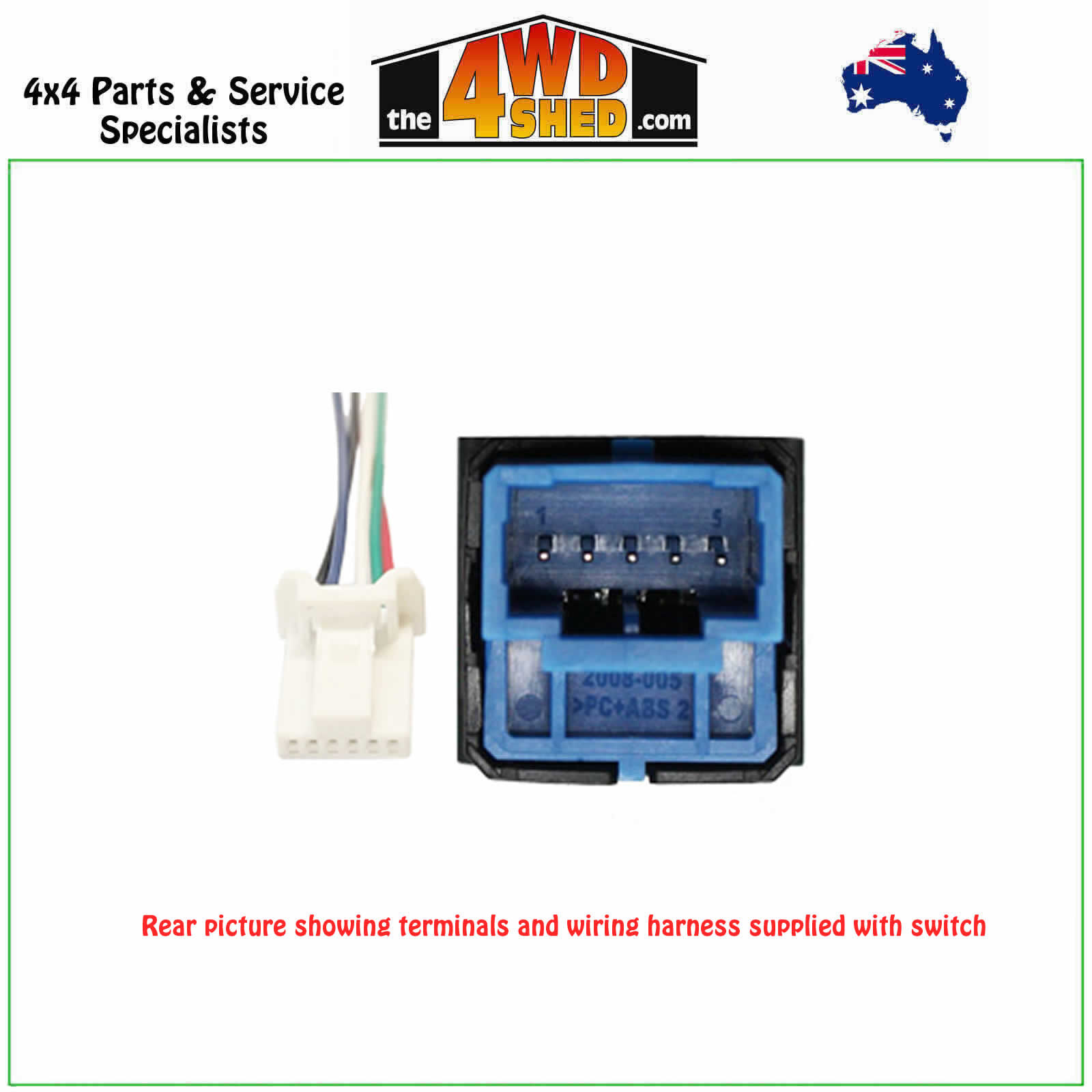

• Wire Plug and wiring diagram supplied with switch

Vehicle Compatibility

• TOYOTA LandCruiser 300s 2022 - Onwards
• TOYOTA LandCruiser 70s 2024 - Onwards
• TOYOTA PRADO 150s 08/2017 - Onwards
• TOYOTA PRADO 250s 2024 - Onwards
• TOYOTA HiAce 02/2019 - Onwards
• TOYOTA RAV4& RAV4 Hybrid 01/2019 - Onwards
• TOYOTA Camry 70 Series 09/2017- Onwards
• TOYOTA Corolla 06/2018 - Onwards

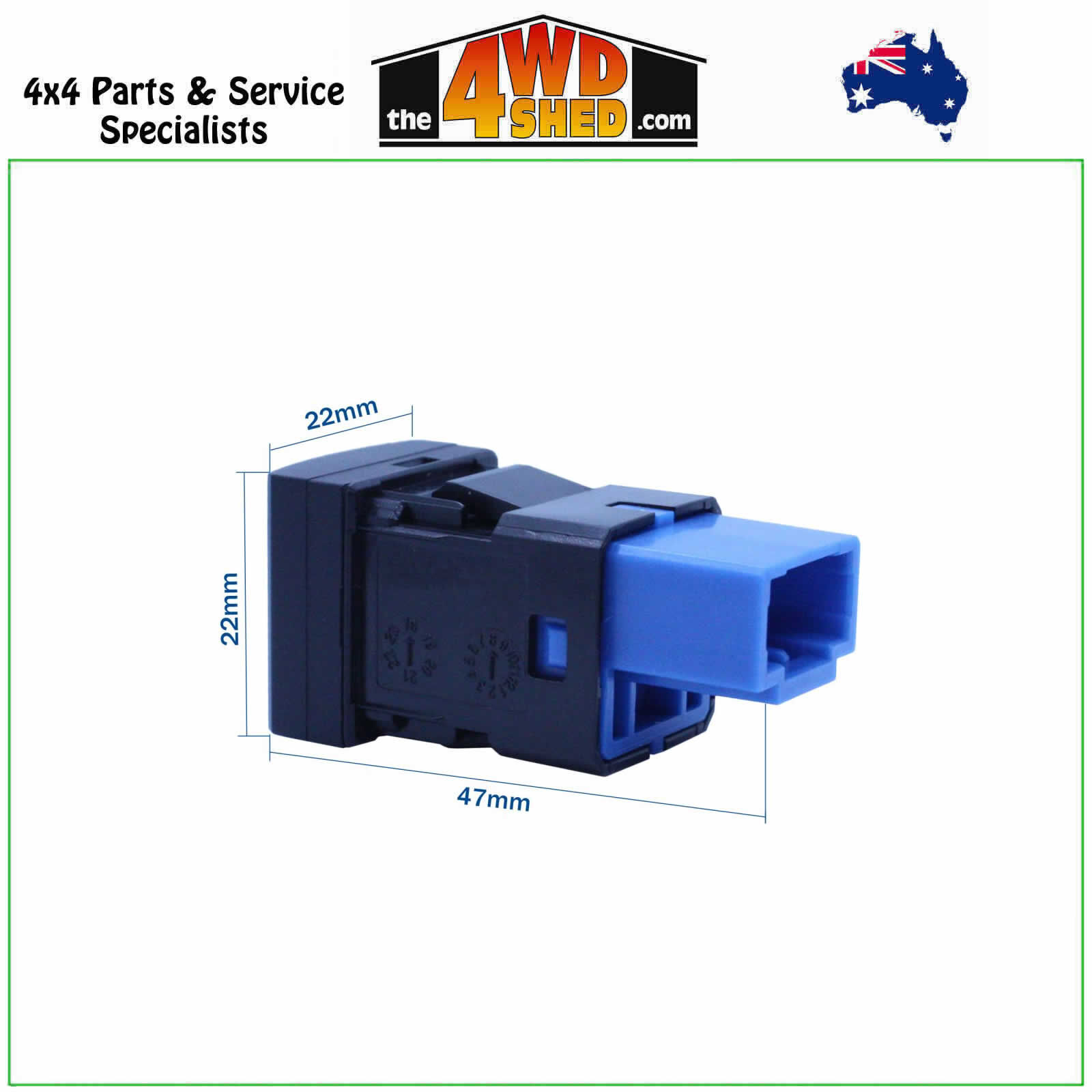

Measurement:

• 22mm x 22mm

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

*The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

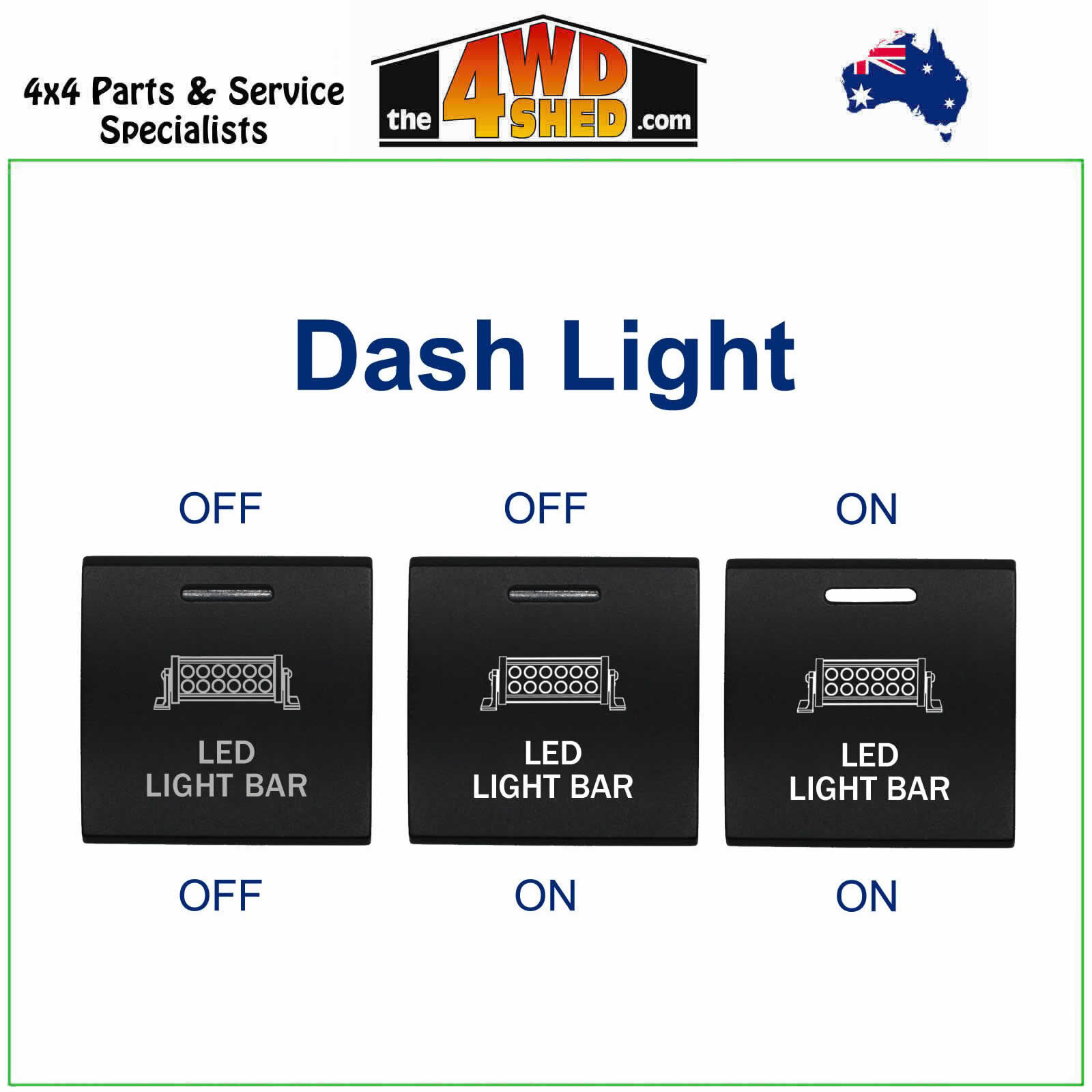

AOBSWT100 series Illumination

When switch is turned on the top light illuminates. The bottom Etching (words) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

Switch Wiring

• RED + to Dash Light
• Green + from Fuse Box
• White for Top Light in switch
• Black - to Dash Light
• Blue + Power out to Relay
