Fuel Manager Water Alarm System (FMALARM)

Fuel Manager Water Alarm System (FMALARM)

PLEASE CHECK: Approx 60mm clearance required under the existing plug/drain in glass bowl for wiring harness to attach.

Direction-Plus Fuel Manager Water Alarm System is an essential add-on accessory for your new or existing Fuel Manager filter. No more struggling to see if the glass bowl has water in it. Let the alarm alert you when water is trapped.

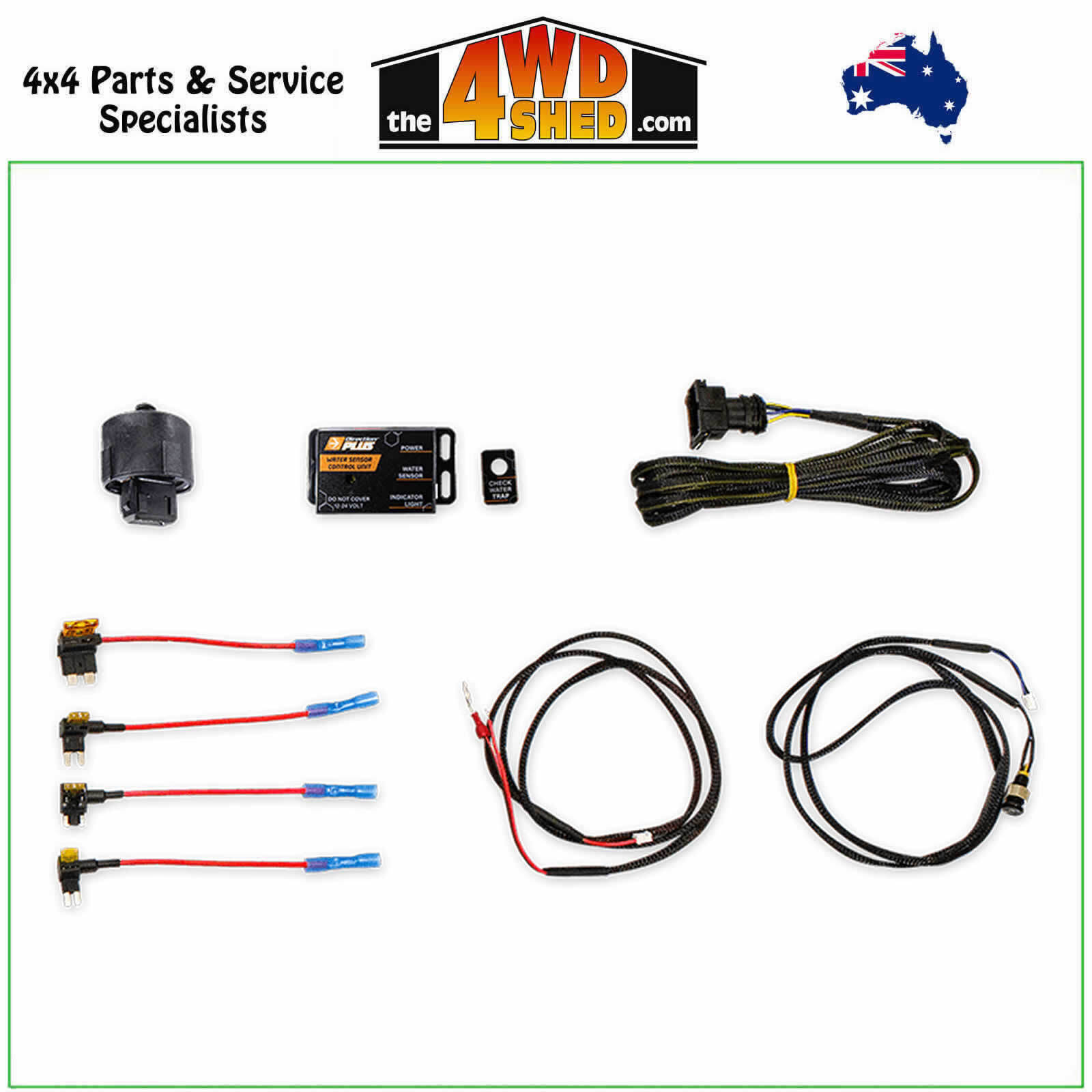

The Fuel Manager Water Alarm kit includes an intuitive multi-stage water alert that separates it from other kits on the market. The alarm will beep when water is detected in the fuel and the bowl needs to be drained, eliminating the need to manually check the pre-filter bowl for water.

EASY INSTALL

Simply unscrew the existing drain cock and replace with the FM Water Sensor. Connect water sensor harness to the sensor and run wiring in the cabin via the firewall

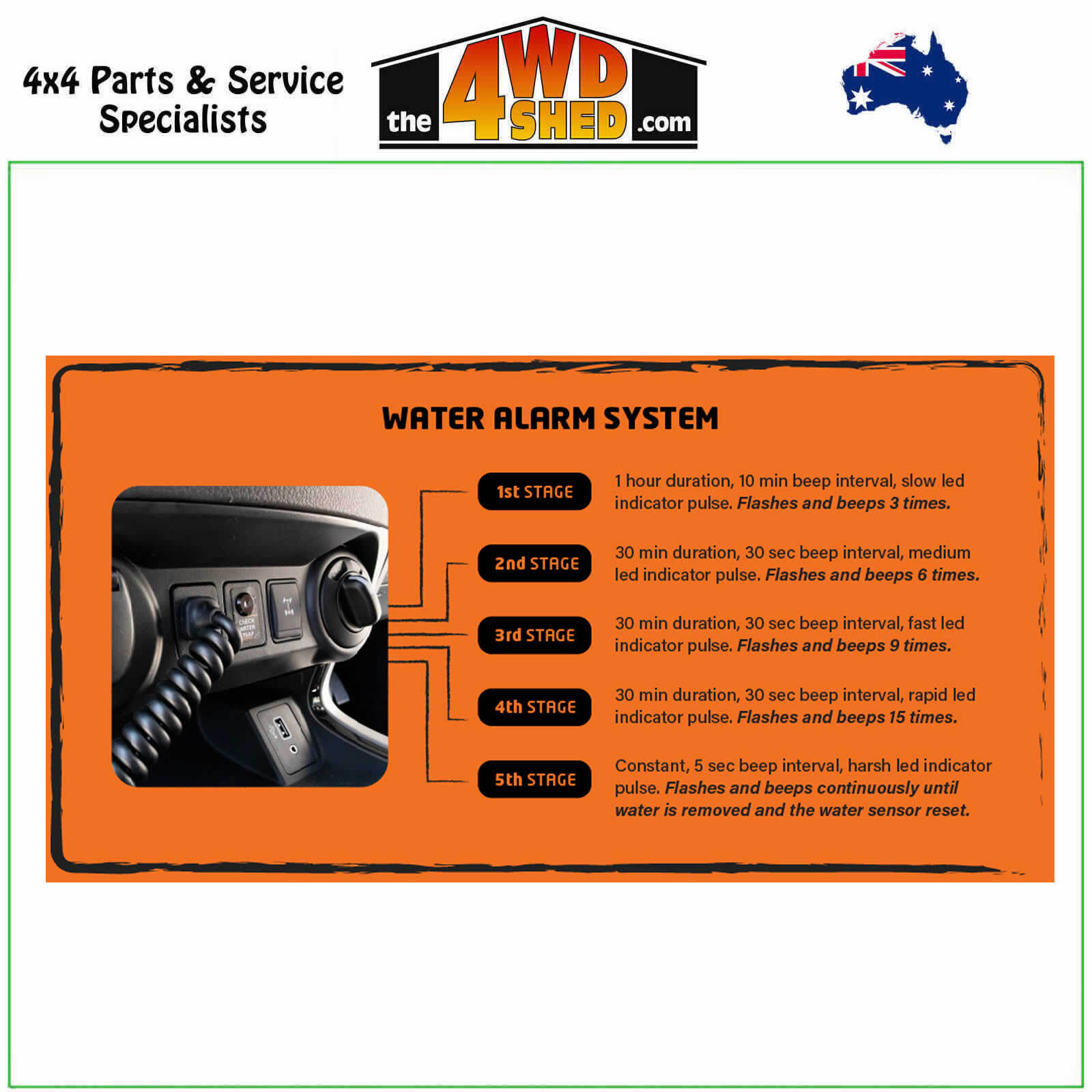

HOW THE ALARM WORKS

• 1st stage: 1-hour duration, 10 min beep interval, slow led indicator pulse. Flashes and beeps 3 times.
• 2nd stage: 30-min duration, 30 sec. beep interval, medium led indicator pulse. Flashes and beeps 6 times.
• 3rd stage: 30-min duration, 30 sec. beep interval, fast led indicator pulse. Flashes and beeps 9 times.
• 4th stage: 30-min duration, 30 sec. beep interval, rapid led indicator pulse. Flashes and beeps 15 times.
• 5th stage: Constant, 5-sec beep interval, harsh led indicator pulse. Flashes and beeps continuously until water is removed and the water sensor reset.

PROTECT YOUR ENGINE

It’s easy to think that fuel contamination is something that happens “in the bush” but this is simply not true!

Did you know that 72% of all diesel fuel injection system failures are caused by water and fuel lubricity problems?

Direction Plus™ Fuel Manager Pre-Filter Kits protect late model common rail diesel engines against costly injector failure.

HOW IT WORKS

Installing a Direction Plus™ Fuel Manager Pre-filter kit between the fuel tank and the O.E.M fuel filter, the Fuel Manager will remove the majority of water and particle contamination. This leaves the O.E.M fuel filter to do the final and finer filtration. This ensures you are maximising the protection of your diesel fuel system.

For the ultimate front line defence against water and particle contamination, investing in a DirectionPlus™ Fuel Manager Pre-Filter Kit will protect your investment 24 hours a day, 365 days a year.

BENEFITS OF A FUEL MANAGER PRE-FILTER KIT:

• Reduce wear & tear and avoid repair costs that can exceed $10,000
• 95% water separation and superior particle removal
• Ability to separate emulsified water from ULSD
• Clear water drainage bowl to easily identify removed water
• Keeps critical engine components clean
• No filter bypass – contaminated fuel will not be sent to the fuel system even when the filter is blocked
