Gigglepin 2 SPEED Top Winch Housing
More infoGigglepin 2-SPEED Top Housings. Complete with your choice of gears installed.
The Next Evolution in Winching Technology
The Gigglepin 2-SPEED Top Housings offer unrivalled versatility, letting you seamlessly change between low and high gears at the flick of a switch. Designed for those who demand precision and speed, this cutting-edge winch is perfect for any challenge—whether you need controlled manoeuvring or rapid recovery the new Gigglepin 2-Speed Gear Set has you covered.
Why Choose 2-SPEED Top Housings?
- Dual Gear Ratios for Every Situation:
- Low Ratio: Enhanced torque and slower speed for precision and control.
- High Ratio: Faster line speeds for quick line retrieval, long hill climbs, competitive sprints and time-sensitive recoveries.
- Effortless Switching:
Operates in Low Gear Ratio by default. Activate the High Gear Ratio instantly with an electric air solenoid or manual air switch, giving you complete control at every moment.
Customisable Ratios
Tailor your winch to your needs by selecting the Low Gear Ratio that best suits your typical operations. With a wide range of ratios available, you can optimise performance for your vehicle and application. Alternative ratios can also be purchased separately if you need multiple solutions for different situations.
Key Features
- Switchable 2-Speed Technology: Seamlessly change between ratios for ultimate versatility.
- High quality: Designed and manufactured in the UK using the best materials and treatments.
- Built for Power and Speed: Handles the most demanding conditions with ease.
- Fully tested: Tested in controlled indoor and extreme outdoor environments for unmatched reliability.
- Air Control: Intuitive operation ensures smooth and responsive transitions between gears.
Designed to Dominate
From challenging mud tracks to professional recovery applications, the Gigglepin 2-Speed Gear Sets give you the edge you need to tackle any obstacle.
These 2-Speed Gear Sets have been thoroughly tested over the past few years since 2022, adding to a barrage of events that the GP100 has won the 2-Speed now adds the Blidinje Challenge to the list!
It has the following amazing features-
Four different low ratio options
- + 00% (133.28:1)
- + 15% (115.41:1)
- + 25% (100.94:1)
- + 40% (83.75:1)
Five different high ratio options
- + 15% (115.41:1)
- + 25% (100.94:1)
- + 40% (83.75:1)
- + 50% (66.56:1)
- + 60% (53.68:1)
Two switching options for switching ratios, Electric Air Solenoid or a Manual Air Switch.

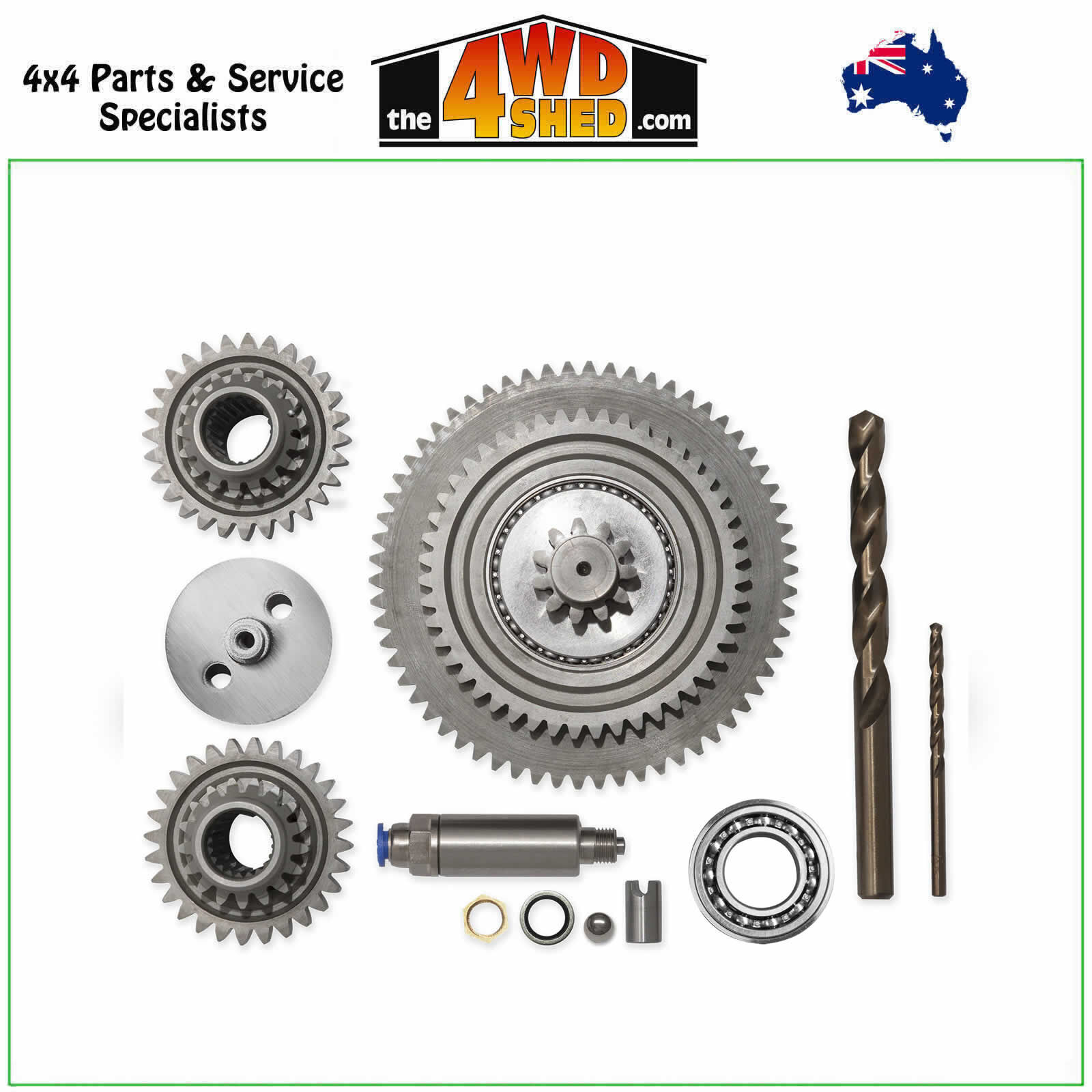

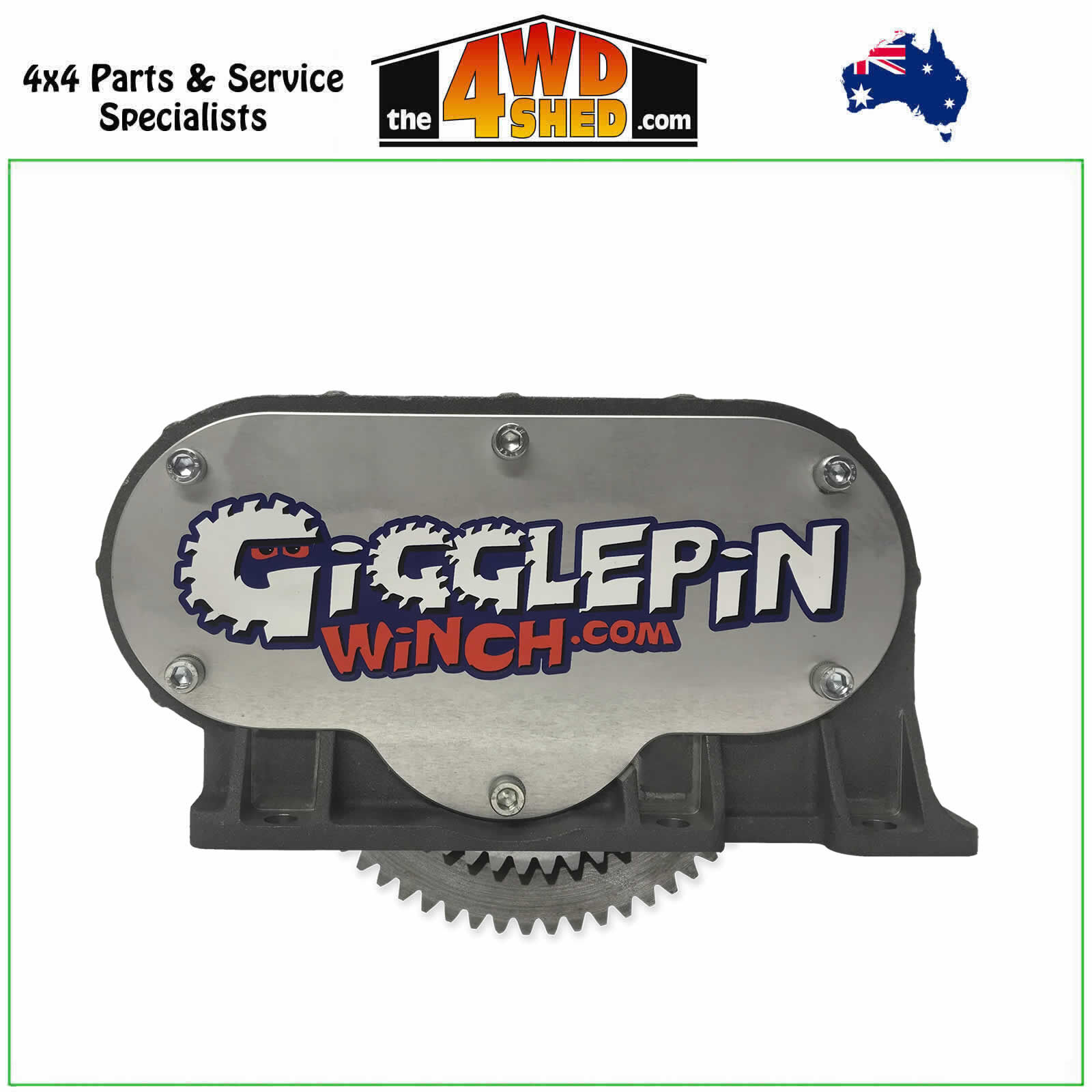

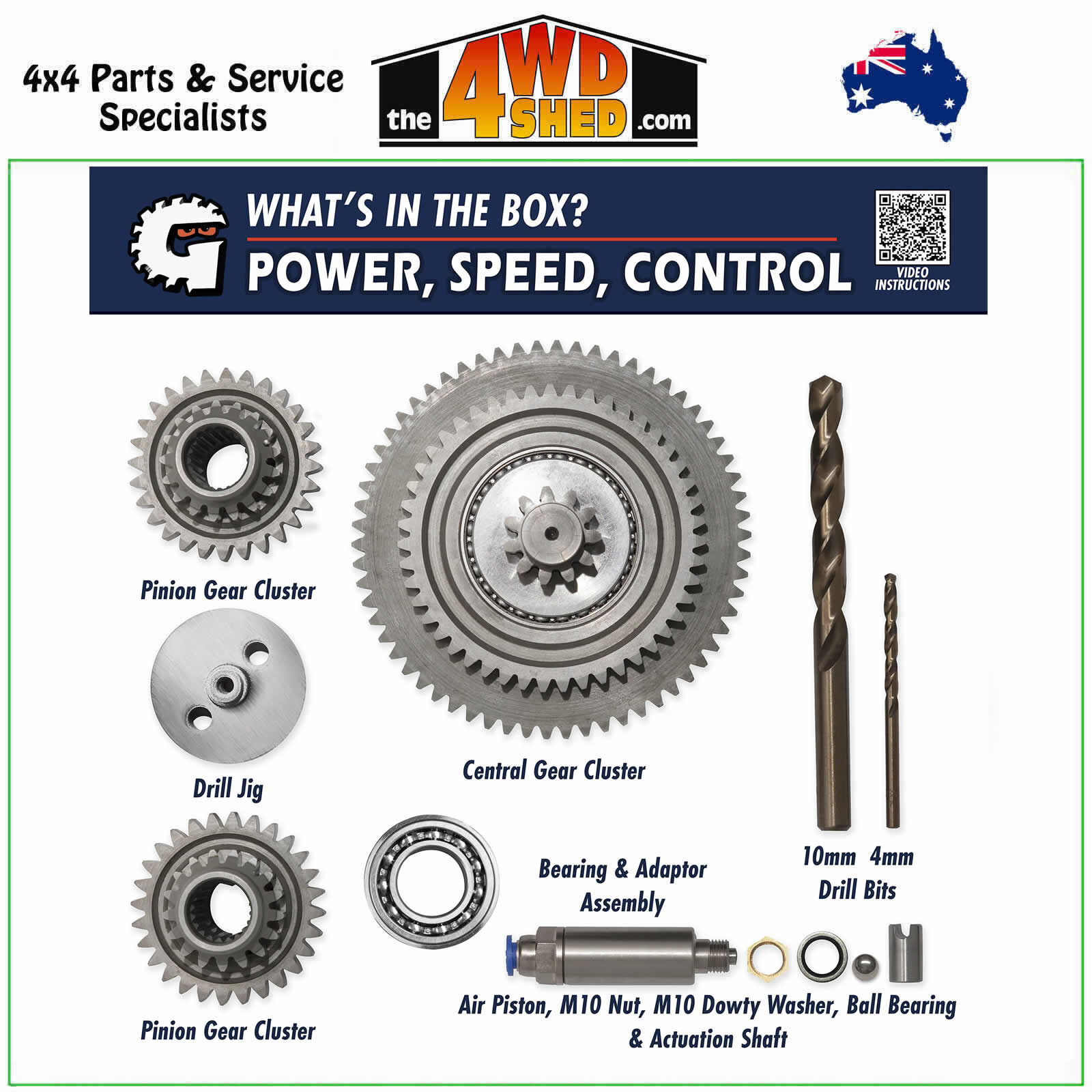

New 2-SPEED Twin Motor Top Housing comes with:
- 1x Complete Twin Motor Top Housing containing 2-SPEED ratios of your choice.
- High performance 655M13 heat treated gears.
- 6x M8 mounting bolts and lock washers for Gigglepin winches
- 3x Mounting bolts, lock washers and for Warn 8274 and 8074 winches
New 2-SPEED Single Motor Top Housing comes with:
- 1x Complete Single Motor Top Housing containing 2-SPEED ratios of your choice.

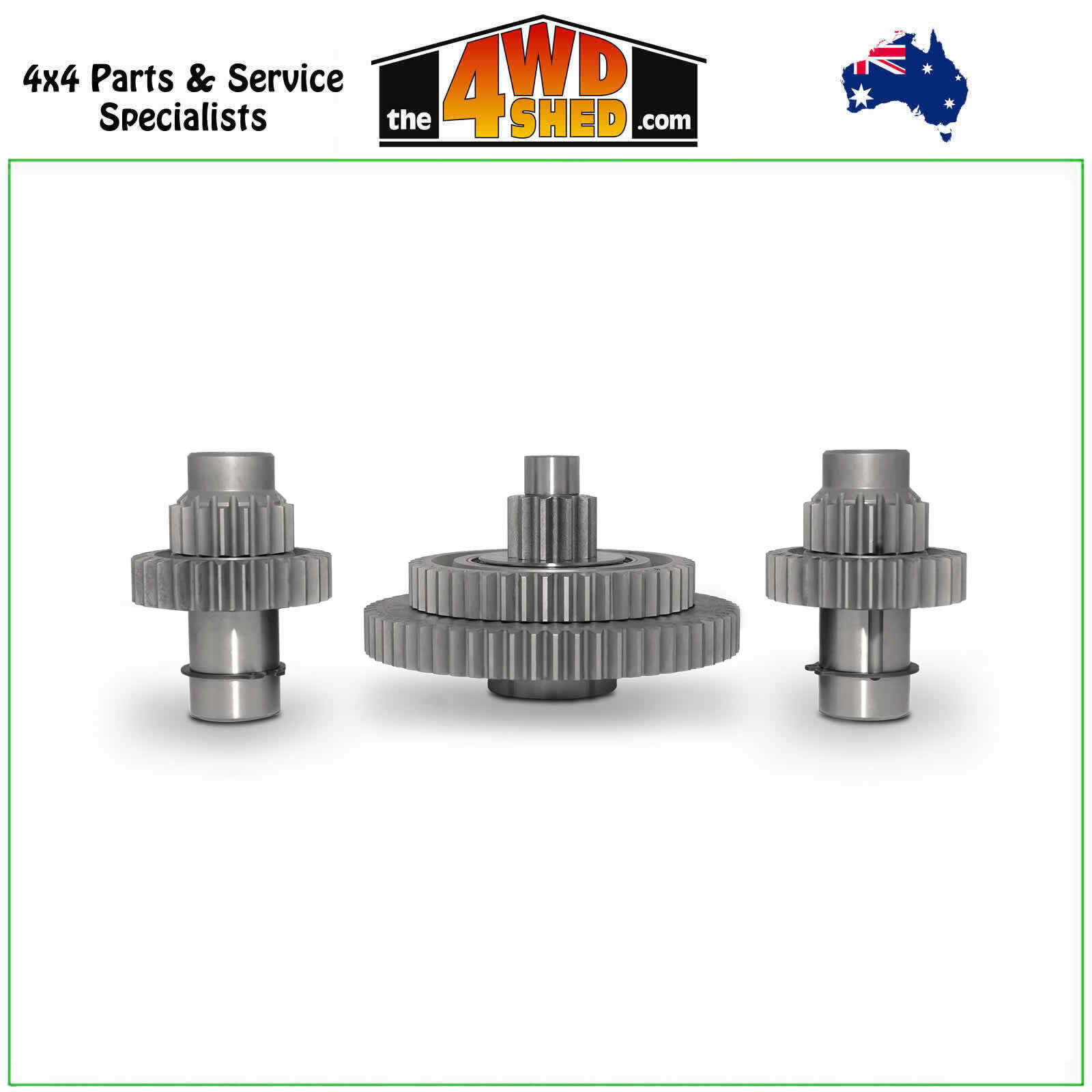

- High performance 655M13 heat treated gears.
- 6x M8 mounting bolts and lock washers for Gigglepin winches
- 3x Mounting bolts, lock washers and for Warn 8274 and 8074 winches
Electric Air Activation Kits comes with:
- 1x Electric Air Solenoid
- 1x IP67 on-off switch
- 1x Switch safety cover
- 2x 1/8 BSP 90 degree 6mm elbow
- 1x 1/4 BSP Y piece
- 1x male to male adaptor 1/4 to 1/8 BSP
- 1x Exhaust valve for air solenoid
- 1x PTFE tape
- 6 metres 6mm Gigglepin airline
Manual Air Switch Air Activation Kits comes with:
- 1x Manual Air Switch
- 3x 1/8 BSP 90 degree 6mm elbow
- 1x 1/4 BSP Y piece
- 1x 1/4 to 1/8 BSP air fitting
- 1x PTFE tape
- 8 metres 6mm Gigglepin airline
Designed and built in UK
We stock, supply & fit a large range of winch parts, upgrades & accessories.
Please contact us if you can't find what you require or are unsure of the part you need.
Note: Due to kit coming with gear ratio choices, we may need to custom build to suit. This may take 1-2 weeks please contact us to confirm availability.
(G25002)
| SKU | G25002 |
| Brand | Gigglepin |
| Shipping Weight | 4.0000kg |
