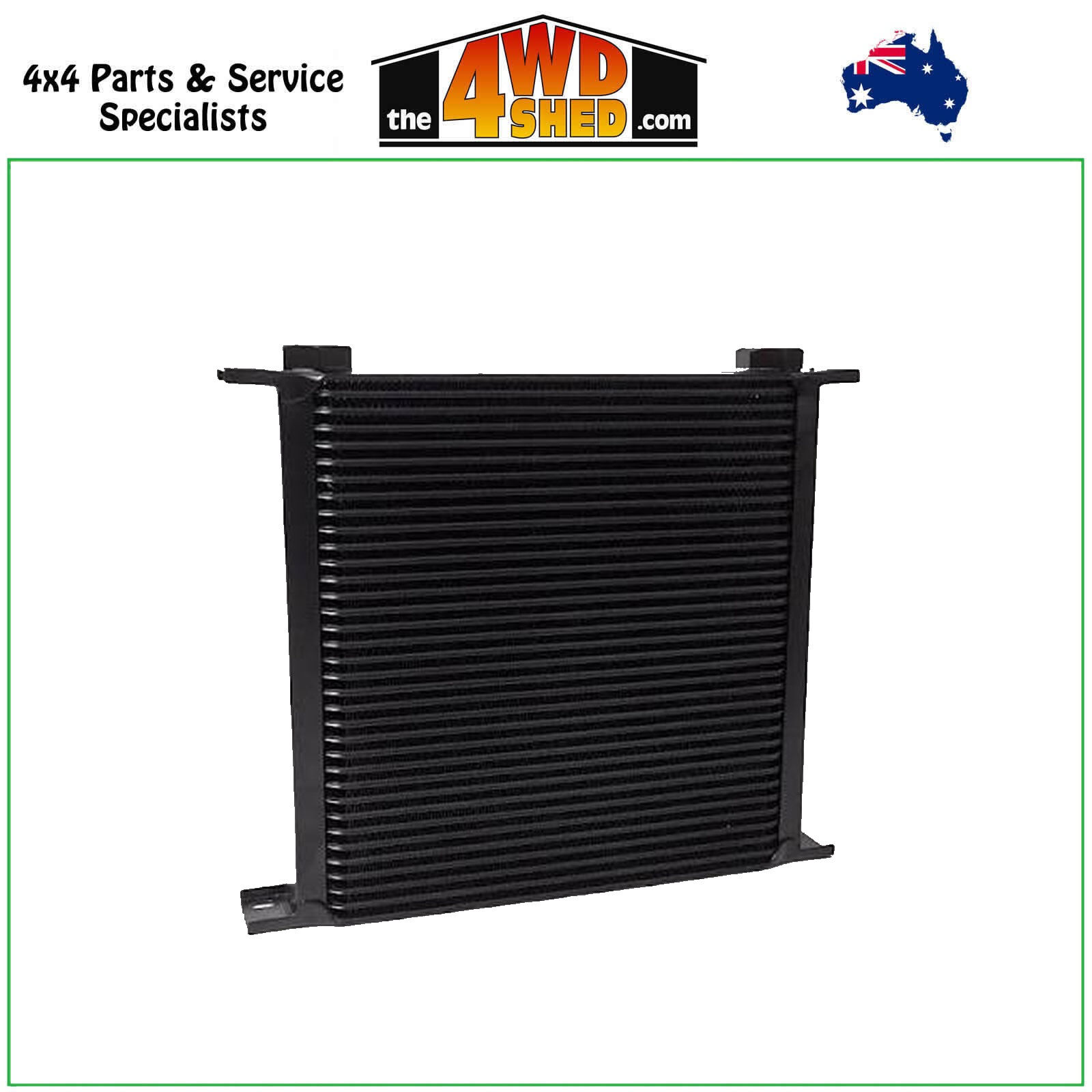

Koyorad Universal Oil Cooler 35 Row 285mm x 280mm x 50mm

Koyorad Universal Oil Cooler 35 Row 285mm x 280mm x 50mm

Koyorad universal coolers are highly advanced, drawn-cup style heat exchangers which are efficient, lightweight, and robust in build quality. Each were developed to effectively cool various automotive grade fluids such as: transmission, power steering, engine oil, and differential fluids. Koyorad universal coolers feature versatile -10 AN ORB (O-Ring Boss / O Ring Port) provisions at their inlets and outlets.

These provisions easily adapt or reduce via AN to AN, or convert from AN to Push-Lock style barb fittings for any needs. Expect the same level of precision, quality and attention to detail as Koyorad all aluminum racing radiators. When you’ve invested so much into you engine, function and quality is paramount. Choose our all-new Koyorad universal coolers in combination with a Koyorad Racing Radiator for the best cooling system on the market.

KOYORAD CA990082C 35-ROW OIL COOLER

• 285mm W X 280mm H X 50mm D (XC351111W)
• Includes Brackets
• Advanced Drawn Cup Construction

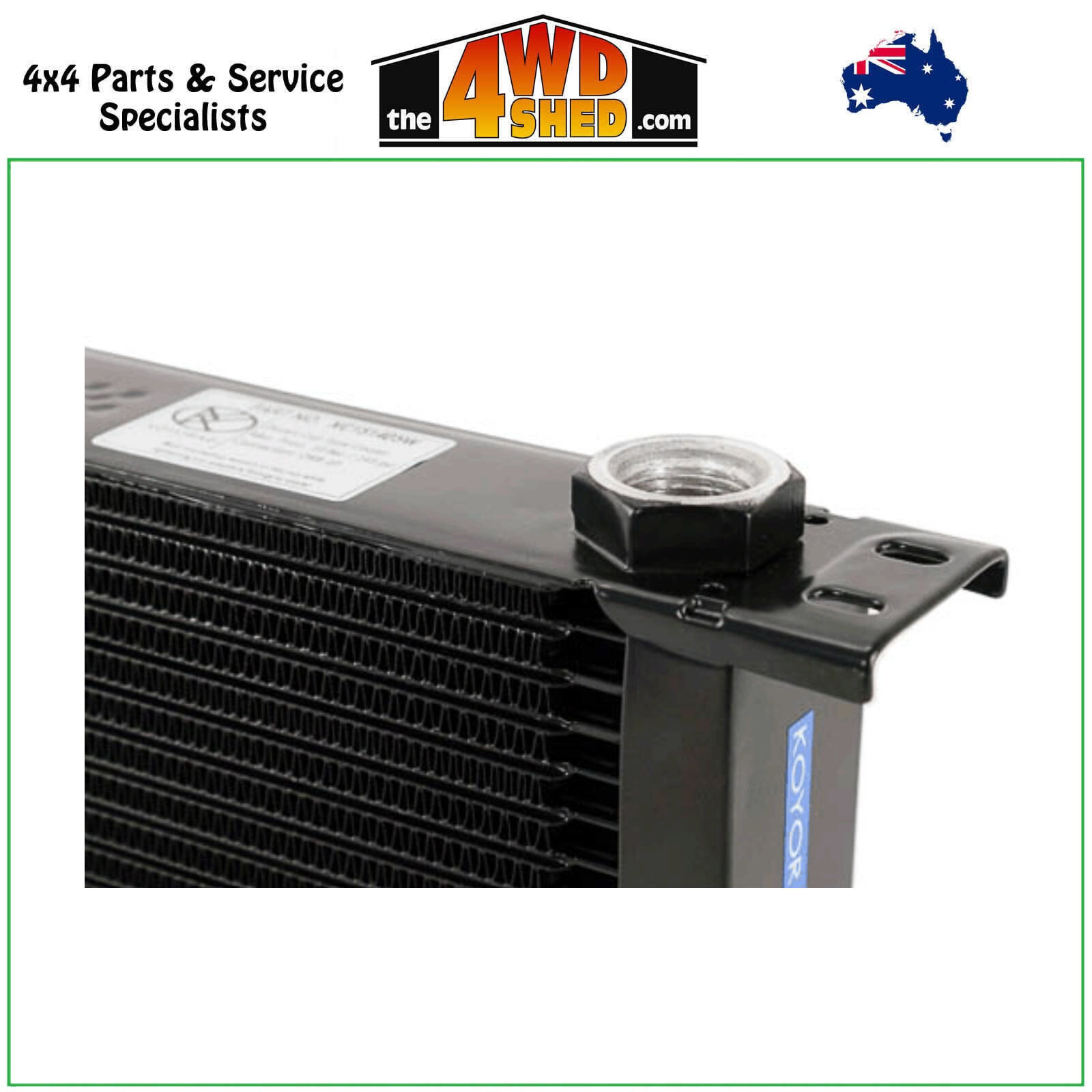

• Two (2) -10 AN ORB (O-Ring Boss / O-Ring Port) Provisions
• Koyorad Embossed Header Plate
• Pressure Tested: 10 Bar
• Deformation Tested: 35 Bar
• Durable Black Finish

NOTE: Koyorad Universal Coolers do not include hoses, adapter fittings or sandwich adapters.

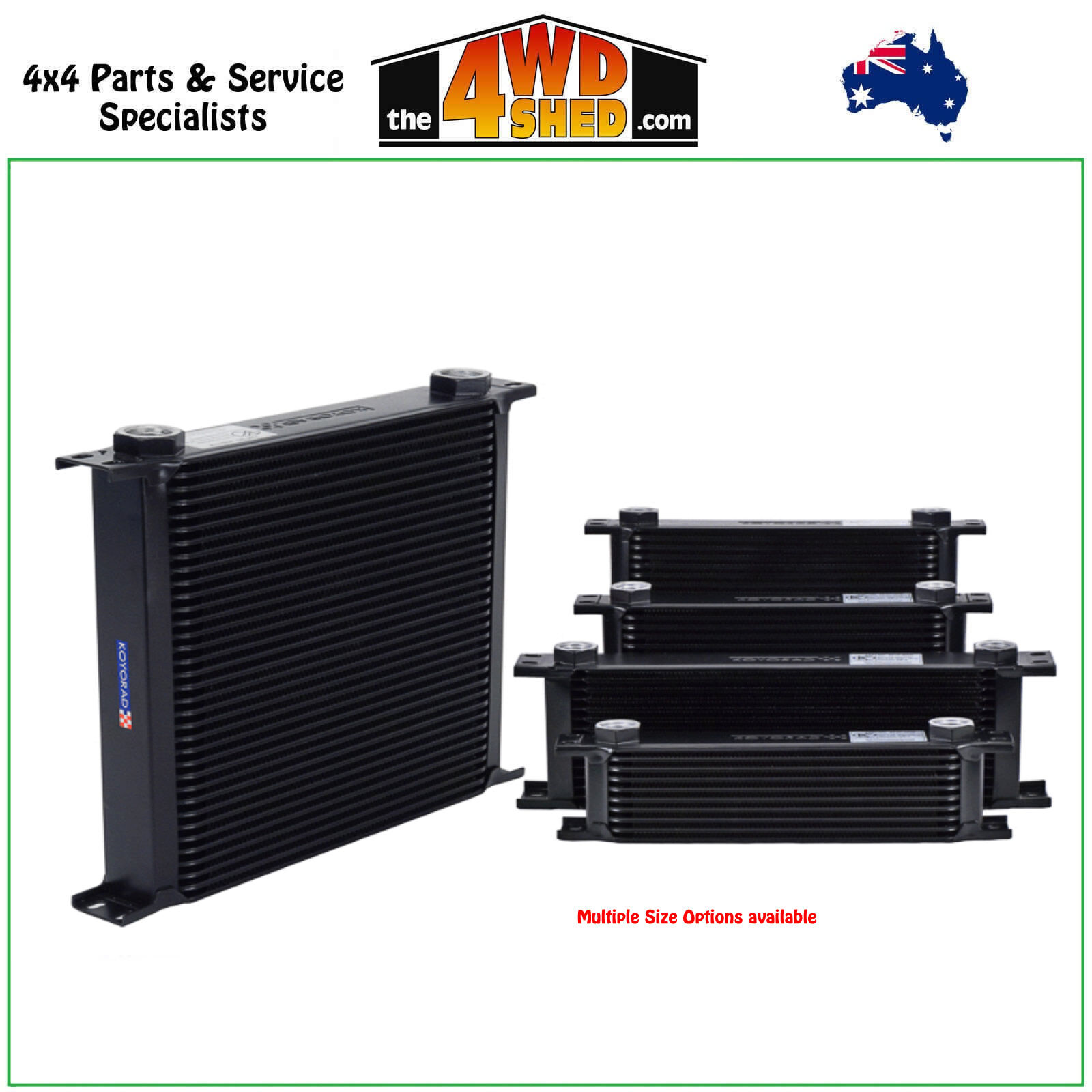

Koyorad Universal Coolers available in the below sizes

• UOL001 10 Row 285mm x 76mm x 50mm
• UOL002 15 Row 355mm x 114mm x 50mm
• UOL003 19 Row 285mm x 146mm x 50mm
• UOL004 25 Row 285mm x 190mm x 50mm
• UOL005 35 Row 285mm x 280mm x 50mm
