LA01 (S) Airbag Kit Holden Rodeo Colorado Isuzu DMAX Great Wall

$600.00

More info.

Make 4 interest-free payments of $150.00



In Stock

Available Options


Calculate Shipping



1 x LA01 (S) Airbag Kit Holden Rodeo Colorado Isuzu DMAX Great Wall delivered to , AU


Collect from our Bayswater VIC Store - $0.00
We will call when item is ready for Pick Up

AAA Suspension LA01 (S) Airbag Kit Holden Colorado Rodeo Isuzu DMAX Great Wall

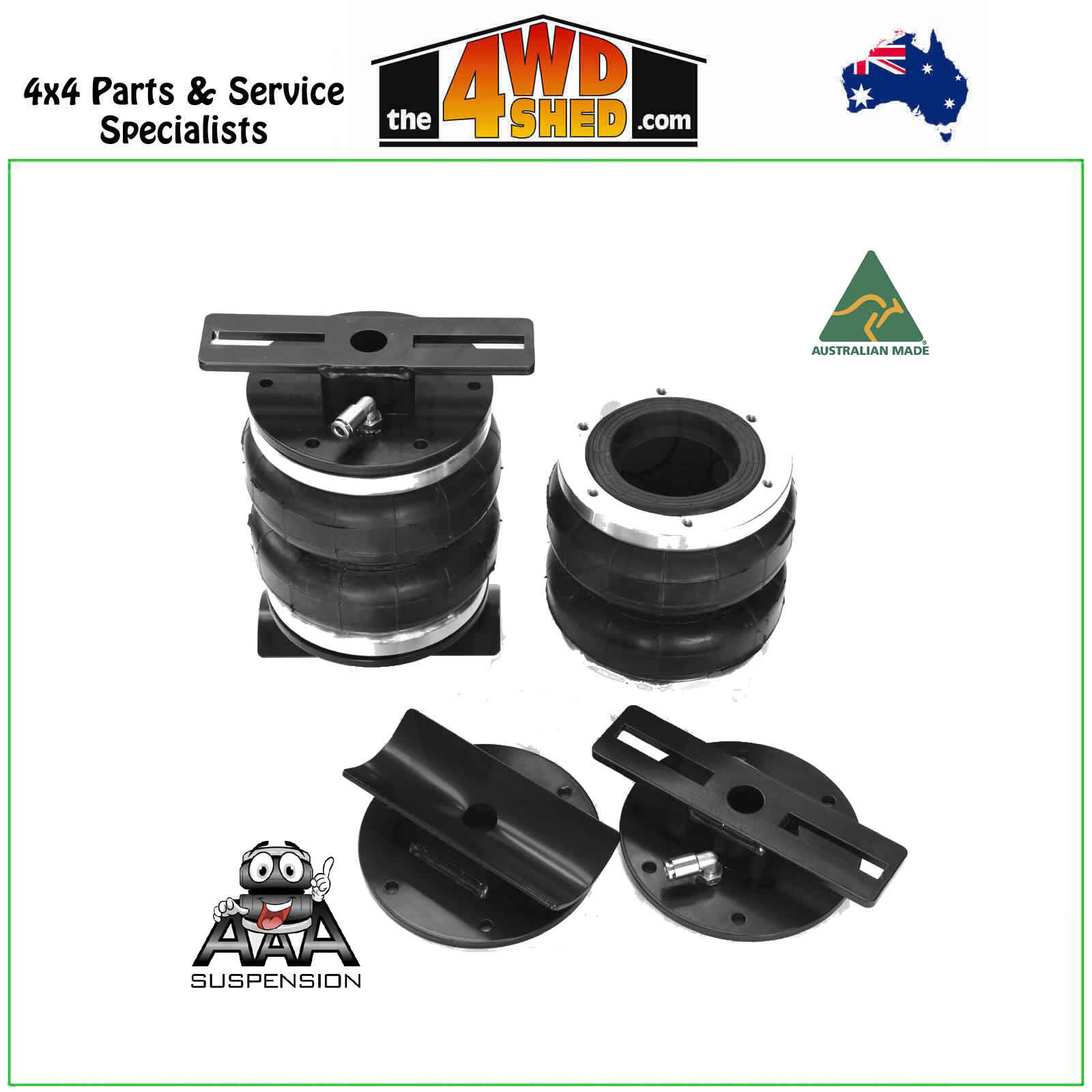

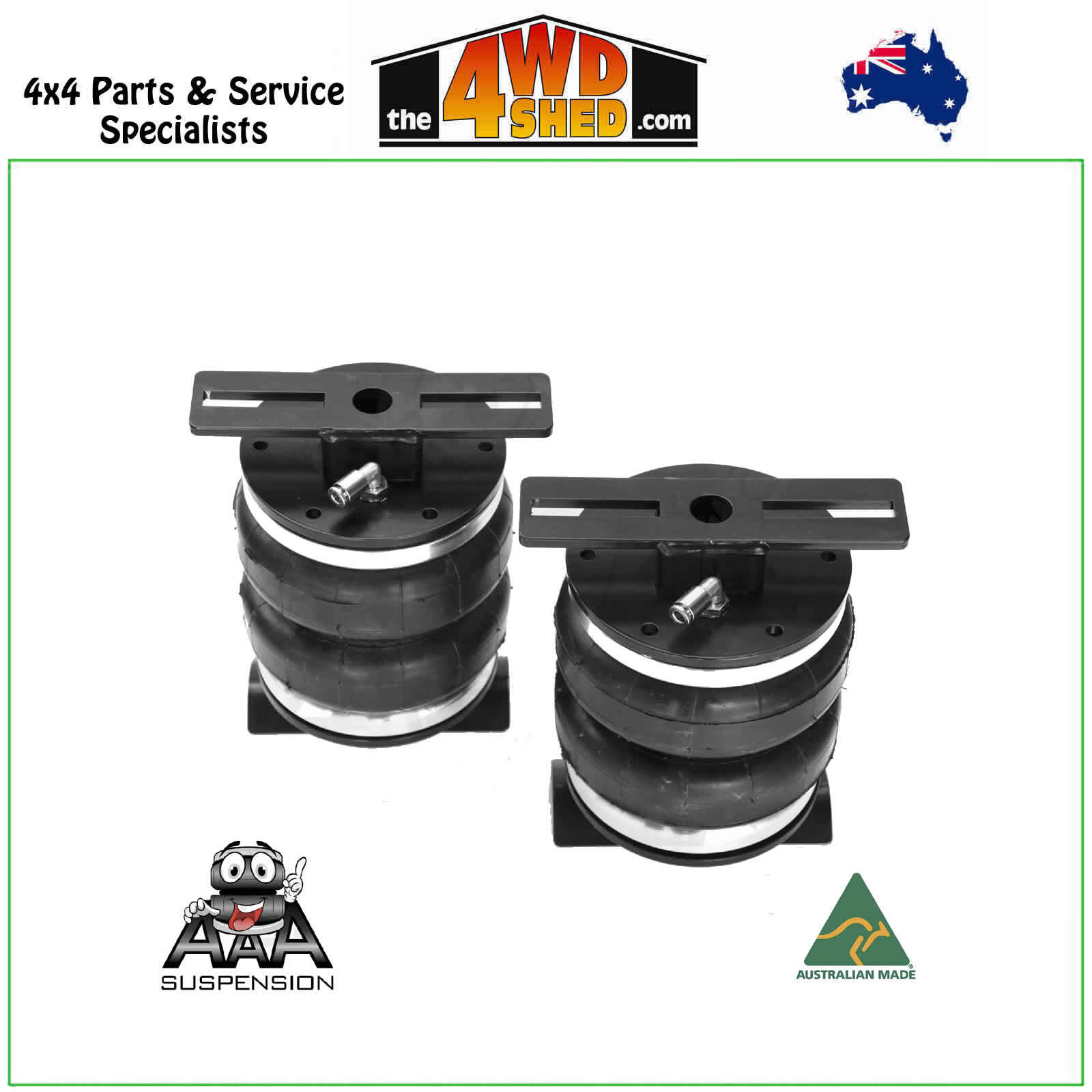

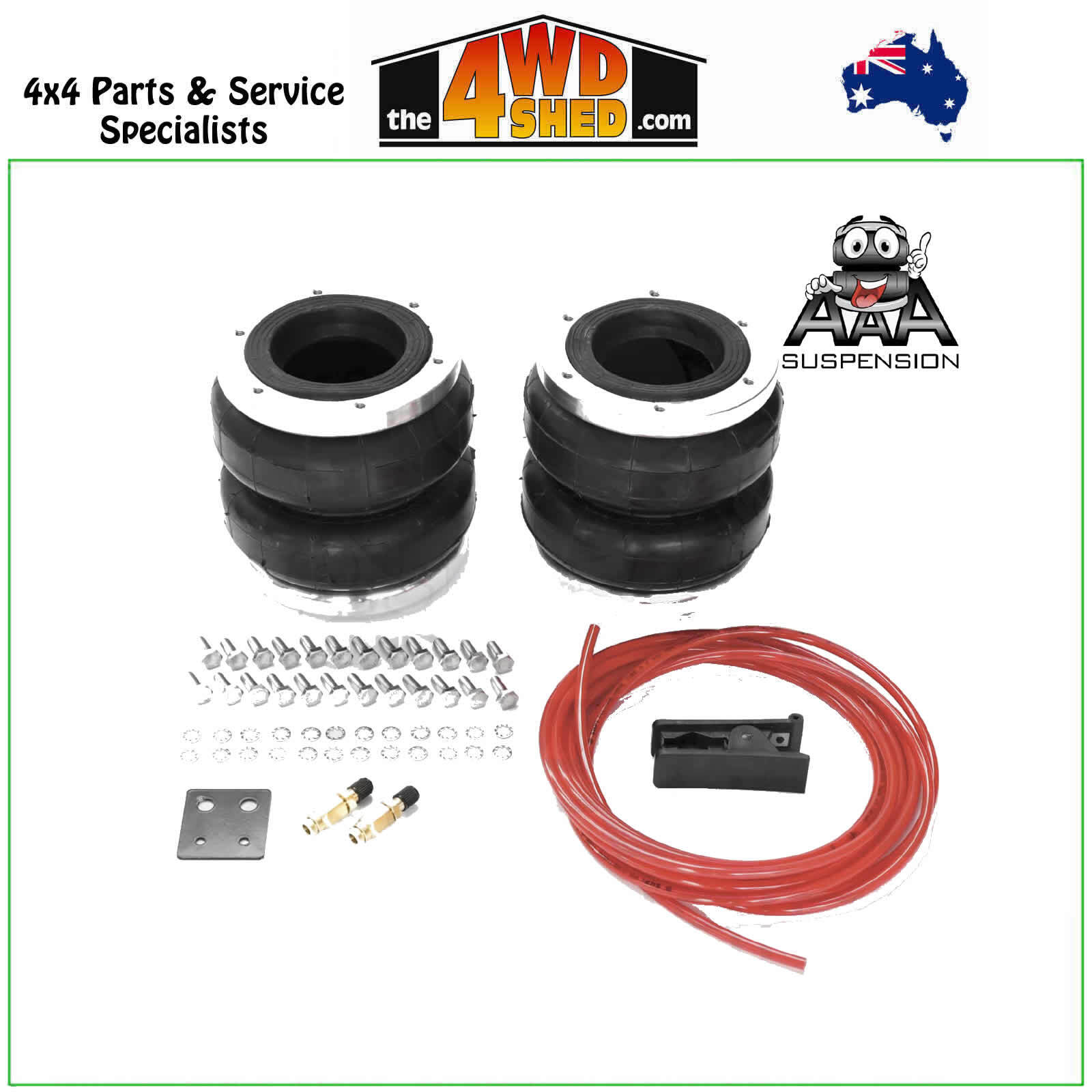

Airbag kit includes two airbags, vehicle specific airbag mounts, required bolts, air fittings, air line tubing and inflation valves. Full instructions available.

This is a brand-new airbag load assist kit to suit the rear of the following vehicles:

  • GREAT WALL UTE – 4X4
  • HOLDEN COMMODORE UTE – VR, VS, VT, VU, VY, VZ – ALL MODELS W/ LEAF SPRINGS
  • HOLDEN RODEO – ALL MODELS – 4X2, 4X4
  • HOLDEN COLORADO – ALL MODELS UP TO JUNE 2012 – 4X2, 4X4
  • ISUZU D-MAX – ALL MODELS UP TO 2012 – 4X2, 4X4
  • TOYOTA HIACE

This is a very universal kit – the old holden 1 tonner and a V8 landcruiser ute with a big lift both run the same kit and just the length of brackets vary – Short, Medium and Tall. We have simplified your options with the correct length applied to each vehicle type.  But if you have any doubts about how tall your vehicle sits like what suspension lift you might have etc then simply jack up the tow bar so the rear sits where you expect it to ride then measure underside of chassis to top of axle. Because we make our own brackets, we can also do custom builds if you have special requirements.

We have 3 height options for our LA01 kits:

  • Short, LA01 (S) – 200mm (for the low riders)
  • Mid, LA01 (M) – 235mm (most common)
  • Tall, LA01 (T) – 270mm (for the running lift kits)

We provide a number of kitting options for our AAA Suspension Airbag Kits. Pricing is for an Airbag Kit with Powder Coat brackets. You can change to Galvanised brackets at additional cost. We also can offer in cab wiring kits. By selecting an “In-Cab Kit”, you will also be supplied with all the gear required to control the air in your bags from the inside of your vehicle, and you can option for us to supply a compressor included in the In-Cab kit for you too if you do not already have one installed. Just pick through your options when checking out.

The AAA leaf assist airbag kit replaces your bump stops and effectively becomes a bump stop conversion that can help you carry a load. When unloaded you want some air in the bags (10-15 psi) so you have some cushion or softness in the new bump stop effect. Then as you load up just add more air – what ever it takes to keep the vehicle level.  The AAA kit is rated at 2.5t so that’s the bags being capable of lifting 2.5t of additional weight over the rear axle. Your real limit is your GVM and what’s safe and sensible, but know the bags are up for what ever your load might be.

The rubber in the bags is heavier than the rubber in the sidewalls of your tyres, so they last for ever seeing there is no rubbing or moving parts as such. AAA kits come with a 10 year new for old warranty on all bags, brackets, airlines and valves.

Please Note: AAA Suspension kits are made to order depending on your kit selection. We may ship direct from the warehouse. If there are any major delays we will be in contact via email, so please make sure your contact details are correct.

Fitting is available at The 4WD Shed workshop in Bayswater Vic. Contact us for a quote on 03 9720 8783.

The 4WD Shed is an Authorised AAA Suspension Stockist & Fitter.

If interested in seeing what’s involved click the PDF instructions available below our images. Also watch the video below.

(LA01-S)

SKU LA01-S
Brand AAA Suspension
Shipping Weight 8.0000kg
