LA1500 Airbag Kit Dodge RAM 1500 DS & DT

AAA Suspension LA1500 Airbag Kit Dodge RAM 1500 DS & DT

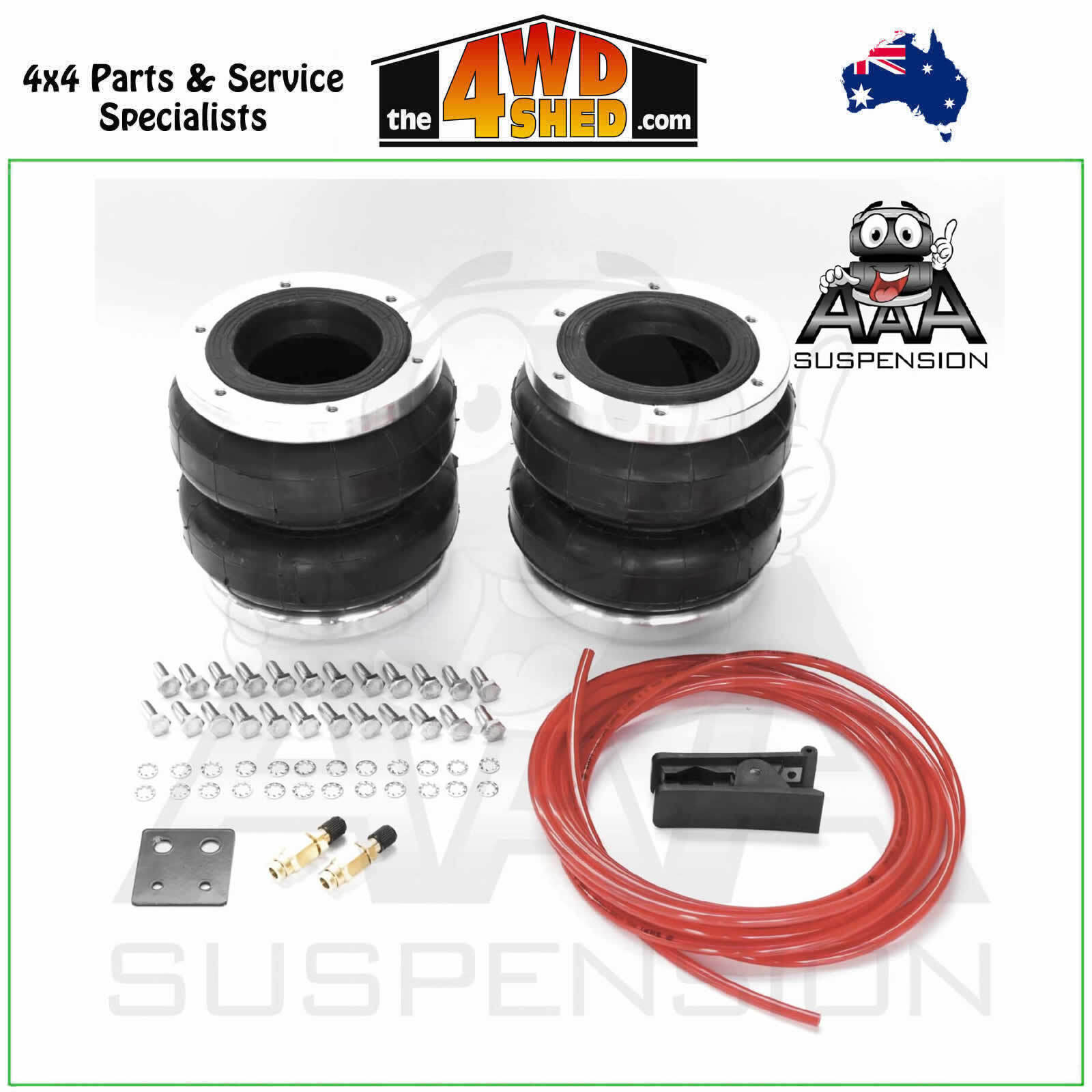

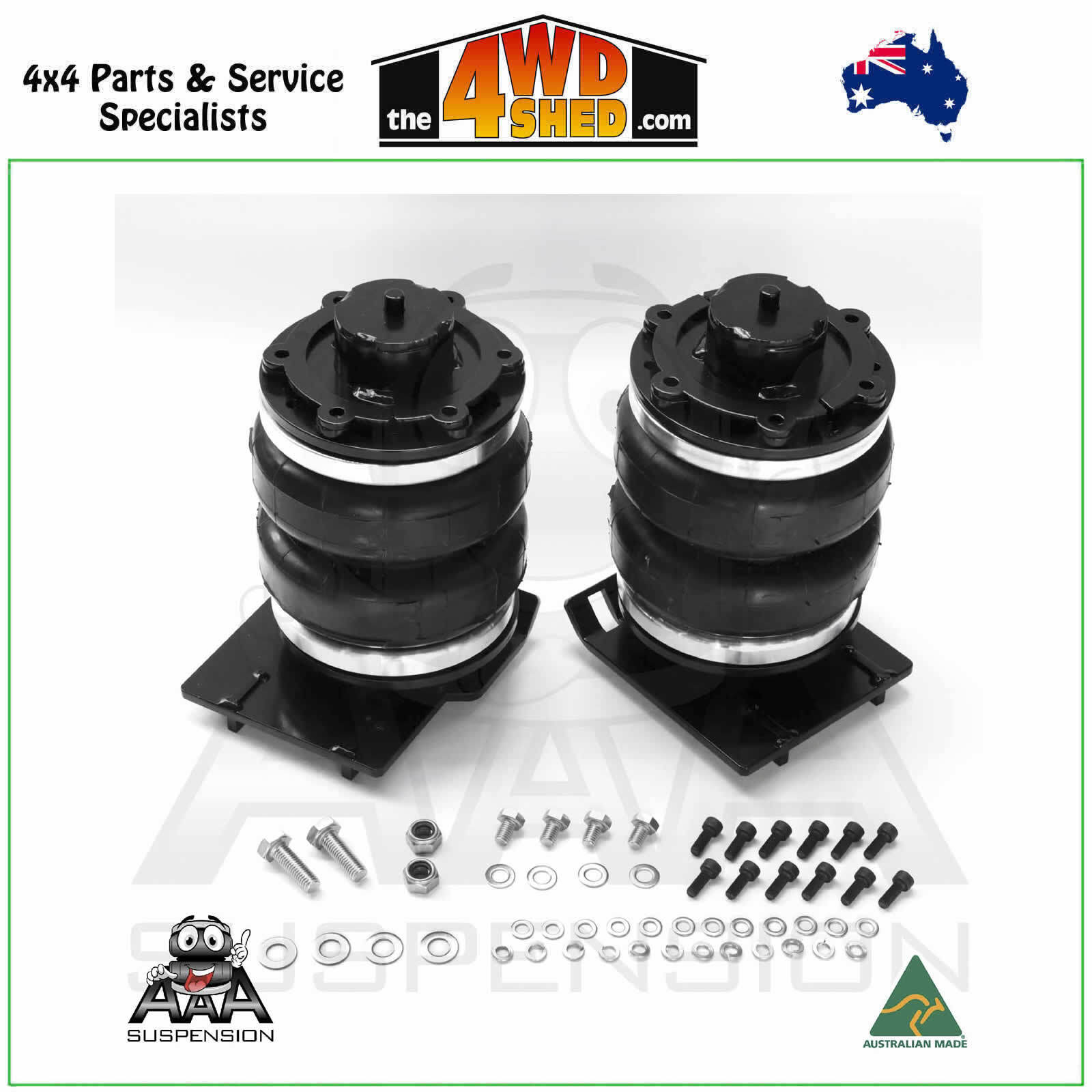

Airbag kit includes two airbags, vehicle specific airbag mounts, required bolts, air fittings, air line tubing and inflation valves. Full instructions available.

This kit is still suitable even if your vehicle has a 2″ lift.

This is a brand-new airbag load assist kit to suit the rear of the following vehicles:

• Dodge RAM 1500 DS & DT

By selecting an “In-Cab Kit”, you will also be supplied with all the gear required to control the air in your bags from the inside of your vehicle, and you can option for us to supply a compressor included in the In-Cab kit for you too if you do not already have one installed. Just pick through your options when checking out.

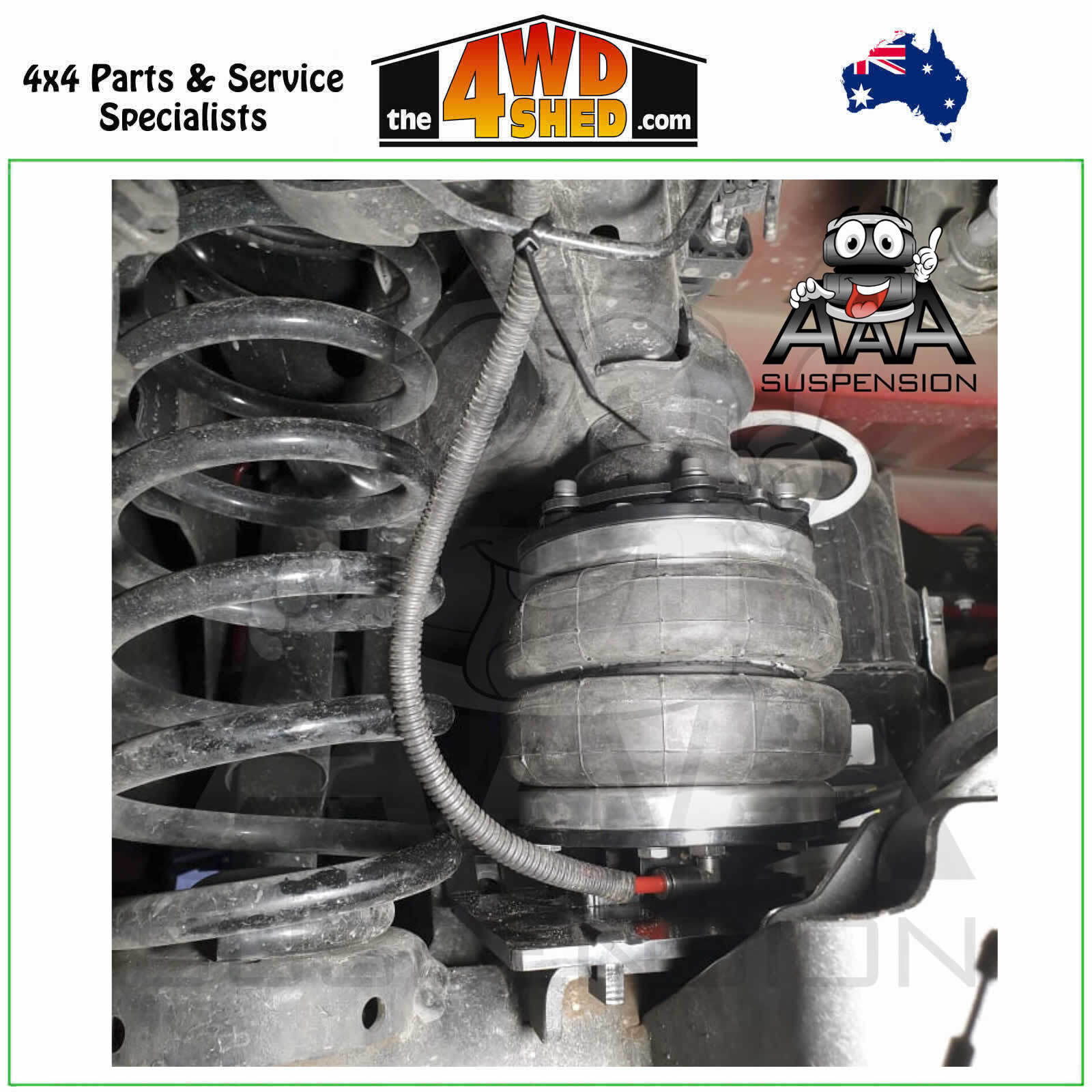

The AAA kit replaces the rubber bump stop, which is mounted directly under the chassis and over the axle. It sits beside the coil so the coil remains in the car – that’s peace of mind for those who may worry if something untoward were to happen to the bag they still at least have the coil. And being your new bump stop you want some cushion effect, so when unloaded you want 10-15 psi in the bags to maintain that cushion without adding lift and stiffness. So we have kept that comfortable ride quality we enjoy.

Then as you load up just add more air to the bags. The rule of thumb being, just add what ever it takes to keep it at standard height. If it helps, we run about 40 psi when we tow a 22′ caravan, and we go to about 60 psi when we have about 800Kg of steel in the back.

Unlike coil inserts which are only rated to 450Kg (and they wear out quickly) the AAA coil assist kit is rated to 2.5t so that’s a rating of 2.5t of additional weight over the rear axle – but the limiting factor is more your GVM and the vehicle’s ability to stop with such heavy loads. Just know the AAA bags are good for what ever you throw at them.

The AAA coil assist kit also comes with a 10-year new for old warranty. There are no rubbing surfaces or moving parts and the rubber in the bags is heavier than that in the sidewalls of your tyres and the bags aren’t on the road like your tyres are.

Please Note: AAA Suspension kits are made to order depending on your kit selection. We may ship direct from the warehouse. If there are any major delays, we will be in contact via email, so please make sure your contact details are correct.

Fitting is available at The 4WD Shed workshop in Bayswater Vic. Contact us for a quote on 03 9720 8783.

The 4WD Shed is an Authorised AAA Suspension Stockist & Fitter.
