Superior 3 Way Adjustable 2.5 Remote Reservoir Black Series Shock Nissan Patrol GQ GU - Front
Limited Stock! Please contact us to check availability before purchasing.

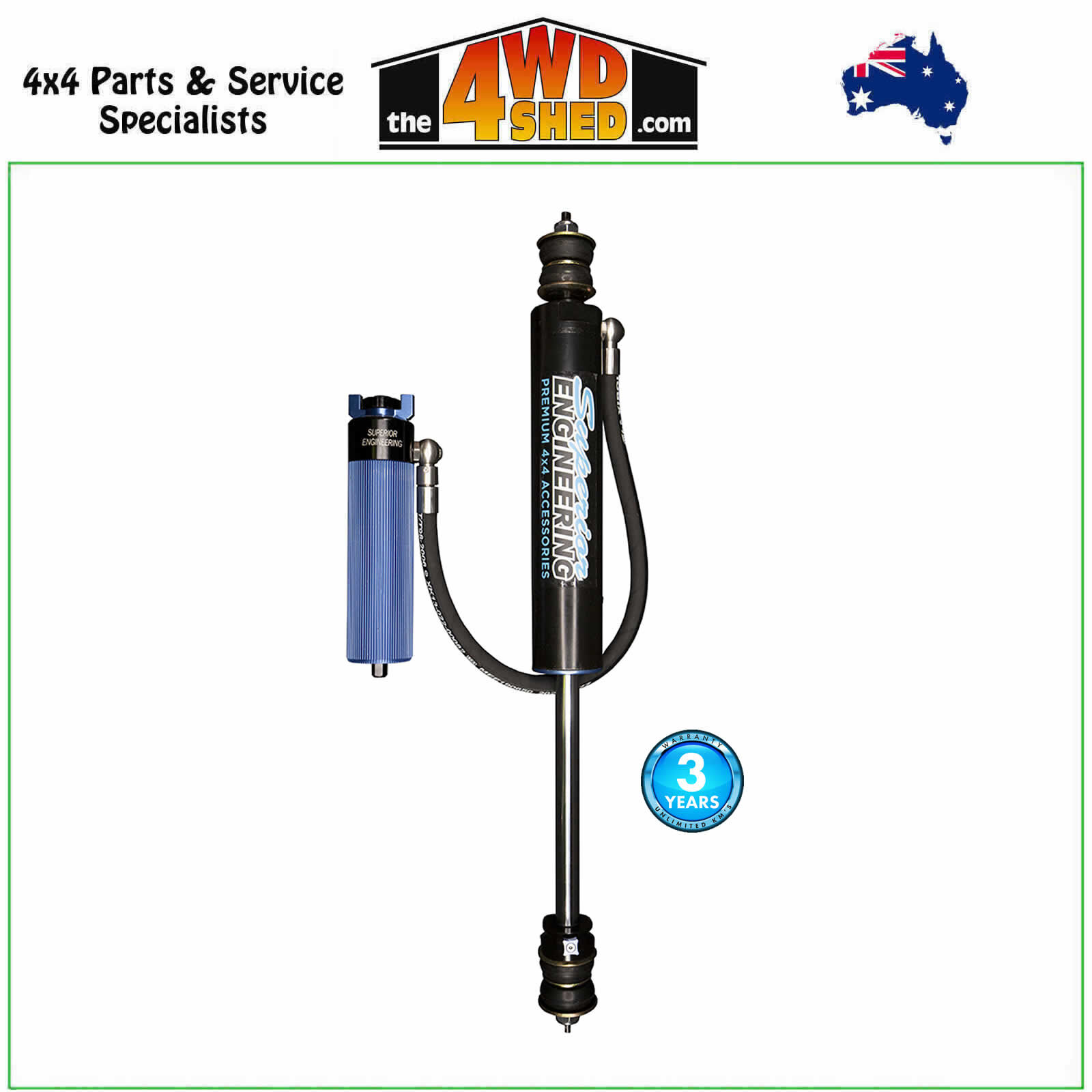

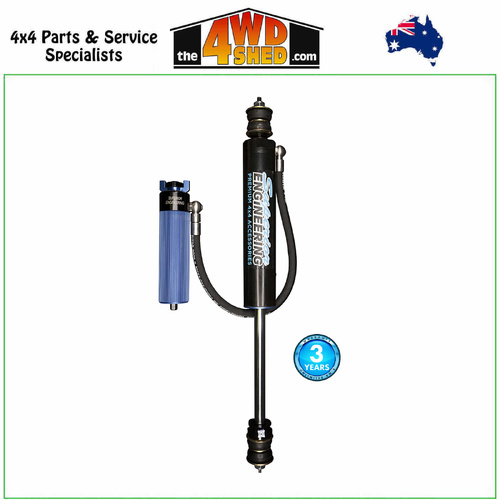

Superior 3 Way Adjustable 2.5 Monotube Remote Reservoir Black Series Shocks - Front
Suits Nissan Patrol GQ GU
3 Year and Unlimited Km's Warranty
Superior 3 Way Adjustable 2.5 Monotube Remote Reservoir Black Series Shocks are covered by a 3-Year Unlimited Kilometre warranty, for full details please see our warranty page or give us a call.
What sets the Superior 3 Way Adjustable Shocks apart?
What sets the Superior 3-Way Adjustable Remote Reservoir Shocks apart is the ability to completely tailor your suspension to suit your driving style, and terrain, without compromise. With a massive 58 points of external adjustment, including 14-stage low speed compression, 22-stage high speed compression, and 22-stage rebound, these shocks give you the flexibility to fine-tune ride quality in seconds. Whether you’re chasing plush comfort on touring tracks or dialling in control for high-speed off-road racing, you’re always in command. Built around a large 2.5" monotube body with a finned alloy remote reservoir, these shocks stay cooler for longer under extreme conditions. Internally, they feature billet alloy pistons, a velocity-sensitive shim stack, and a floating piston to separate oil and nitrogen, this ensures consistent damping, minimal fade, and long service life. From the 22mm hard chrome shaft to the anodised billet fittings and natural rubber bushes, every component is engineered to perform in the harshest environments. Fully rebuildable and revalvable, they’re not just a high-end replacement, they are built to grow with your setup.
High and Low Speed Compression Adjustment

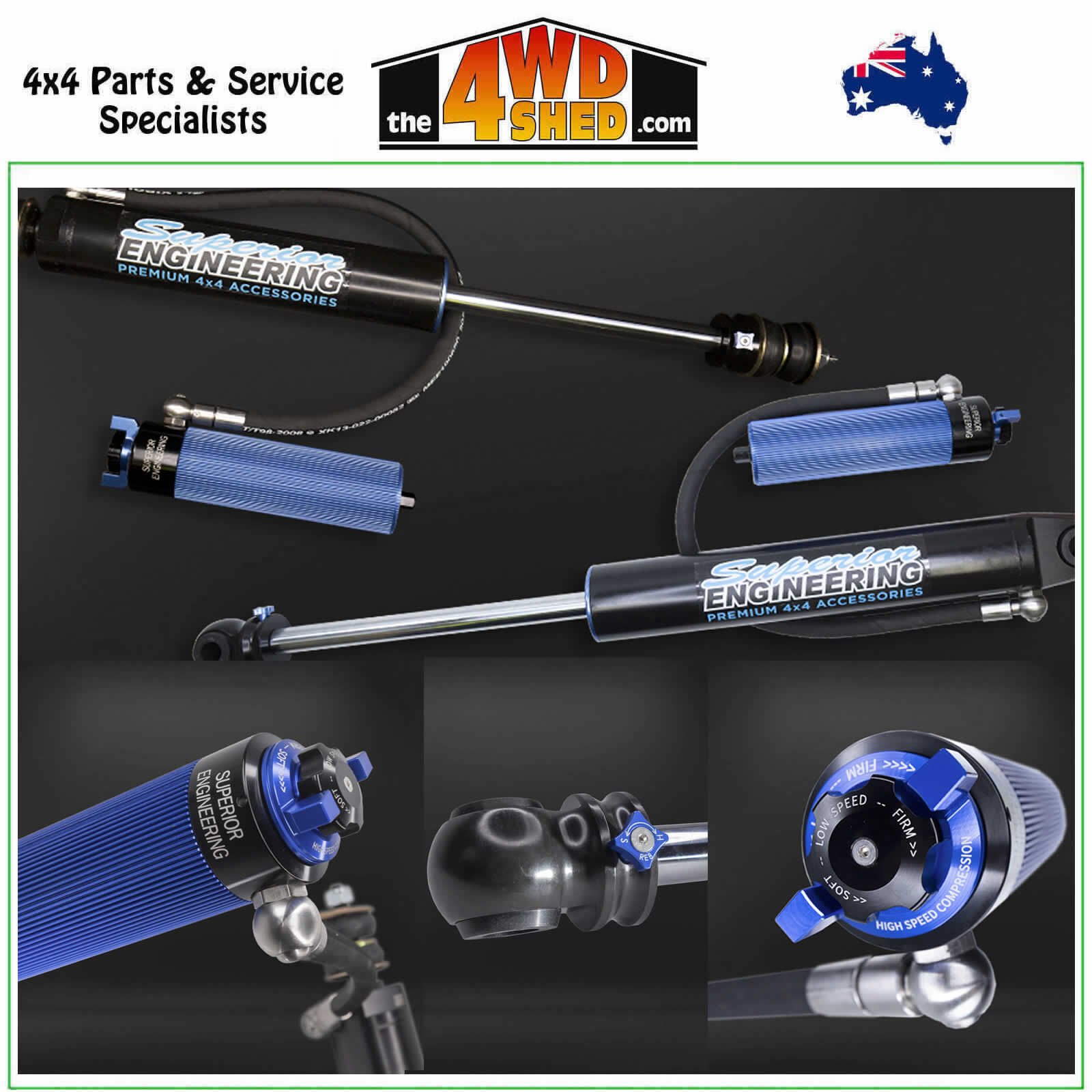

Fine tune your 4WD with massive range of adjustment, our 3 Way adjusters feature 14 low speed compression adjustments, and 22 High speed adjustments. The compression adjustors are effortlessly changed using the two rotating knobs on the Remote Reservoir. Whether you want a plush, comfortable ride or a firmer, more controlled setup, you can make the switch in seconds.
22 Stage Rebound Adjustment
The 22-stage rebound adjustor gives you precise control over how quickly your suspension returns after compressing, critical for maintaining traction, stability, and ride quality across varying terrain. Whether you are tackling technical rocky sections, high-speed tracks, or fully loaded touring, being able to slow down or speed up the rebound rate allows you to fine-tune how the vehicle settles between bumps. This level of adjustment helps reduce body roll, prevents bouncing or harsh top-out, and ensures your tyres stay planted for maximum control. With 22 positions to choose from, you can dial in your suspension to suit your exact driving style and conditions.
60mm High Performance Piston
Manufactured for serious performance, The Superior 3 Way Adjustable 2.5 Monotube Remote Reservoir Shocks feature a robust 60mm Teflon-coated piston. with race-inspired port configurations It delivers vehicle-specific damping performance whilst maintaining optimum ride quality and smooth operation. The piston works in conjunction with a composite Teflon wear band that offers low internal resistance and high compressive strength. Additionally, the sophisticated velocity sensing valve stack automatically adjusts to changing driving conditions, ensuring superior ride quality and improved handling.
Remote Reservoir Design
The external reservoir significantly increases oil volume and improves heat dissipation, ensuring consistent damping performance over long, demanding drives. Inside the reservoir, an internal floating piston (IFP) keeps the shock oil and nitrogen gas separate, eliminating cavitation and foaming to prevent shock fade and maintain reliable, predictable control. For added versatility and ease of fitment, each reservoir is connected via a dual-core stainless braid hydraulic hose, paired with dual O-ring swivel fittings. This setup allows for flexible routing and adjustment, making installation easier across a wide range of vehicle configurations.
CR3+ Plated Shock Shaft
All Superior 3 Way Adjustable 2.5 Monotube Remote Reservoir Shocks feature a highly polished trivalent chromium plated 22mm steel shock shaft. Specifically designed for long-lasting durability, increased hardness, and resistance to corrosion. It guarantees optimal performance and an extended lifespan.
Nitrogen Gas Charged
The Remote Reservoir Shocks are Nitrogen Gas charged to minimise cavitation during high-speed oscillations typically encountered in off-road conditions, making sure the shock is reliable in performance and stability.
Features
- 3-way external adjustment with 58 total settings: 14-stage low speed compression, 22-stage high speed compression, 22-stage rebound
- Massive 2.5" monotube body for increased oil capacity and cooler operating temps
- Finned alloy remote reservoir with internal floating piston for superior heat dissipation and consistent damping
- Billet alloy, Teflon-coated pistons engineered for reduced friction and long service life
- Velocity-sensitive shim stack for automatic terrain response and custom re-valving
- Heavy-duty 22mm hard chrome shaft resists corrosion and stone damage
- Swivel hose fittings with dual-core stainless braided lines for flexible, leak-free installation
- Rebuildable and revalvable design for long-term value and custom tuning
- High-quality natural rubber bushes and spherical bearings for durability and noise isolation
- Covered by a 3-year unlimited kilometre repairable warranty for total peace of mind
Servicing & Parts Support:
- The Black series 3-Way shocks are fully re-buildable and serviceable. Black series 3-Way shocks have a dedicated service kit, we can service your shocks maintaining quality & extending the life of your shocks.
- 3 Year and Unlimited Km's Warranty. See the Warranty page for more information.
- If you require a heavier valving to suit your application, please let us know. Superior shocks can be re-valved to suit custom-builds.
Bushes vs Heim Joints:
- The Black series 3-Way shocks use rubber bushes (25057) at the top and bottom. Doing away with noisy heim joints by using a rubber bush. We can re-bush & service your shocks as required.
SOLD AS EACH.
Fitment Notes: For Patrol front applications, our Superior shock towers are required, as the relocated hose now exits from the top of the shock.
The 4WD Shed is an Authorised Stockist for Superior Engineering.
Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If it's not listed on our website, please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.
(SE-56199)
The 4WD Shed is an Authorised Stockist for Superior Engineering.
We stock, supply & fit a large range of items that can be found on Superior Engineering, BUT in some instances there may be delays in stock or if it is a special order item.
We aim to ship items within 1-3 business days, but if your order contains any items that fall under the above conditions, we will contact you to notify you. If you wish to check availability before purchase, you can call us or send an email.
Due to the weight of Superior products, we may be required to quote freight on multiple items. We will contact you before beginning to process your order, otherwise you can contact us for a freight estimate. We will try & keep costs down where we can, so this may mean that we split your order over 2 parcels in order to keep weight & costs down.
Please make sure you have a valid contact number in your order details for us to contact you regarding any delays.
| SKU | SE-56199 |
| Brand | Superior Engineering |
| Shipping Weight | 10.0000kg |
