Superior VSB14 Street Legal 3 Inch Lift (75mm) Coil Converted Lift Kit 4T GVM Eligible Toyota Landcruiser 79 Series 2007-2016 Pre-DPF Models
More infoSuperior VSB14 Street Legal 3 Inch Lift (75mm) Coil Converted Lift Kit 4T GVM Eligible Toyota Landcruiser 79 Series 2007-2016 Pre-DPF Models
The cost of Fitting, Welding & Engineering Approval at The 4WD Shed SSM Production Facility P17773 Starts from $7950
The Superior VSB14 Street Legal 3 Inch Coil Converted Lift Kit combines engineered front suspension, heavy-duty steering upgrades and a Superior Engineering Weld-In Rear Track Correction Coil Conversion for the Toyota LandCruiser 79 Series 2007-2016 V8 Pre DPF, with up to 295/70R17 tyre fitment and eligibility for a 4,000kg GVM upgrade.
Built for 70 Series LandCruiser owners chasing serious capability without sacrificing legality, the Superior Engineering VSB14 Street Legal 3 Inch Coil Converted Lift Kit is one of the most comprehensive engineered suspension systems available for Toyota 79 Series V8 LandCruisers. This package has been developed to deliver improved off-road performance, increased tyre clearance, enhanced suspension articulation and refined on-road handling while remaining eligible for engineering approval.
Developed and manufactured by Superior Engineering, this complete package combines premium suspension geometry correction, a Weld-In Rear Coil Conversion, heavy-duty steering upgrades, driveline support components and legal compliance items into a single engineered solution. Whether your LandCruiser is built for touring, weekend wheeling or full-time off-road use, the VSB14 kit provides the foundation for a properly sorted setup.
This kit is approved around a 3-inch lift height and allows fitment of up to 295/70R17 tyres while maintaining compliance requirements under the VSB14 approval process. Customers can also option a GVM upgrade to 4,000kg depending on vehicle specification and supporting components fitted.
FRONT SHOCKS & COIL SPRINGS
The foundation of any properly performing suspension system starts with quality shocks and coil springs. Superior Engineering’s front suspension setup has been developed to provide improved ride quality, increased wheel travel and better control both on and off-road. Available in multiple shock options ranging from 2.0 Remote Reservoir through to premium 3-Way Adjustable Remote Reservoir and ECDS shocks, the VSB14 package allows you to tailor your LandCruiser to suit everything from touring and towing through to serious off-road use.
RADIUS ARMS
Correcting suspension geometry is critical when lifting a 70 Series LandCruiser, which is why the VSB14 package includes a range of Superior Engineering radius arm options designed to improve caster correction, front-end stability and suspension articulation. Whether you choose standard corrected arms, Superflex, Hyperflex, or Billet Radius Arms, each option has been developed to improve handling, steering feel and off-road performance while maintaining correct driveline alignment.
STEERING
Bigger tyres and increased suspension travel place additional strain on factory steering components; the VSB14 kit includes heavy-duty Superior Engineering steering upgrades including Draglink and Tie Rod combinations designed to improve steering strength, durability and steering response. Combined with an upgraded steering damper, this package helps reduce bump steer, improve driver confidence and deliver better control both on the highway and off-road.
REAR SHOCKS & COIL SPRINGS
The rear suspension package has been developed to complement the front suspension while delivering improved ride comfort and load carrying capability. Superior Engineering rear shock options are designed to handle the demands of touring setups and aggressive off-road driving while maintaining stability and predictable vehicle behaviour across a wide range of terrain.
REAR COIL CONVERSION
This VSB14 package includes a Superior Engineering Weld-In Rear Coil Conversion, complete with upper and lower control arms. Designed to replace the factory leaf spring rear suspension, this upgrade delivers significantly improved ride comfort, suspension articulation and vehicle control both on and off-road. The coil conversion system improves axle location, suspension performance and driveline geometry while providing greater flexibility for touring, towing and demanding off-road applications.
*Only available for Toyota LandCruiser 79 Series models.
GVM UPGRADE
With the optional GVM upgrade, the VSB14 package can increase your LandCruiser's GVM to an impressive 4,000kg. This allows you to legally carry more equipment, more accessories and more adventure gear without compromising capability or compliance. With more payload available, you can spend less time worrying about weight limits and more time enjoying everything the iconic 70 Series was built for.
WHEELS, TYRES & SPEEDO CORRECTION
The VSB14 package has been engineered around approved wheel and tyre combinations to ensure the vehicle remains compliant while delivering improved off-road capability and ground clearance. With support for up to 295/70R17 tyres, the package also includes a speedo corrector to maintain legal compliance and accurate vehicle operation.
MUDFLAPS
Keeping a lifted vehicle road legal requires attention to even the smallest details. The VSB14 package includes extended front and rear mudflaps designed to improve tyre coverage and help meet legal requirements associated with larger tyres and increased ride height. Manufactured to suit off-road use, these mudflaps provide additional protection while maintaining a clean and compliant finish.
BRAKES
When increasing tyre size and vehicle capability, maintaining safe braking performance is essential. The VSB14 system includes upgraded brake lines, designed to support increased suspension travel while maintaining reliable brake operation. Available with rubber or braided brake line options, the system has been developed to provide dependable braking performance on and off the road.
KEEP IT LEGAL
The Superior Engineering VSB14 program has been developed to provide customers with an engineered suspension solution designed around compliance requirements. To qualify for approval, all supplied components must be fitted to the vehicle and maintained in acceptable roadworthy condition. A pre-inspection is required prior to engineering, ensuring the vehicle meets approval standards before final certification is completed. Approval availability may vary between states and territories, so customers are encouraged to contact Superior Engineering for further information regarding local compliance requirements.

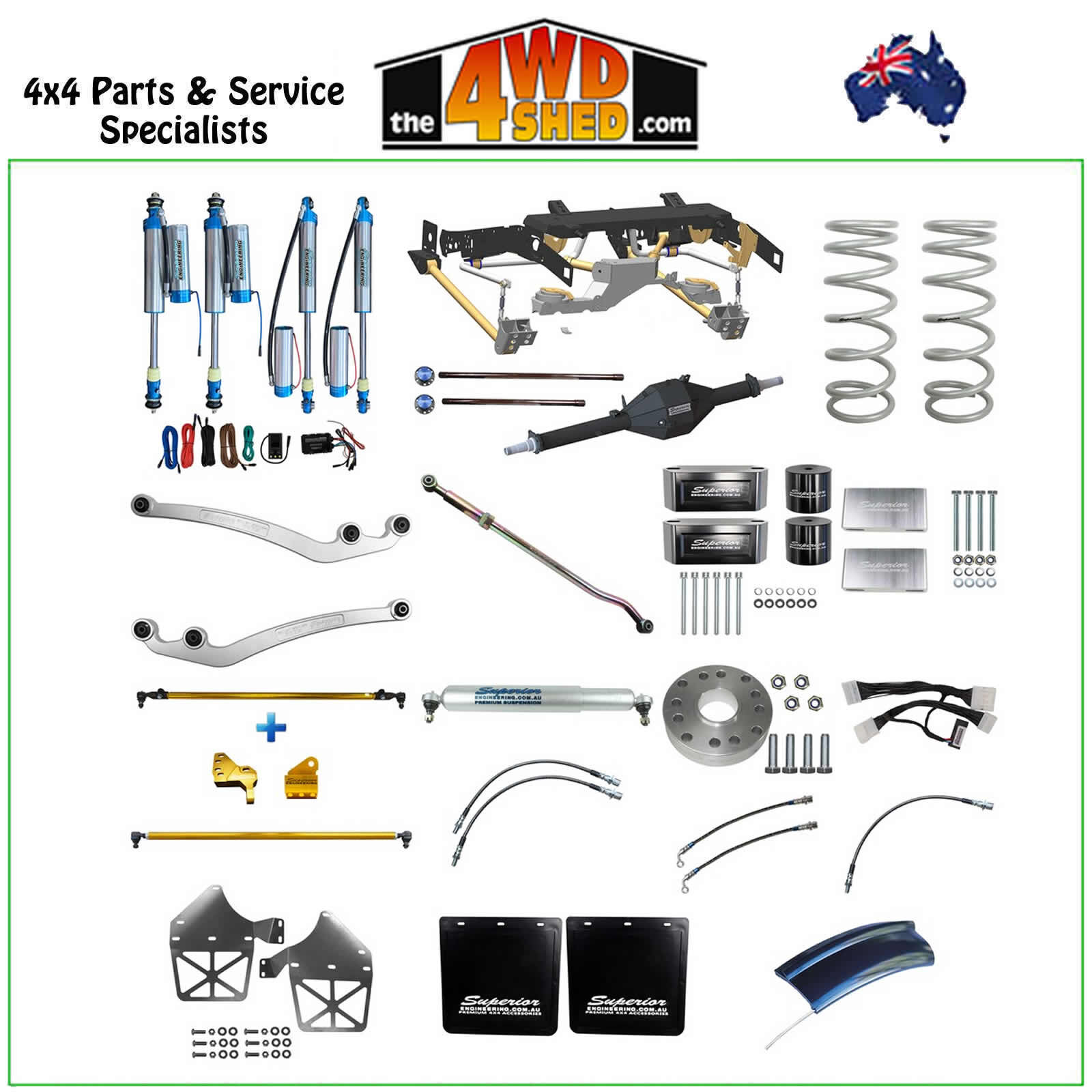

Kit Includes
- Superior Front Coil Springs
- Superior Shocks (2.0 Remote Reservoir, 3-Way Adjustable 2.5 Remote Reservoir, ECDS)
- Superior Steering Damper (Nitro Twin Tube, IFP Monotube)
- Superior Draglink (Comp Spec, Billet)
- Superior Tie Rod (Comp Spec, Billet)
- Superior Adjustable Front Panhard
- Superior Radius Arms (Superior Radius Arms, Superflex, Hyperflex, Billet)
- Superior Alloy Sway Bar Extensions Front (Pair)
- Braided Brake Lines Front (Pair)
- Braided Brake Lines Rear (Pair)
- Braided Caliper Lines Front (Pair)
- Braided Caliper Lines Rear (Pair)
- Superior Mudflap Bracket (Offset Specific Options Available)
- Superior Rubber Mudflaps (Pair)
- Superior Bump Stop Extensions Front (Pair)
- Superior Front Tailshaft Spacer
- Wheel Arch Flare Extension (Rubber)
Rear coil conversion includes the following parts
- Superior Track Corrected Chromoly Diamond Diff Housing or Standard Diff Housing
- Superior Weld-In Coil Conversion Plates
- Superior Rear Adjustable Upper Control Arms (Steel, Billet)
- Superior Rear Lower Control Arms (Steel, Billet)
- Superior Rear Coil Springs
GVM Upgrade adds the following parts
- Superior Handbrake Upgrade Kit
- Upgraded Brake Booster
- LED Cat 6 Side Repeater
KEY BENEFITS
- Most comprehensive street legal engineered suspension kit for the Toyota 79 Series LandCruiser
- Superior Engineering Weld-In Rear Coil Conversion included for improved ride comfort and articulation
- Up to 295/70R17 tyre compatibility
- Improved suspension articulation and ride quality with multiple shock absorber options available.
- Heavy-duty steering upgrades for larger tyres
- Adjustable suspension geometry correction components
- Eligible for 4,000kg upgrade*
- Australian made and owned company
- Lifetime warranty against bending and breaking on Superior Engineering manufactured components
SPECIFICATIONS
- 3 Inch Lift Height
- Up to 295/70R17 (33”) Tyres
- Eligible GVM Upgrade: 4,000kg
- Applicable for Toyota 79 Series LandCruiser V8 Pre DPF
Notes: We can only offer this kit in a 3 Inch suspension lift & up to 33" tyre size. Other states may offer larger lift but Victorian rules state 3 inch is the highest we can go. Approval & Fitting of this kit is only available ON SITE at The 4WD Shed We will be using our approved VASS Engineer.
* The Superior VSB14 Kit is manufactured and supplied to meet the applicable VASS requirements here in Victoria. Specifications are correct at the time of publication and are subject to change without notice.
VSB14 Kits are not inclusive of a vehicle - Customers are to use their own supplied vehicle. Vehicles may be shown with optional modifications or additional extras/accessories that are not included in VSB14 Kits such as Wheels, Tyres, etc. Product images may not be an exact reflection of the supplied components due to constant product development & changes.
APPROVED TYRE SIZES
- 7.5R16LT (OEM)
- 295/70R17
- 285/70R17
- 33x12.5R16
- 33x12.5R17
Note: Once a tyre size is fitted to the vehicle, this becomes the approved tyre size for the vehicle and cannot be changed later. Customers should carefully select a tyre size suitable for their intended vehicle use and long-term tyre availability.
The 4WD Shed is an Authorised Stockist for Superior Engineering.
(61547)
| SKU | 61547 |
| Brand | Superior Engineering |
