Tow-Pro Elite V3 Brake Controller & Extended Length Wiring Kit

Tow-Pro Elite V3 Brake Controller & Extended Length Wiring Kit

Looking for a brake controller kit for your vehicle? This REDARC Tow-Pro Elite brake controller kit is the perfect off-the-shelf bundle featuring needed to equip your vehicle with an electric brake controller allowing you to tow trailers, caravans, camper trailers, horse floats and boat trailers.

It is suitable for vehicles where the start battery is on the other side of the vehicle from the rest of the installation via 3.7m power cable length.

The only difference between this kit and Universal Tow-Pro Wiring Kit Standard Lengths is the length of the positive power connection.

What’s inside?

Utilising REDARC’s award-winning Tow-Pro Elite, this kit equips you with complete control capability for on- or off-road towing to suit any terrain or experience level.

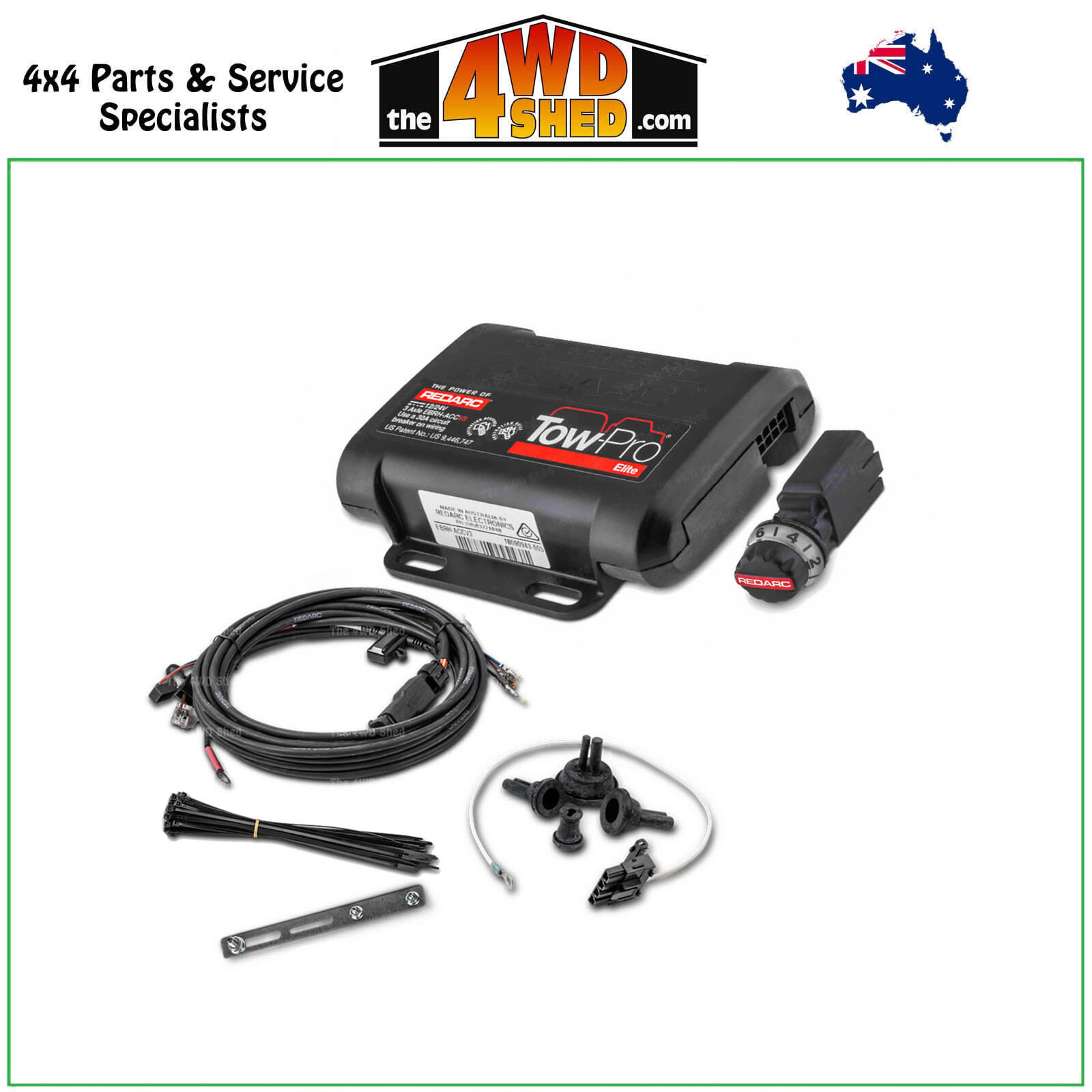

This includes:

• A Tow-Pro Elite (EBRH-ACCV3) electric trailer brake controller, featuring both user-controlled and proportional braking modes
• The Wiring Kit and bracket required for installation

The Tow-Pro Elite provides users with the ability to swap between Proportional mode (inertia sensing) for highway driving conditions and User-Controlled mode, popular for off-road driving.

This is the 3rd generation of REDARC’s Tow-Pro brake controller with the original released in June 2014 and the acclaimed Tow-Pro Elite released in September 2015.

Smooth braking capability

Continual software upgrades have been included in the Tow-Pro Elite which result in smoother braking for motorists towing the widest range of caravans, trailers, boat trailers and horse floats.

Compatible with all modern vehicles

When used with the recommended REDARC wiring kits, the Tow-Pro Elite ensures compatibility with all new vehicle technology and features Active Calibration. It works in 12V vehicles with Electric or Electric/Hydraulic trailer brakes and it works in 24V vehicles with electric brakes without the need for any additional adaptors.

For Electric/Hydraulic brakes behind 24V vehicles, it requires the EB24A adaptor. When installed as per instructions It ensures an ADR approved installation. It has also been approved by AL-KO for use with their ESC and by Dexter with their DSC systems.

Easy to install brake controller

The Tow-Pro Elite V3 features a reduction to the size and installation of the user interface (remote head). A change to the shape, length, size and depth of the remote head will allow a quicker and easier installation of the Tow-Pro Elite. It also ensures the remote head will fit into thicker and curved dashes found in modern vehicles and trucks.

Vehicle specific installation accessories

Using the recommended wiring kits, the Tow-Pro Elite is designed to work with all modern vehicles. Selected TPSI switch inserts for many popular vehicles make for a very neat quick installation, giving a “factory” look to the user interface (a single control knob).

The 4WD Shed is an Authorised Online Reseller for Redarc.

We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply
