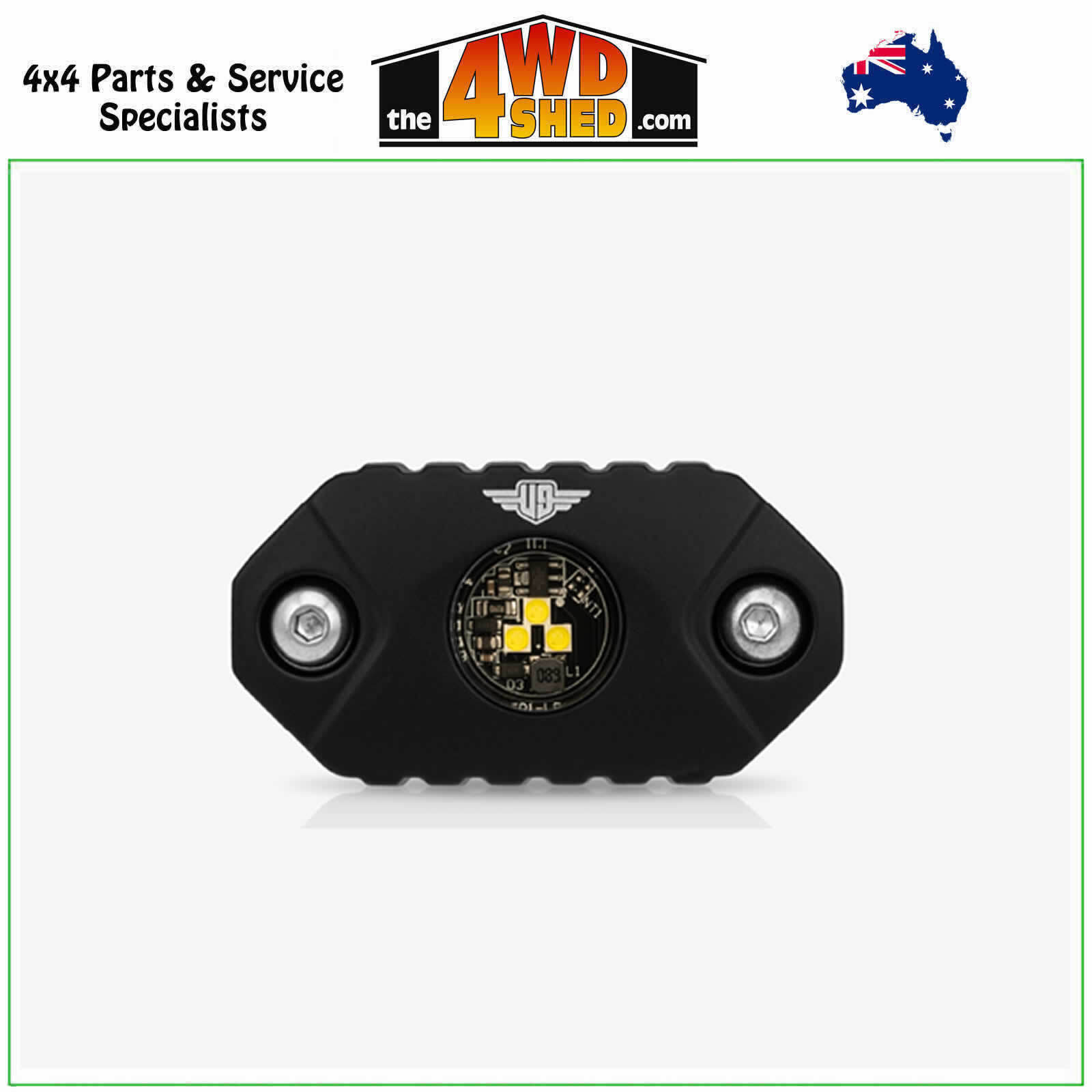

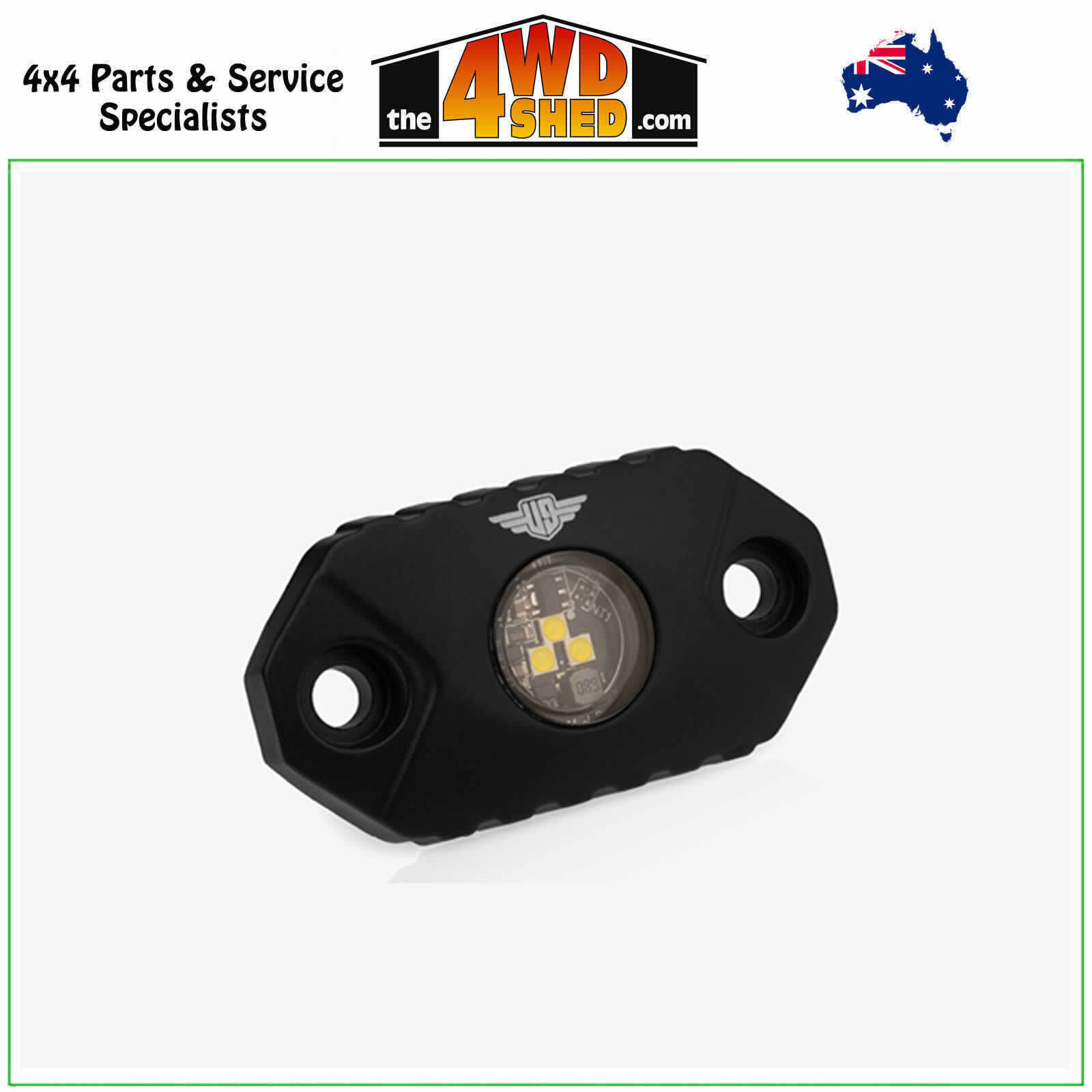

Ultimate9 LED Rock Light - White
More infoUltimate9 LED Rock Light - White
Small & Rugged - the Ultimate9® LED Rock Lights can be mounted practically anywhere.
Features:
- Available in Blue or White LED Output
- 120º Flood Beam Pattern
- Osram Grade A LED Chips
- Ingress Protection Rating of IP68/IP69K
- DuPont® Coated, Die Cast 6063 Aluminium Housing
To withstand all the rocks, stones, and boulders passing beneath, it was clear that these little guys needed to be well-built.
That's why, with a 6063 Aluminium housing and lens made of GE Lexan® Polycarbonate material - we can confirm they are qualified for the job.
Not only can they be used to reveal the track beneath you - but with their wide 120º spread, and compact profile, the possibilities are limitless.
Mount them to the bonnet & light up the engine bay, inside wheel arches to aid tyre repairs, around the cab, in the cab - you can see the picture.
Features:
- Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
- IP68 for term-long submersion and total dust ingress.
- IP69K for stream jet cleaning.
- Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.
- Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: 120°(Flood) spread.
- Technology: 3x Grade A Osram LED chips.

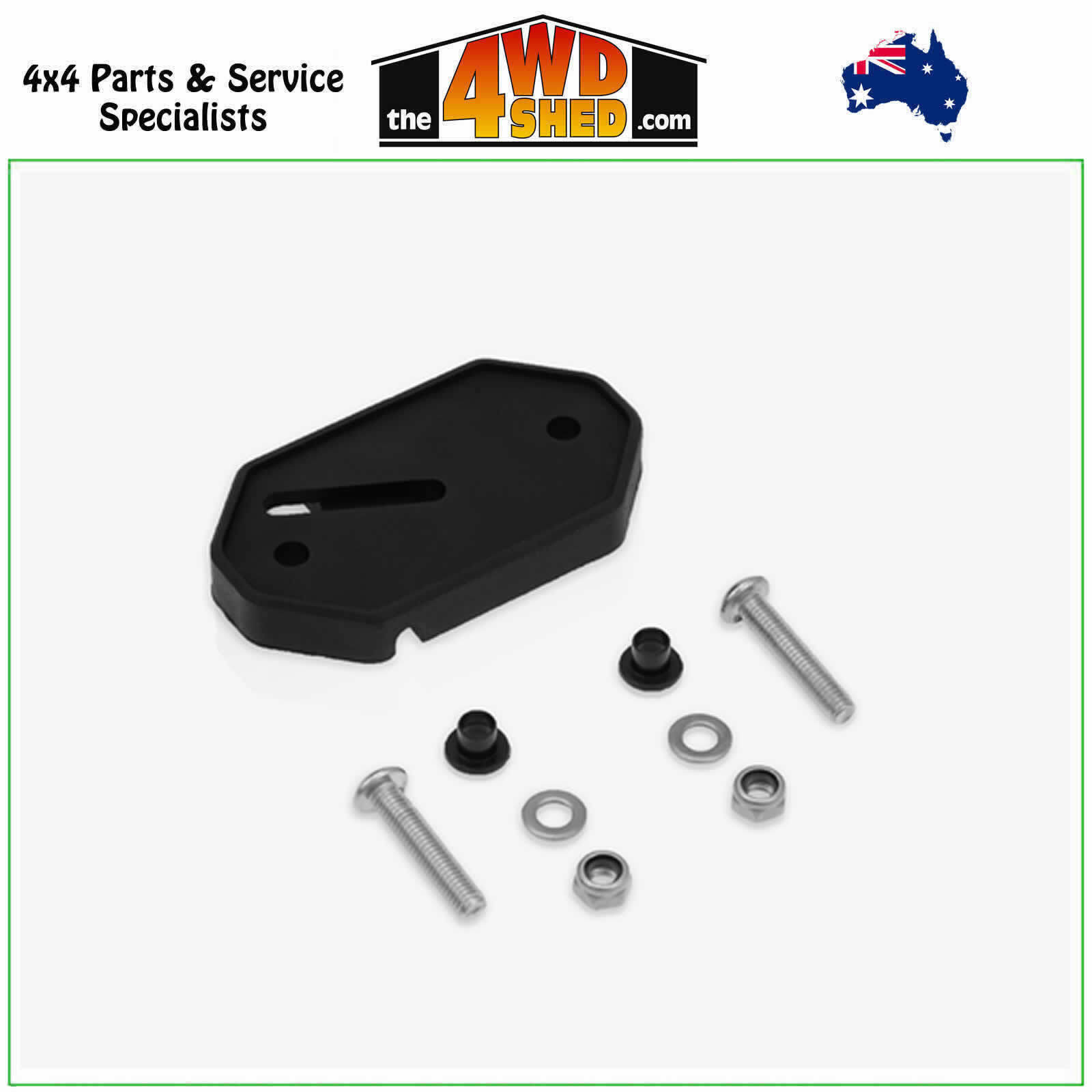

Kit Includes:
- Rock Light (Blue or White Output)
- 304 Stainless Steel Fasteners
- Rubber Mounting Pad
- 145mm Fly Lead with Open Ends
The 4WD Shed is an Authorised Stockist & Installer of all Ultimate9 products.
Specifications
- Input Power: 9-36V
- Beam Pattern: Flood
- Beam Spread: 120° Flood
- Power: 15W
- Current Draw: 0.38A @ 13.2V
- Effective Lumen: 410 lm
- LED Chips: Osram 5W
- Colour Temp: 6000K
- Housing Material: Die Cast 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Fully Sealed
- Weight:
- Body Dimensions: (L)70 x (H)38 x (W)19.3mm
- Lens Dimensions:
- Connector Type: Open Leads (no connector)
- Operating Temp: -40ºC - 145ºC
(ULTLEDRL-W)
| SKU | ULTLEDRL-W |
| Brand | Ultimate9 |
| Shipping Weight | 0.4990kg |
