Upfitter Harness Adaptor Ford Ranger Next Gen Everest UB 2022-On with Overhead Switch Panel
More infoUltimate9 Upfitter Harness Adaptor Ford Ranger Next Gen Everest UB 2022-On with Overhead Switch Panel
Connect up to two additional lights. Perfect for vehicles with pre-wired switches linked to spare terminated circuits.

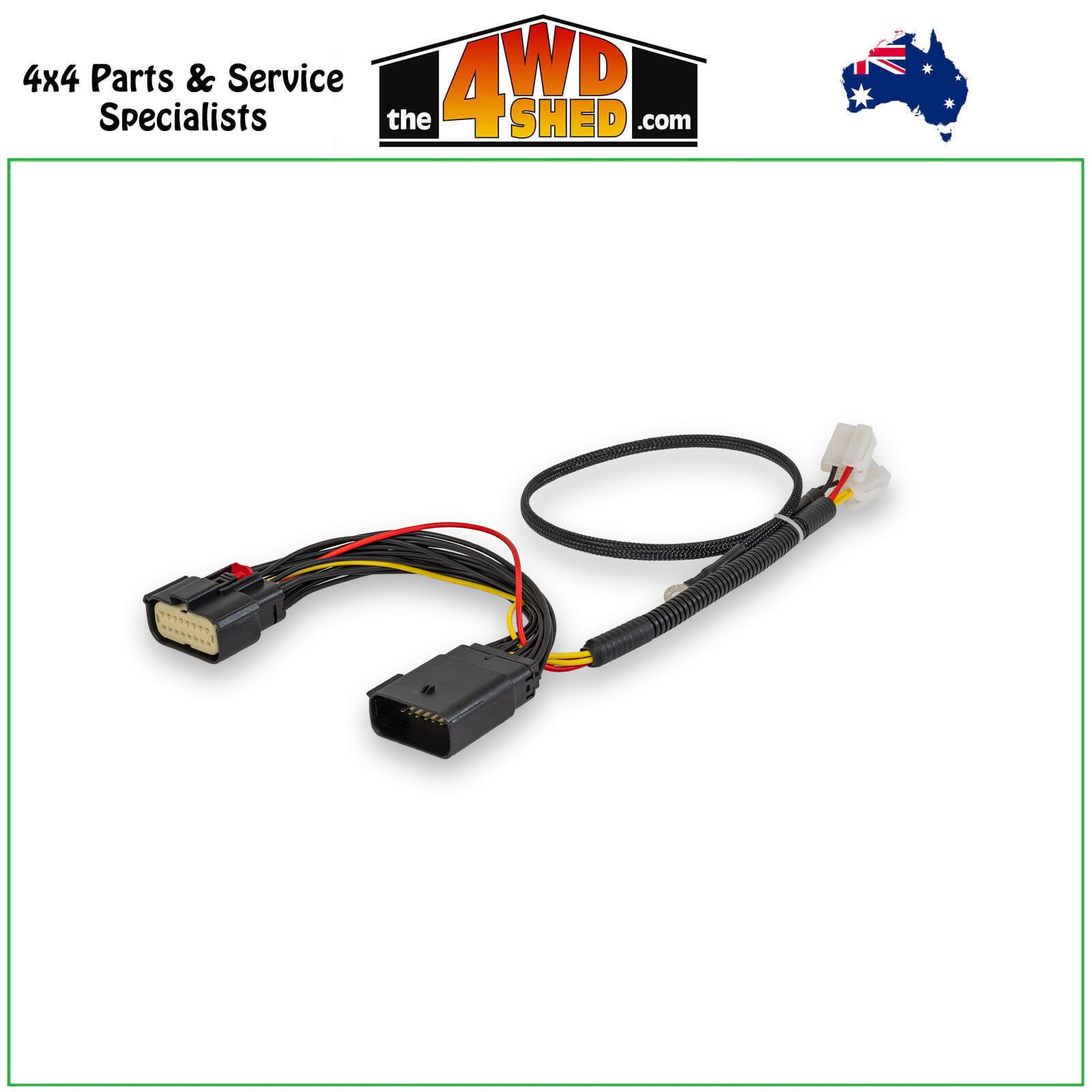

Our Upfitter Harness Adaptor to suit Ford Ranger Raptor & Everest (Next-Gen) with Overhead Console connector kit is the easiest way to connect up to two driving lights, bypassing the need to route & install Auxiliary wiring looms & switches.
The adaptor connects to terminated wires located in the engine bay, which are pre-wired by Ford to AUX switch #6 on the overhead switch panel.
Illuminate your adventure.
Features:
- Industry standard waterproof plugs
- x1 loose Male DTP connector with wedge
- 1500mm cable length
Easily power two driving lights with our 1-to-2 DTP-to-twin-DT connection splitter, designed for a plug & play setup.
Perfect for Next Gen Ford Rangers, Raptors, and Everests equipped with the Ford in-cab overhead switch panel upgrade, where switches are pre-wired and terminated throughout the vehicle.
The kit includes a male DTP connector and wedge, ready to crimp onto loose wires in the engine bay, connecting to AUX switch #6 on the overhead panel, and plugged into the adapter’s female end for a seamless installation.
If switch 6 is already used for other accessories, our High Beam Adaptor (L1 & L3) to suit Ford Ranger Raptor & Everest (Next-Gen) can be used with an Ultimate9 Auxiliary loom to add driving lights.
Specifications
- Cable Length from split: 1000mm
- Overall Cable Length: 1500mm
- Cable: 16AWG (1.5mm²)
- Connectors: Waterproof DT/DTP
- DTP Plug Rating: 25A
The 4WD Shed is an Authorised Stockist & Installer of all Ultimate9 products.
(ULTLEDHA02)
| SKU | ULTLEDHA02 |
| Brand | Ultimate9 |
| Shipping Weight | 0.4990kg |
