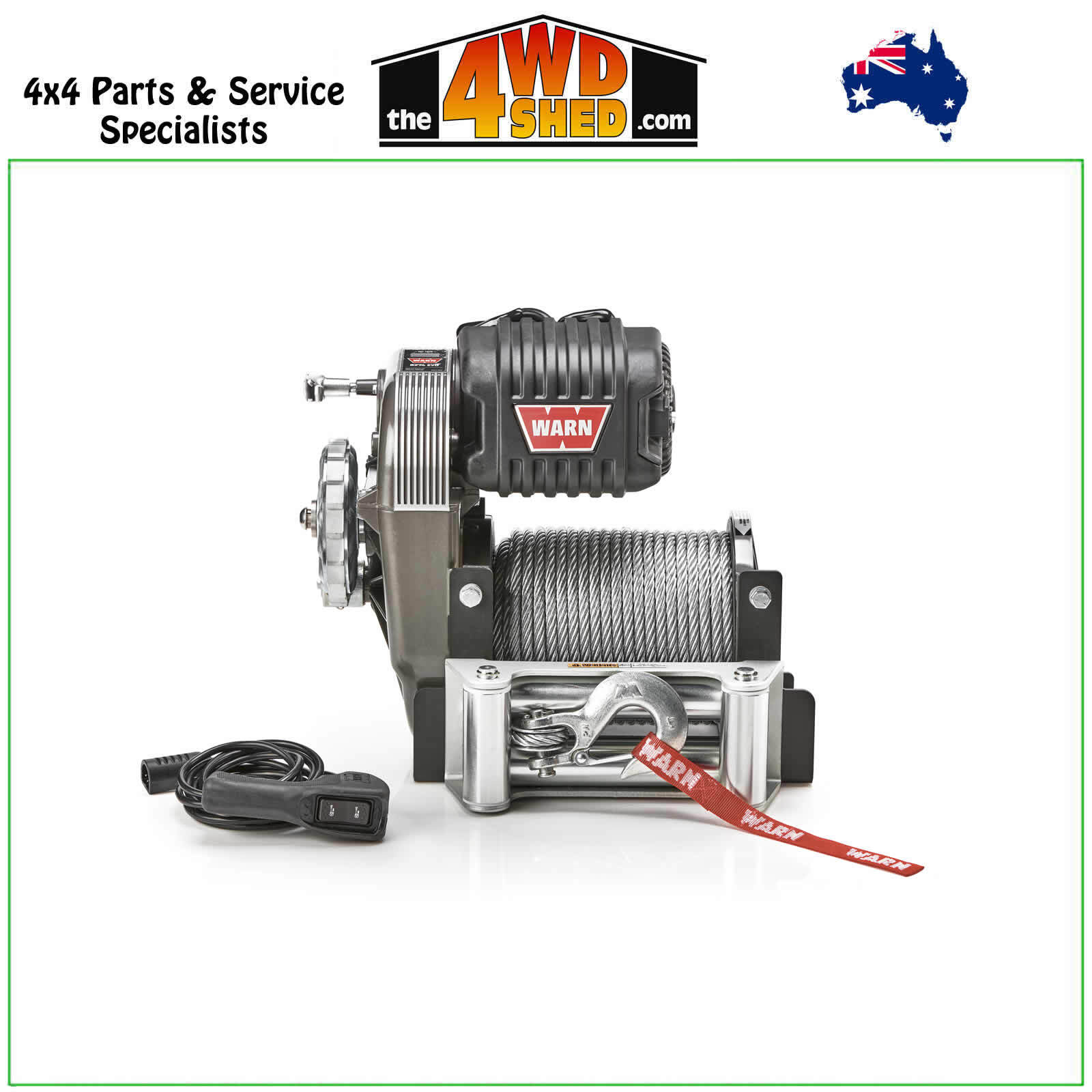

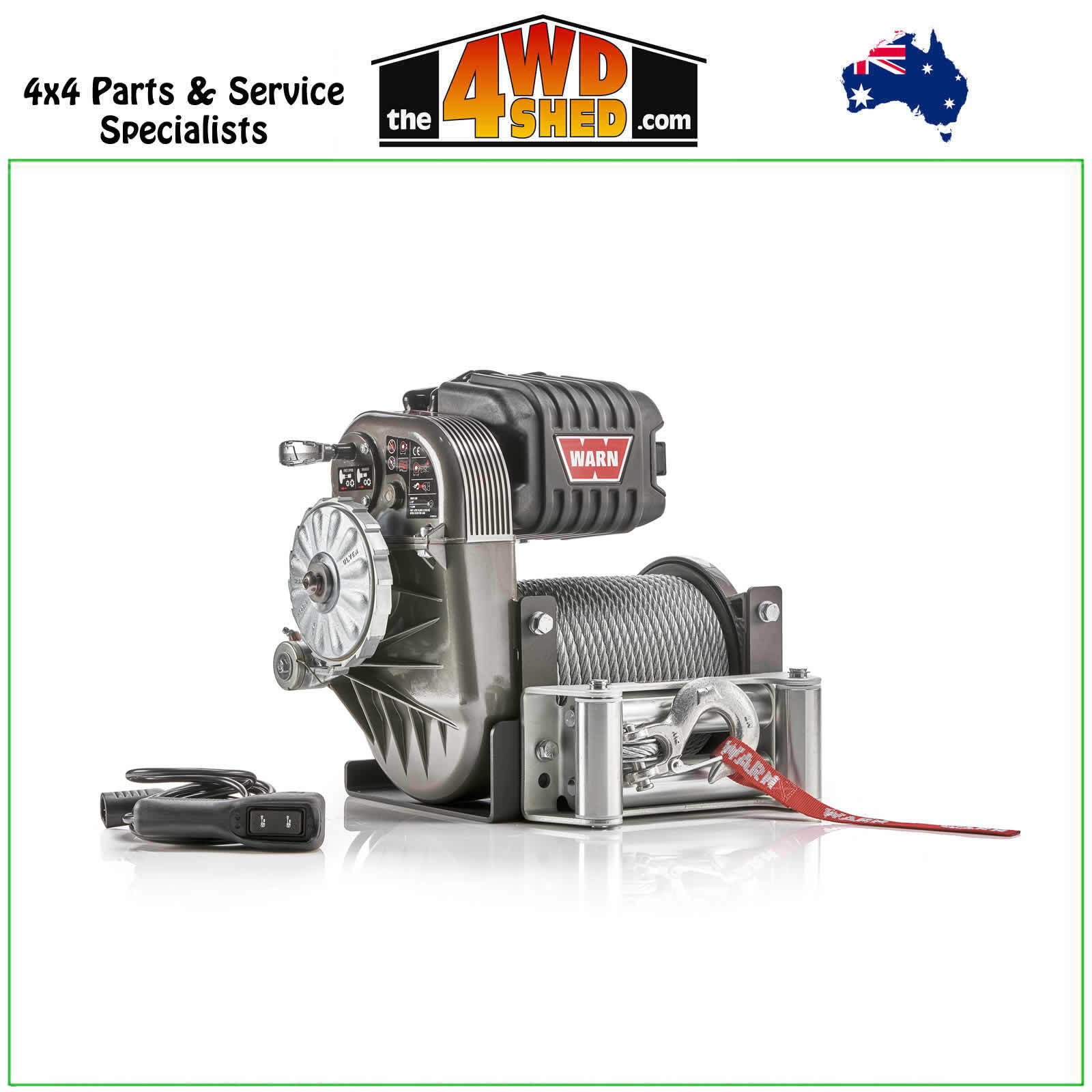

More infoWarn M8274-70 12v High Mount Winch
Genuine Warn Australian Stock!
The M8274, Warn Industries’ most iconic winch is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 125’ of 3/8” diameter aircraft-grade steel cable.
- High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
- IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
- Restyled high-strength polymer control pack housing for a modern twist on classic styling
- Ergonomic stainless steel clutch T-handle is easier to use than before
- Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
- Bolt-and-washer assembly replaces retaining ring on brake shaft
- Made in the USA in Clackamas, Oregon
Pricing is for collection from us in Bayswater Vic, if you require freight please contact us for a quote. Due to the weight business addresses are preferred for shipping. This is an order in item, we will notify you of significant delays.

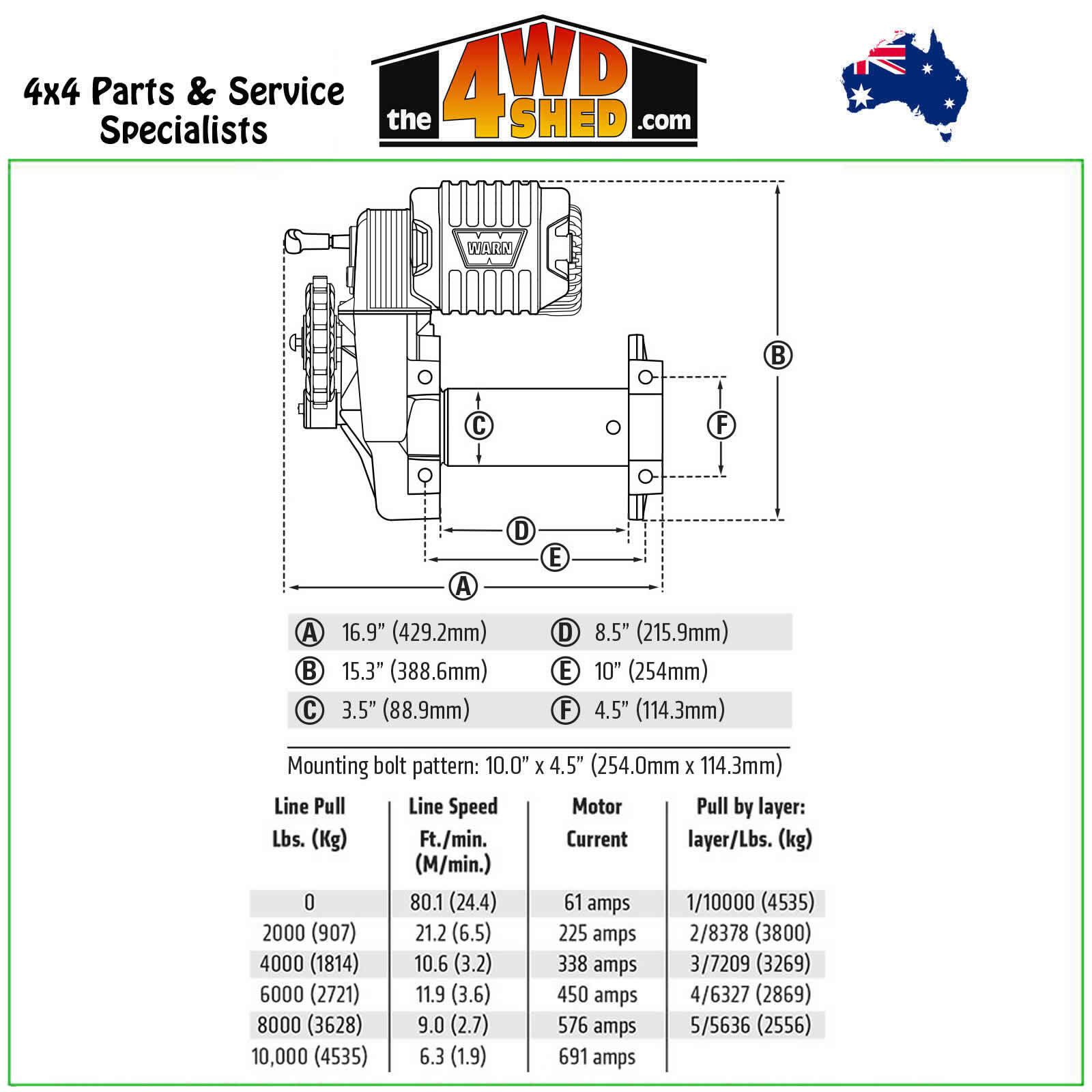

M8274 Specifications
| Part Number: M8274-70-106170 |
| Rated Line Pull: 10,000 lbs. (4536 kg) single-line |
| Motor: 12V DC, 6HP Series Wound |
| Electrical Control: Contactor |
| Remote control: Remote switch, 12’ (3.7m) lead |
| Geartrain: 3-stage Spur Gear |
| Gear ratio: 134:1 |
| Clutch (freespooling): Sliding motor pinion gear |
| Brake: Automatic disc type |
| Drum Diameter/Length: 3.5”/8.5” (9cm/22cm) |
| Wire rope: 9.5mm x 38M (3/8″ x 125′) |
| Fairlead: Roller Fairlead |
| Recommended battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in. (1.83m) |
| Finish: Powder coat with clear coat |
| Weight: 90lb (40.8kg) |
| Warranty: Limited Lifetime Mechanical Warranty with 7 Year Electrical Warranty) |
