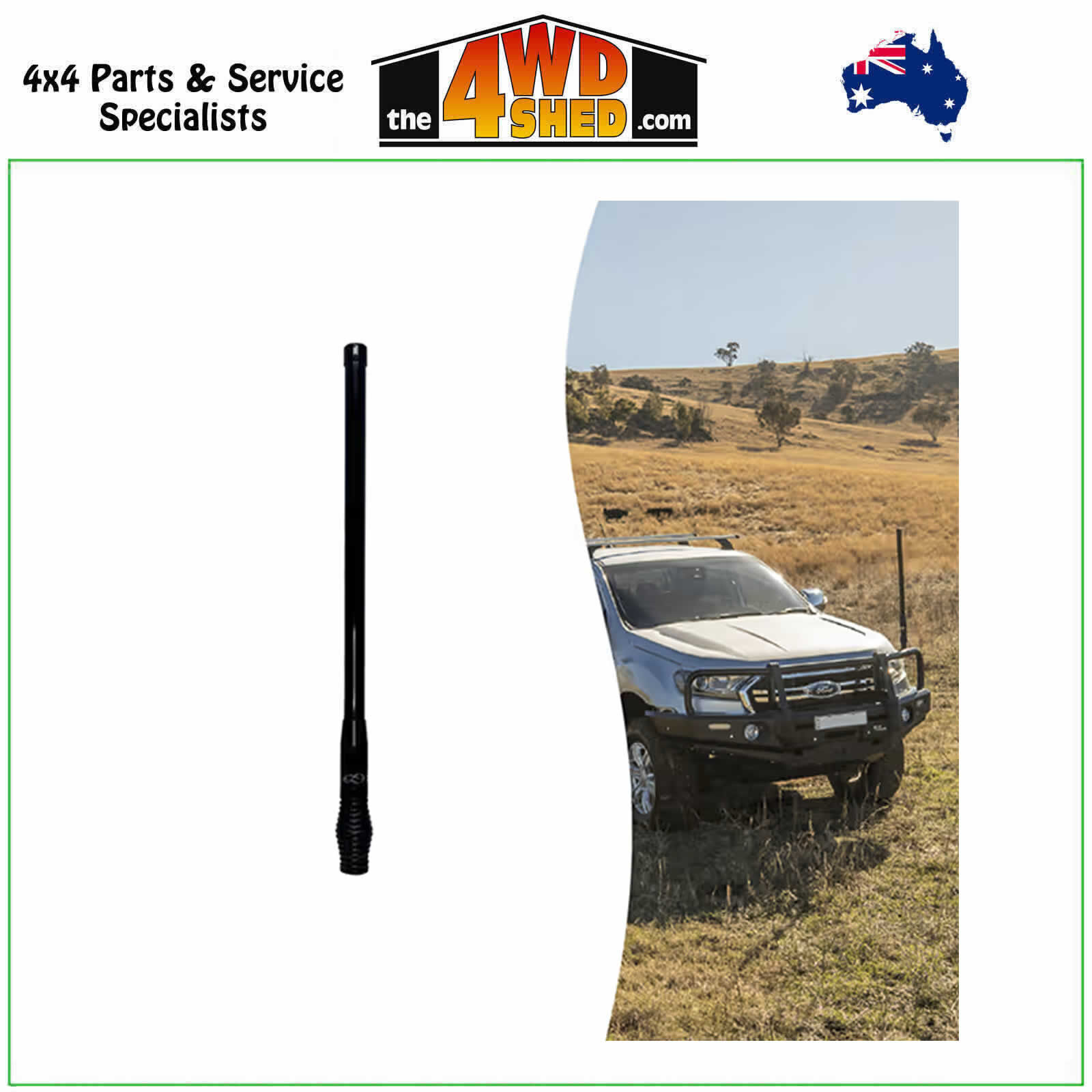

Zetifi Cellular 4G/5G Smart Antenna - 780mm Matte Black

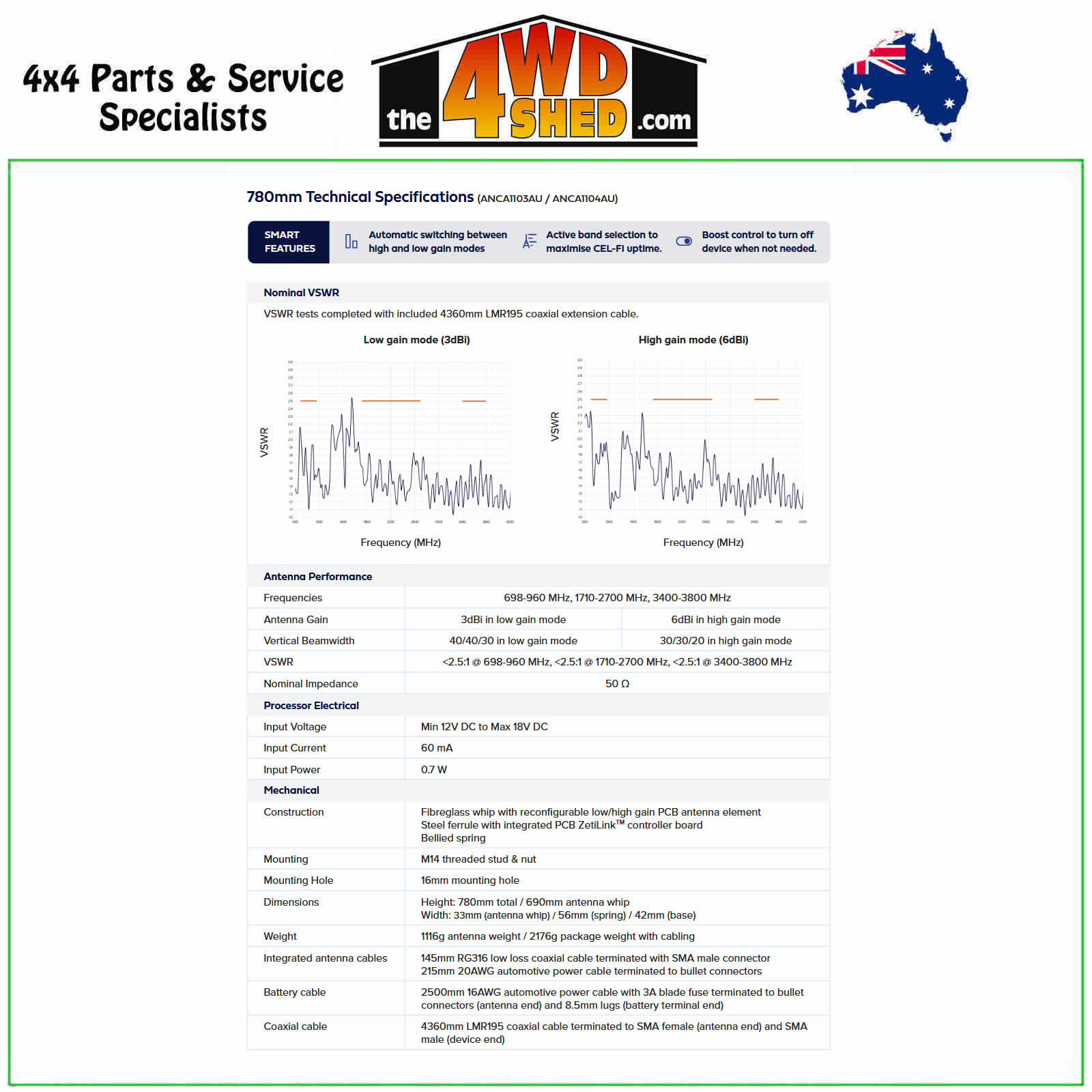

Specifications:

• Gain: Variable gain 3dBi & 6dBi
• Frequencies: 698-960 MHz, 1710-2700 MHz, 3400-3800 Mhz
• Power: 0.5W 12V

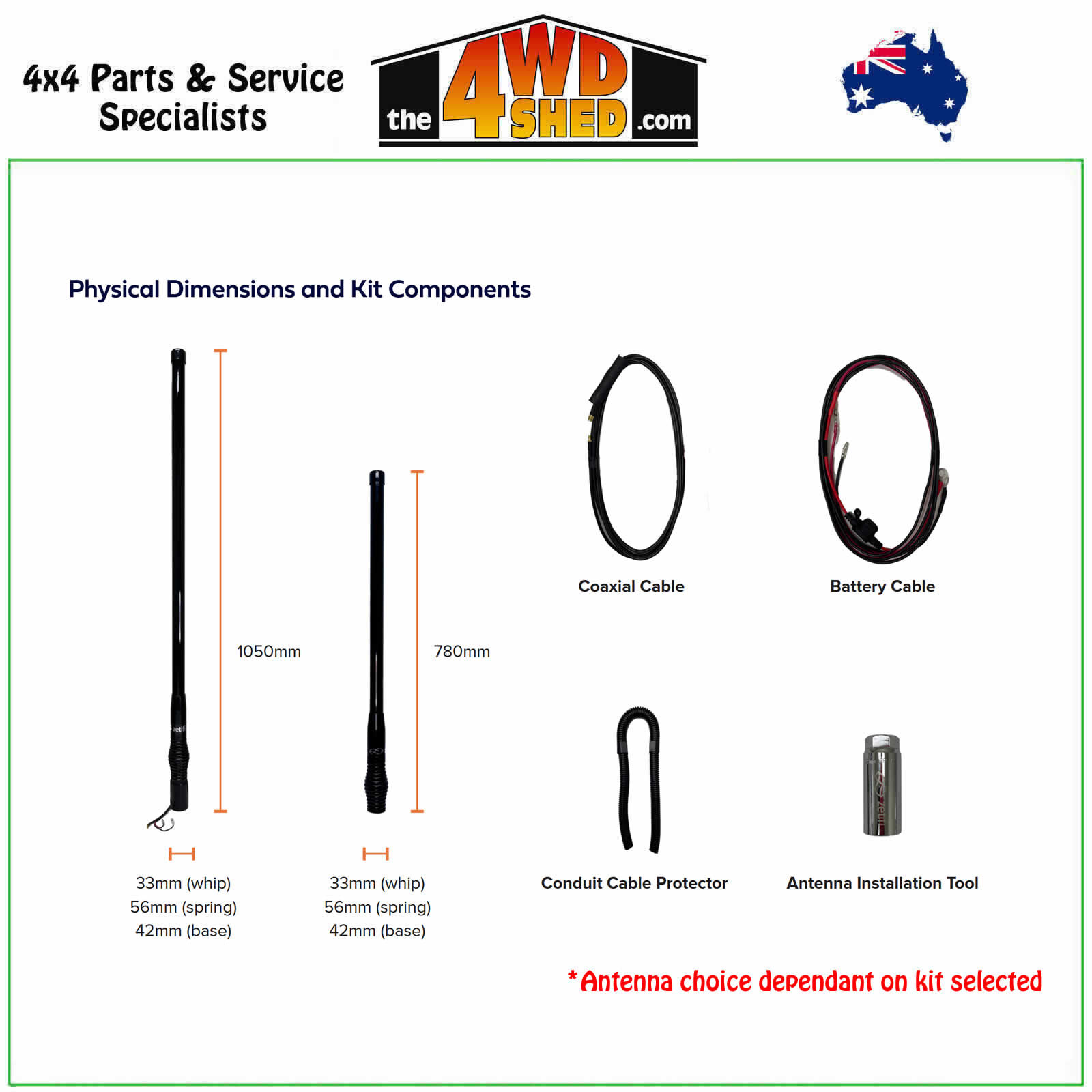

• Length: 780mm
• Colour: Matte Black

Terrain really makes a difference when it comes to antenna performance. The long and flat radiation pattern of a high gain antenna is ideal in open country but is unsuited to hilly terrain or built up areas where the radiation pattern of a low gain antenna is more effective. With traditional antennas you have to ompromise on performance or deal with the inconvenience of swapping antenna whips as you move through different areas. Zetifi’s smart antennas automatically optimise their gain setting to give you optimal performance in all terrain.

Location-aware Smart Antennas for signal repeaters and cellular gateway devices

Welcome to a true revolution in antenna technology - location-aware antennas that automatically adapt to their surroundings. Powered by our innovative ZetiLinkTM technology, Zetifi Smart Antennas use onboard sensors, a dual gain antenna whip, and integrated data processor to optimise coverage. The
Smart Antenna detects whether you’re in flat or hilly terrain using a pre-loaded terrain map and automatically switches between high and low gain modes in real-time to maximise signal for your repeater or cellular gateway. Experience better coverage than ever with the convenience and enhanced performance of a Zetifi Smart Antenna.

• Dual gain antenna whip provides high and low gain modes.
• Smart band selection and device optimisation for Nextivity CEL-FI ROAM R41 Repeaters.
• Boost control of CEL-FI ROAM R41 Repeater to turn off device in strong signal areas.
• Inbuilt GPS sensor linked to ZetiLink™ data set identifies terrain as flat, hilly or urban.
• Satellite ready with full compatibility across all direct-to-handset frequencies.
• Gyroscope detects antenna attitude (tilt) to adjust gain for road gradient.
• ZetiLink™ engine processes location and other data in real-time.

Control & Monitoring

The companion app connects to your smart antenna via bluetooth and enables real-time updates of pre-loaded terrain maps or manual selection of high or low
gain modes. It also allows you to monitor your smart antenna’s current mode, tilt, and voltage. Available on Apple & Android.

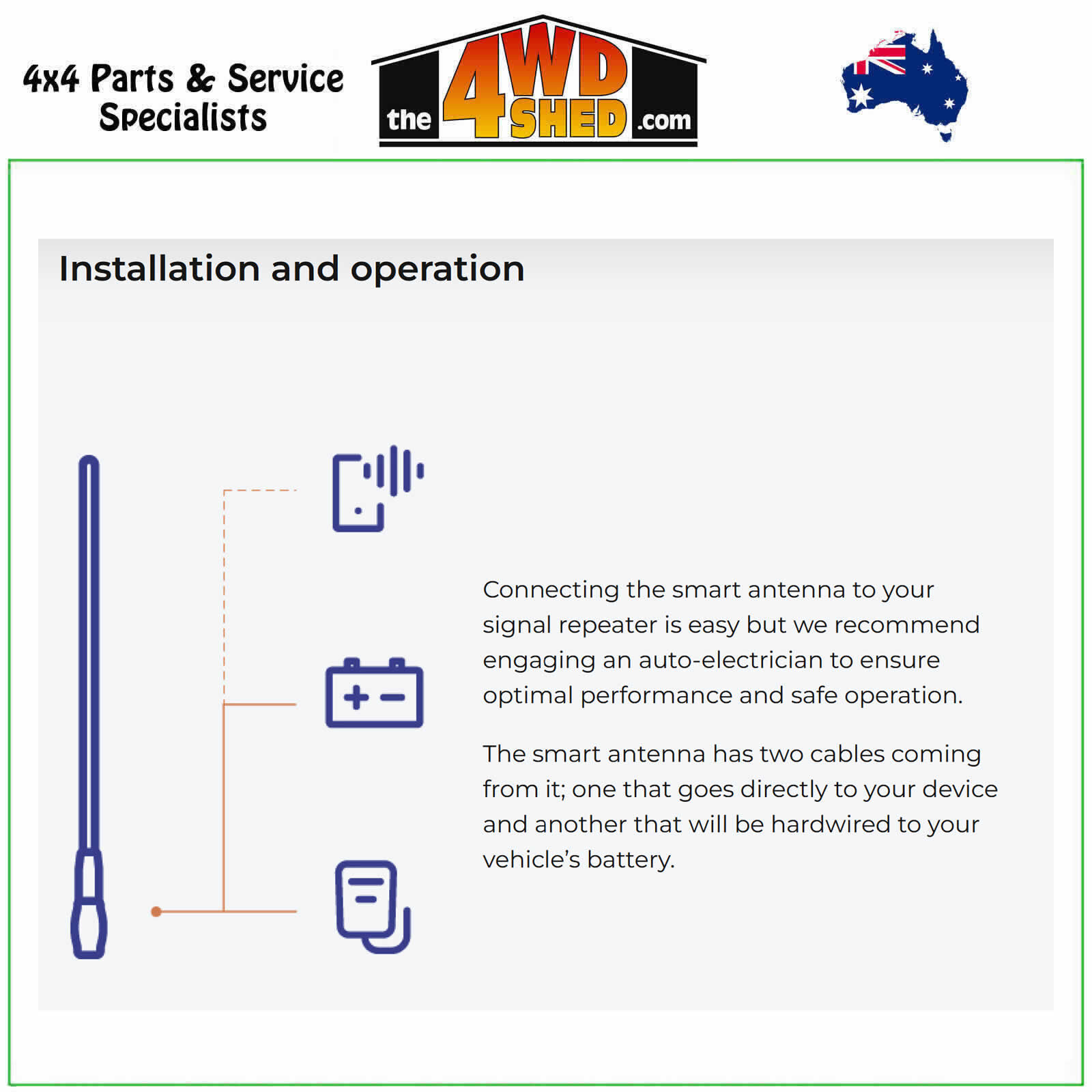

Installation & Operation

Connecting the smart antenna to your signal repeater or UHF radio is easy but we recommend engaging an auto-electrician to ensure optimal performance and safe operation.

• Bluetooth connection to phone.
• Power cable to battery.
• Coaxial cable to your device.

Note: This is just the antenna you need the CEL-FI ROAM R41 Signal Repeater. Vehicle Booster Packs are also available if you require both. There is also the option for the UHF & Cellular Combo Antenna. Check out our range of Zetifi products.
