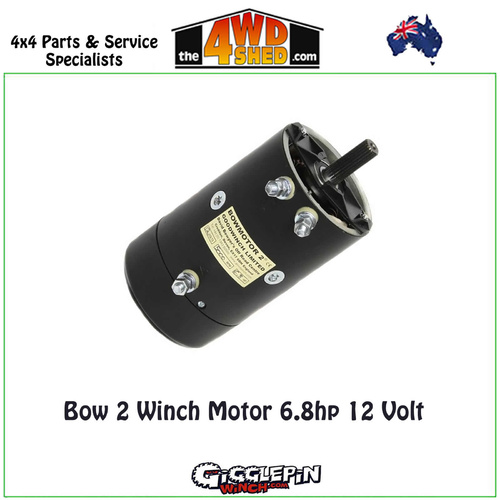

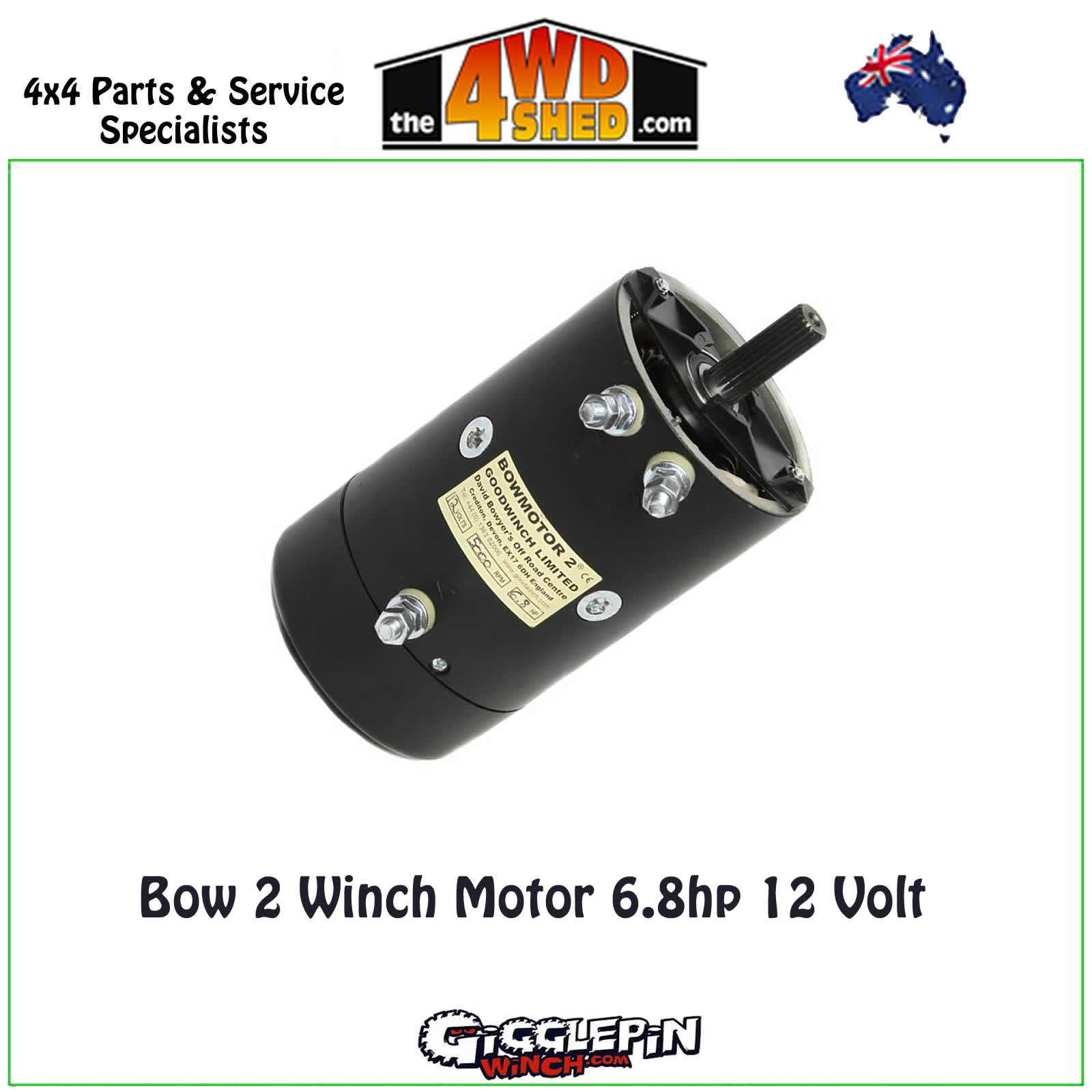

Bow 2 Winch Motor 6.8hp - 12 Volt
The Bow 2 motor 6.8HP is available in 12V and can be universally fitted to most electric winches as long as the winch mounting can accommodate the motors additional length. Designed to provide high power & torque levels with incredible reliability & at a respectable price tag.
The Bow 2 motor as also features a low amperage draw when compared to other commonly used motors such as the Warn XP 6HP unit.
These motors offer greater high speed and mid range torque and have a faster off line retrieval speeds than the Bow 1 motor and are similar to the Warn XP. The Bow 2 motor is a very resilient motor and is favoured for “over-volting” (this is when 24v is passed through 12v motors). Preferred by many top international racing crews including Croatia Trophy winner Jim Marsden, Malaysian Rainforest Challenge winner Simon Buck, Chris Abel and Steve Gittens.
This motor does not like to be stalled and will be damaged if this happens. The motor has an ‘O’ ring seal on the end cap to waterproof it and we recommend sealing the F1, F2 and A terminals with silicon sealant upon fitment.
These motors feature heavy duty copper armature windings, which are copper welded to the commutator, with highly efficient roller bearings at each end.
Four enormous long lasting brushes enable the motor to run cooler.
If fitting to the older Warn 8274 with a keyway type armature shaft, then you will also need to replace the pinion gear with the later type Splined Pinion Gear (Pt No. 98380)
The Bow motor 2 produces 6.8HP @ 5000RPM.
Bow Motors are a Special Order so please contact us for availabilty. Also available in 24V motors.
We stock, supply & fit a large range of winch parts, upgrades & accessories. Please contact us if you can't find what you require or are unsure of the part you need for your winch.
Note: These motors do not like to be stalled. “Stall” is when the winch motor is still working (you can hear it) and the line is not moving – STOP WINCHING to save your motor.
