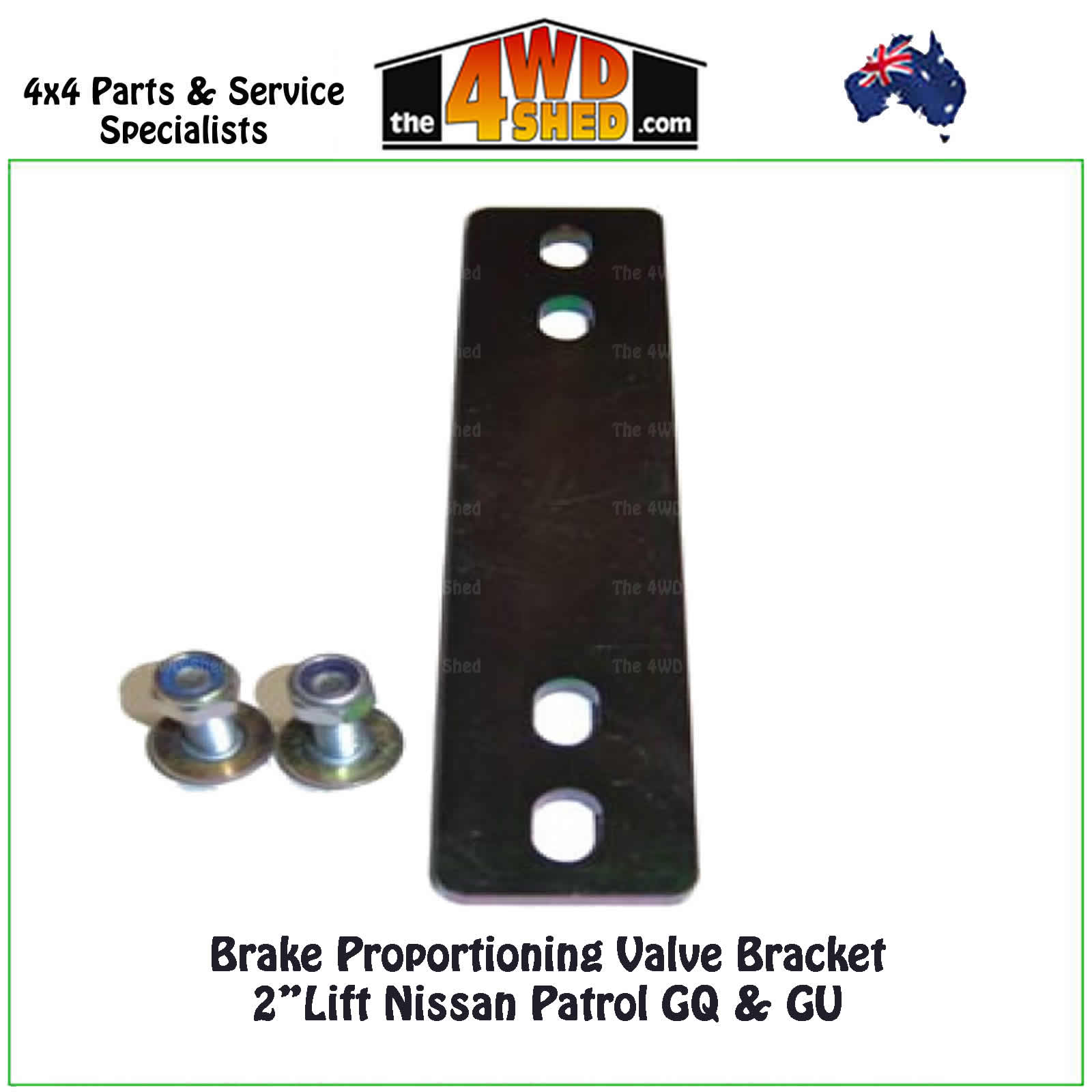

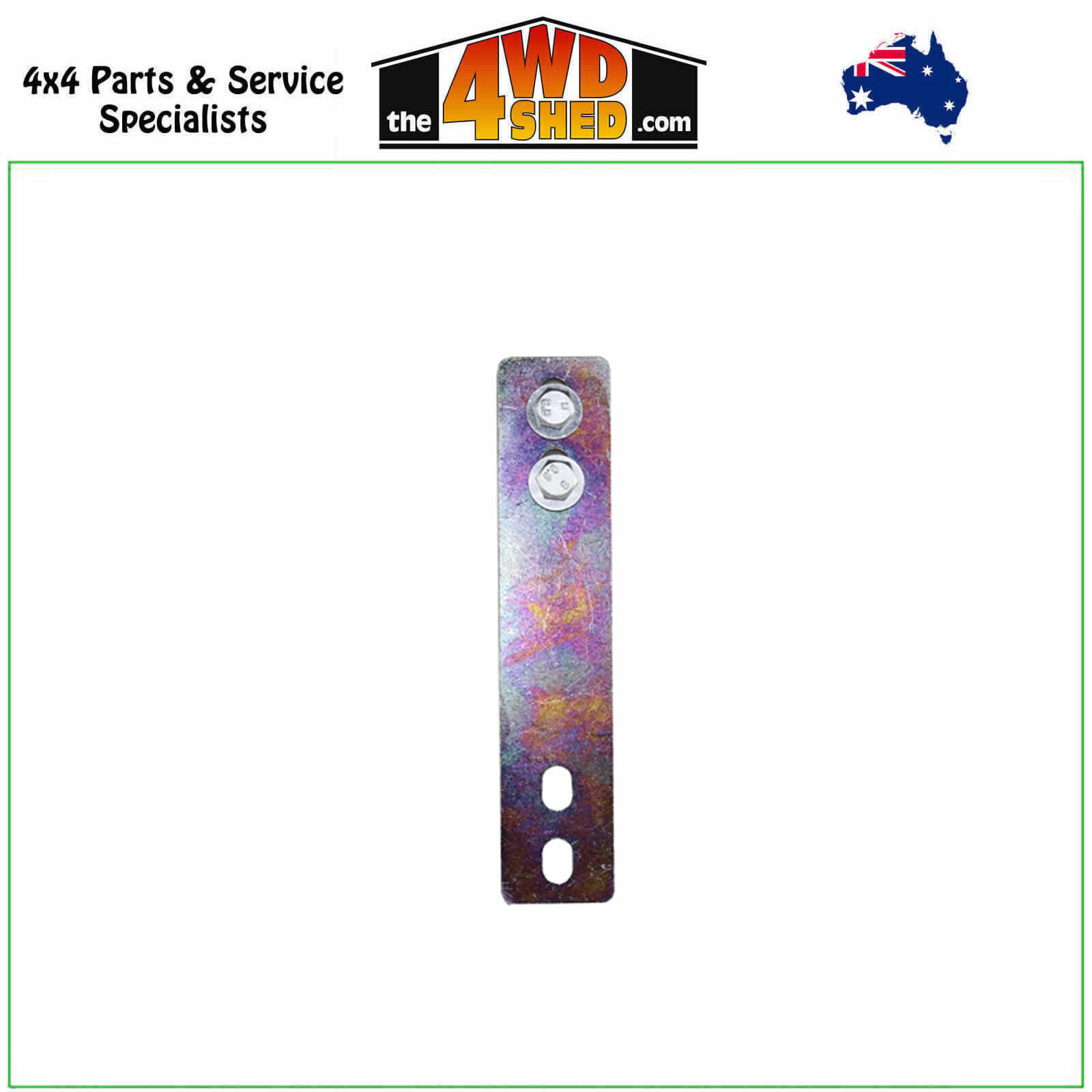

Superior Engineering Brake Proportioning Valve Bracket Nissan Patrol GQ/GU

Please Select the correct kit to suit your lift height

This is a heavy duty Superior Engineering Brake Proportioning Valve Bracket to suit the Nissan Patrol GQ/GU with a 2-6" inch lift.

When a lift Kit is fitted to a 4wd it is mandatory to fit a correct size proportioning bracket.

4WD's have a "Brake Bias" or proportioning valve that is fitted to the braking system, The purpose of this is to allow the correct proportion of brakes between the front and the rear brakes.

If a vehicle has a lift fitted, the Proportioning valve / Brake Bias will think that there is no load on the rear end so the brakes will not perform correctly for the vehicle and this may cause a vehicle to lose control and crash.

As a general rule you must lift the proportioning bracket / Brake Bias Bracket mounting point up the same amount as the vehicle is lifted over standard "factory" height.

If you have a 3 inch lift you should lift your proportioning valve / Brake Bias up approx 4 inches.

Superior Engineering manufactures and sells these inexpensive Proportioning brackets to enable your brakes to perform at there peak.

It is also recommended to fit Braided brake lines if you have fitted larger tires or raised the vehicle.

The Superior Engineering Proportioning Valve Brackets / Brake Bias simply Bolt on with just a couple of spanners!

Why would you risk your safety by not fitting one of these?

The 4WD Shed is an Authorized Stockist for Superior Engineering.

(SE-BPVKIT)

The 4WD Shed is an Authorized Stockist for Superior Engineering.

We stock, supply & fit a large range of items that can be found on Superior Engineering BUT in some instances there may be delays in stock or if it is a special order item.

We aim to ship items within 1-3 business days but if your order contains any items that fall under the above conditions we will contact you to notify you. If you wish to check availabilty before purchase you can call us or send an email.

Due to the weight of Superior products we may be required to quote freight on multiple items. We will contact you before beginning to process your order otherwise you can contact us for a freight estimate. We will try & keep costs down where we can so this may mean that we split your order over 2 parcels in order to keep weight & costs down.

Please make sure you have a valid contact number in your order details for us to contact you regarding any delays.

SKU SE-BPVKIT
Brand Superior Engineering
Shipping Weight 1.0000kg
