DIY Part-time 4WD Conversion Kit - Landcruiser 80 Series
Comes with NEW Koyo bearing fitted to spool (eliminating the need for a press) & transfer case sealant
To suit HF2A full-time transfer case:
- Toyota Landcruiser 80 series
- Lexus LX470
Marks 4WD Adaptors manufacture a heavy duty part time 4WD conversion for the 80 series HF2A full time 4WD transfer case as fitted to all RV, GXL, and Sahara Land Cruisers manufactured from 1990 on.
This kit is supplied with a new bearing pre fitted to the spool to make installation easier for the DIY home mechanic without the need for a press, this kit can be fitted with basic hand tools.
The kit also features Heavy Duty Free Wheel Hubs.
The hubs are fitted with a heat treated carbon steel drive ring. The drive ring in the standard version is made from a cast steel and for this reason is the weakest part of these hubs.
Vehicles fitted with front diff locks have been known to break the standard AVM free wheeling hub.

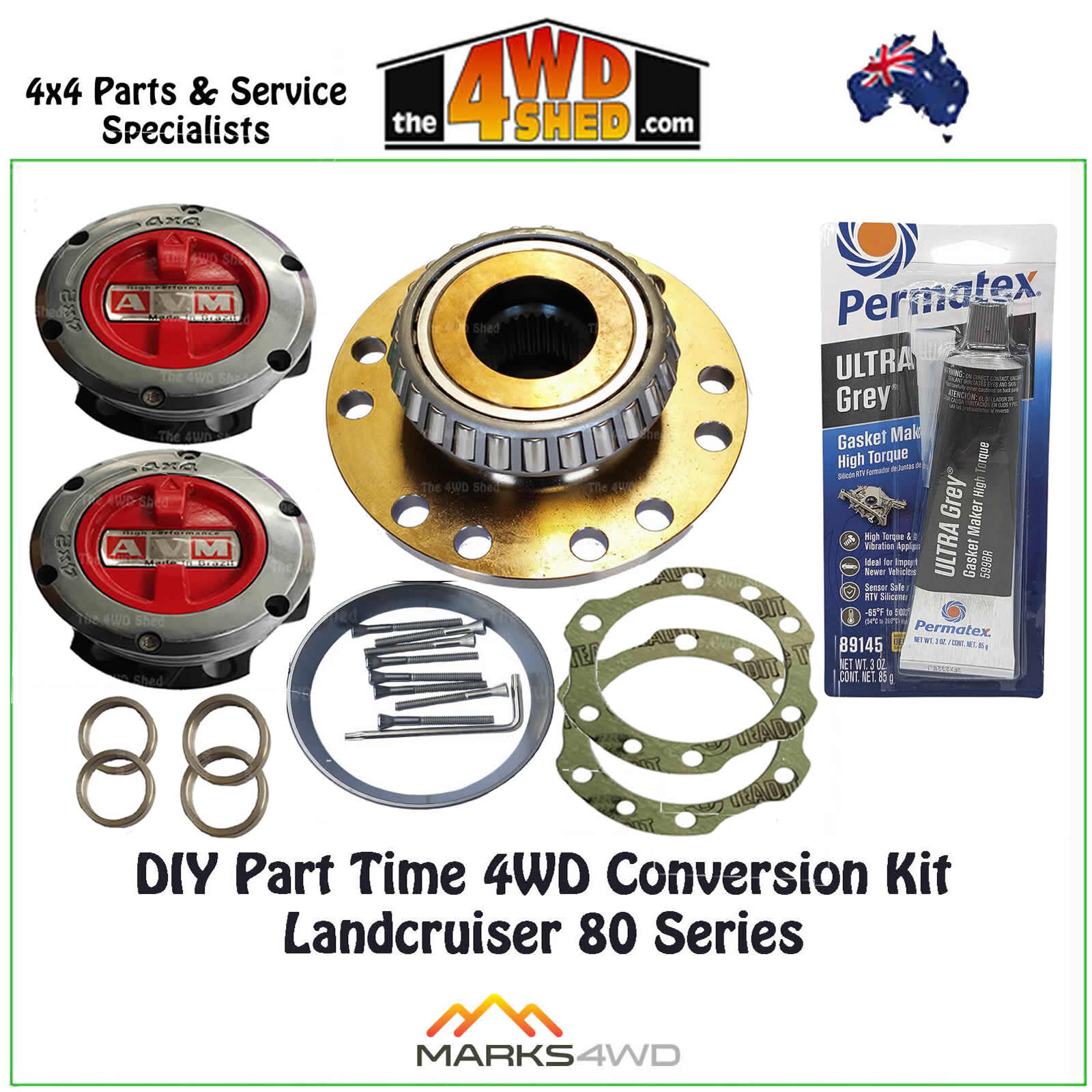

The new heavy duty hubs have been designed to strengthen this weak point in the drive line when diff locks are used.Kit contains:
- Centre diff spool

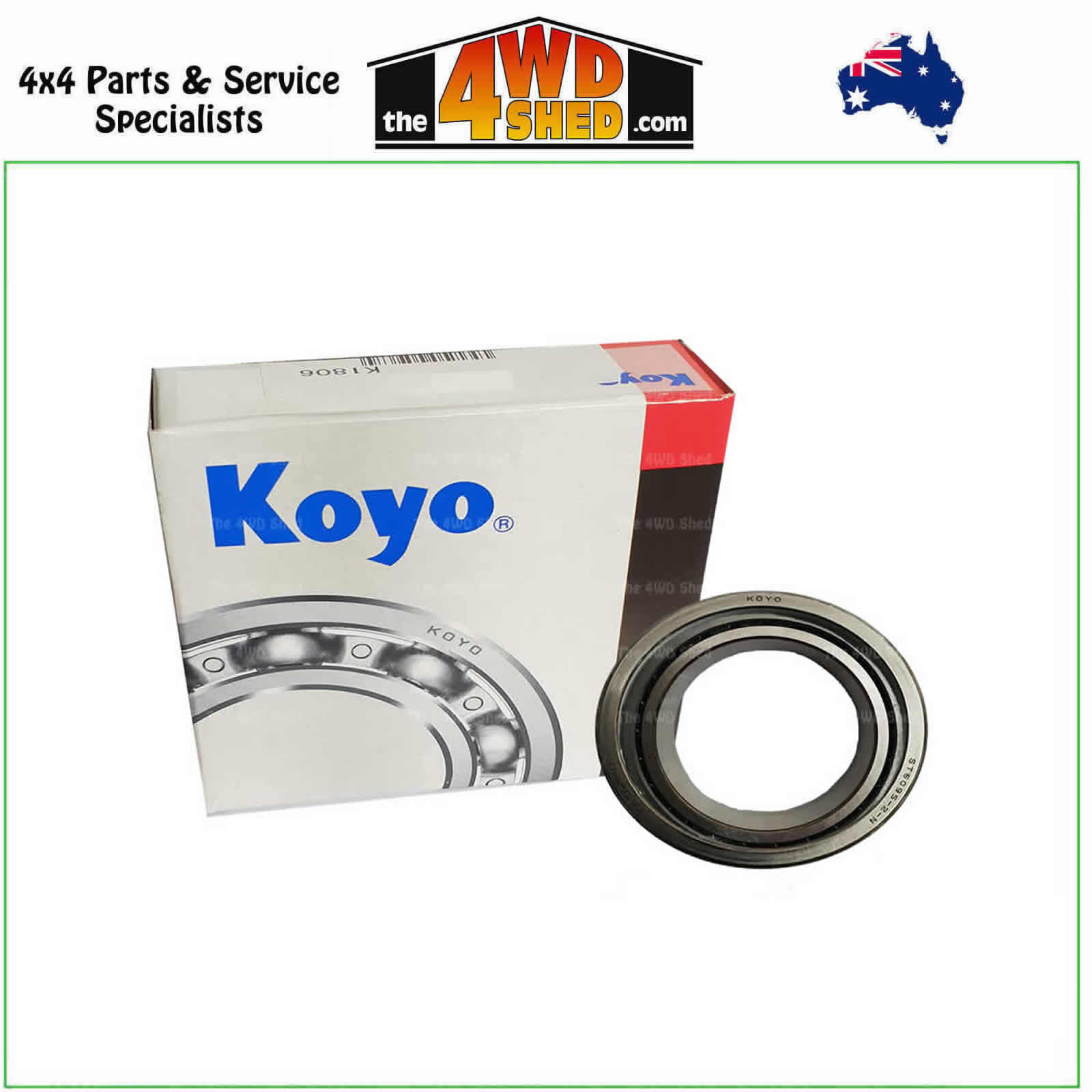

- New bearing fitted to spool

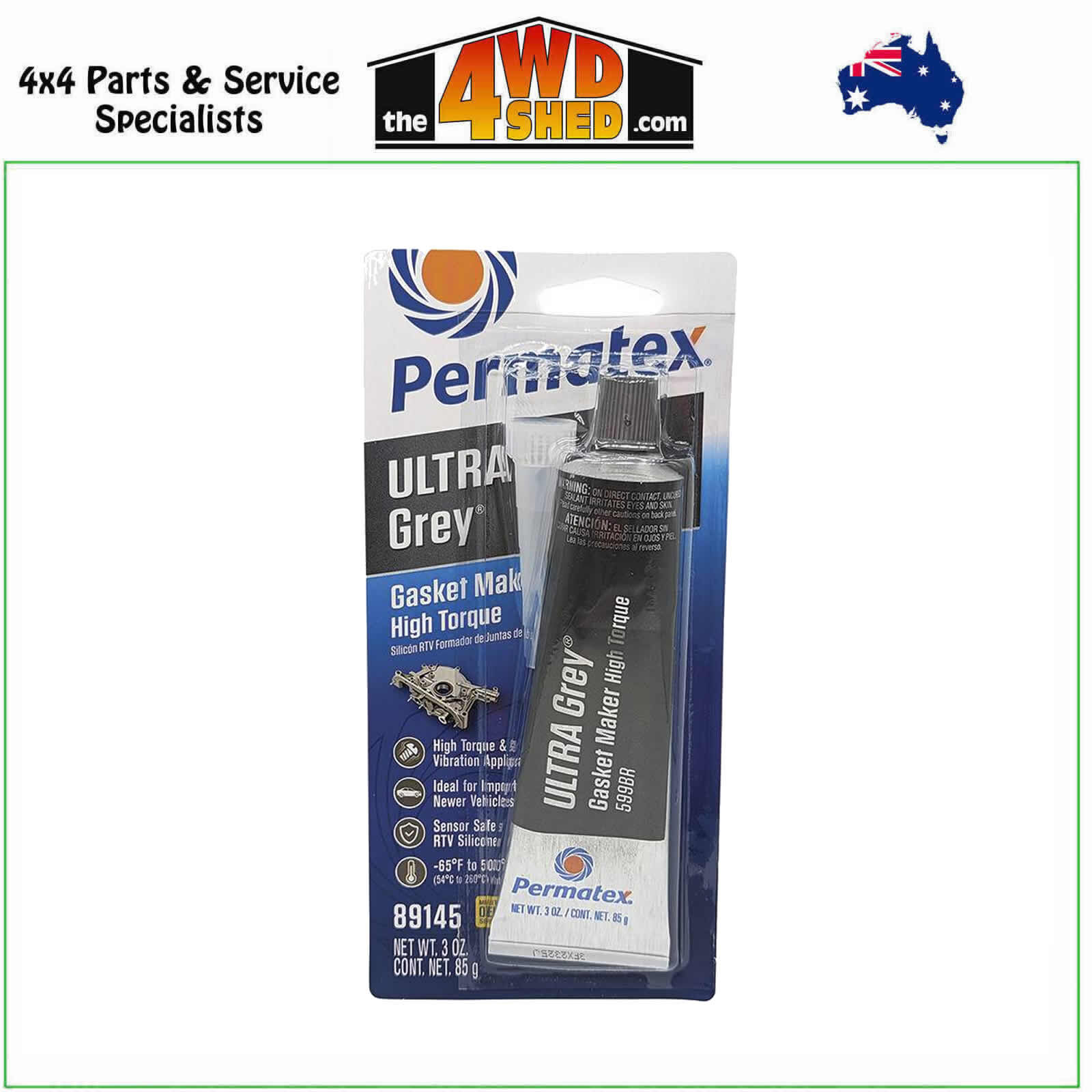

- 1x Tube of RTV Gearbox Sealant

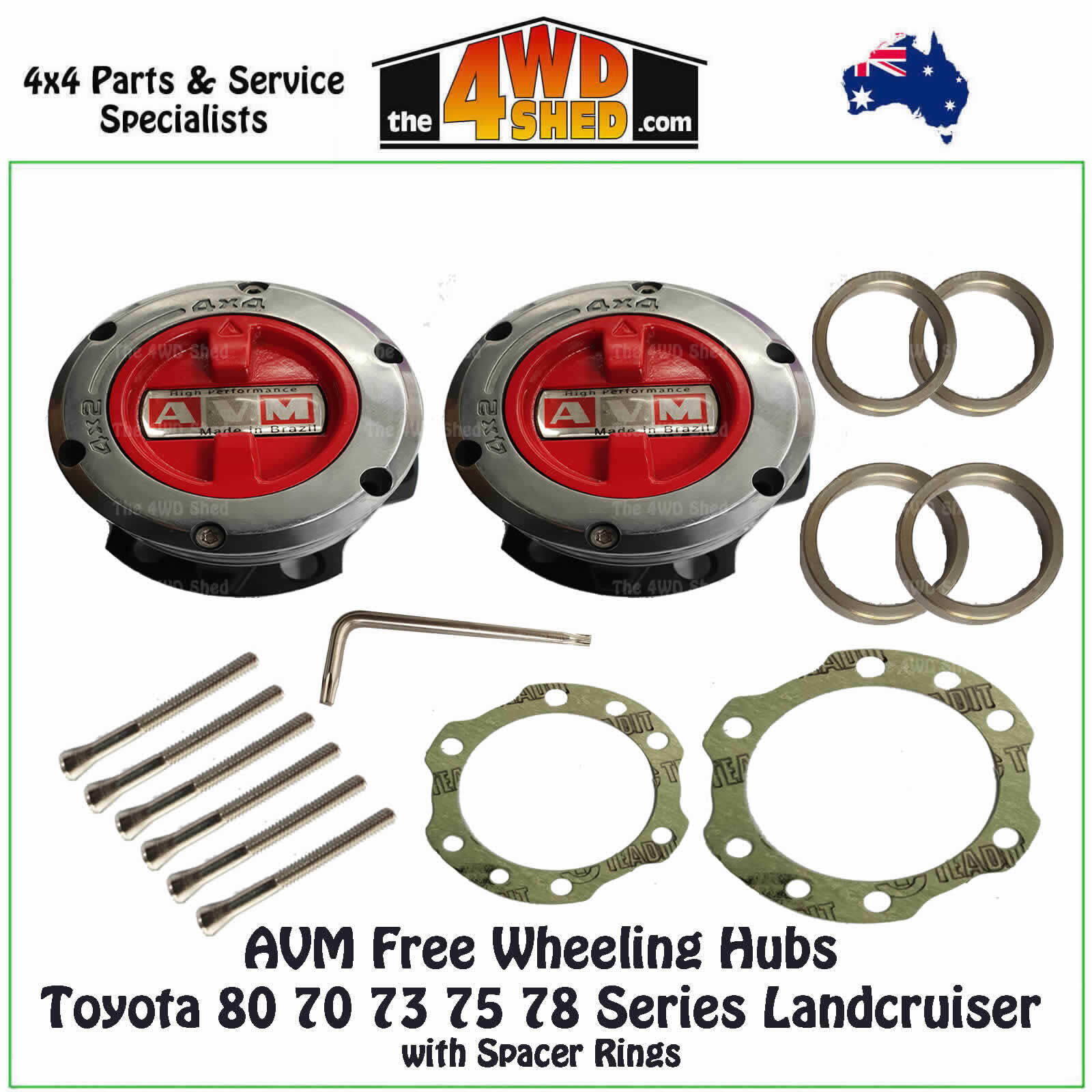

- Heavy duty free wheel hubs
- Axle spacers (2 x 6mm & 2 x 8mm)
Installation Instructions are available online as a PDF File. Click hereABS Live Axle Models
When ABS equipped live axle vehicles are fitted with a Part Time 4WD kit, the ABS sensor reading from the CV joint becomes inoperable and the ABS warning light is displayed on the dash. The ABS relocation kit moves the sensor from the CV joint to the wheel hub and operates as per factory specifications.Viscous Centre Diffs
Vehicles fitted with viscous coupled centre diffs can still use our Part Time 4WD kit. To complete the installation, you will be required to purchase the 'Centre Diff Lock' button as used on the GXL models. The switch is an easy plug and play with the necessary plug & wiring already provided in the Toyota wiring loom.History
The prototype conversion was first fitted to our 6.5 Chevy diesel 80 series in September 1999.
The conversion gave the vehicle a new lease of life with improved handling, better acceleration, and lighter steering. The steering no longer has a tendency to pull hard when powering out of a corner, this must add up to less wear and tear on the steering components such as the tie rod ends and steering box. The steering has also become more direct or positive. The acceleration improved due to the reduction in losses associated with driving the front differential, drive shaft, and CV joints. With these components no longer being driven, a considerable increase in their service life can also be expected.
Check out our installation video for guidance in your installation of this Part Time Kit
