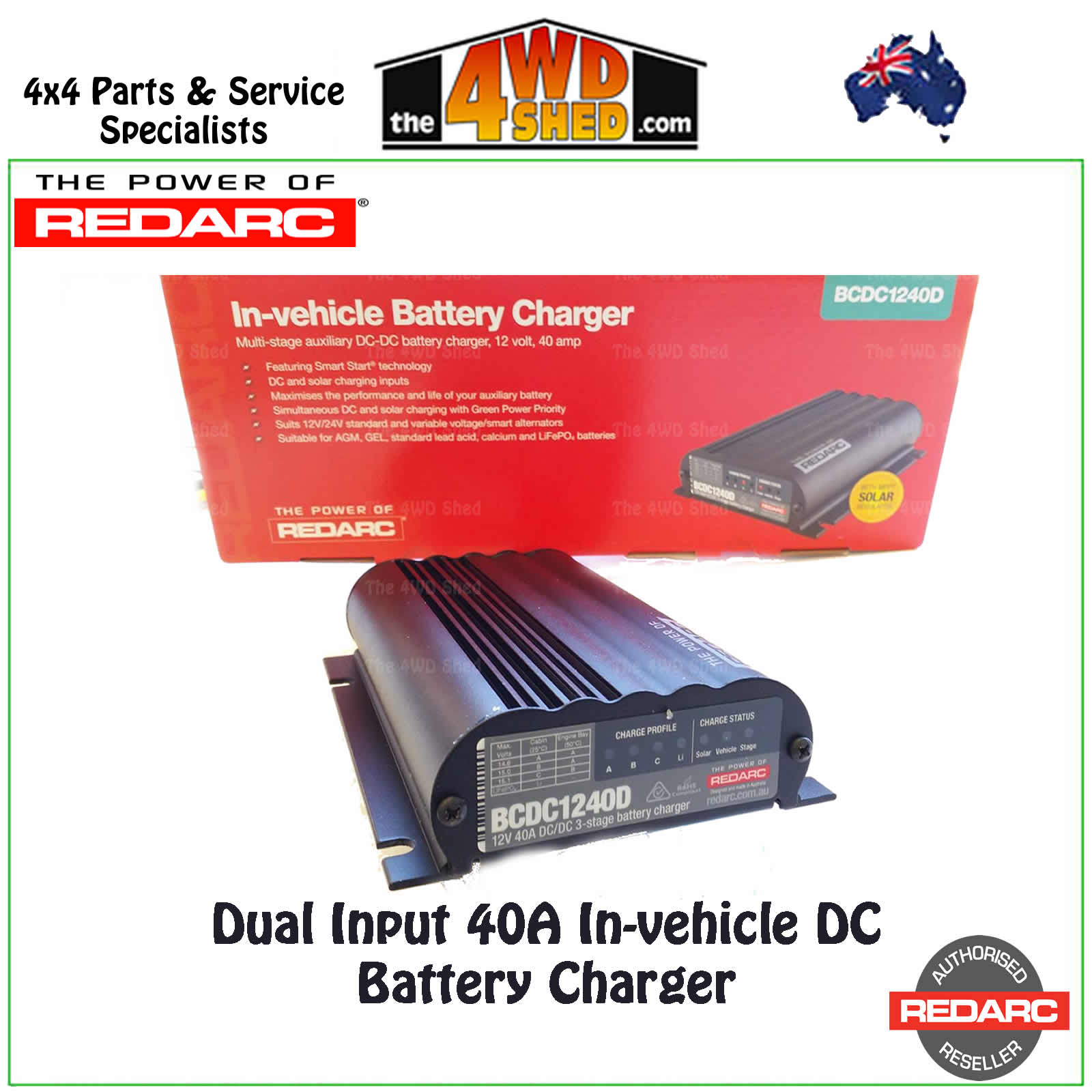

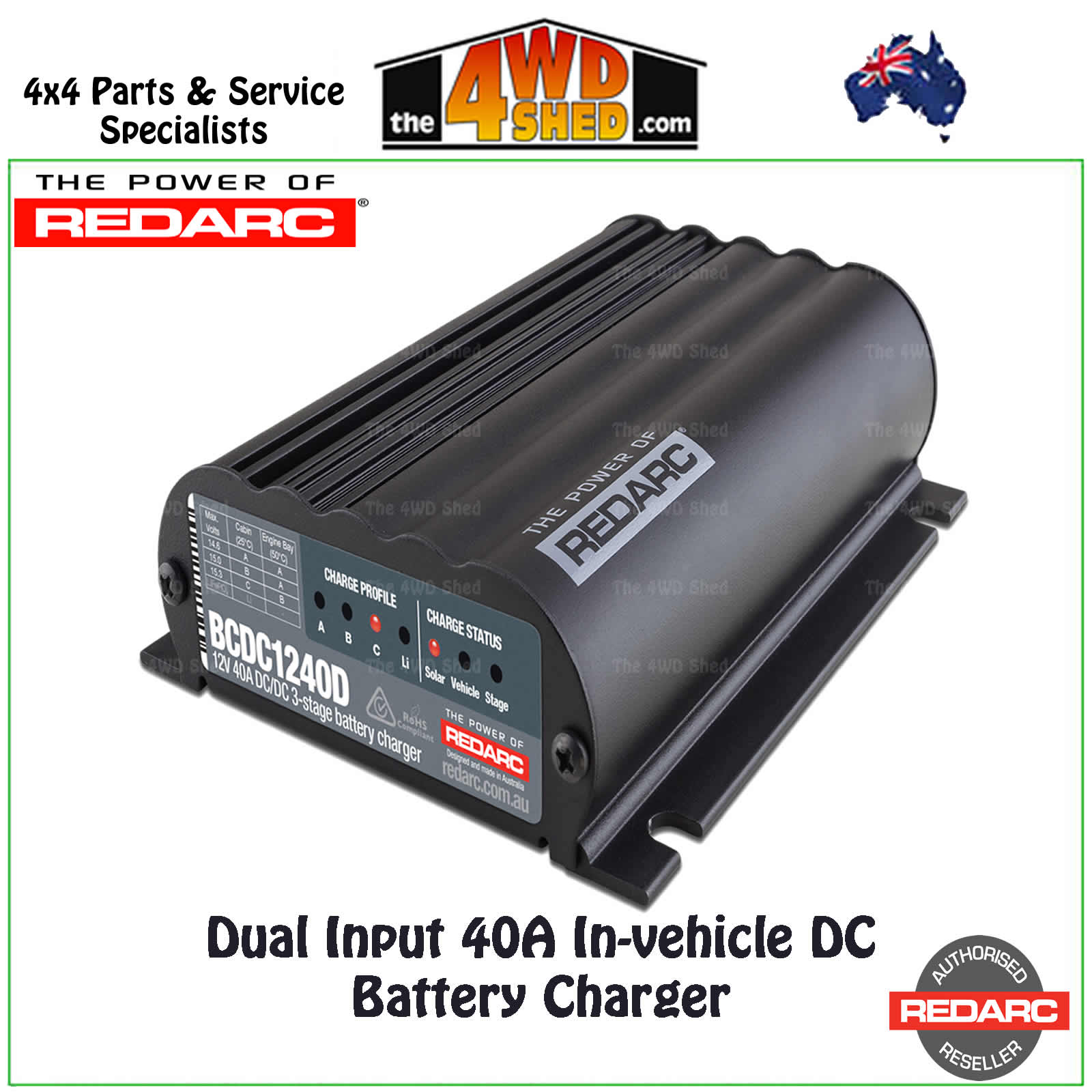

REDARC Dual Input 40A In-vehicle DC Battery Charger
The REDARC BCDC1240D is a 12V 40A In-vehicle DC to DC battery charger. It features the next generation in REDARC In-vehicle charging technology, charging from Solar and DC inputs simultaneously.
The REDARC BCDC1240D In-vehicle Battery Charger is the next generation in REDARC's DC to DC charging technology, with additional features that make it the most advanced dual battery charger on the market.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1240D will charge from both solar and the alternator simultaneously. With built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1240D also comes with patented charging profiles, including a lithium charging profile. The 'Dual' input range will continue to charge all other types of batteries including AGM, GEL, standard lead acid and calcium.
As a guide, the BCDC1240D is used for battery bank sizes over 200AH. For smaller batteries of 75-200AH REDARC recommends the BCDC1225D.
The 4WD Shed is an Authorized Online Reseller for Redarc.
We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply
|Input (Operating) Voltage||9 - 32VDC|
|Output System Voltage||12VDC|
|Maximum Charging Voltage||15.3V|
|Output Current Rating (Cont.)||40A|
|Input Current (Max.)||40A|
|Input Fuse Rating||60A|
|Output Fuse Rating||60A|
|Standby Current Draw||<100mA|
