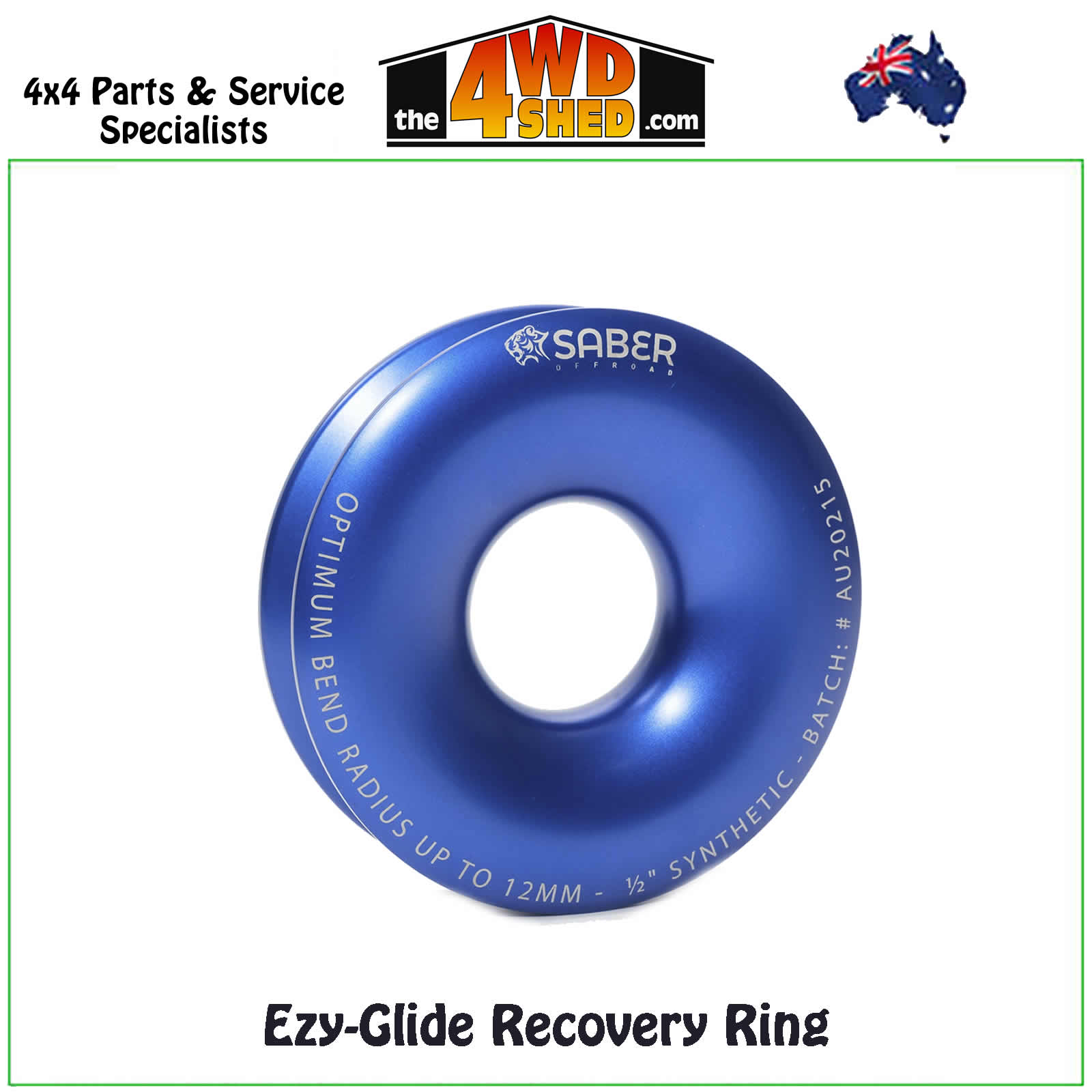

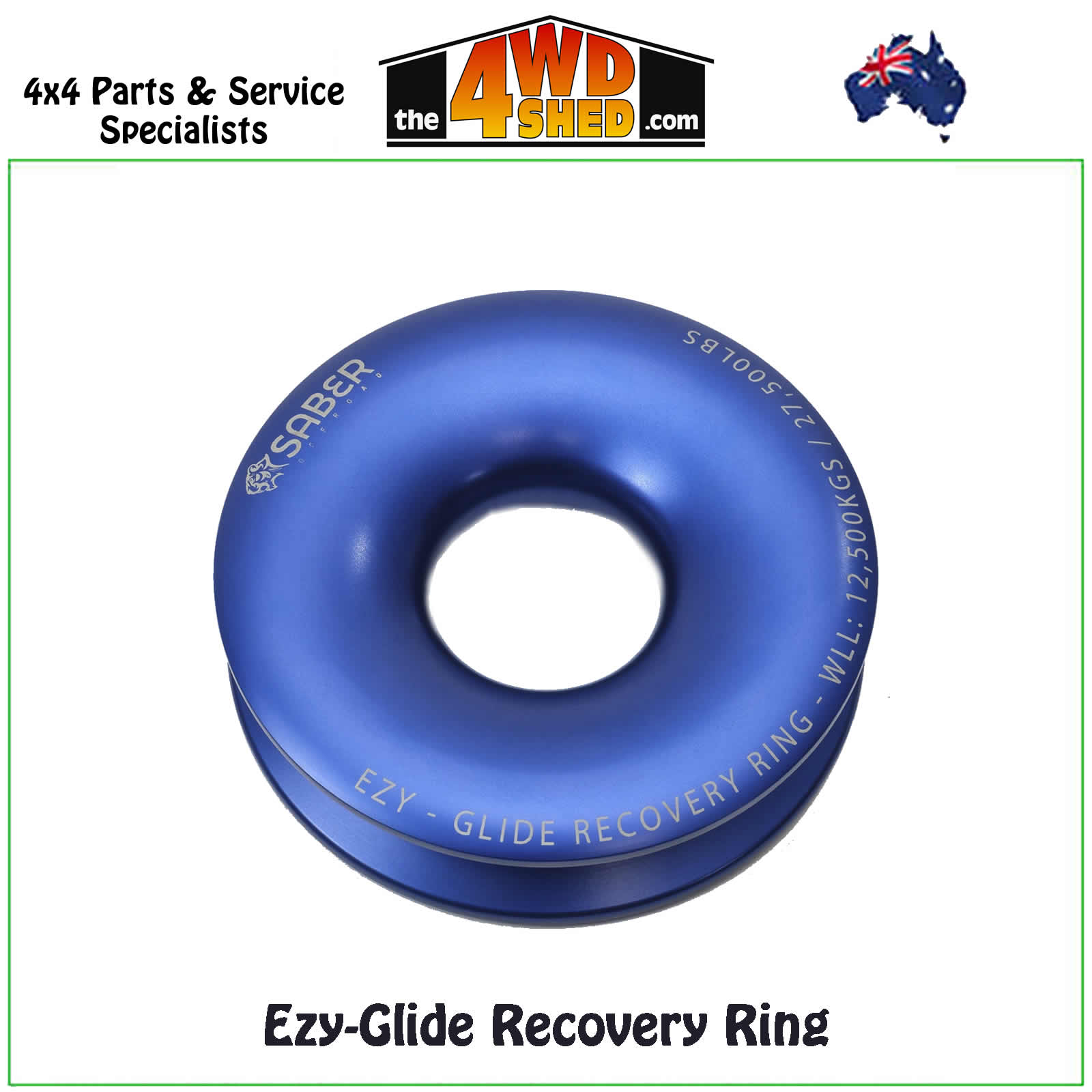

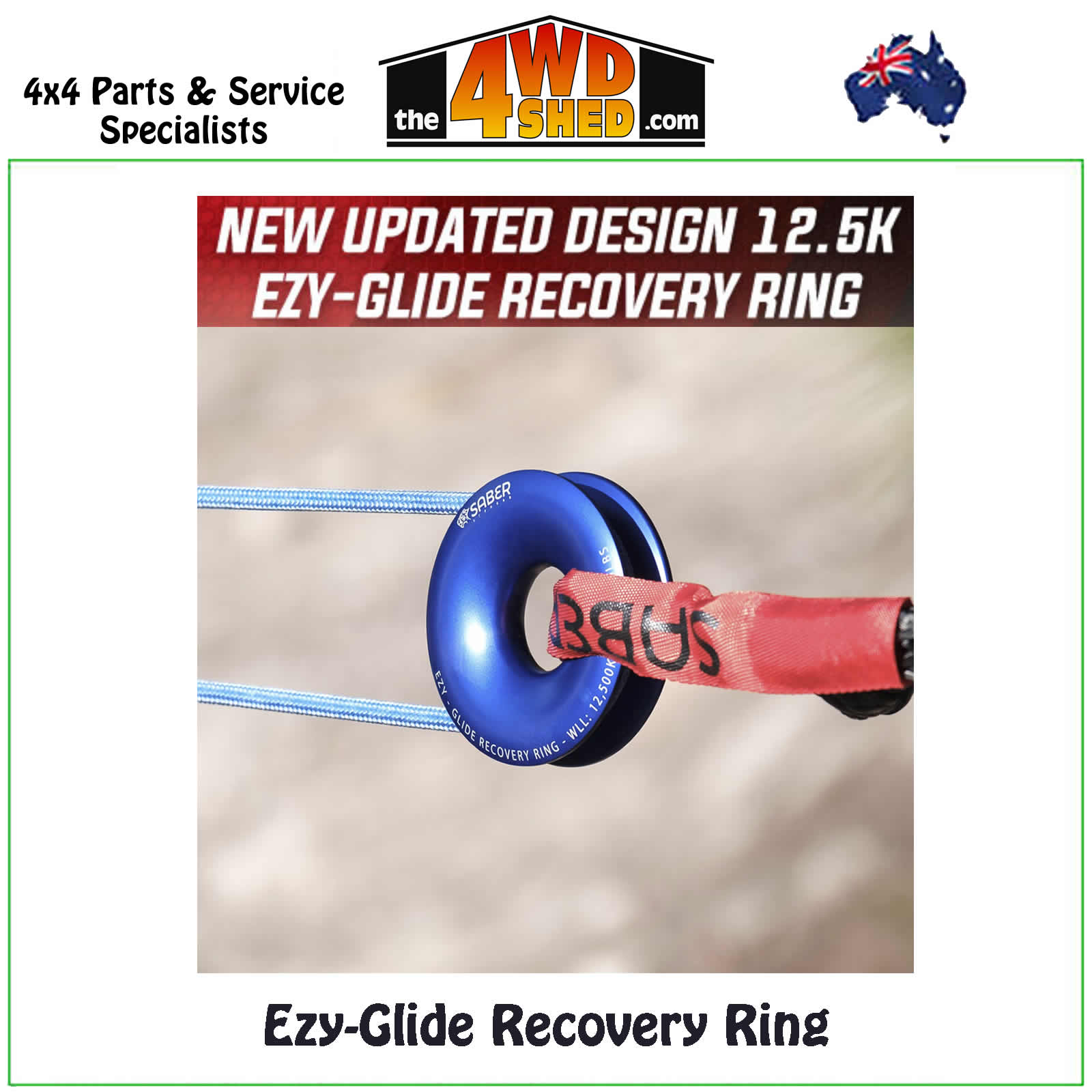

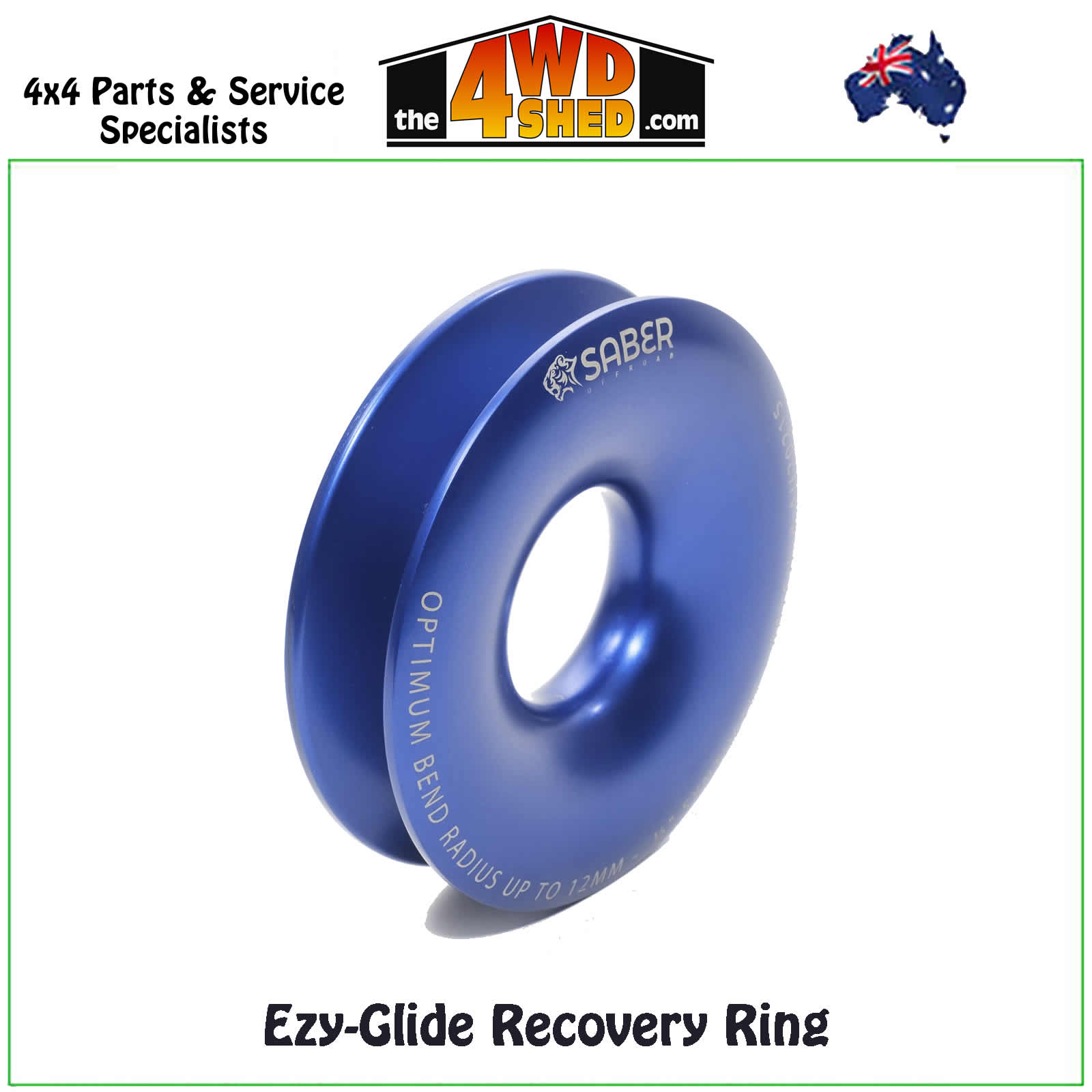

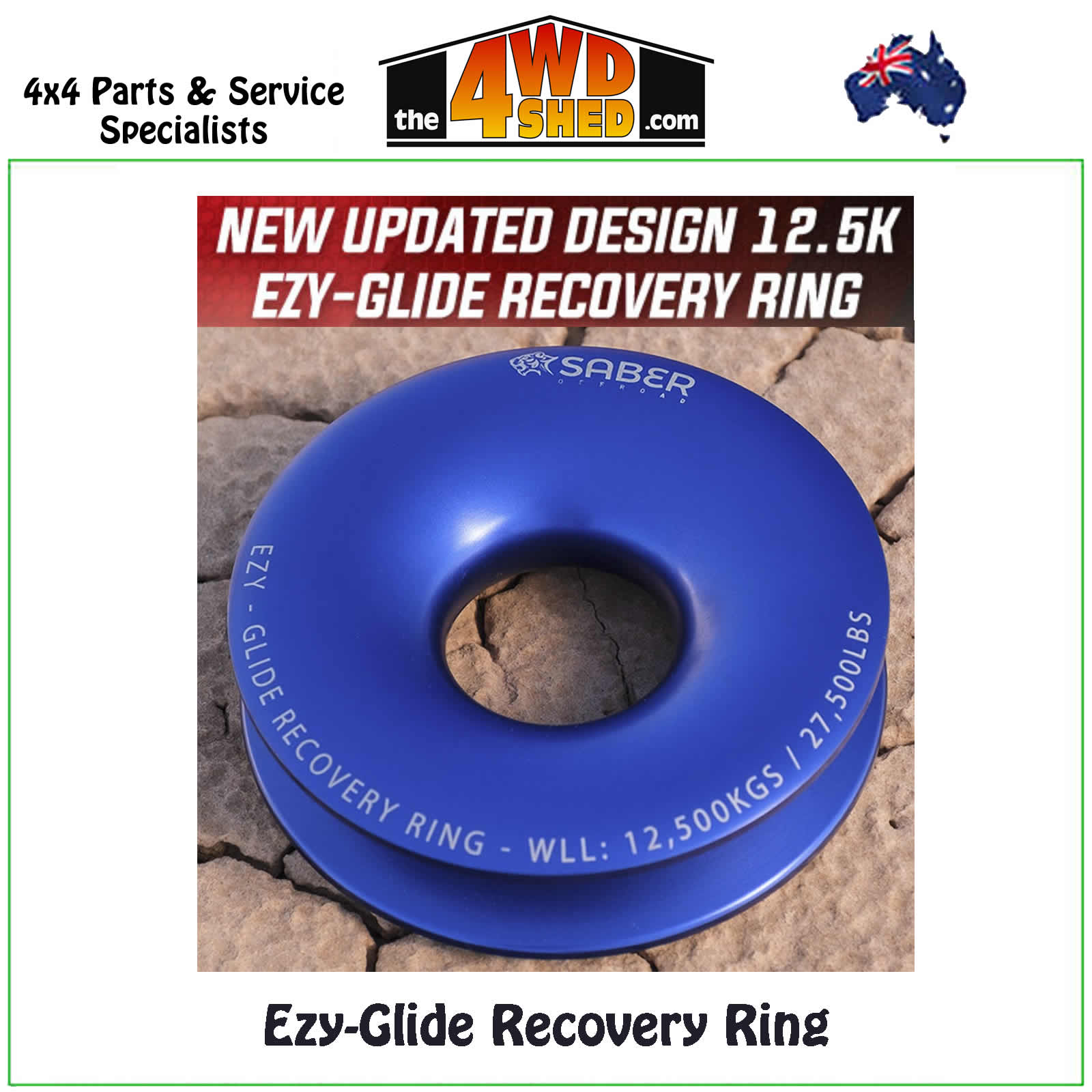

Saber Offroad Ezy-Glide Recovery Ring

The Ezy-Glide Recovery Ring is light, strong and engineered to exceed expectations.

When size and weight are serious factors in recovery kits, we are proud to offer this heavy-duty, small and lightweight alternative to a snatch block. Our new recovery ring weighs less than 1kg (2.2lbs), and has a total diameter of only 143mm, with an internal diameter of 96mm. Based on this size, it is almost a 1/4 of the weight of a similarly rated snatch block.  The new design is unlike any others on the market, finally a recovery ring that truly supports the soft shackle and the synthetic winch rope equally!

We deliberately are not the smallest ring on the market, but as we outline below, this ring was specially designed in consultation with winch rope fibre manufacturers to reduce wear and fatigue on the ropes being used in conjunction with the ring.

The Ezy-Glide Recovery ring must ONLY be used with soft shackles and synthetic winch ropes.

What makes the Saber Offroad Ezy-Glide Recovery Ring a true market leader?

Here are the key advantages:

Engineered to Maximise Capacity & Minimise Rope Wear

When we looked at the design of the ring, we wanted to not only make sure it works well, it is light, small, but it must also protect the winch rope from fatigue leading to damage. We know that any tight bend in a rope under load decreases its strength and can cause damage, potentially leading to premature failure.  In discussions with our winch line fiber manufacturers, we were advised that an 8:1 ratio for internal channel diameter (not outer diameter) is recommended.  With our internal channel of 96mm (outer 143mm), we have a product ideal for winch ropes up to 12mm (1/2″).

  • Heavy-Duty Design - T6 Billet Aluminium, this ring will withstand forces in excess of the listed Working Load Limit (W.L.L) of 12,500KG
  • Australian Designed & Tested - extensively tested both mechanically (Australian NATA accredited facilities) and in the real-world to make sure it will perform when you need it most
  • Free Form Central Core - channel profile specifically designed to support the rope and reduce flattening of fibres under load

When we looked at the design of the ring, we wanted to not only make sure it worked well, was light, small, but also protect the winch rope from fatigue leading to damage.

Any tight bend in a rope under load decreases its strength and can cause damage, potentially leading to premature failure. In discussions with our winch line fibre manufacturers, we were advised that an 8:1 ratio for internal channel diameter is recommended. With an internal channel of 96mm, we have a product ideal for winch ropes up to 12mm (1/2″).

This ring is one of only a few on the market with an internal channel design suitable for synthetic winch ropes of 10mm or above.

The channel profile was also designed to support the rope and reduce the flattening of the fibers under load.  Flattening the fibers has been shown to increase friction and hence greater demands on the ropes and winch.

Free Form Central Core

Unlike the majority of rings on the market, we have designed a free form central core to better support soft shackles and reduce friction in the system.

Heavy-Duty Design

Designed with T6 Billet Aluminium, this ring will withstand forces in excess of the listed Working Load Limit (W.L.L) of 12,500KG.

Australian Designed & Tested

This ring has been extensively tested both mechanically (in only Australian NATA accredited facilities) and in the real-world to make sure it will perform when you need it most.

High-Grade Custom Bag

Our custom-designed padded bag also includes a convenient clip to attach to existing recovery kits.

The 4WD Shed is an Authorised Stockist for Saber Offroad. Explore with Confidence!

Recovery ring kits available with both sheathed and bound shackles packs.

Rope Diameter
Recovery Ring Internal
Minimum Suggested Diameter
6mm
48mm
8mm
64mm
10mm
80mm
12mm
96mm

(SBR-12BRR)

SKU SBR-12BRR
Brand Saber Offroad
Shipping Weight 1.0000kg
