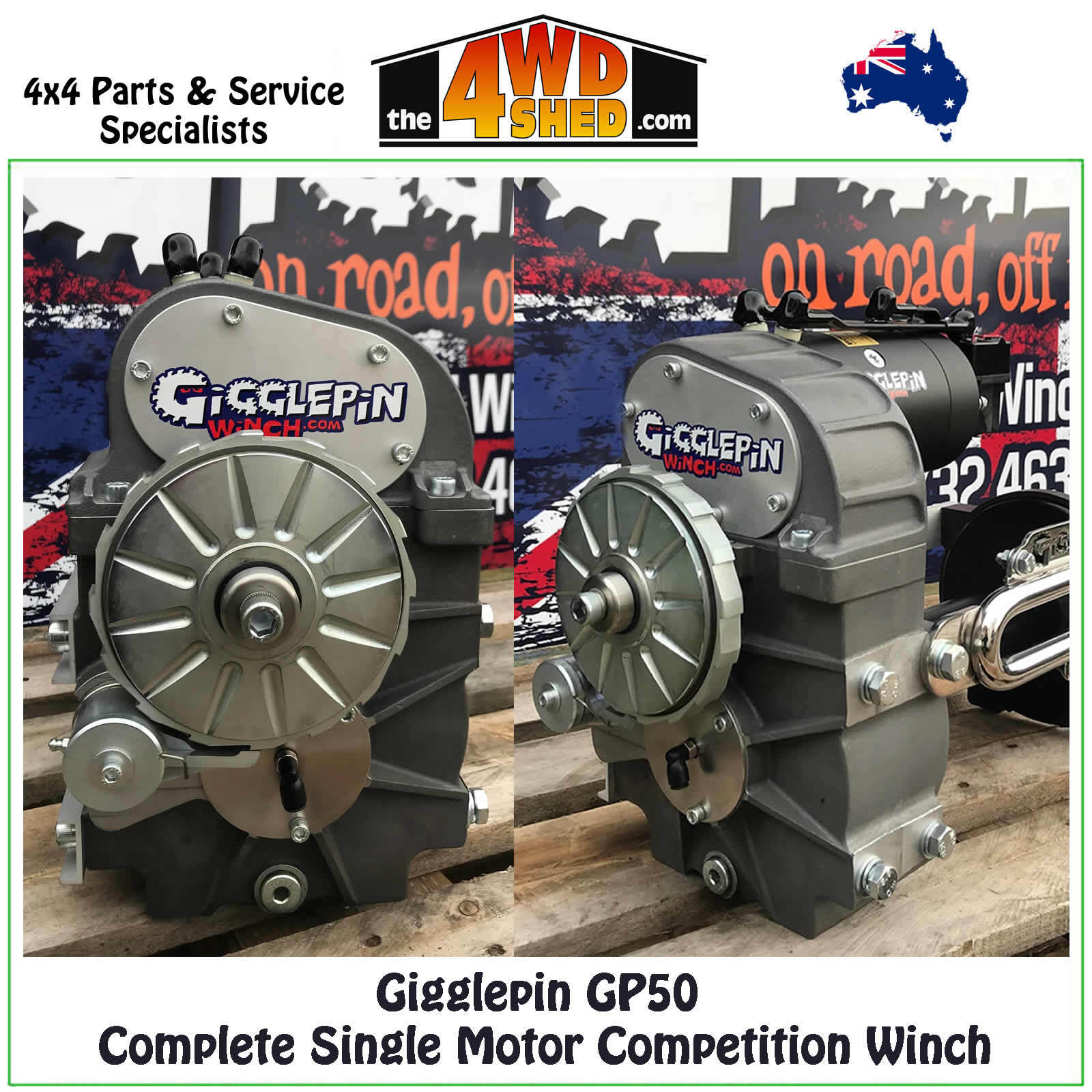

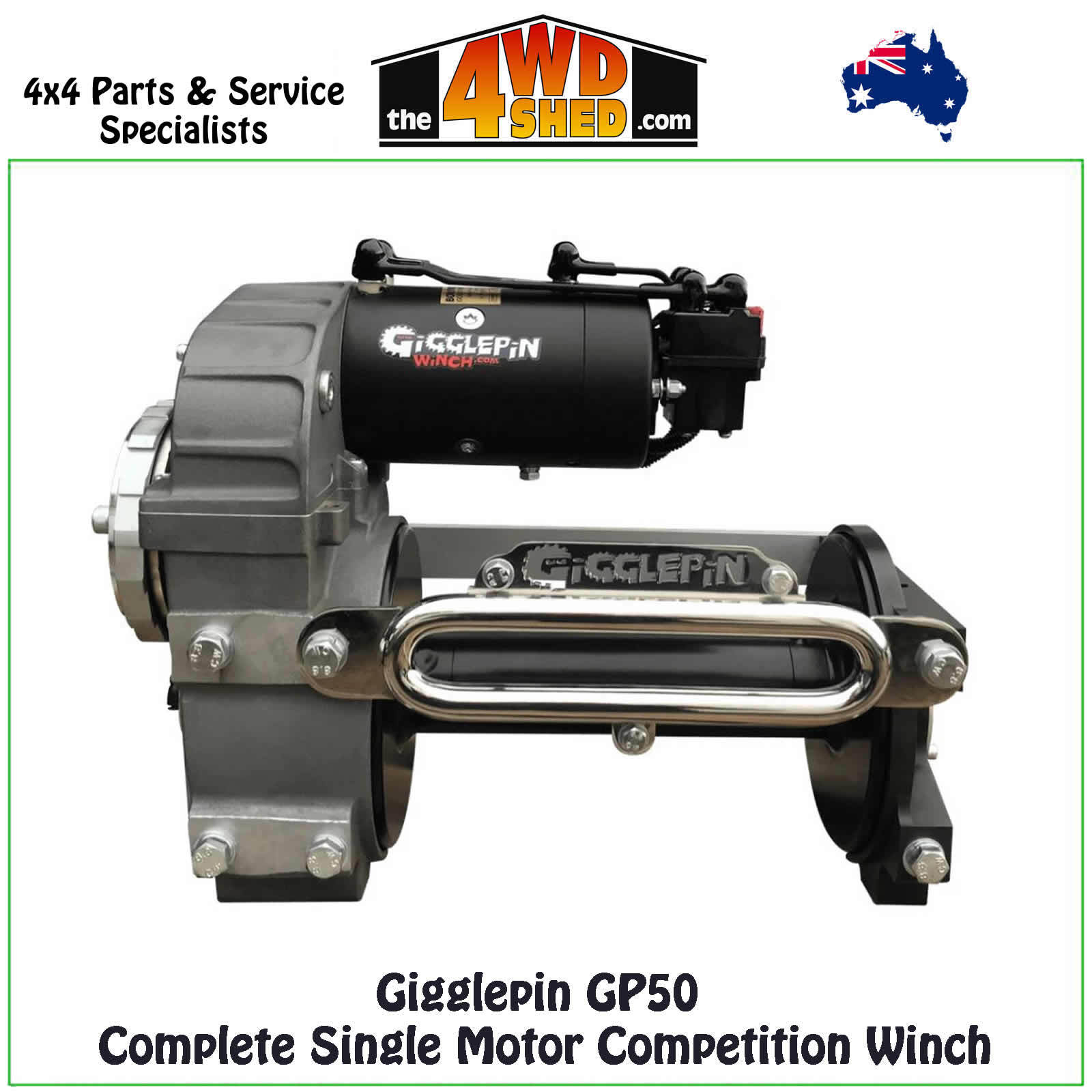

Gigglepin GP50 Complete Single Motor Competition Winch
More infoGigglepin GP50 Complete Single Motor Competition Winch
Please Note: These are an order in item due to the configuration being built to suit. Please contact us for ETA on your build.
The GP50 single motor winch has been developed using the proven GP100 gearbox and drum platform. We then fitted our Gigglepin single motor top housing to create the ultimate single motor winch. This winch has a lower profile then it's big brother and the motor can be rotated by 90 degrees to allow it to be fitted into tight locations.
Available with six different ratios and three different drum options.
A GP Winch for everyone!
It has the following amazing features -
- Super strong polished stainless steel fairlead,
- Billet drum support plate,
- Oil Filled gearbox for perfect lubrication no matter what angle,
- Large drain and Filler plugs with Iridium magnets for ease of maintenance,
- Manufactured and handcrafted to order in the UK by trained craftsmen,
- Serial numbered for traceability,
- Supplied with fitting kit and full instructions,
- Supplied as standard with our Pro 100 Solenoids & PowerBars, Upgrade to our Pro 150 solenoids & links as an optional extra,
- Compatible with the Gigglepin Motor Brake System (MBS),
- Super Smooth air Operated FreeSpool drum for fast deployment of cable/rope,
- Stronger, lightweight, heat treated cast aluminium housings,
- High performance gears and SuperShaft,
- Six different ratios - Standard, + 15%, + 25%, + 40%, + 50% or + 60% to suit all applications,
- Three drum sizes - Short 10” (254mm), Standard 13” (+76mm) or Long 14.5” (+114mm),
- External ratchet brake allowing the use of synthetic ropes,
- 9 Roller bearings giving unparalleled silky smooth operation,
- Designed and hand built in UK.
THE BEST WINCH YOU WILL EVER OWN!
3 Year Mechanical Warranty (Motors and Solenoids not included)
* Can be supplied with Hurricane Gears at no extra cost!
Dimensions sheets for all three drum sizes available.
- Standard Drum (76mm Longer than Warn 8274)
- Short Drum (Same as Warn 8274)
- Long Drum (114mm Longer than Warn 8274)
Winch Weights:
- GP50 Standard Drum 42.5kg
- GP50 Short Drum 40.6kg
- GP50 Long Drum 43.5kg
- GP50 Standard Drum with MBS 42.5kg
- GP50 Short Drum with MBS 40.6kg
- GP50 Long Drum with MBS 44.5kg
Product Brand: Gigglepin Product Code: GP50/GP50B2+
(GP50)
| SKU | GP50 |
| Brand | Gigglepin |
| Shipping Weight | 45.0000kg |
