HD Adjustable Brackets to suit HD Hitch Kits - Double


Buying Options

Quantity Image Name Price
HD Adjustable Bracket Short Kit - Double HD Adjustable Bracket Short Kit - Double
$213.64
In stock
HD Adjustable Bracket Long Kit - Double HD Adjustable Bracket Long Kit - Double
$240.91
In stock

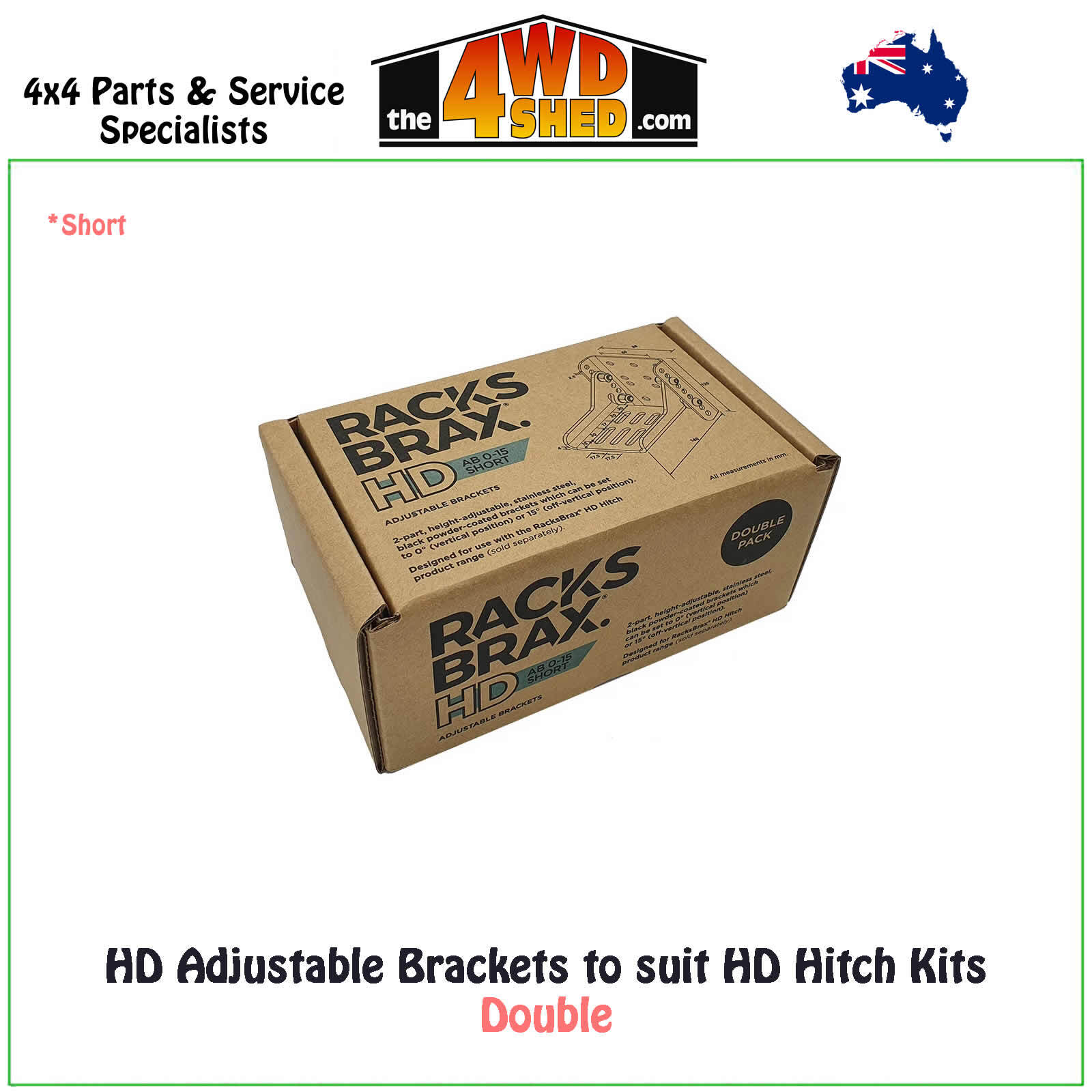

HD Adjustable Brackets to suit HD Hitch Kits - Short or Long Double

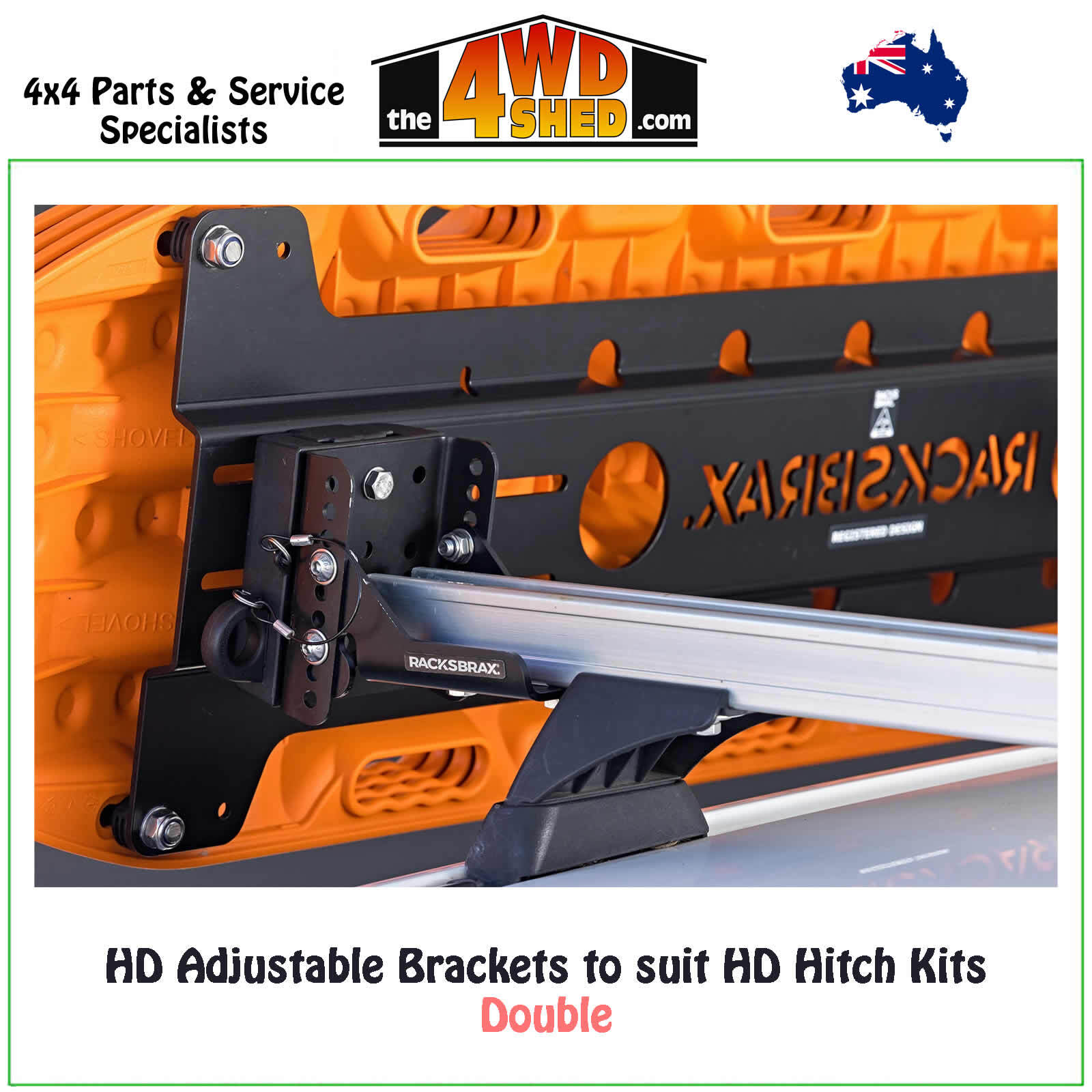

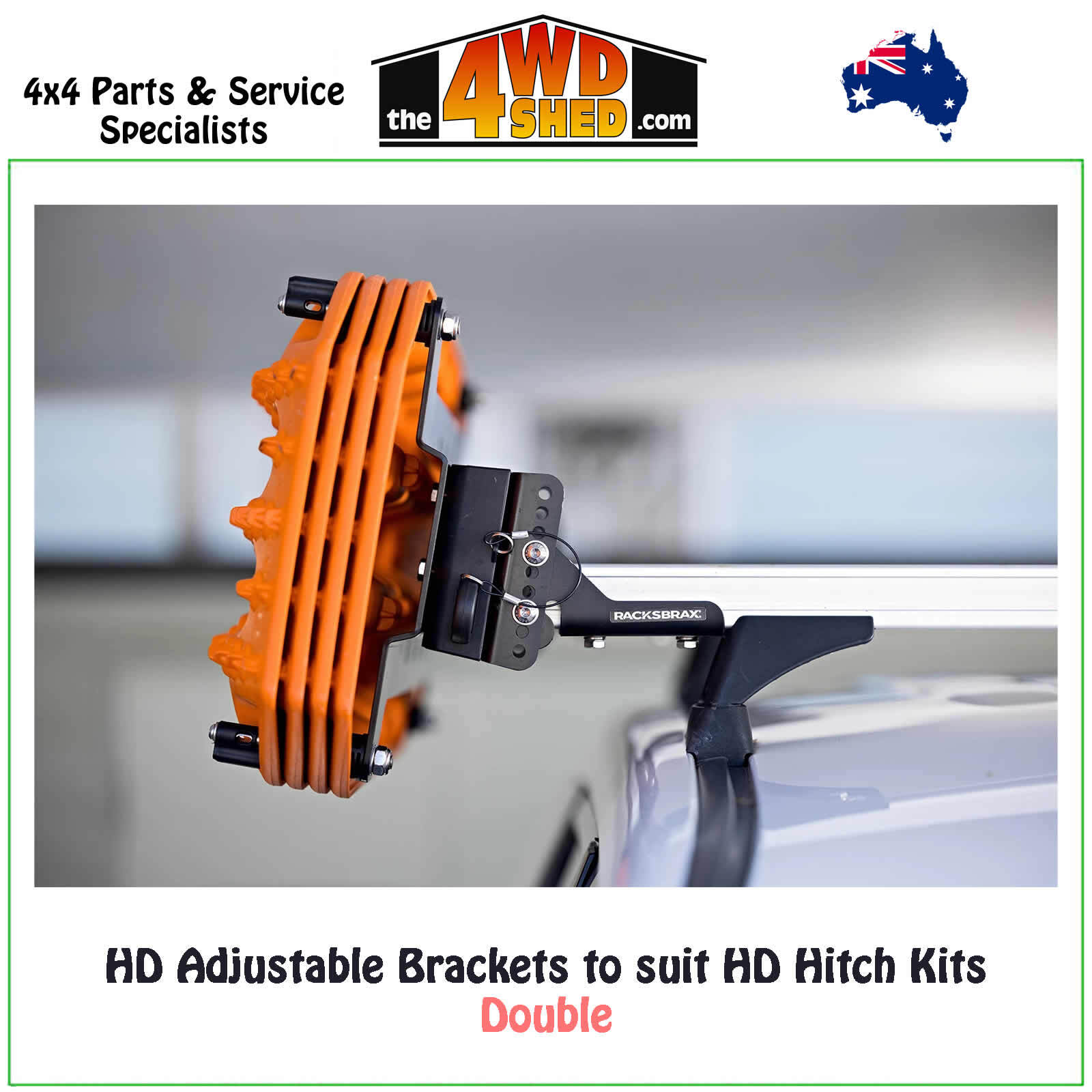

The RacksBrax HD Adjustable Brackets (HD AB 0-15) have been designed for the RacksBrax HD Hitch to provide a height adjustable bracket that can be set to vertical (typical setting for an awning) and also 15° off vertical for recovery boards.

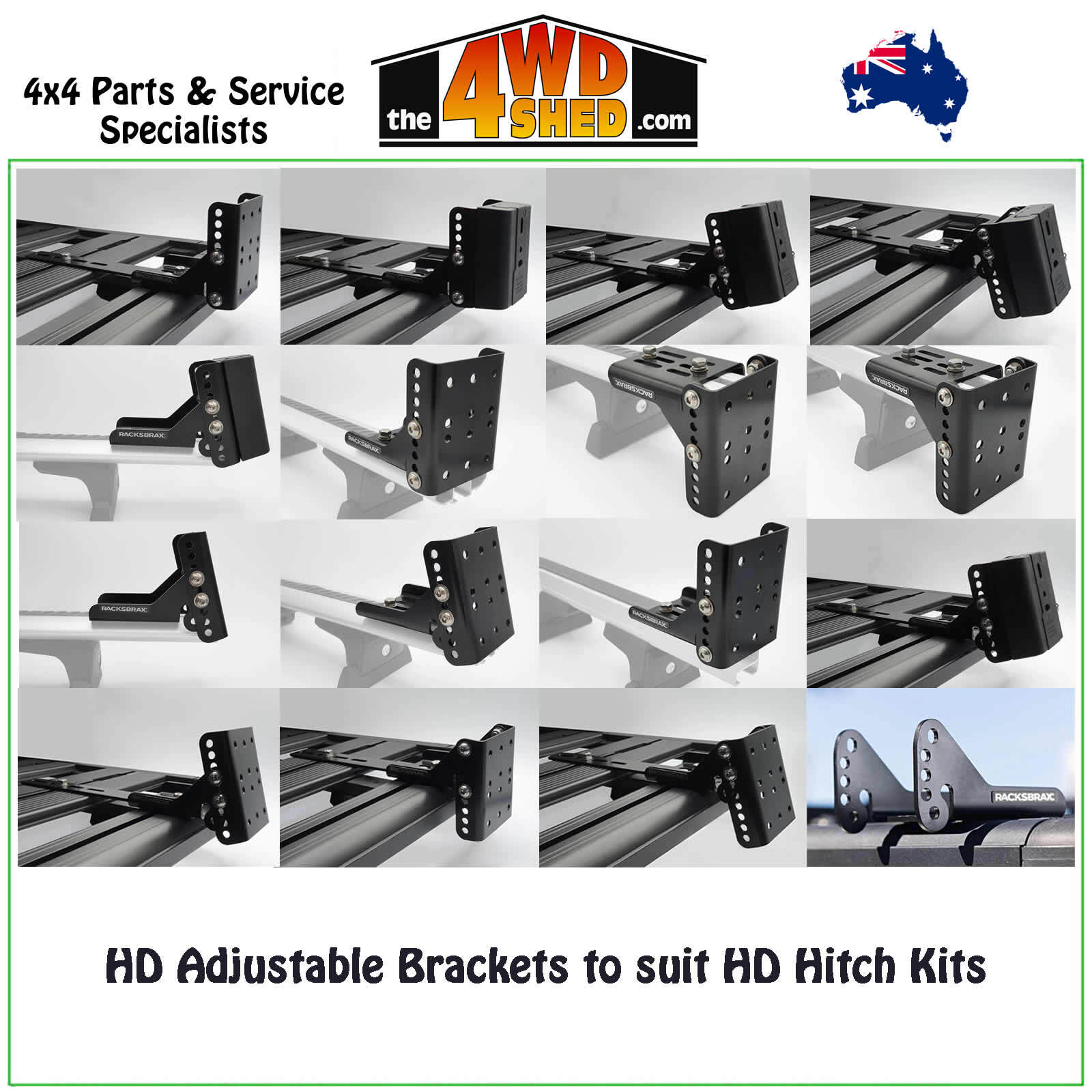

The height adjustment on the bracket allows an adjustment range of 50mm (in 12.5mm increments) in the vertical plane and a range of 50 mm (in 12.5mm increments) in the 15° off vertical plane.

Adjustable Brackets adjust the height of the bracket (and accessory) to allow the top of the bracket (and accessory) to be set as low as possible without the accessory interfering with door openings (thus reducing headroom to the minimum possible).

The RacksBrax HD Adjustable Brackets have been specifically designed for the upright portion to fit the RacksBrax HD Hitch, although it may be used without an HD Hitch to fit accessories where mount points are at 50mm centres.

These brackets are supplied in LONG or SHORT foot versions (Double and Triple sets of either), each designed for a load of 20kg (44lbs) per bracket, subject to permitted roof rack loads.

Available as

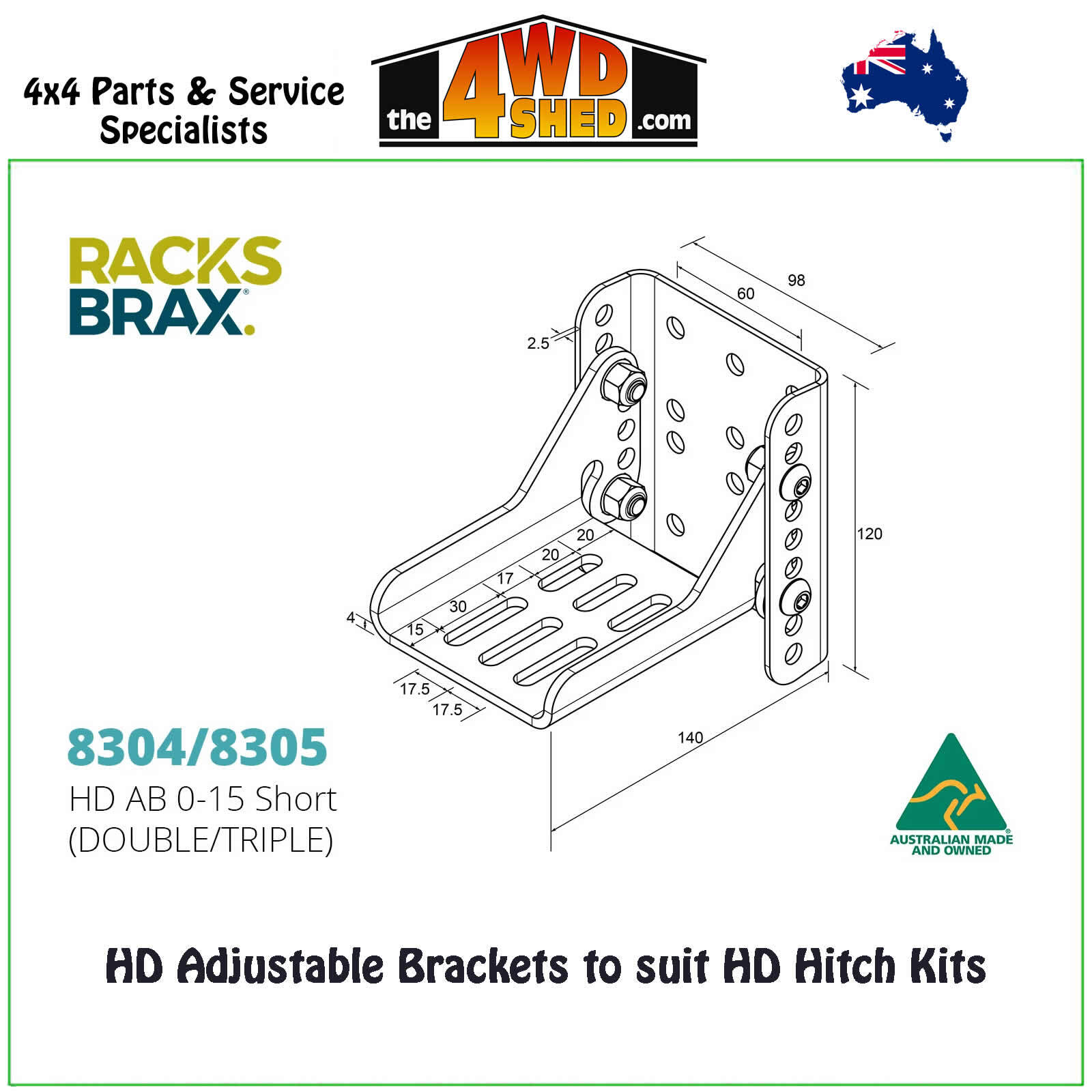

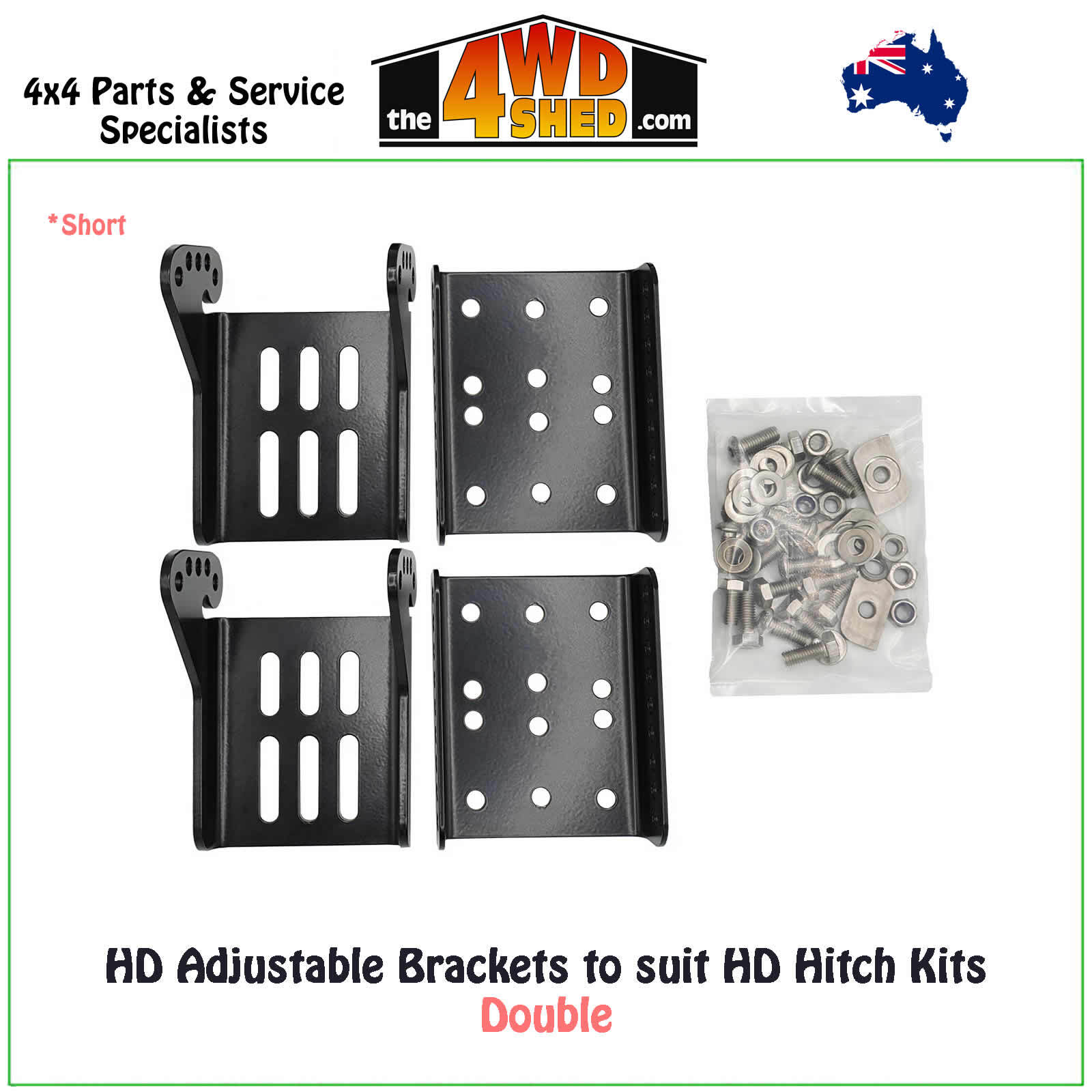

  • Short Double (8304)

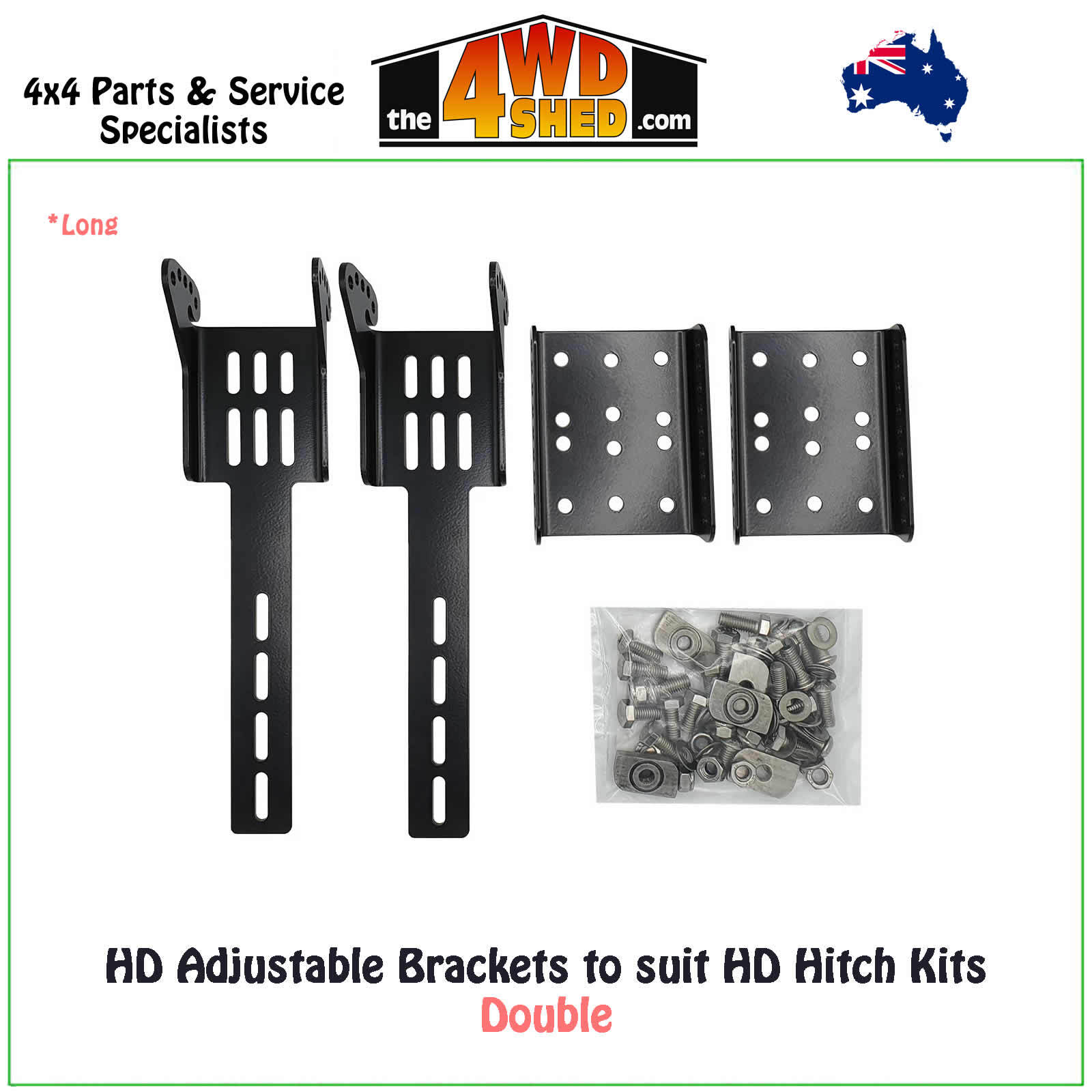

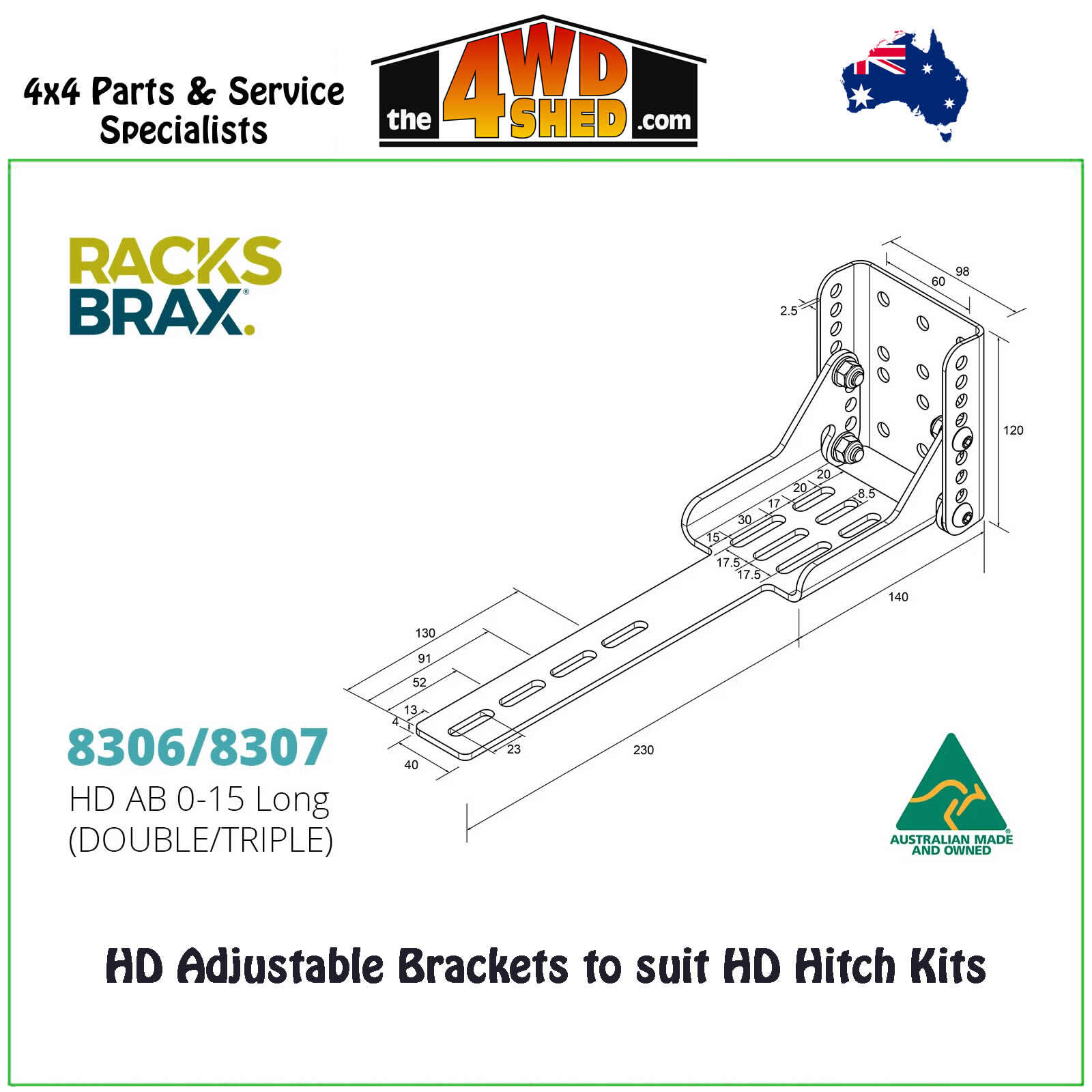

  • Long Double (8306)

This is for the brackets to adjust the HD Hitch on your roof rack. Great when you have a lifted vehicle & need to adjust the height of your awning.

The 4WD Shed is an Authorised Dealer of RacksBrax products!

(HDBRACKET-DOUBLE)

SKU HDBRACKET-DOUBLE
Brand RacksBrax
Shipping Weight 1.5000kg
