Lightweight Winch 4WD Recovery Kit
More infoSaber Offroad Lightweight Winch Recovery Kit
A lightweight kit including our industry-leading Ezi-Glide Recovery Ring, the SaberPro Utility Rope and one of each of our SaberPro Sheath and SaberPro Bound soft shackles. All supplied in a handy clear top recovery kit bag.
Everyone wants lighter and stronger recovery gear and this new kit from Saber Offroad has you covered! The Lightweight Winch Recovery Kit is the perfect addition to your gear when preparing for winch recovering.
This kit replaces the need heavy and potentially dangerous metal snatch blocks and bow shackles, plus the SaberPro® Utility Rope gives you enough flexibility to no longer need an extra bridle, tree trunk protector or short winch extension! The whole kit weighs just over 3kgs, often the weight of just a snatch block and bow shackle, however, you get SO much more!

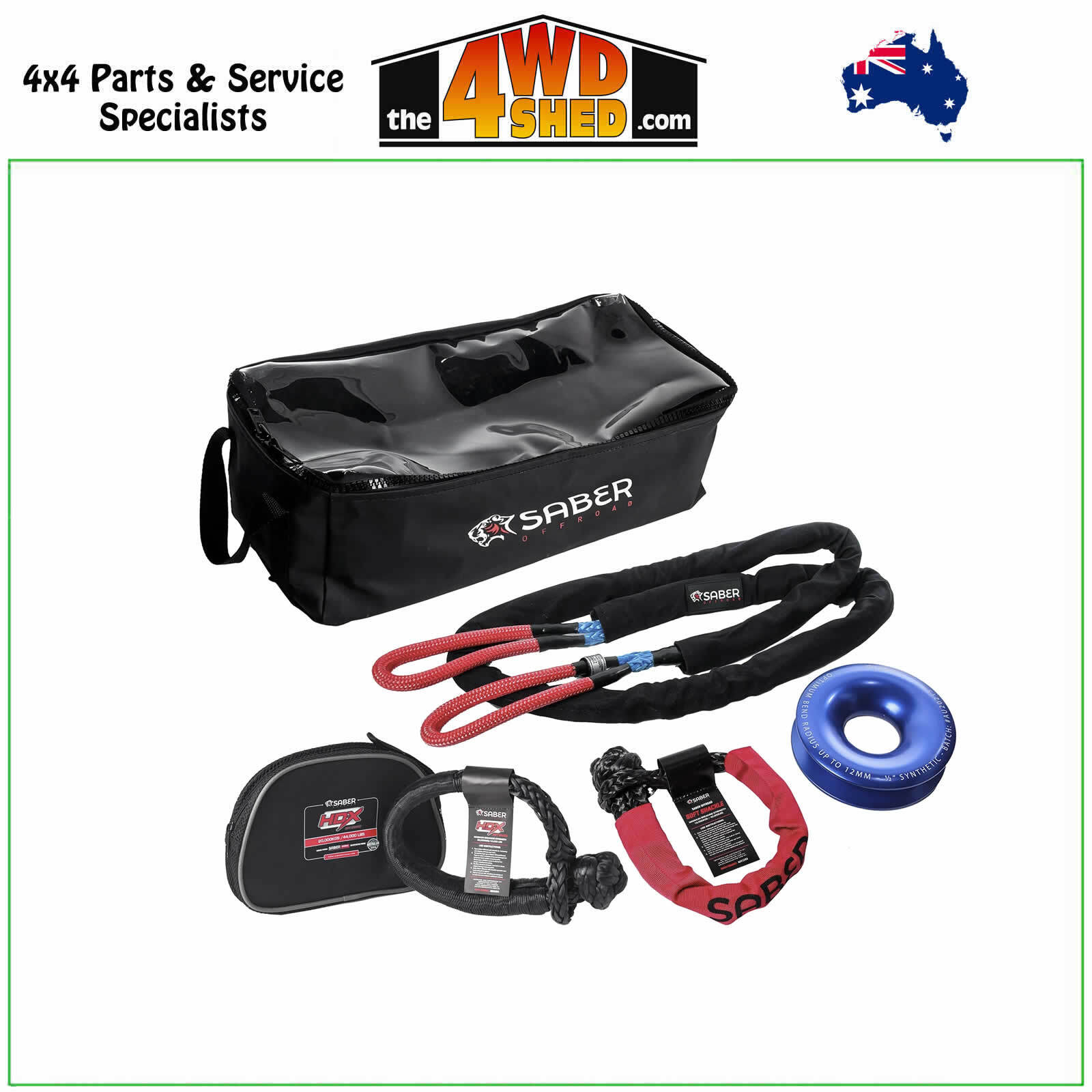

THE LIGHTWEIGHT WINCH RECOVERY KIT INCLUDES:
1 x Ezy-Glide 12,000kg WLL Blue Recovery Ring & Bag
1 x 17,000kg SaberPro® 3M Utility Rope
1 x 14,700kg SaberPro® Soft Shackle with Sheath
1 x 17,000kg SaberPro® Bound Soft Shackle
1 x Clear Top Recovery Kit Bag
This kit is truly, Safer, Smarter and Stronger!
The 4WD Shed is an Authorised Stockist for Saber Offroad. Explore with Confidence!
Component Information
Saber Offroad Ezy-Glide Recovery Ring
The Ezy-Glide Recovery Ring is light, strong and engineered to exceed expectations.
When size and weight are serious factors in recovery kits, we are proud to offer this heavy-duty, small and lightweight alternative to a snatch block. Our new recovery ring weighs less than 1kg (2.2lbs), and has a total diameter of only 143mm, with an internal diameter of 96mm. Based on this size, it is almost a 1/4 of the weight of a similarly rated snatch block. The new design is unlike any others on the market, finally a recovery ring that truly supports the soft shackle and the synthetic winch rope equally!
We deliberately are not the smallest ring on the market, but as we outline below, this ring was specially designed in consultation with winch rope fibre manufacturers to reduce wear and fatigue on the ropes being used in conjunction with the ring.
The Ezy-Glide Recovery ring must ONLY be used with soft shackles and synthetic winch ropes.
What makes the Saber Offroad Ezy-Glide Recovery Ring a true market leader?
Here are the key advantages:
Engineered to Maximise Capacity & Minimise Rope Wear
When we looked at the design of the ring, we wanted to not only make sure it works well, it is light, small, but it must also protect the winch rope from fatigue leading to damage. We know that any tight bend in a rope under load decreases its strength and can cause damage, potentially leading to premature failure. In discussions with our winch line fiber manufacturers, we were advised that an 8:1 ratio for internal channel diameter (not outer diameter) is recommended. With our internal channel of 96mm (outer 143mm), we have a product ideal for winch ropes up to 12mm (1/2″).
-
Heavy-Duty Design - T6 Billet Aluminium, this ring will withstand forces in excess of the listed Working Load Limit (W.L.L) of 12,500KG
-
Australian Designed & Tested - extensively tested both mechanically (Australian NATA accredited facilities) and in the real-world to make sure it will perform when you need it most
-
Free Form Central Core - channel profile specifically designed to support the rope and reduce flattening of fibres under load
When we looked at the design of the ring, we wanted to not only make sure it worked well, was light, small, but also protect the winch rope from fatigue leading to damage.
Any tight bend in a rope under load decreases its strength and can cause damage, potentially leading to premature failure. In discussions with our winch line fibre manufacturers, we were advised that an 8:1 ratio for internal channel diameter is recommended. With an internal channel of 96mm, we have a product ideal for winch ropes up to 12mm (1/2″).
This ring is one of only a few on the market with an internal channel design suitable for synthetic winch ropes of 10mm or above.
The channel profile was also designed to support the rope and reduce the flattening of the fibers under load. Flattening the fibers has been shown to increase friction and hence greater demands on the ropes and winch.
Free Form Central Core
Unlike the majority of rings on the market, we have designed a free form central core to better support soft shackles and reduce friction in the system.
Heavy-Duty Design
Designed with T6 Billet Aluminium, this ring will withstand forces in excess of the listed Working Load Limit (W.L.L) of 12,500KG.
Australian Designed & Tested
This ring has been extensively tested both mechanically (in only Australian NATA accredited facilities) and in the real-world to make sure it will perform when you need it most.
High-Grade Custom Bag
Our custom-designed padded bag also includes a convenient clip to attach to existing recovery kits.
Saber Offroad Spectra® Extreme Utility Rope 17,000KG
Three straps included in just ONE rope. This SaberPro Utility Rope will get you out of trouble when you need it and not take up too much space or weight.
The ‘Swiss Army Knife’ of recovery gear! You’ll never know when you need it next! Winch extension, equaliser strap, tree trunk protector and more! Just because you have a winch installed and ready to go, you’re still not fully prepared for what a difficult recovery might throw at you.
Welcome to the Spectra® Extreme Utility Rope from Saber Offroad is 3 metres in length and rated at 17,000KG. The Spectra® Extreme Utility Rope is the ‘Swiss Army Knife’ of vehicle recovery equipment. Designed mostly for winching, the Spectra® Extreme Utility Rope can be used in a variety of ways to recover a stuck vehicle. Manufactured with world-leading Spectra® Fiber made in the USA by Honeywell this product is super strong, yet soft to feel, and incredibly light.
Both the rope eyes and the remaining length of the rope are protected by a heavy-duty binding to protect the Spectra® core, to guarantee a long life for this rope. A cordura protective sheath is ideal for added protection for both the tree and the rope during recoveries using a tree. Cordura Sheath is provided free with each Utility Rope. Easily removable & washable this sheath protects your rope when in use.
HOW DOES IT WORK?
Most of those going offroad would carry a short winch extension, a tree trunk protector, and an equaliser strap, and finally, there is a product that does it all.
Winch Extension
Need an extra 3M (10ft) to reach that winch anchor point? We have you covered! The Spectra® Extreme Utility Rope core use the same material as our winch lines, so we know it does the job!
Tree Trunk Protector
Trees are often your best friend when you get stuck and need a winch anchor point. A common winching mistake is to wrap a winch rope straight around the tree and hook back to itself. This can damage both the winch rope and the tree. The Spectra® Extreme Utility Rope is the perfect solution to safely anchor a winch line to a tree without causing damage to the environment or your gear. The optional sheath is ideal for this type of recovery.
Equaliser Strap
The Spectra® Extreme Utility Rope can be used as an equaliser strap by attaching to two recovery points on your vehicle and winching from the center of the Rope. This significantly reduces strain on the vehicle chassis and recovery points and helps keep the vehicle lined up as needed while winching.
Non-Standard Recovery Point Utilisation
In some recoveries, such as a rollover, the ideal vehicle recovery points may not be accessible or safe to use. This often leads to a need to recover from an axle, roll cage or other suitable solutions. The Spectra® Extreme Utility Rope allows you to safely attach to these points using the ‘choker’ method on your vehicle without causing damage to your vehicle or your gear.
FREE CORDURA SHEATH PROVIDED!
Saber Offroad 14,700kg Soft Shackle with Protective Sheath
This 11mm soft shackle with protective sheathes is designed to be safer, stronger, lighter and easier to use alternative to metal shackles. Rated to 14,700kg, this is a seriously strong soft shackle. Manufactured with our exclusive SaberPro™ Fiber offering the highest standards in strength and durability, it won’t let you down. This shackle can be used for all types of vehicle recovery, plus marine, agriculture and more.
Having tested the shackles in a NATA accredited facility in Melbourne, Saber Offroad shackles perform at a superior level compared to many other tested competitor products.
As with the other products in the Saber Offroad soft shackle range, this product is designed to be safer, stronger, lighter and easier to use alternative to metal shackles.
-
14,700KG minimum breaking strength
-
Abrasive Resistant Protective Sheath
-
High abrasion and impact resistance with our exclusive SaberPro™ fibre
-
Can be used in a wide range of applications
-
Tested to destruction in an Australian NATA accredited facility in accordance with Australian requirements
Engineered in Australia, Designed to Explore the World
Saber Offroad 17,000kg SaberPro Fully Bound Heavy Duty Soft Shackle
Saber Offroad has released a uniquely bound shackle to offer not only a 17,000KG minimum breaking strength but a heavy duty protection against abrasion & impact. Saber Offroad have upgraded this newer version of the shackle from 14,700KG to 17,000kg and this is achieved through the use of our proprietary blended coated fibre, SaberPro, and our latest shackle design.
Having tested the shackles in a NATA accredited facility in Melbourne, Saber Offroad shackles perform at a superior level compared to many other tested competitor products.
As with the other products in the Saber Offroad soft shackle range, this product is designed to be safer, stronger, lighter and easier to use alternative to metal shackles.
-
17,000KG breaking strength
-
Constructed from our exclusive SaberPro™ fibre
-
Abrasion Resistant Binding
-
Can be used in a wide range of applications
-
Tested in accordance with Australian requirements
Engineered in Australia, Designed to Explore the World
Saber Offroad Clear Top 4WD Recovery Gear Bag
Releasing this new bag into the range is an exciting development for Saber Offroad. Being able to double as a recovery gear bag, and a handy drawer bag makes this a great addition to your kit.
This bag comes standard with all new Kinetic Ropes sold, and some select recovery kits but if you damage yours or want to add more to the collection you can now buy them separately.
Clear top means you can quickly & easily see what's packed inside, no more digging around & rummaging to find that item down the bottom of the bag.
(SBR-WRK1)
| SKU | SBR-WRK1 |
| Brand | Saber Offroad |
| Shipping Weight | 5.0000kg |
