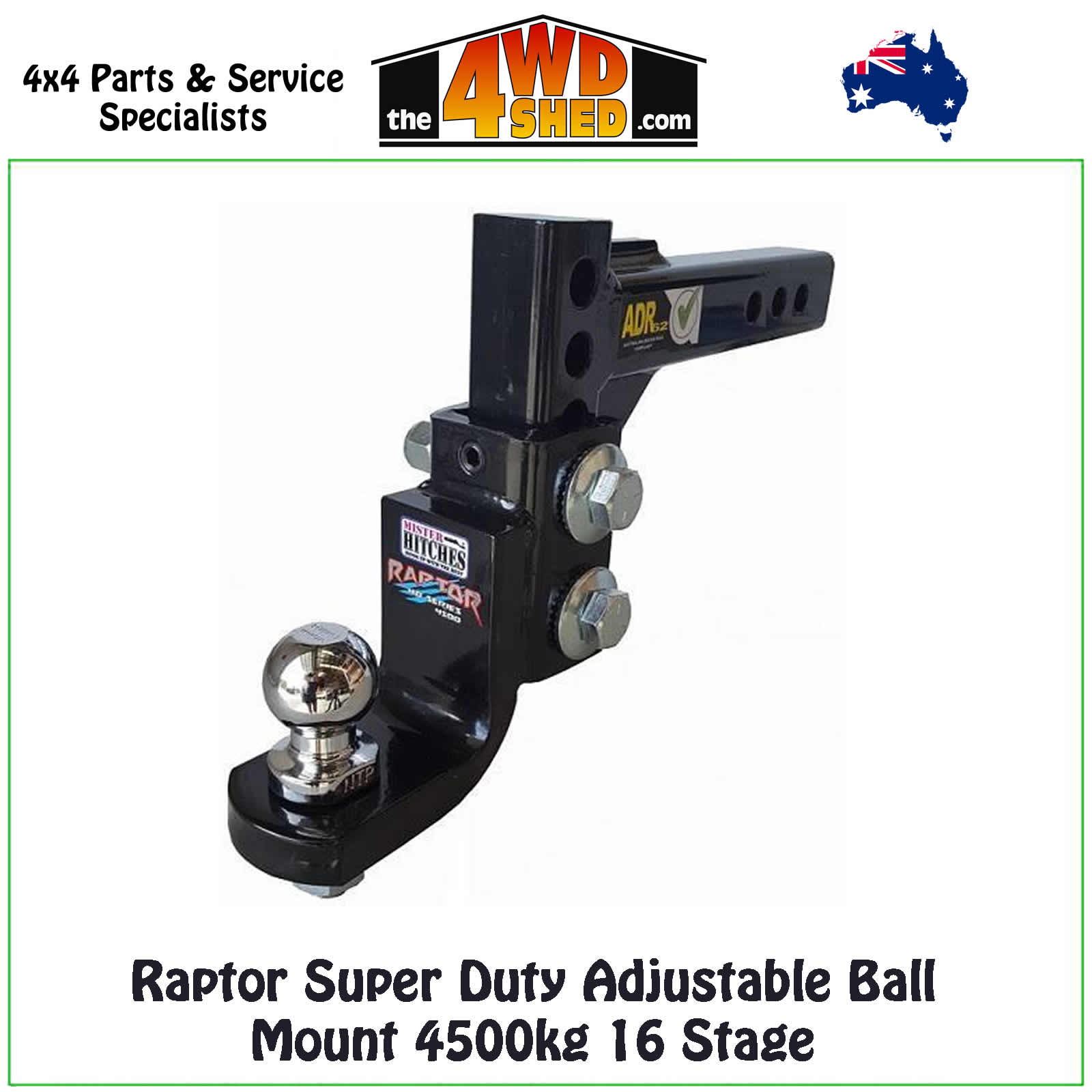

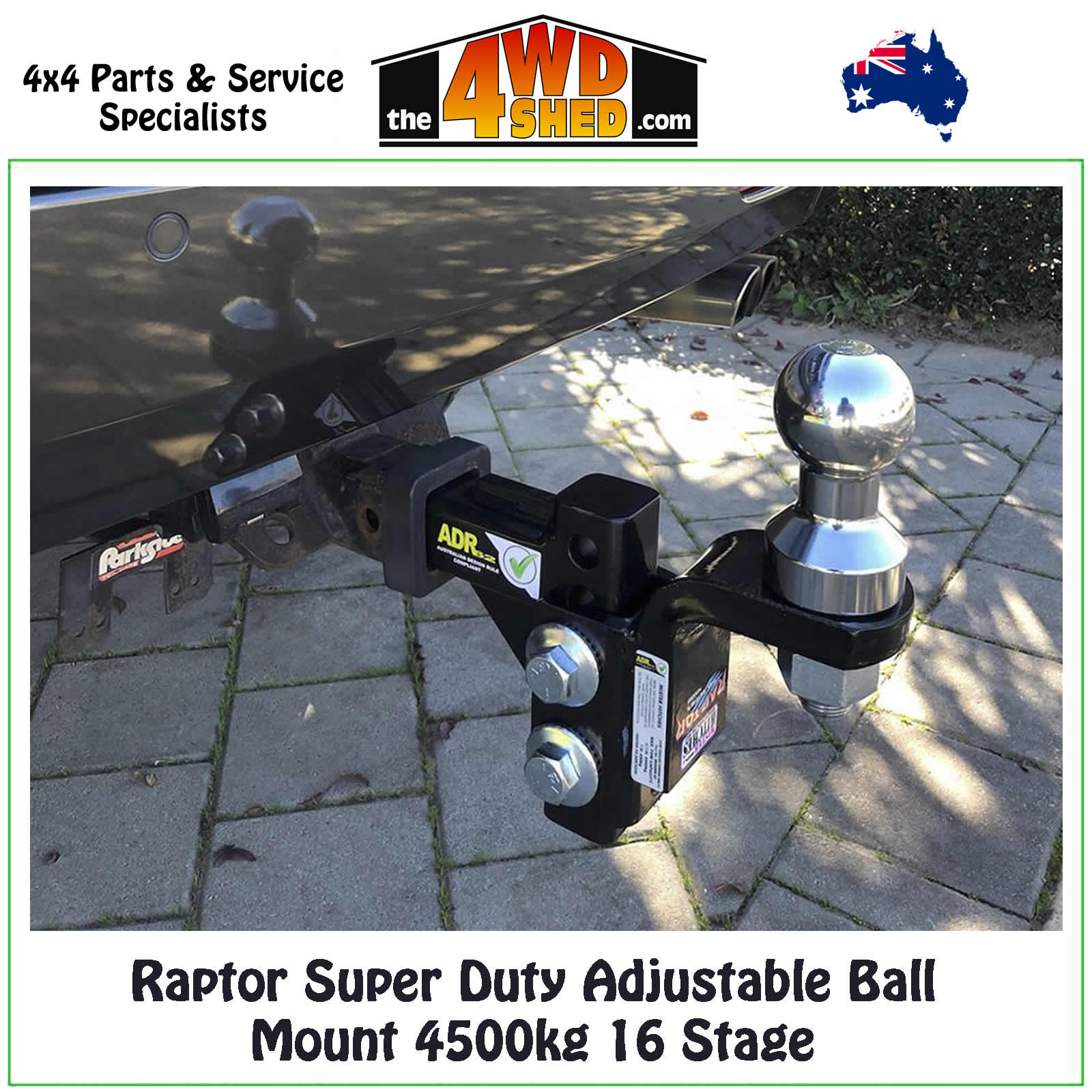

Raptor Super Duty Adjustable Ball Mount Hitch 4500kg 16 Stage
More infoMister Hitches Raptor Super Duty Adjustable Ball Mount 4500kg 16 Stage
Another quality product by MISTER HITCHES.
This is a new extra heavy duty adjustable ball mount tow hitch. Rated to tow up to 4500kg with max ball weight of 450kg, Both the hitch shank and the ball mount platform can be independently flipped and mounted upside down giving 4 position combinations This combined with the 3 bolt adjustments gives a range of different height positions
- Maximum Drop: 210mm
- Maximum Rise: 188mm

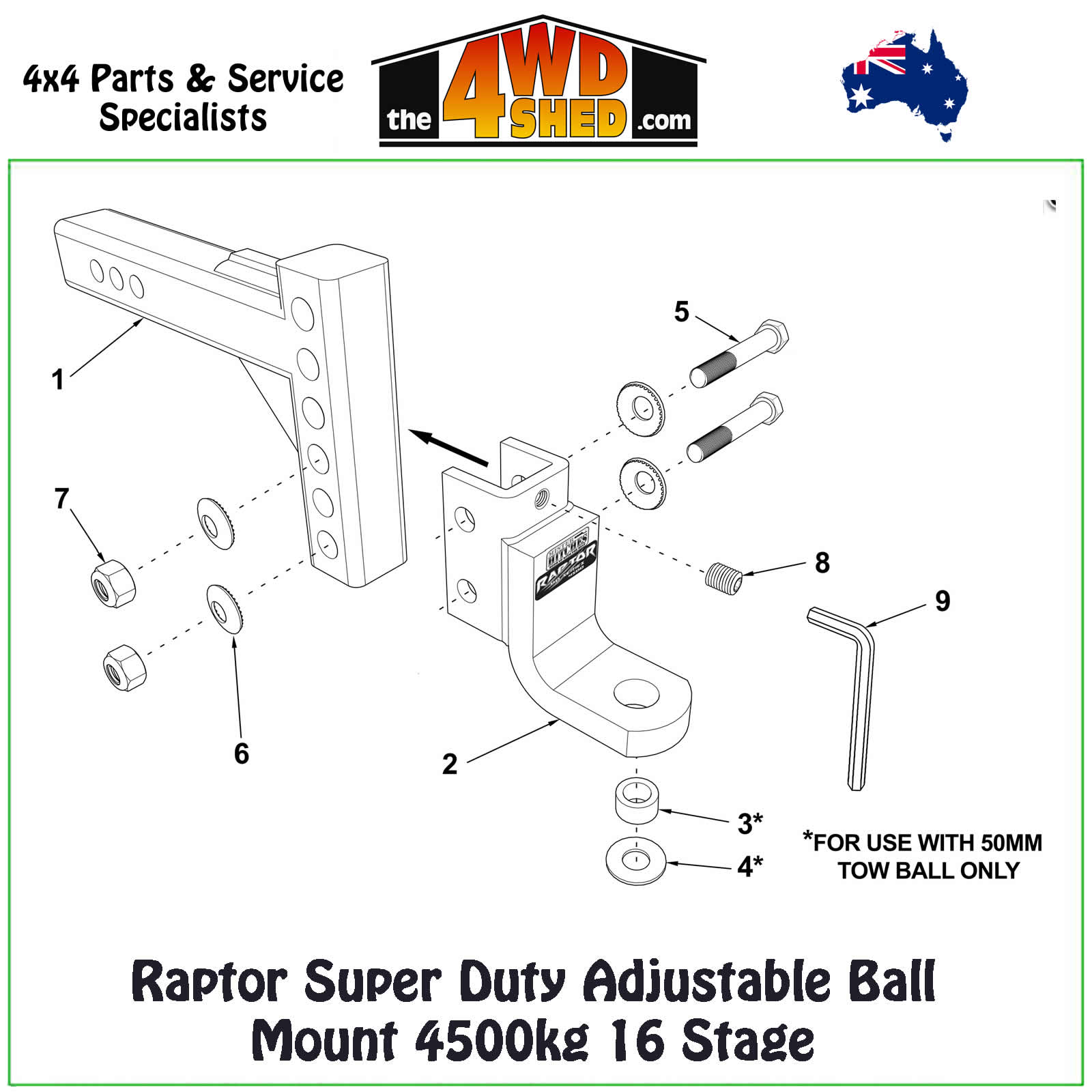

Kit Contains
- 2 high tensile grade 3/4-10x5" bolts with washers
- Hitch shank is reinforced with 9mm dual gussets
- 25mm thick x 75mm wide reversible ball mount platform
- Black powder coat finish
- Tow ball hole 7/8 inch
- Fits 2 inch square towbar receivers
Features
- 4,500kg MAX. Tow capacity 450kg Max. T.W.
- Tested & Compliant with ADR62/02.
- Tested up to 6,750kg (Longitudinal tension).
- Solid steel shank with dual gussets for superior strength.
- Suits 50mm OR 70mm Tow balls.
- Reversible shank & ball platform give greater drop or rise height.
- 16 Stage adjustments max rise 188mm Max drop 210mm. (32mm increments)
- Optional shanks can give a drop of 370mm & rise up to 350mm
- Multi-pin holes give 3 length adjustments. 315-340-365mm.
- H.T. 3/4” Bolts, Nyloc Locking nuts & toothed conical washers gives superior strength.
- Powder coated enamel finish gives greater protection from the elements.
- Compatible with HITCHMASTER DO35 & DO45, TREG, McHITCH, HITCH-EZY, ALKO, OZ HITCH 4.5T & ARK Couplings. Also suitable for the Ford Ranger short shank tow bar.
- Manufactured to Mister Hitches strict quality & specifications.
Always please check your vehicles maximum towing capacity and comply to those figures.
(MH-ABM45-1)
| SKU | MH-ABM45-1 |
| Brand | Mister Hitches |
| Shipping Weight | 16.0000kg |
