Recovery Tow Points Holden Colorado RC DMAX Rodeo 2007-2011

$445.00

More info.

Make 4 interest-free payments of $111.25



In Stock


Calculate Shipping



1 x Recovery Tow Points Holden Colorado RC DMAX Rodeo 2007-2011 delivered to , AU


Collect from our Bayswater VIC Store - $0.00
We will call when item is ready for Pick Up

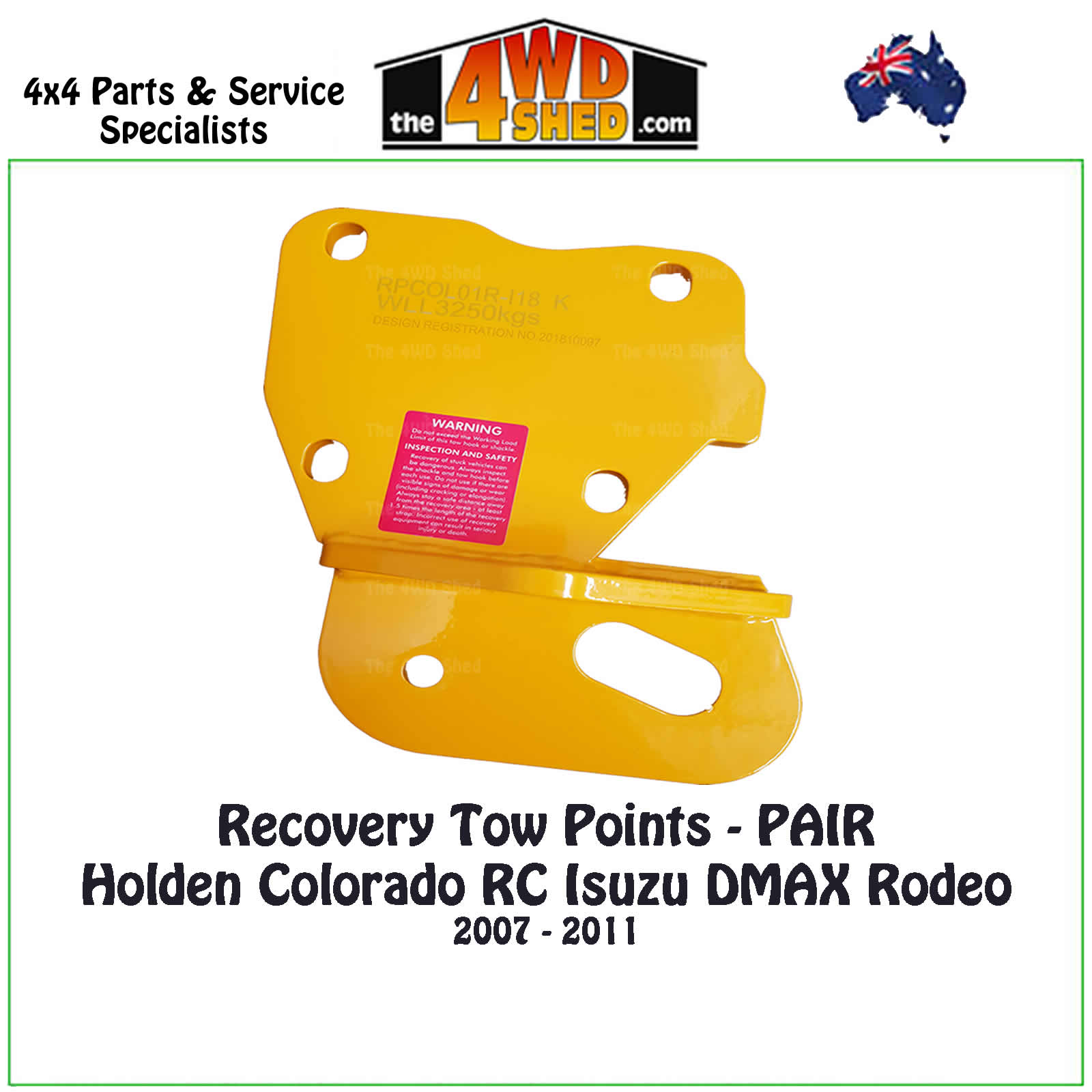

Recovery Tow Points - PAIR

To suit:

  • Holden Colorado RC 2007 - 2011
  • Isuzu DMAX 2007 - 2011
  • Holden Rodeo 2007 - 2011

This is for the PAIR of Tow Points.

When you hit the tracks you need to have reliable recovery points that are built & tested tough!

There is alot of talk out there about using the Factory recovery points on your vehicle.....DON'T!!!

These are factory tie town points used when the vehicles are shipped from the manufacturer & are not designed for Recovery situations.

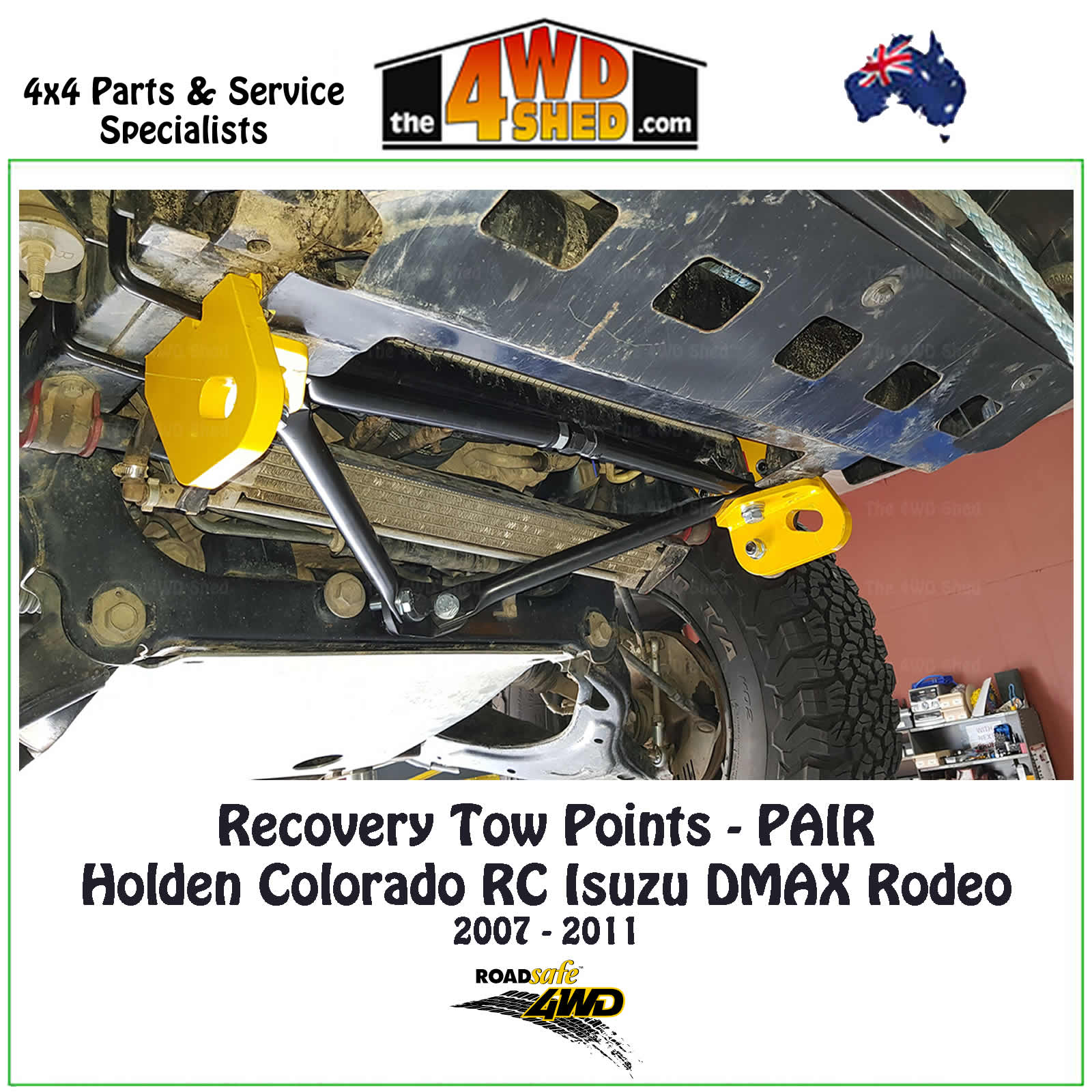

Tow Points have been designed as matched pairs, supplied in LH/RH for vehicle specific fitment. Your purchase will include high tensile bolts, and any additional, vehicle specific mounting hardware required to ensure secure fitment to vehicles. Correct fitment of these components is critical for yours & others personal safety.

Features

  • Solid 16mm plate with 8 & 10mm fixing plate & locating bars
  • Fits with the factory bolt holes in chassis - no drilling or cutting of factory components required
  • New heavy duty powder coat finish in Roadsafe Yellow
  • Huge 16mm shackle eye thickness
  • Allow for use of 3.25T bow shackles and a bridle strap (not included)
  • Rated to a Working Weight Limit (WWL) of 3250 Kg
  • Minimal Ground Clearance impact
  • Designed, develeoped & tested in Australia - Aus Design Reg 201810097

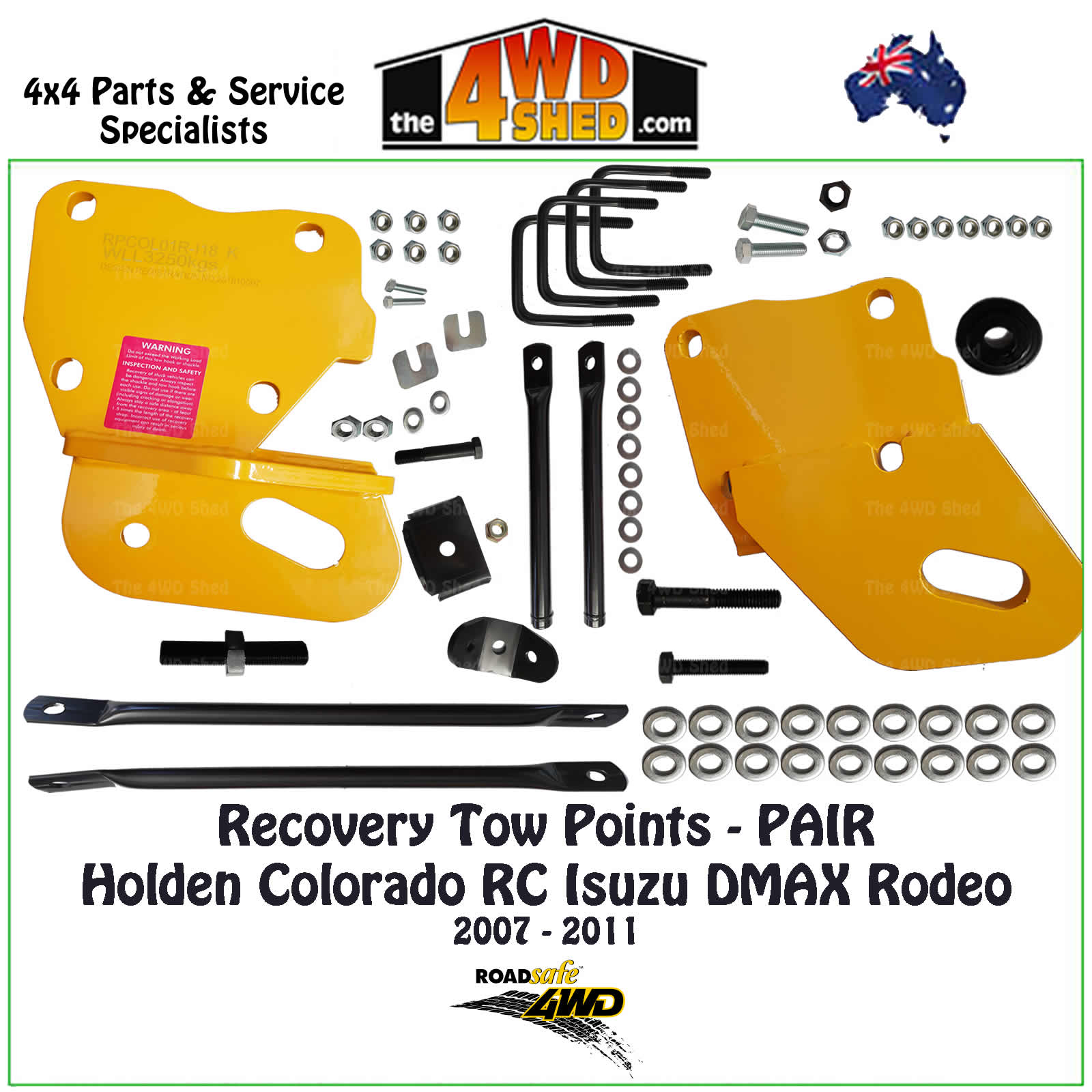

Kit contains:

  • 2 x Tow Points
  • All hardware for fitment

Tow point fitting instructions can be found here.

If a bullbar is fitted modifications might be required to the bar bracket, and/or additional hardware might be required such as longer bolts etc

Fitting is available at our workshop in Bayswater, Victoria. Additional costs may apply.

The 4WD Shed is an Authorised Stockist of Roadsafe 4WD

Fitment Notes - These are used as a guide if your bullbar is not listed then we cant guarantee if the points will suit your vehicle & bullbar.

RC Colorado NOT V6 PETROL

  • ARB- No
  • Ironman - Yes with modification. Additional bracket is required to be manufactured to fit the RH bracket
  • TJM - No
  • Xrox - With Modification to the driver side bracket was required
  • Genuine Bullbar - Yes

Isuzu Dmax 2007-2011

  • ARB- No
  • Ironman - Yes with modification. Additional bracket is required to be manufactured to fit the RH bracket
  • TJM - No
  • Xrox - With Modification to the driver side bracket was required
  • Genuine Bullbar - Yes

Rodeo 2007-2011

  • ARB- No
  • Ironman - Yes with modification. Additional bracket is required to be manufactured to fit the RH bracket
  • TJM - No
  • Xrox - With Modification to the driver side bracket was required
  • Genuine Bullbar - Yes

It is the Tow Points themselves as supplied that have been tested to the WLL advised. It is at the vehicle owners discretion for fitment, ensuring that the chassis is adequately designed, constructed and/or rated to suit this application.

It is recommended that Tow Points are fitted by a qualified mechanic with specialist 4WD knowledge, who has an understanding of your vehicle including weights carried, the style of Bull Bar, general usage etc. as in some circumstances these Tow Points may not be suitable for your vehicle.

These Tow Points have been designed and tested for straight line pull.  The Tow Points have not been tested for lifting purposes & should not be used for lifting, the forces applied differ between lifting and straight line pull type recoveries. Roadsafe Tow Points are FEA Tested during design and Destruction tested during development to establish Working Load Limits.

ALWAYS USE TOW POINTS AS A MATCHED PAIR WITH AN EQUALISING BRIDLE.  Failure to use tow points correctly can result in tow point fatigue and/or bending, and will void your warranty.  Never use a single point combined with a side load/pull.

If a recovery is to be performed, it is imperative both Tow Points are utilized, with the use of a bridle strap. This will share the load through the front of your vehicle, giving increased strength and safety margins, the use of a bridle strap will also keep all components tethered in the case of a failure, reducing the risk of serious injury or death.

Always INSPECT the Tow Points and shackles before each use. Do not use if there are visible signs of damage or wear (including cracking or elongation). Do not exceed the Working Load Limit (WLL) of the shackle or Tow Points. Always STAY A SAFE DISTANCE away from the recovery area – at least 1.5 times the length of the recovery strap. Incorrect use of recovery equipment can result in serious injury or death.

Always ensure that adequate PREPARATION for the recovery, to minimise the strain on either vehicle, has been undertaken i.e. Digging, Rock placement etc. If you do not understand how to use this equipment safely or are uncomfortable with your abilities in the use of recovery equipment, please complete a course that specialises in four wheel driving & 4WD vehicle recovery.

(RP-COL01)

SKU RP-COL01
Brand RoadSafe 4WD
Shipping Weight 14.0000kg
