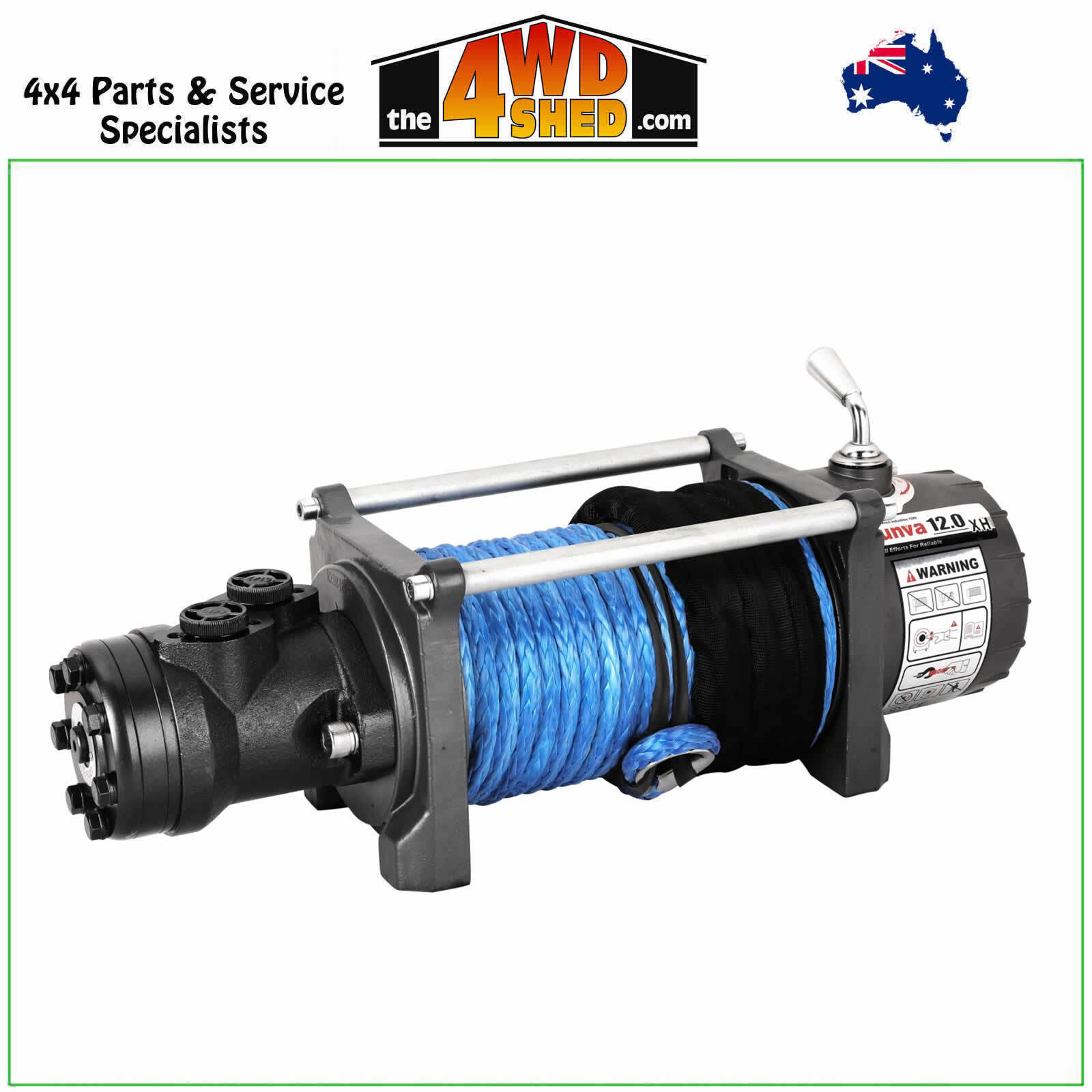

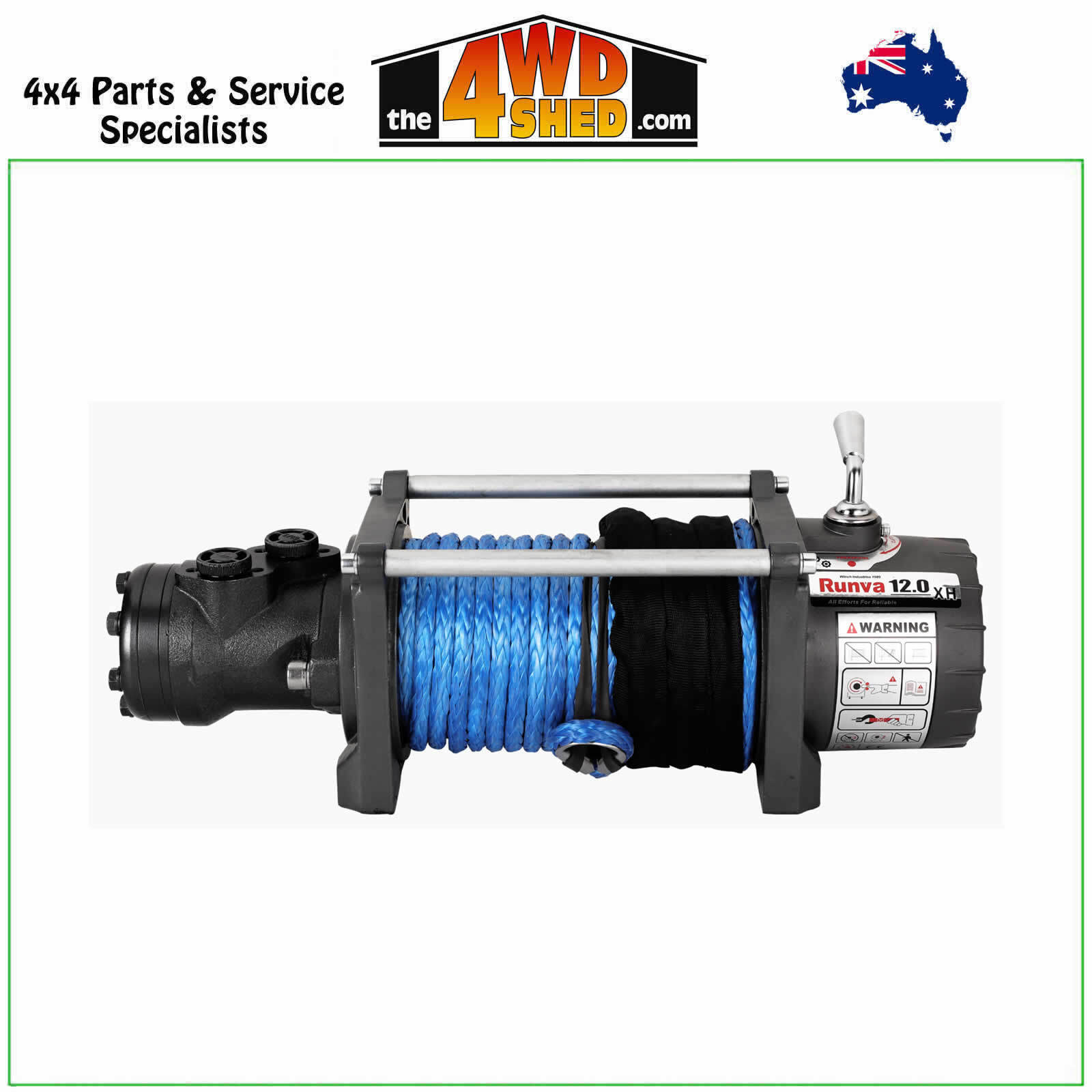

Runva HWX12000 Hydraulic Winch with Synthetic Rope

  • 12,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • FULL HYDRAULIC WINCH
  • PATENTED TWO STAGE PLANETARY GEARBOX
  • INCLUDES VALVE BLOCK + DIRECTIONAL CONTROL VALVE & REMOTE
  • STEEL CABLE OPTION AVAILABLE

The Runva HWX12000 is our smallest hydraulic winch option. Featuring 12,000lb of line pull from this compact and light design. The motor can run successfully on relatively low oil flow setups of between 15 - 45L/Min with 11Mpa of pressure. The gearbox is a patented two stage planetary setup with 28:1 gear ratio.

Winching is made easy via the handheld remote if the optional extra directional control valve (12V or 24V) and valve block is purchased.

This model is ideal for a wide range of applications including light duty tow trucks, tippers, log splitter, recreational 4X4 and much more. The HWX12000 will fit most 4X4 Winch Bars/Bullbars. If you intend to use it on a 4X4 without hydraulics already in place, we recommend speaking to a hydraulic specialist to see what would be required to make this work on your vehicle. (We do not recommend the use of a power steering pump as the oil flow is generally not sufficient). Being hydraulic, this winch has a very high duty cycle meaning it can work for a lot longer than electric models if set up correctly.

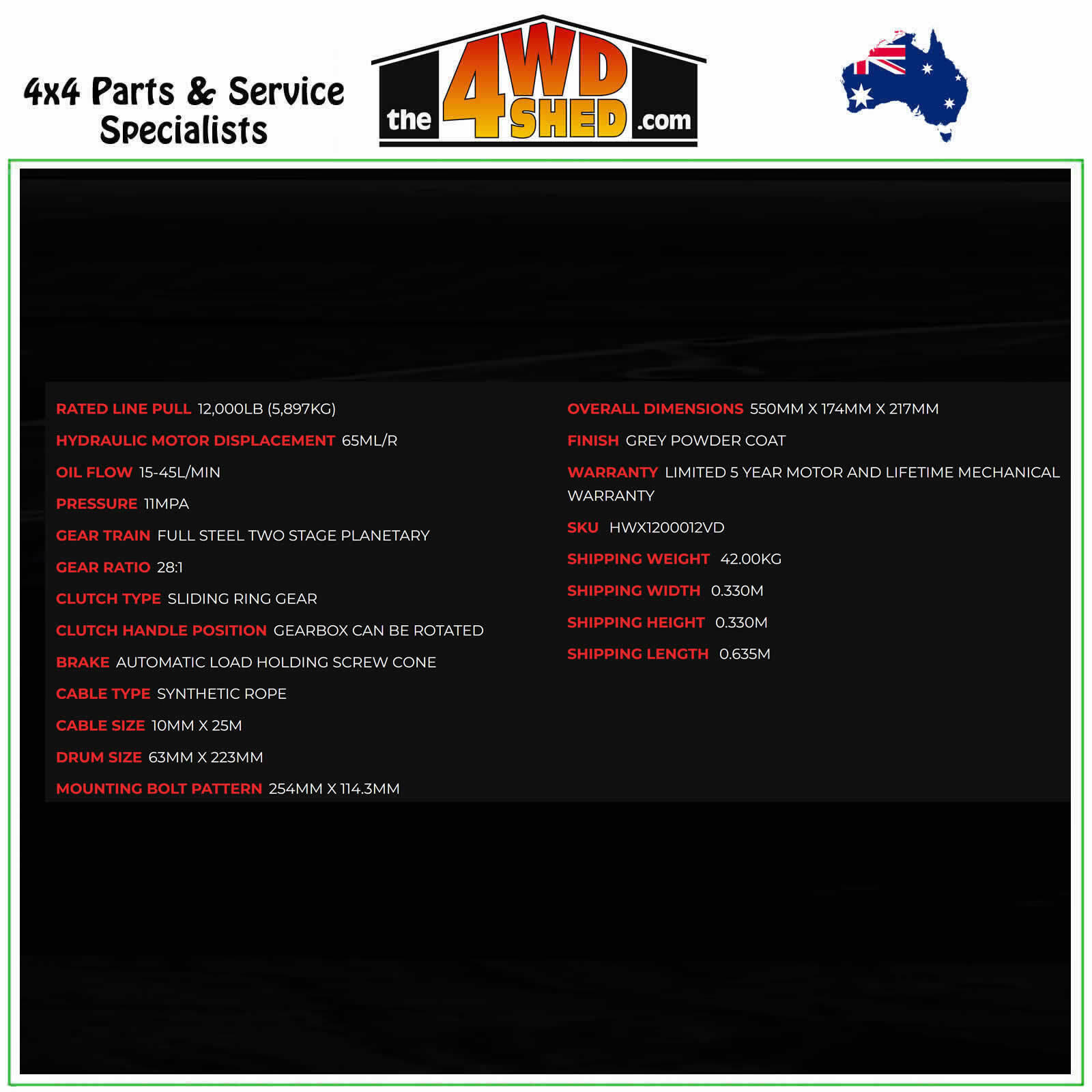

RATED LINE PULL 12,000lb (5,897kg)
HYDRAULIC MOTOR DISPLACEMENT 65ML/R
OIL FLOW 15-45L/MIN
PRESSURE 11MPA
GEAR TRAIN FULL STEEL TWO STAGE PLANETARY
GEAR RATIO 28:1
CLUTCH TYPE SLIDING RING GEAR
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M
DRUM SIZE 63MM x 223MM
MOUNTING BOLT PATTERN 254MM x 114.3MM

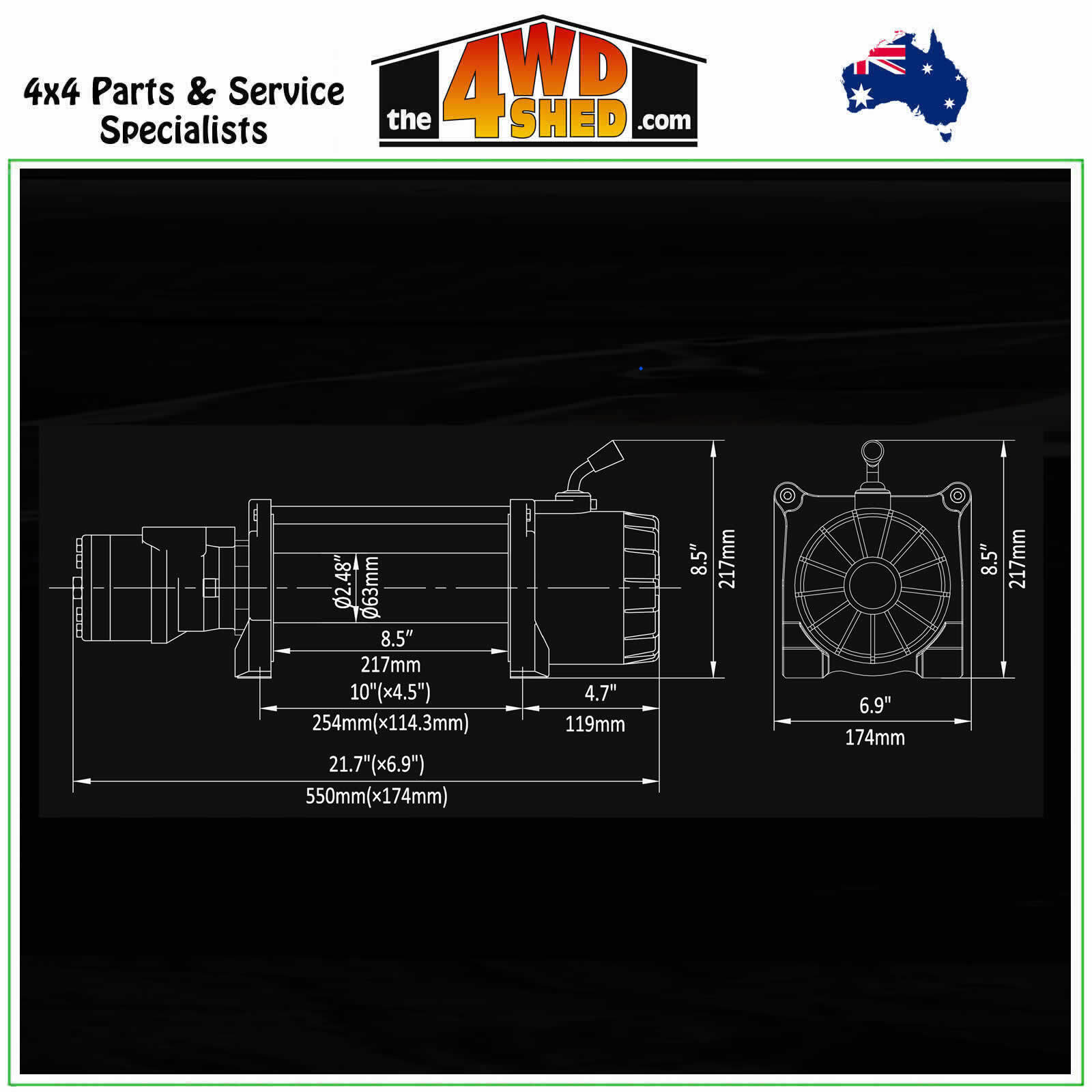

OVERALL DIMENSIONS 550MM x 174MM x 217MM
FINISH GREY POWDER COAT
WARRANTY LIMITED 5 YEAR MOTOR AND LIFETIME MECHANICAL WARRANTY

Contact us if you require the 24V option, steel cable or the bare unit only. These options are available as an order in item.

The 4WD Shed is an Authorised Dealer for Runva Winches & Accessories

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Shipping Weight 42.00kg
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.635m

(HWX1200012VD)

SKU HWX1200012VD
Brand Runva
Shipping Weight 42.0000kg
