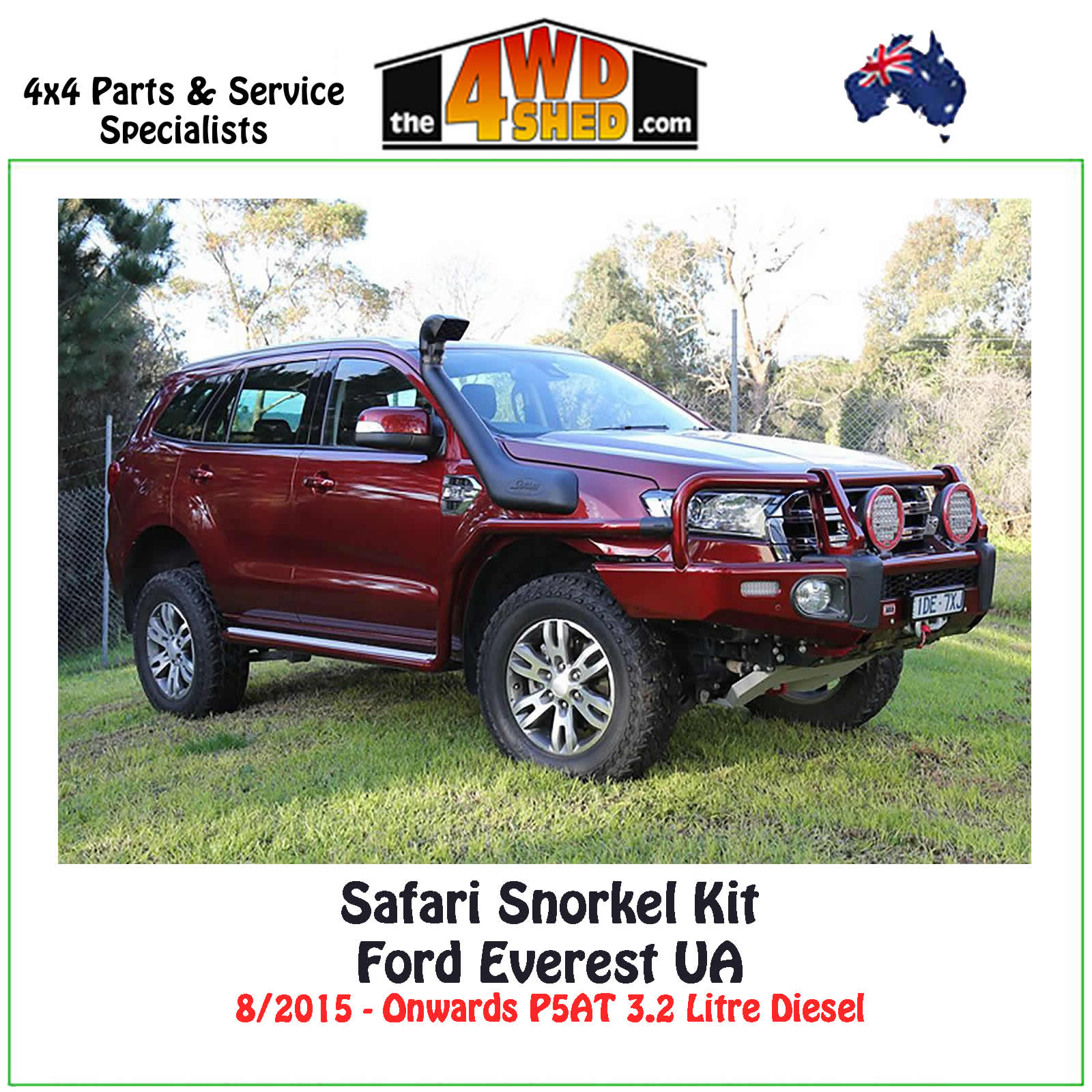

Genuine Safari Snorkel SS984HF suits Ford Everest UA 8/2015 - On
Ford Everest UA 3.2l Diesel P5AT 8/2015-Onwards
Ford Ranger PX 2019-On 2.0l 4cyl BiTurbo
The Safari Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of engines.
With the huge air flow demands of each engine, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide with an accurate template for assisting with installation.
V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.
R-Spec snorkels are identified with an ‘R’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own recreational specification UV stabilized polyethylene material. A five year warranty is included for peace of mind when it comes to your vehicle.
We always recommend using a Professional installer to fit this product to your vehicle.
We take no responsibilty for any damge to the product or vehicle when DIY.
We provide fitting of all our parts at our workshop in Bayswater, Victoria. Additional costs may apply.
Installation instructions may be found in the SHED TECH section of our website.
Free Shipping exclusions may apply to remote or regional areas. Please contact us before purchasing for a shipping quote if you are located in WA, NT or Northern QLD.
|1||680-133-300||BODY - SNORKEL (SS982HF)||1|
|2||000-135-800||3 ½" AIR RAM ASSEMBLY||1|
|3||680-032-300||BRACKET - UPPER MOUNTING||1|
|4||000-002-100||BOLT - HEX - 6mm x 1.0 x 14mm (SEMS)||2|
|5||000-951||SCREW - S/T - 4.2mm x 13mm - S/S||3|
|6||000-960||INSERT - PLASTIC||3|
|7||000-110||STUD - 8mm x 1.25 x 25mm - S/S||6|
|8||000-311-300||WASHER - BODY - 8mm x 30mm - S/S||6|
|9||000-205-300||NUT - NYLOC - 8mm x 1.25mm - S/S||6|
|10||680-024-400||HOSE - AIR ENTRY||1|
|11||680-025-400||PLATE - HOSE SUPPORT||1|
|12||000-094-300||BOLT - B/H CAP SCREW 4mm x 0.7mm x 20mm - S/S||6|
|13||000-096-300||BOLT - B/H CAP SCREW 4mm x 0.7mm x 30mm - S/S||1|
|14||000-300-350||WASHER - BODY 4mm x 11mm - S/S||7|
|15||000-223-300||NUT - NYLOC - 4mm x 0.7mm - S/S||7|
|16||680-217-000||TEMPLATE - AIR CLEANER (UPPER)||1|
|17||680-217-200||TEMPLATE - AIR CLEANER (LOWER)||1|
|18||680-959-000||PLUG - AIR INLET BLANK-OFF||1|
|19||000-910||HOSE - 90/110mm||1|
|20||000-914/B||CLAMP - HOSE - SIZE 56 (BLACK)||1|
|21||680-017-400||TEMPLATE - GUARD PANEL (SS984HF)||1|
