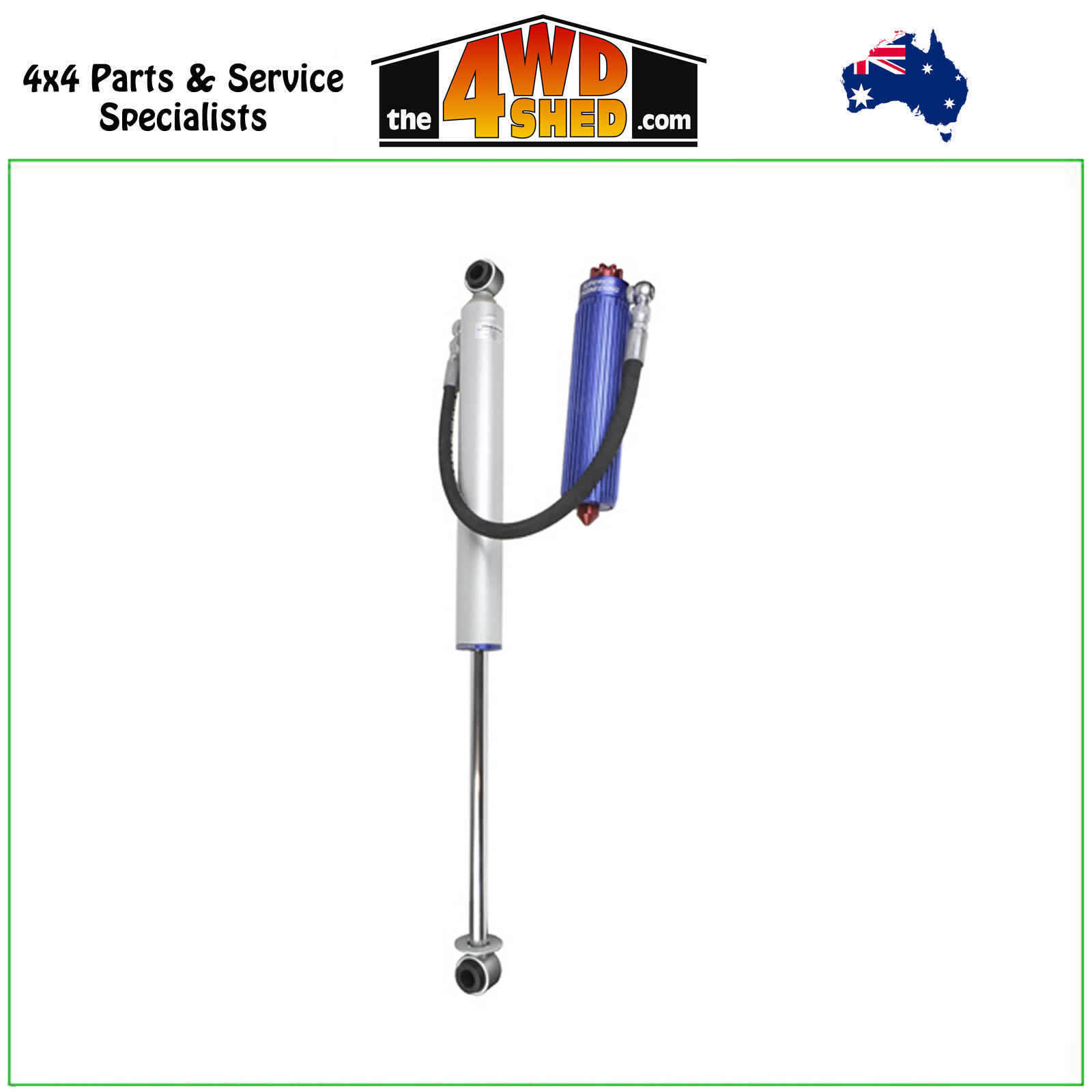

Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear


Buying Options

Quantity Image Name Price
Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 2 Inch Lift 10.5 Inch Travel Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 2 Inch Lift 10.5 Inch Travel
$405.00
In stock
Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 3 Inch Lift 11 Inch Travel Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 3 Inch Lift 11 Inch Travel
$405.00
In stock
Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 4 Inch Lift 11.5 Inch Travel Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 4 Inch Lift 11.5 Inch Travel
$405.00
In stock
Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 5 Inch Lift 12 Inch Travel Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 5 Inch Lift 12 Inch Travel
$405.00
In stock
Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 6 Inch Lift 12.5 Inch Travel Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 6 Inch Lift 12.5 Inch Travel
$405.00
In stock
Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 7 Inch Lift 13 Inch Travel Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear 7 Inch Lift 13 Inch Travel
$405.00
In stock

Superior Adjustable 2.0 Monotube Remote Reservoir Shock - Rear

8-Stage Compression Adjuster reservoir gives you the ability to precisely adjust compression from soft to firm with the simple twist of a knob. Allowing you to soften the ride when just cruising or firm up the compression when tackling rough terrain or carrying a load.

Heat Treated Alloy Steel Piston

Features race inspired port configurations and variable rate shim stack technology to provide vehicle specific damping performance and optimum ride quality. A composite Teflon wear band offers low internal resistance and high compressive strength enhancing shock performance.

Spherical Rod End Assembly - Strut

High performance spherical rod end assembly designed for correct clearance and increased strength Suitable For your application. Fitted with Teflon-lined Commercial Grade spherical bearings for smooth articulation and longest life.

Remote Reservoir Canister

Remote Reservoir Canister for increased oil volume, and greater cooling capacity. Internal Floating Piston separates the shock Oil and Nitrogen eliminating Foaming or mixing of the oil and gas that produces shock fade.

Highest Quality Materials

CR3+ plated Bored and Honed cylinder tubes, Aircraft quality billet aluminium components, High pressure hydraulic hose and seals.

Plus the 20mm Hard-chromed shafts are designed for maximum strength and durability in lifted and performance applications.

Fully Rebuildable For Long Life

These Superior Remote Reservoir Shocks are fully Rebuildable, Serviceable and Upgradeable. All parts are carried in stock and allow the user to finely-tune, adjust and service their shocks, ensuring you get the longest life possible from your suspension.

Features

  • 8 stage compression adjustment with a simple turn of the knob mounted on the remote reservoir
  • 46mm Piston with Teflon
  • 20mm super polished shaft
  • 53mm outer body
  • Floating piston inside reservoir
  • Cr+3 Surface finsh
  • Unique Valving and Piston Design
  • Longest travel remote reservoir for any given size lift

This is for a Single Rear Shock Absorber. Please order 2 if you require a PAIR.

Please Note: This is an order in item please contact us to check availabilty.

The 4WD Shed is an Authorized Stockist for Superior Engineering.

Length
2" Adjustable 2.0 Monotube Remote Res Shock 10.5 Inch Travel - Length: Open 680mm Closed 415mm Travel 265mm
3" Adjustable 2.0 Monotube Remote Res Shock 11 Inch Travel - Length: Open 700mm Closed 425mm Travel 275mm
4" Adjustable 2.0 Monotube Remote Res Shock 11.5 Inch Travel - Length: Open 735mm Closed 445mm Travel 290mm
5" Adjustable 2.0 Monotube Remote Res Shock 12 Inch Travel - Length: Open 755mm Closed 455mm Travel 300mm
6" Adjustable 2.0 Monotube Remote Res Shock 12.5 Inch Travel - Length: Open 785mm Closed 470mm Travel 315mm
7" Adjustable 2.0 Monotube Remote Res Shock 13 Inch Travel - Length: Open 827mm Closed 490mm Travel 337mm

Adjustable Monotube Remote Reservoir Shock Features Diagram



(SE-RR2.0-R)

The 4WD Shed is an Authorized Stockist for Superior Engineering.

We stock, supply & fit a large range of items that can be found on Superior Engineering BUT in some instances there may be delays in stock or if it is a special order item.

We aim to ship items within 1-3 business days but if your order contains any items that fall under the above conditions we will contact you to notify you. If you wish to check availabilty before purchase you can call us or send an email.

Due to the weight of Superior products we may be required to quote freight on multiple items. We will contact you before beginning to process your order otherwise you can contact us for a freight estimate. We will try & keep costs down where we can so this may mean that we split your order over 2 parcels in order to keep weight & costs down.

Please make sure you have a valid contact number in your order details for us to contact you regarding any delays.

SKU SE-RR2.0-R
Brand Superior Engineering
Shipping Weight 10.0000kg
