Universal 2 Point Diff Breather Kit

This easy to install universal diff breather kit comes with everything you will need to protect your front and rear diff from water ingress.

• Reduces the risk of damage to the front and rear diff on your 4x4 with a simple yet effective design
• Ensures easy fitment and maintenance
• Allows connection of a hose to a high point of the engine bay safely and securely to reduce the risk of damage to the tube from moving objects

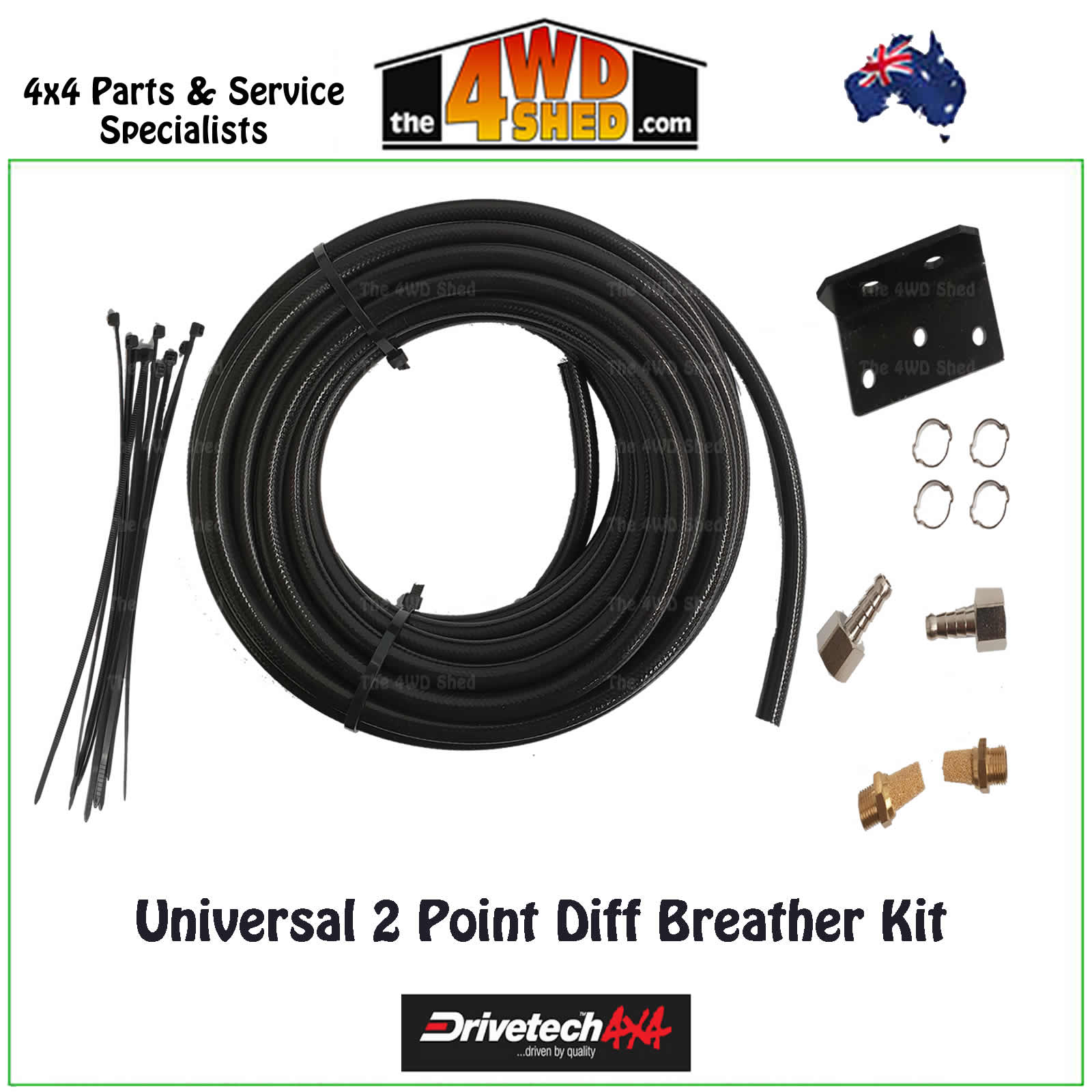

Kit includes:

• 1 x 10m hose
• 4 x clamps
• 1 x mounting bracket
• 2 x barb fittings and filters
• 10 x cable ties

This kit is recommended for professional fitment.

Please Note: Kit is sold as a universal type but depending on application you may need extra parts. Pictures form part of the description.

The 4WD Shed is an Authorised Drivetech 4x4 Stockist

Diff Breather Kit Installation Guide
1. Locate existing factory breather on rear diff. If the breather is screwed straight onto diff housing it will need to be replaced with the 1/8" barb.
2.Replace with flexible diff breather tube & using supplied clamp, crimp ears on either side to tighten.
3. Cable tie tube to chassis, ensuring enough free play in tube for articulation.
4. Run tube into position until tube is as high as possible in engine bay.
5. Mount diff breather bracket as high as possible on fire wall ensure there is enough clearance when bonnet closes.
6. Screw filters into brass 1/8" barb.
7. Place barb through bracket & fit diff breather tube to barb & secure with supplied clamp by crimping ears.
8. Repeat steps 1-4 for front diff.
We always recommend professional fitment.
