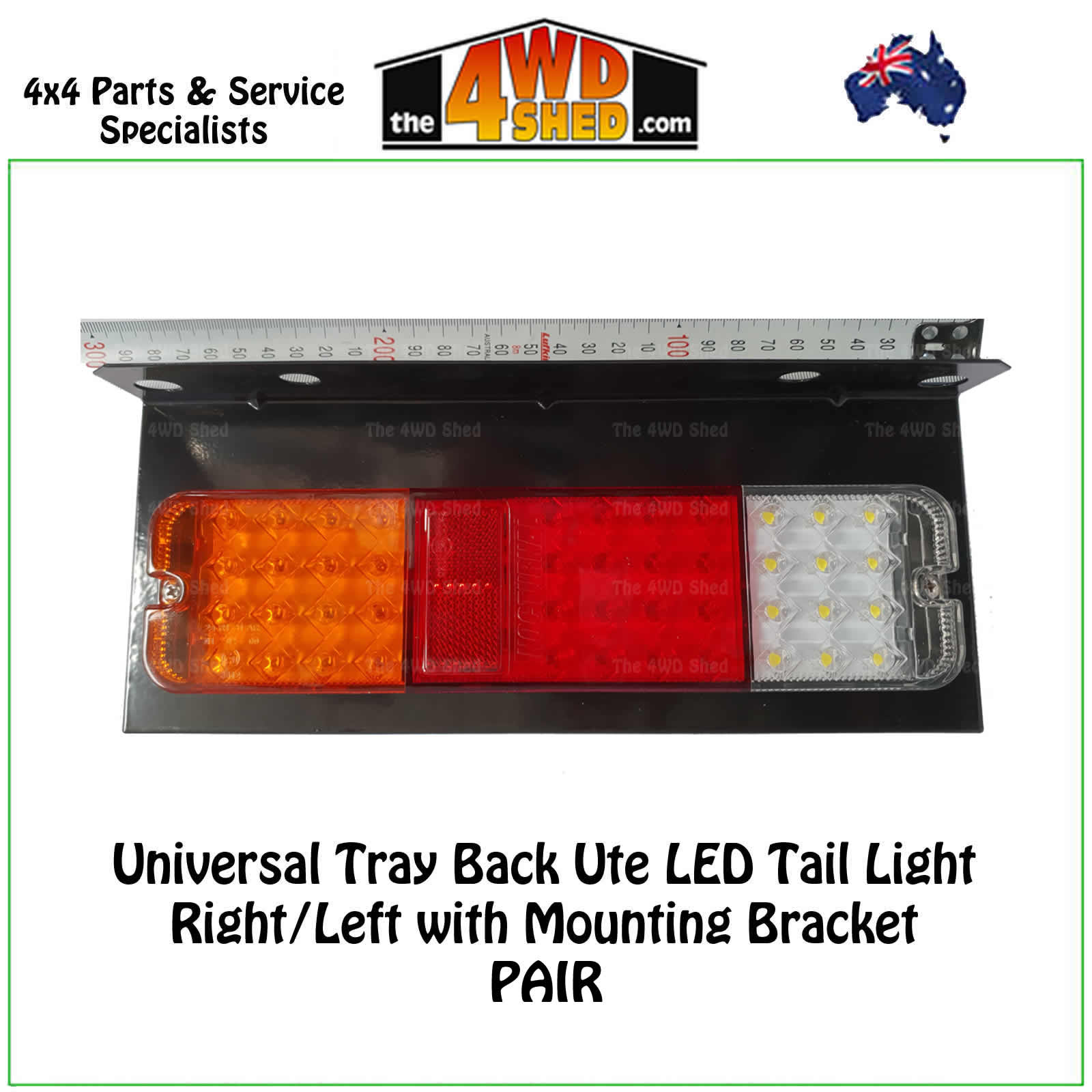

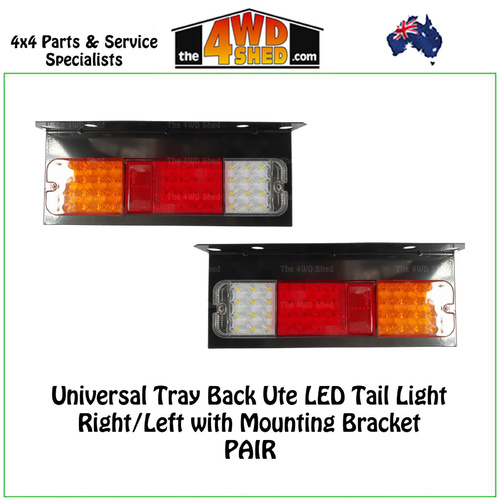

Universal Tray Back Ute LED Tail Lights PAIR with Mounting Bracket
More infoADR Compliant Universal Tail Lights to suit Tray Back Ute, Trailer or Truck.
This tail light is a universal fit providing a Pair of Tail lights for your project. No plugs provided just wire this directly into your loom or use your existing plugs.
With the Mounting bracket you can easily mount it to your trailer or tray. Provides all lights in one, Reverse, Indicator, Stop/Brake. Multi- volt allows you to mount these into any 12v or 24v system.
High Quality Aftermarket Parts.
Also Available as an INDIVIDUAL Light
If you need to add a load resistor we have them available here Load Resistor
Wiring Code
Red - Stop
Brown - Tail
Green - Indicator
Black - Reverse
White - Ground
| Quality Code | Quality Aftermarket |
| Part Type | Aftermarket |
| Type | LED STOP TAIL INDICATOR REVERSE |
| Size | 285 X 115 X 40 260 X 66 X 33 |
| Mount Distance in mm's | 90 |
| Cable Length in MM's | 300 |
| No of LED'S | INDICATOR - 12 STOP/TAIL - 9 REVERSE - 22 |
| Colour | RED RED AMBER WHITE |
| Voltage | 10-30 |
| ADR Compliant (Yes or No) | Yes |
| Features | WITH MOUNTING BRACKET |
(109-01-011-PAIR)
| SKU | 109-01-011-PAIR |
| Brand | The 4WD Shed |
| Shipping Weight | 2.0000kg |
