100 Series Toyota Landcruiser Tailgate Storage
More info100 Series Toyota Landcruiser Tailgate Storage

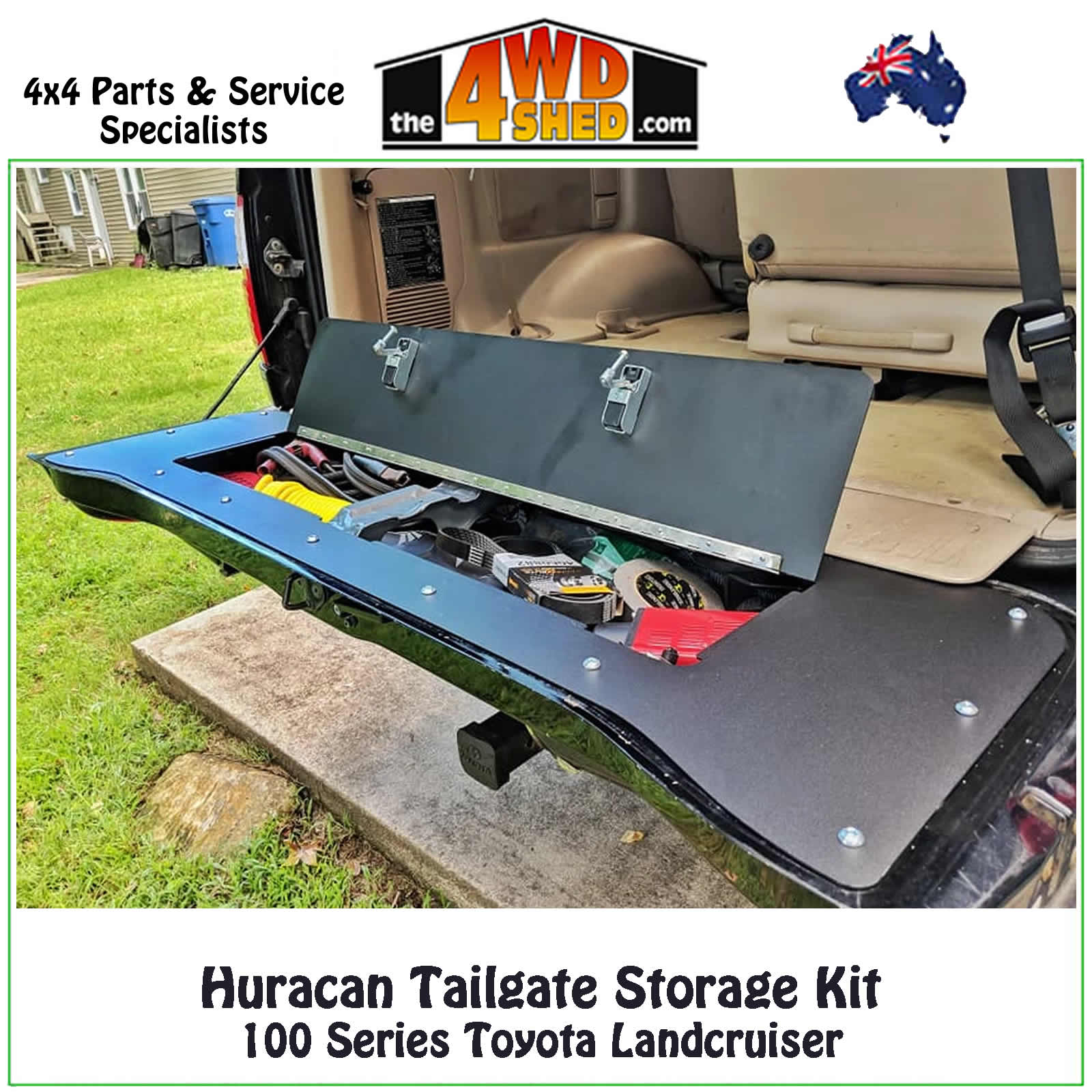

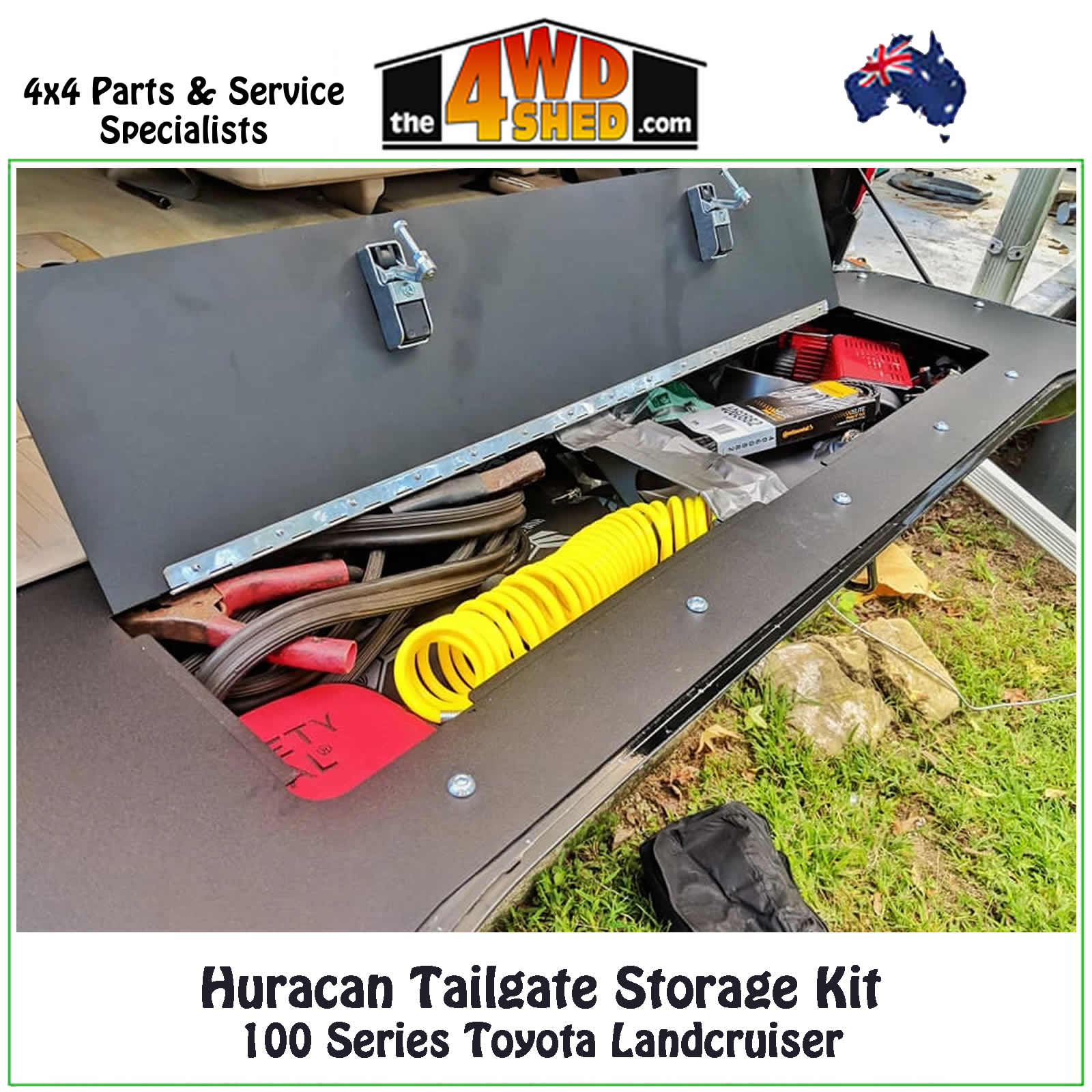

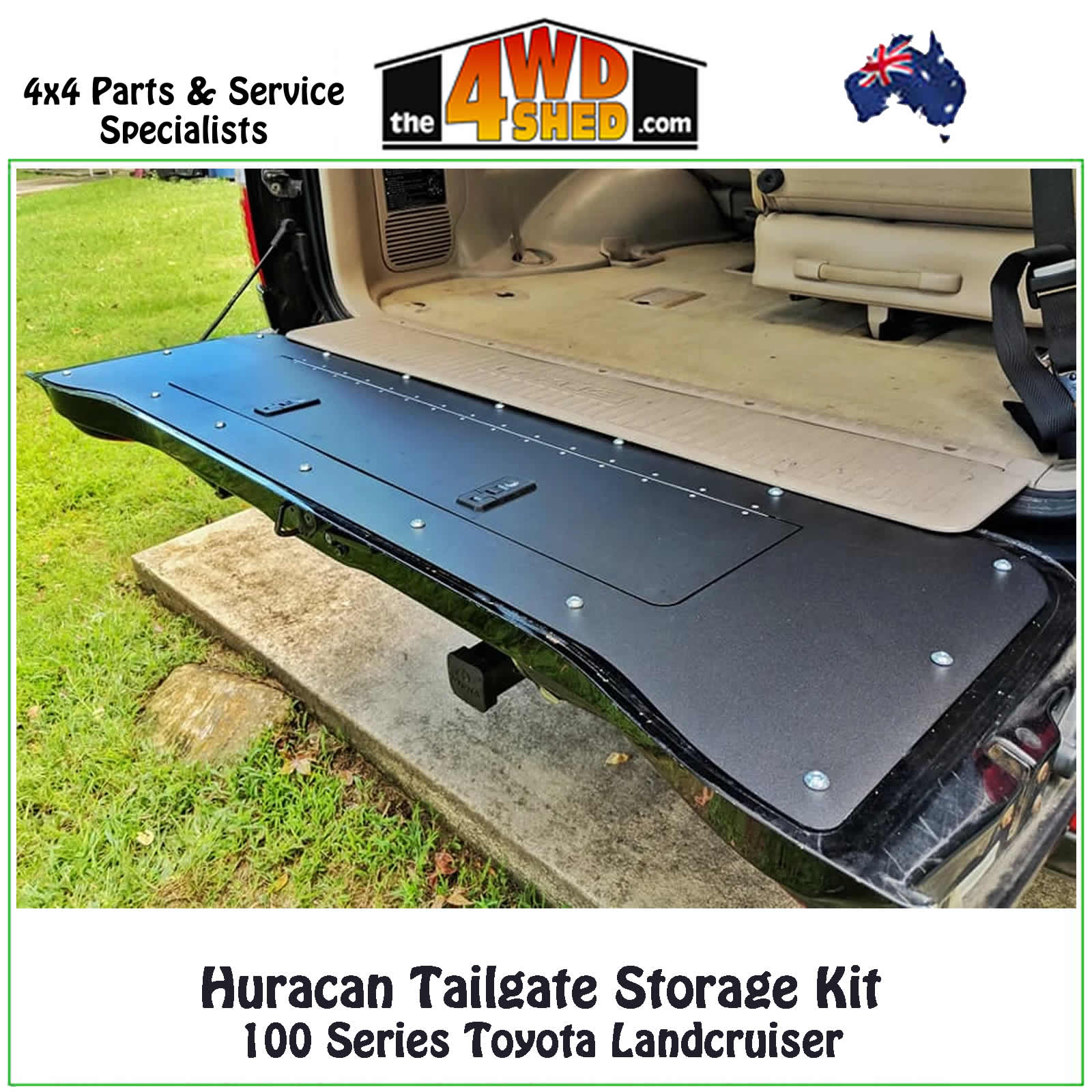

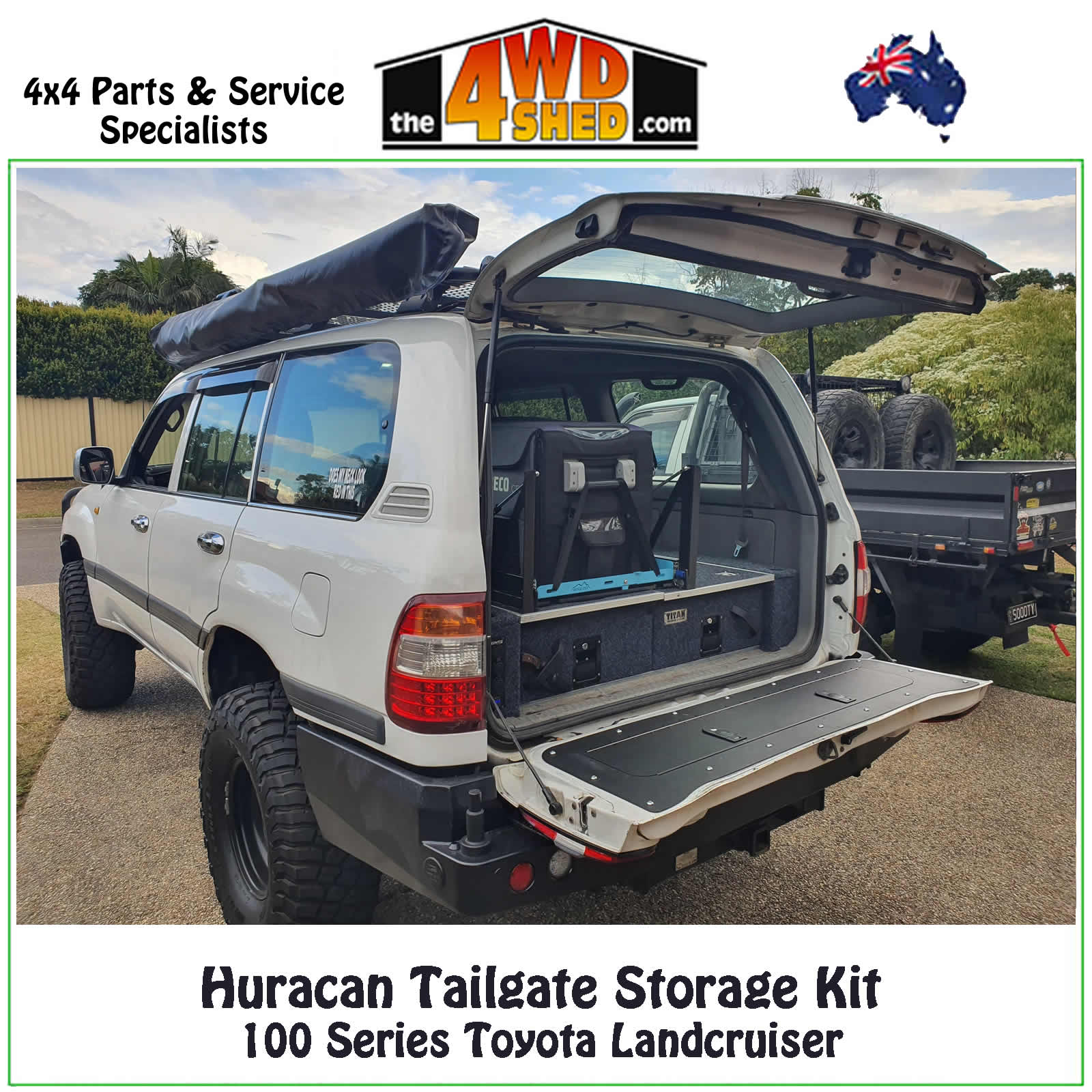

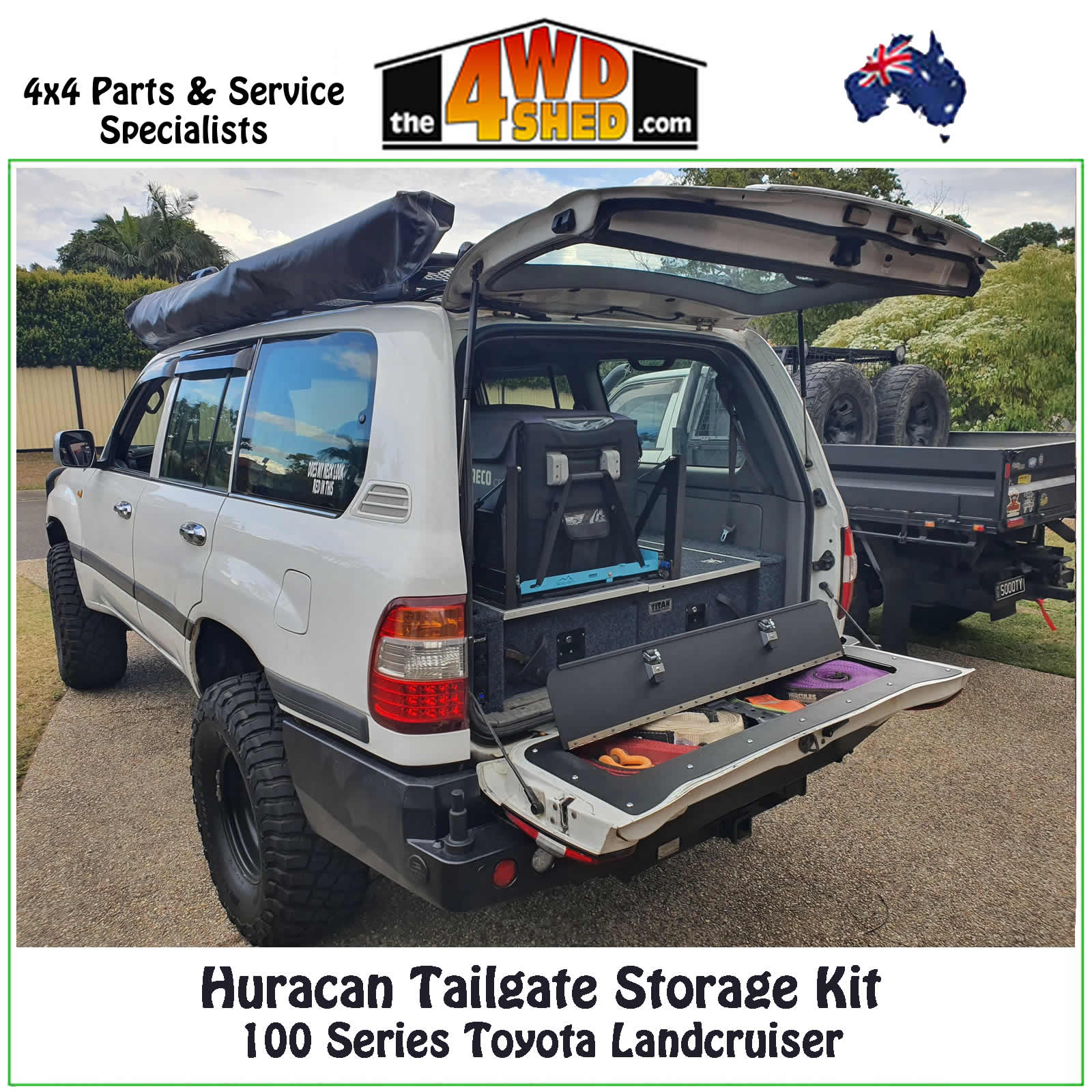

This precision laser cut steel modification plate allows you to turn your tailgate into a locked compartment within your car. You can use the space to store recovery gear, spare parts or anything else that will fit, and you want to keep secure.
This is a DIY kit and requires you to trim away some of the metal in the tailgate. To assist with this, we provide step by step easy to follow instructions and a handy template to show where the cuts are required. This can be performed with tin snips, a jigsaw or an angle grinder. If you don't feel comfortable installing then we recommend using a professional installer.
The kit will be painted with a black powder coat and ship with all mounting hardware required such as nuts, bolts, hinge and associated rivets as well as the heavy-duty low profile locks. Dense foam sound deadening material is included as well to protect the interior of your tailgate. You have the option of also ordering a marine carpet finish. Marine carpet is highly recommended unless you plan to cover the tailgate yourself as the powder coating will get damaged over time without it.
Please Note: The bolts are now black not silver as pictured.
Remember when packing the gate, the more stuff you put into it the heavier it will be to lift, the 100 series tailgate has a large cavity to load up with a lot of things and can get heavy quickly. We suggest storing items such as snatch straps, winch extensions, tree protectors, gloves etc. If you really do wish to store heavier items, keep them towards the bottom to prevent them from jamming the opening mechanisms.
Important note: Some 100 series have a key barrel in the lower tailgate that is mounted to the inner tailgate skin. This mounting point is removed as part of the process for installing the tailgate storage mod plate. Before cutting your tailgate you should inspect which lock type you have and compare to the images in the installation instructions.
If you have the type that mounts to the inner skin you need to decide on the following options.
1: Make up a bracket to support the lock.
2: swap the lock type for one of the circlip mounting types (such as from the wreckers).
3: remove the key barrel altogether and fill the hole with a grommet.
The 4WD Shed can supply & fit Huracan Tailgate Storage kits in our workshop.
Please Note: Huracan Tailgate Storage Units are Made to Order there may be a 1-2 week delay in shipping, we do try to keep stock ready to ship. We will contact you to advise of any delays.
(100TGS)
| SKU | 100TGS |
| Brand | Huracan Fabrication |
| Shipping Weight | 20.0000kg |
