Digital In-Cab Kit with No Compressor

AAA Suspension Digital In-Cab Kit with NO Compressor

This is a complete digital in cab wiring kit for airbags. Read description below to find details on all options.

This In Cab Kit comes without a compressor. Ideal if your vehicle is already fitted with a compressor and you wish to save money.

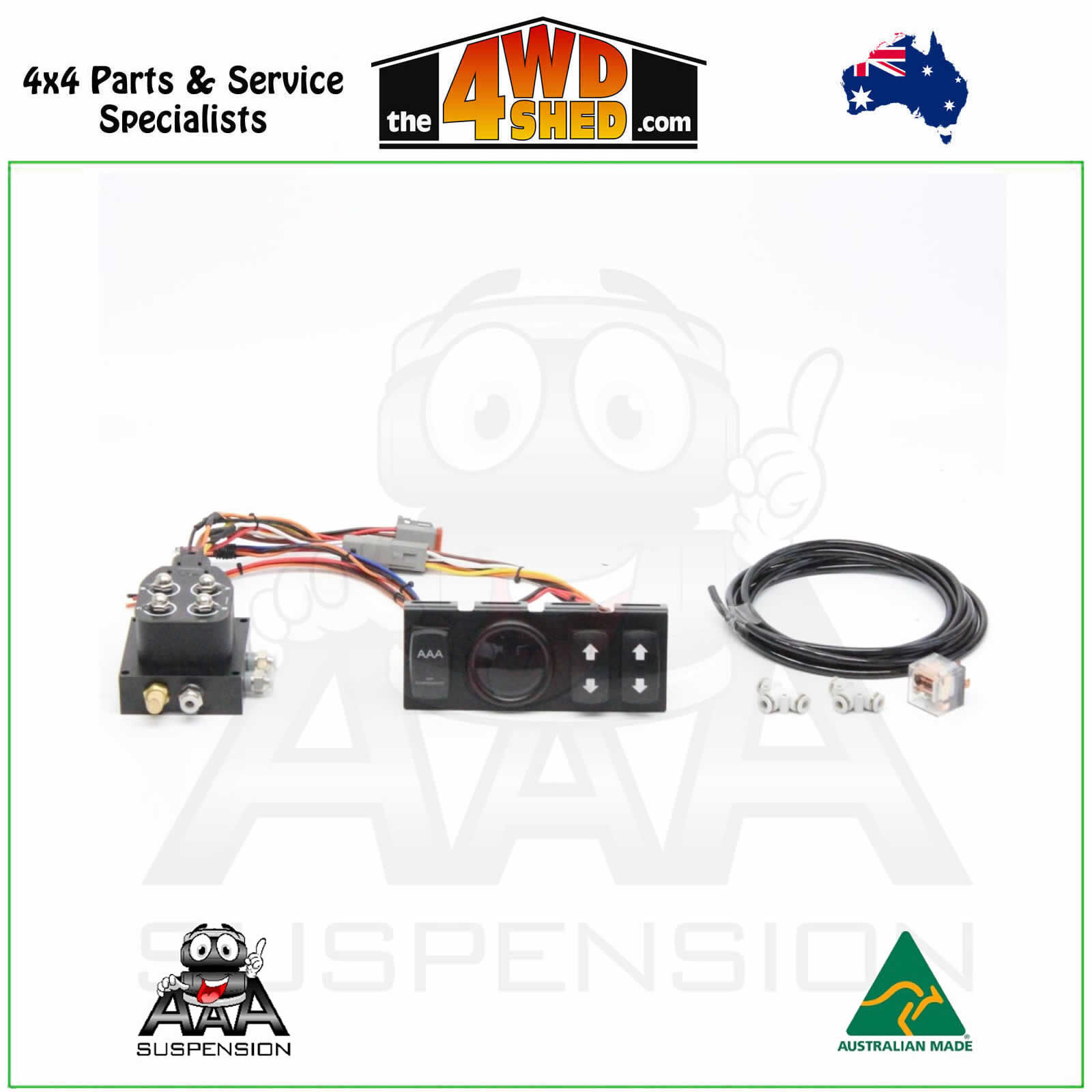

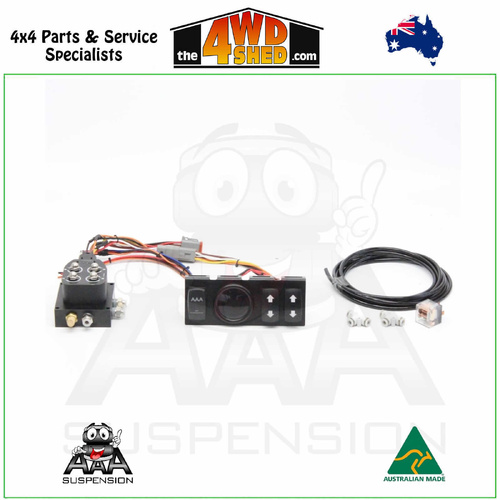

Includes :

• Fascia Panel – powder coated in Black
• On / Off Switch
• Gauge with 2 x LED Read-Outs – one for each bag
• Up / Down toggle switches for each airbag
• 4 Way Valve Body Block

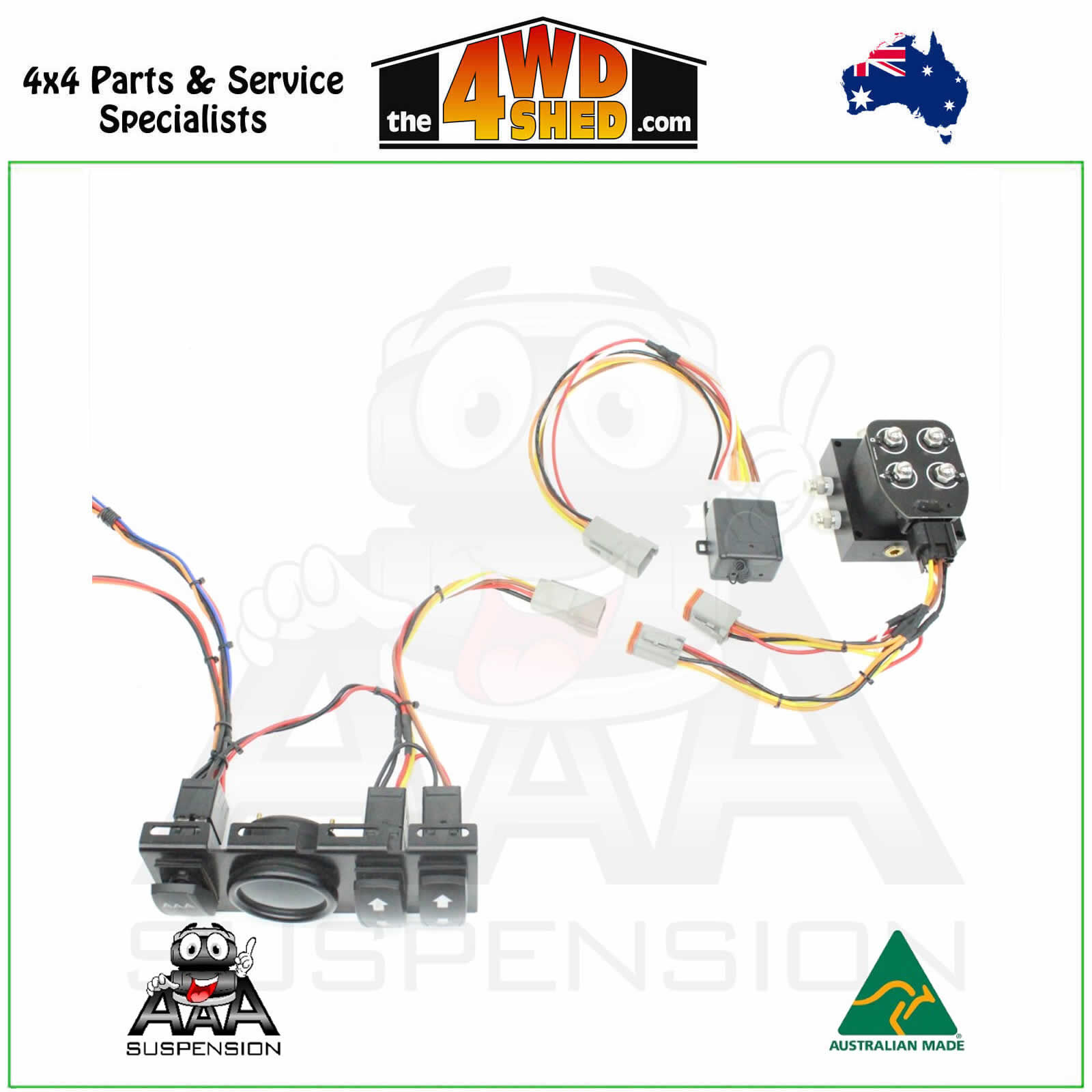

• Wiring Harness
• Pressure switch 70-100 psi
• Change Over Relay
• Check Valve  – prevents air flowing back through compressor when off
• 5m of air line – 6mm Outside Diameter for push connections.
• Air Fittings for Valve Block and Gauge

Essentially, a pretty complete kit – just doesn’t have the compressor.

Note that for operation, you can inflate 1 bag at a time. Watch that other kits cheap out on you and inflate both bags together by running the compressor – none of that nonsense here. You can operate each bag independently as you would want.

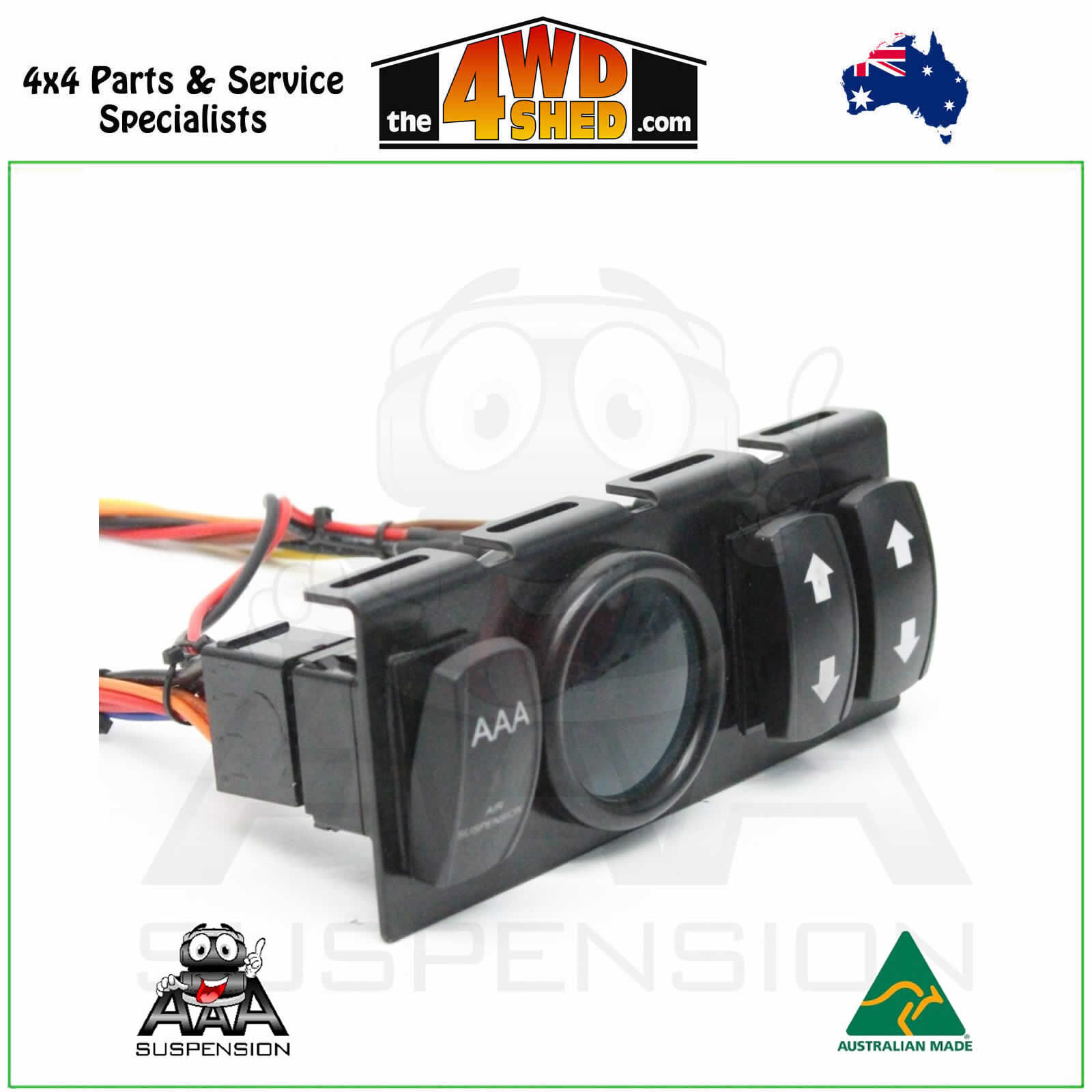

This kit comes standard with a digital LED display with rocker switches that operate the bags. Each bag has its own rocker switch, so you can control each bag independently. The LED gauge has 2 readings – one per bag. It has electronic senders that connect to the airbag lines. The gauge mounts into a facia panel that also facilitates the up/down switches.

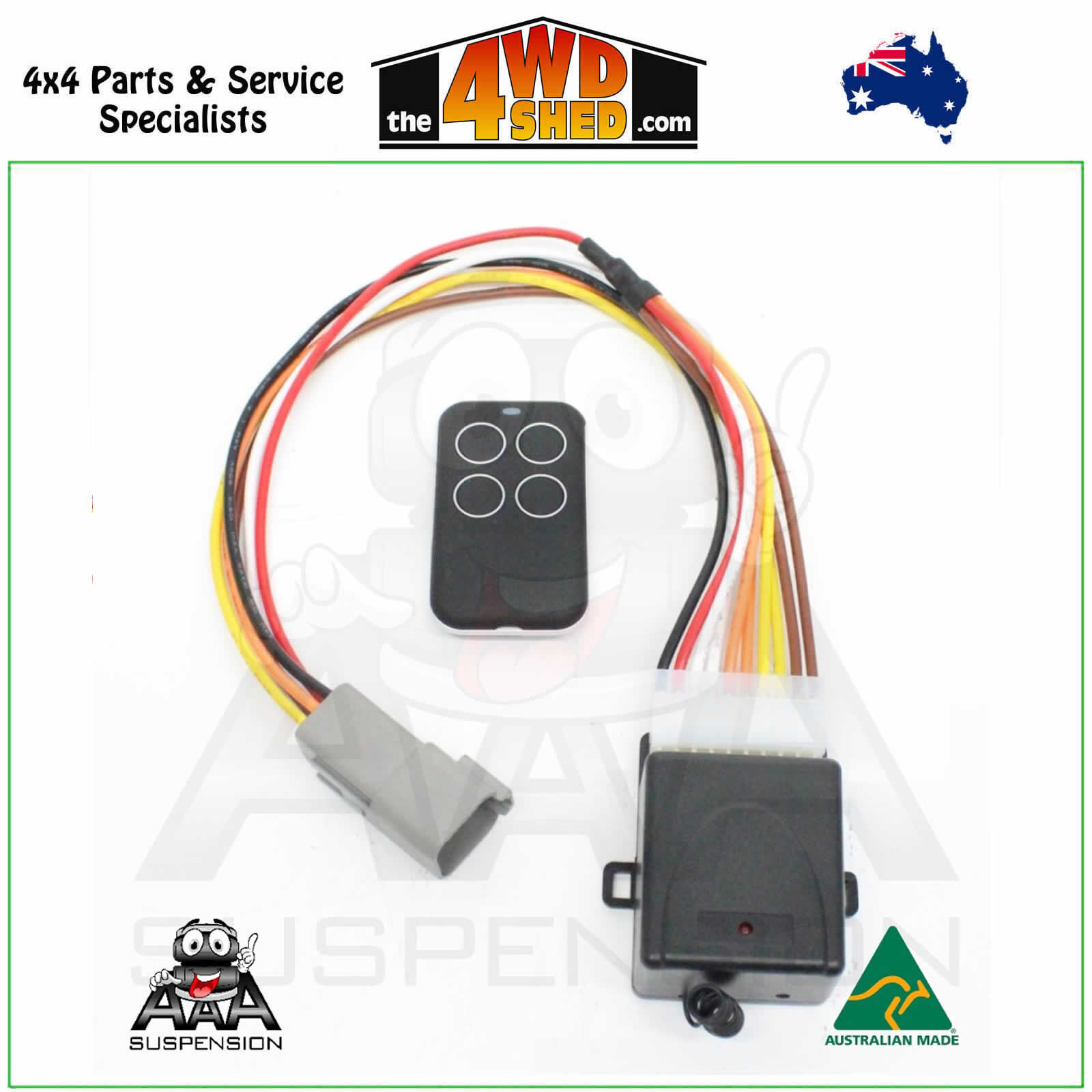

We have provisioned our remote control kit, making that a plug and play option with the wiring harness that comes with this kit.

Pair your large in-cab kit with one of our air tanks if you wish to increase the capacity of your onboard air system. Running a tank means the compressor can run in advance and be ready to pump tyres faster. There is no huge gain in pumping airbags with a tank, except they inflate superfast. Please note that the small compressor is not suited to pumping tyres or large tanks, that’s a job for our larger compressor.

Option your kit with our Tyre Inflation Kit to suit your In-Cab Kit. Included in this is an tyre inflation hose with tyre chuck, air line to connect it to the compressor and a selection for fittings. Additionally, we can also option a Tank Fitting Kit which includes a pressure relief valve to prevent over-pressuring the tank, a water drain valve, a nitto fitting and other connections.

Please Note: AAA Suspension kits are made to order depending on your kit selection. We may ship direct from the warehouse. If there are any major delays, we will be in contact via email, so please make sure your contact details are correct.

Fitting is available at The 4WD Shed workshop in Bayswater Vic. Contact us for a quote on 03 9720 8783.

The 4WD Shed is an Authorised AAA Suspension Stockist & Fitter.

If interested in seeing what’s involved, click the PDF instructions available below our images.
