Gigglepin Free Spool Drum Air Operated + 114mm Long


More info.

Make 4 interest-free payments of $424.75

Sold Out

Calculate Shipping

1 x Gigglepin Free Spool Drum Air Operated + 114mm Long delivered to , AU

Collect from our Bayswater VIC Store - $0.00
We will call when item is ready for Pick Up

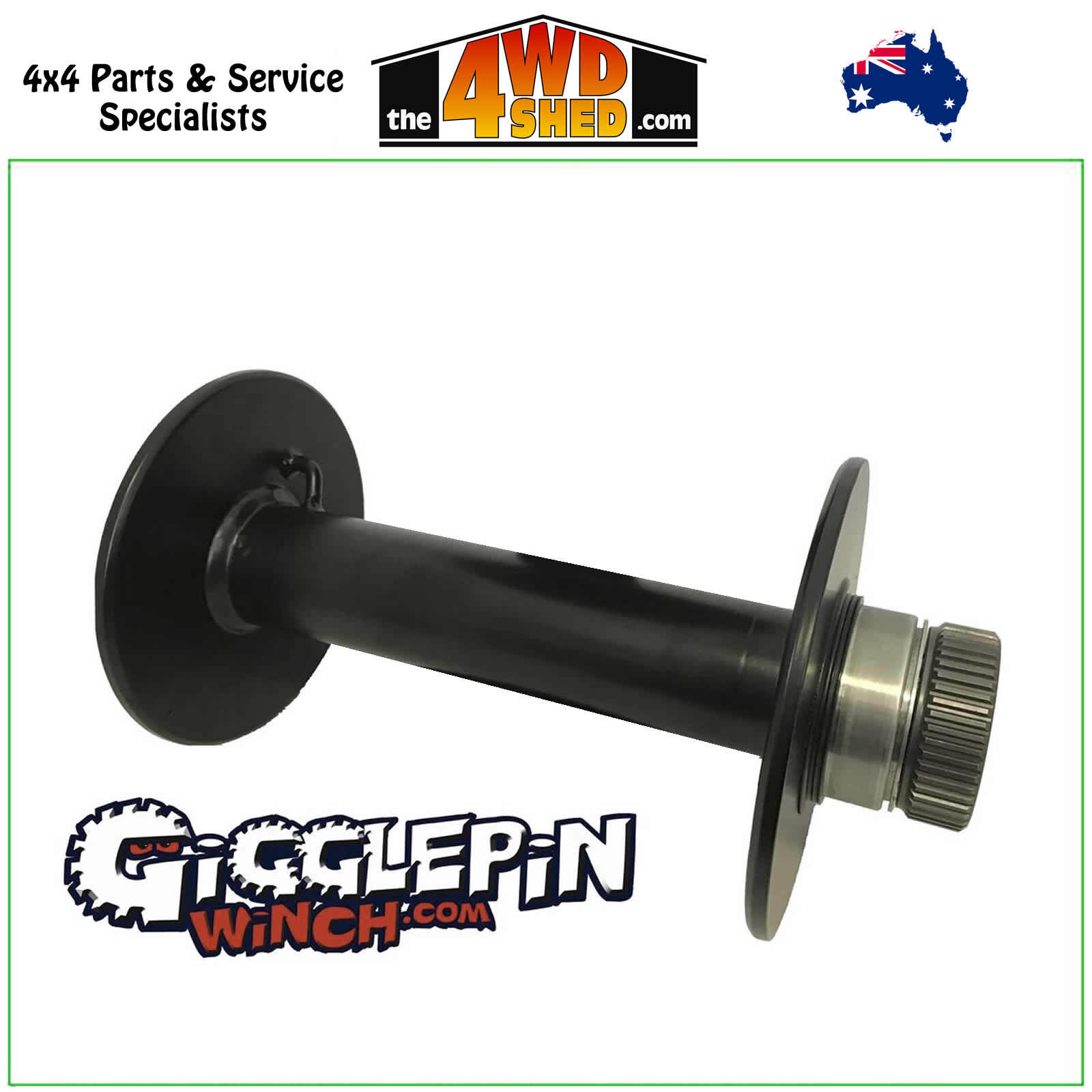

Gigglepin Free Spool Drum Air Operated +114mm Extended

This pneumatic FreeSpool drum is a direct replacement for the drum on a standard Warn 8274/8074 (of any age). We have completely redesigned our FreeSpool drum to be stronger, lighter and easier to use.

It features a reduced diameter drum and a stronger engagement system. Fitted with large roller bearings, 8mm drum plates, rope retainer loop and housing seal.

Available in two lengths Short (same length as Warn 8274/8074) Standard (+76mm) or Long (+114mm length), It is the reliable choice for those looking for an easy to use free spooling  drum.

Electrical Activation Kit comes supplied with:

  • Air Solenoid,
  • Y Piece kit to mount your solenoid directly to an ARB compressor,
  • On/Off electrical switch,
  • Red 'Fighter Pilot' style switch cover,
  • 4M 6mm air pipe,
  • 2 x High Quality 1/8BSP Breather Elbows,
  • Roll of PTFE tape,
  • Wiring diagram for solenoid connections.

Drum Features -

  • NEW stronger engagement system with smoother free-spool action
  • Sealed drum bearing on the free end with aluminium bearing support
  • 8mm thick Drum end plates to reduce flex.
  • Drum end plates spaced away from lower housing so if either do flex the drum continues to operate.
  • Stainless steel bearing supports to stop corrosion
  • Reduced diameter drum available in three lengths, short, standard +76mm or 100+ long
  • IMPROVED EN36 case hardened dog engagement technology for total reliability
  • Large free end sealed bearing & adapter/retention ring for smooth operation
  • PTFE support washer for perfect sealing and smoother operation
  • Gigglepin rope retention system
  • Supplied with Nitrile drum seal
  • Tough Black Nylon Coating
  • Supplied with GP Seal Lube (G10018)
  • Supplied with fitting guide
  • Choice of Air Activation Kits (Electrical / Mechanical) at extra cost.

Please call our Bayswater location if Pick Up is required to check stock status as we do drop ship direct from the warehouse, so may not have stock available in store.


SKU G21023
Brand Gigglepin
Shipping Weight 14.0000kg
