Small Digital In-Cab Kit with Compressor

AAA Suspension Small Digital In-Cab Kit with Compressor

This is a complete digital in cab wiring kit for airbags. Read description below to find details on all options.

This In Cab Kit comes with our small air compressor. Ideal for operating just airbags. Bags are low volume so the small compressor does it in a heart beat.

Although this compressor is good for up to 200 psi, it would be far too slow to pump up tyres or even large air tanks at high pressures. Ideally this does just airbags and it does it easily and quickly – you can expect an airbag to go from say 15 psi to 45 psi in about 15 seconds.

A redeeming feature of this compressor is that being small it is easy to find somewhere discrete to mount it. The mounting legs can be rotated so you can take a seat out and screw it down to the floor laying on its side under a seat. Another very popular place is against the back wall behind the rear seat of a dual cab ute. The compressor is waterproof and can be mounted under a tray or in the engine bay.

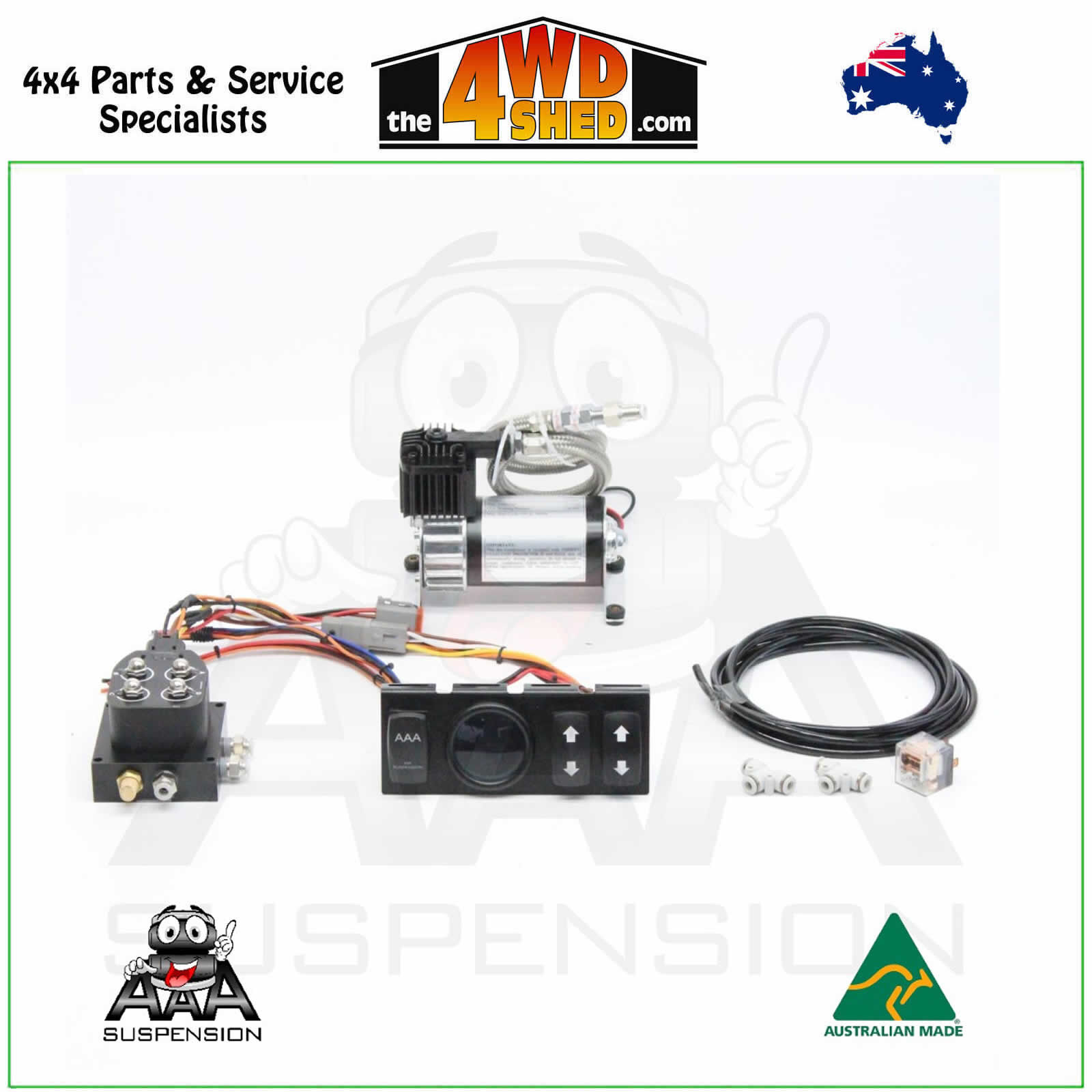

Includes :

• AAA small 12V Air Compressor (specs below)
• Fascia Panel – powder coated in Black
• On / Off Switch
• Gauge with 2 x LED Read-Outs – one for each bag
• Up / Down toggle switches for each airbag

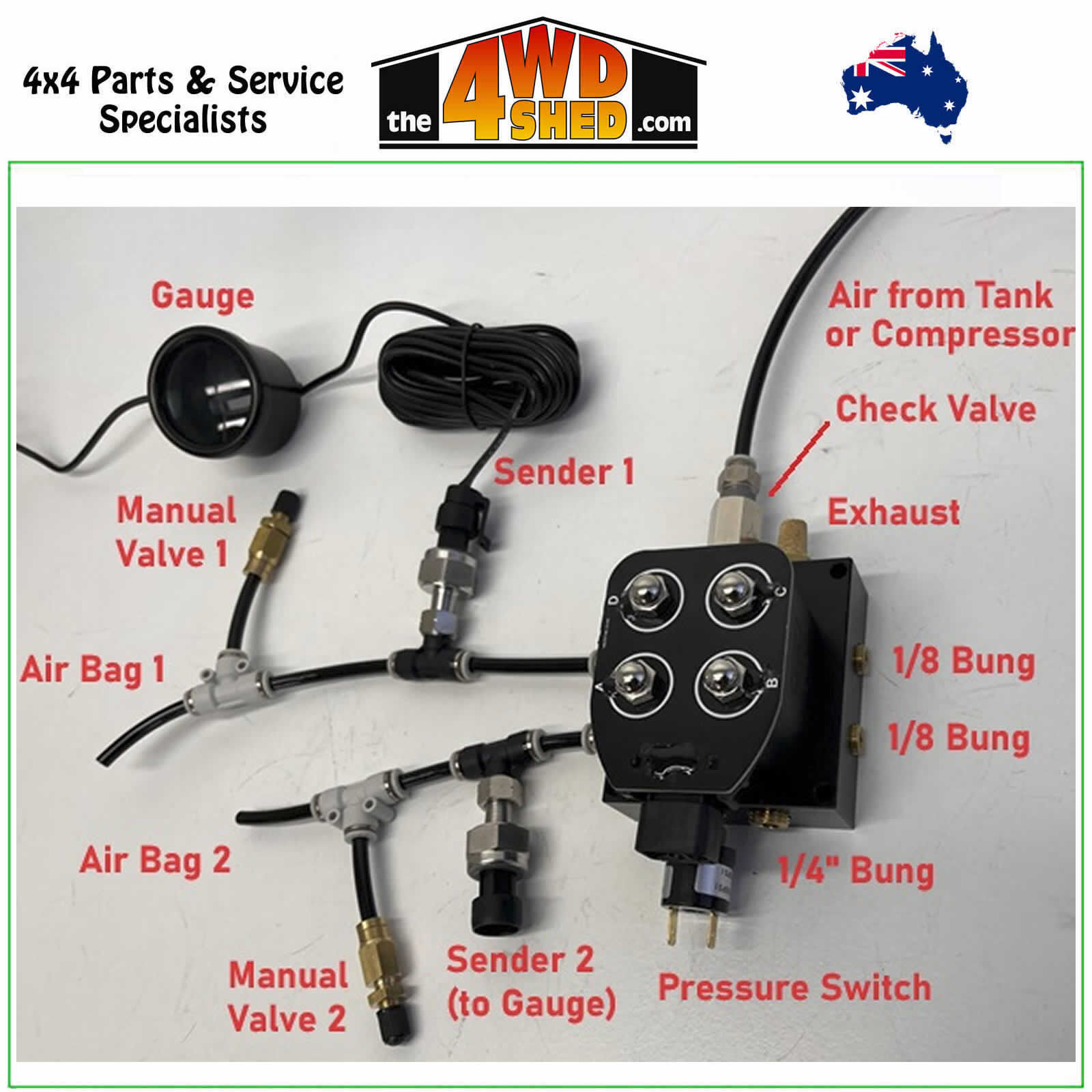

• 4 Way Valve Body Block

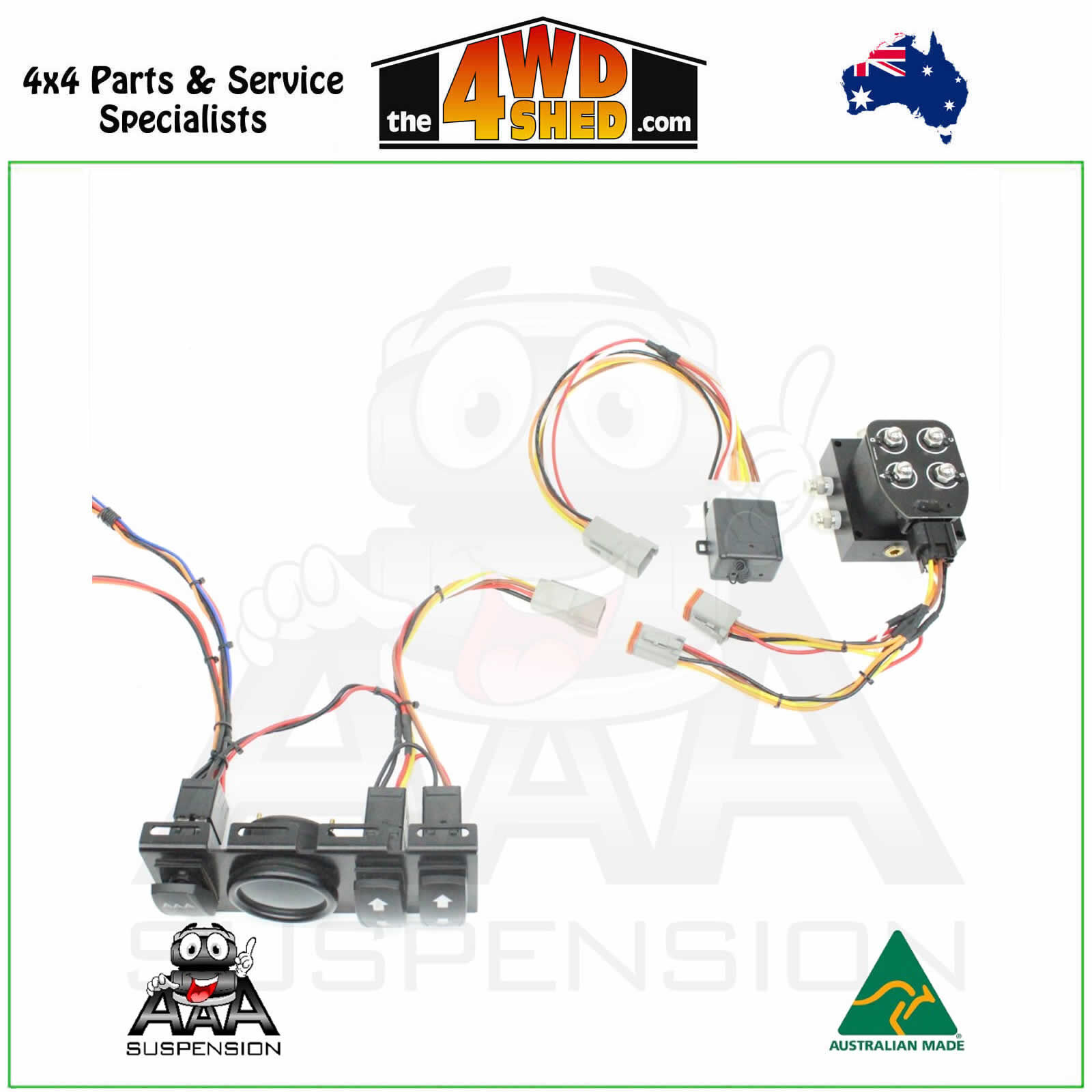

• Wiring Harness
• Pressure switch 70-100 psi
• Change Over Relay
• Check Valve  – prevents air flowing back through compressor when off
• 5m of air line – 6mm Outside Diameter for push connections.
• Air Fittings for Valve Block and Gauge

Note that for operation, you can inflate 1 bag at a time. Watch that other kits cheap out on you and inflate both bags together by running the compressor – none of that nonsense here. You can operate each bag independently as you would want.

This kit comes standard with a digital LED display with rocker switches that operate the bags. Each bag has its own rocker switch, so you can control each bag independently. The LED gauge has 2 readings – one per bag. It has electronic senders that connect to the air bag lines. The gauge mounts into a facia panel that also facilitates the up/down switches.

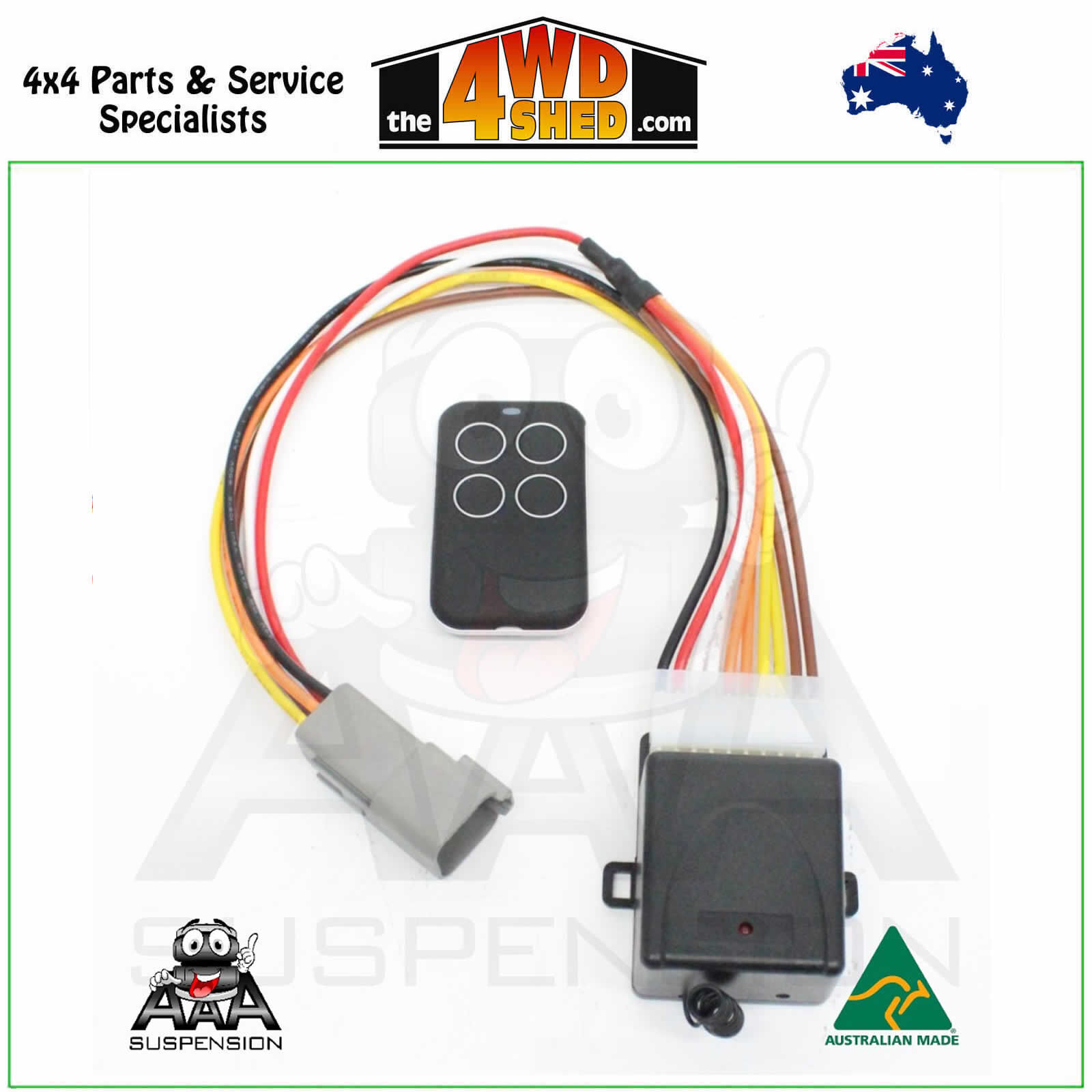

We have provisioned our remote control kit making that a plug and play option with the wiring harness that comes with this kit.

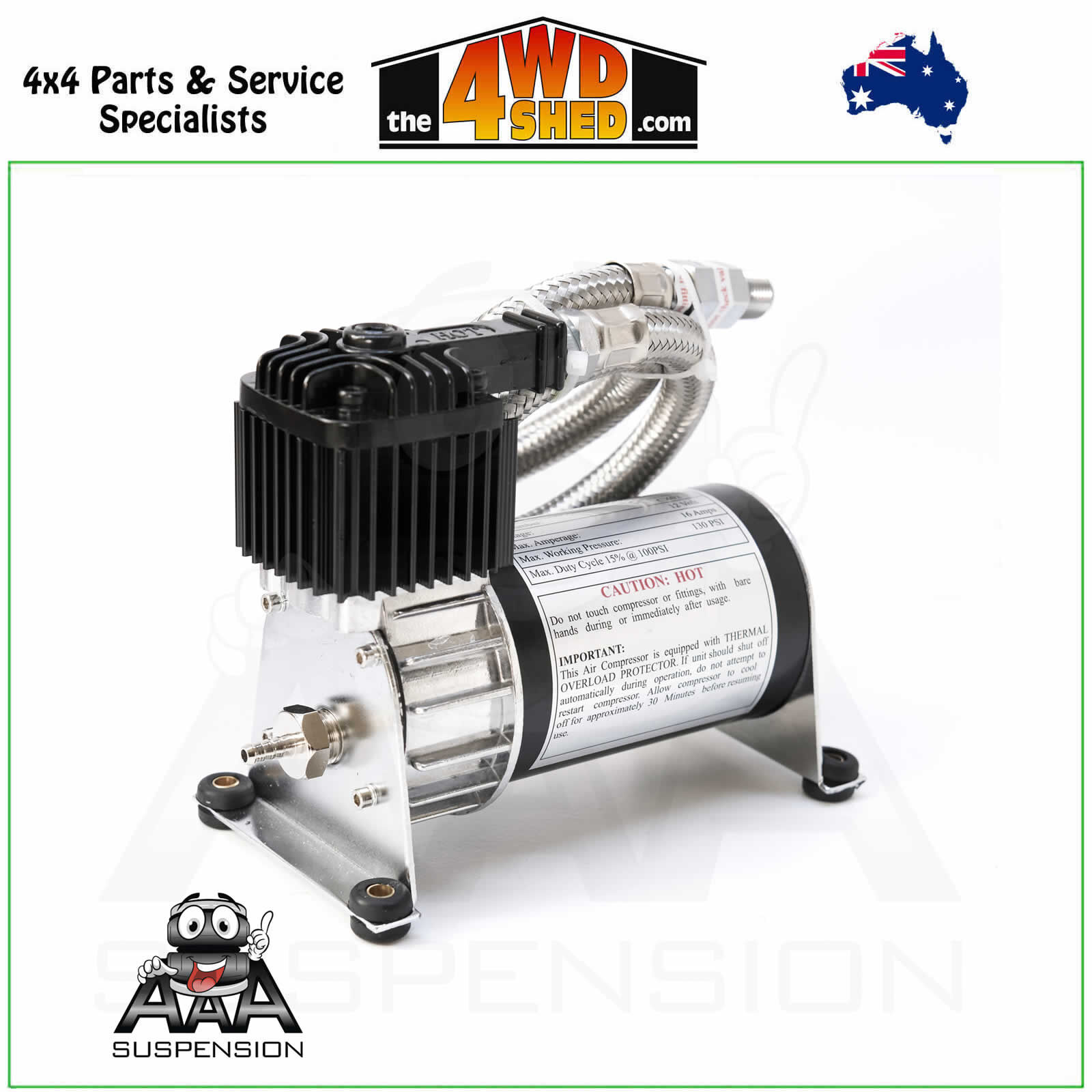

• Voltage: 12 Volt.
• Maximum Current: 16 Amps.
• Maximum Working Pressure: 130 PSI.
• Maximum Duty Cycle: 100% @ 100 PSI.
• No Oil – means it can be mounted upside down or on its side.
• Air Filter maybe cleaned and mounted in a different location like away from water
• No plastic internal parts
• 1/4″ BSP air outlet
• Check Valve on air outlet – means air wont leak back through compressor when off
• Dimensions: 155 (L) x 85 (W) x 130 (H)

Note this compressor was duty cycle tested by our engineer and has been used in some of your GVM kits for active air suspension. It was proven to pump continuously with 100psi of back pressure and not overheat or turn off.

Please Note: AAA Suspension kits are made to order depending on your kit selection. We may ship direct from the warehouse. If there are any major delays, we will be in contact via email, so please make sure your contact details are correct.

Fitting is available at The 4WD Shed workshop in Bayswater Vic. Contact us for a quote on 03 9720 8783.

The 4WD Shed is an Authorised AAA Suspension Stockist & Fitter.

If interested in seeing what’s involved, click the PDF instructions available below our images.
