Superior Stealth Diff Guard Nissan Patrol GQ GU H233 - Rear
More infoSuperior Stealth Diff Guard Nissan Patrol GQ GU H233 - Rear
WARNING: In Nissan Patrol GQ/GU, running Rear Shocks with an Extended Length exceeding 750mm may lead to clearance issues between Superior Superflex Sway Bars and Superior Bolt-On Diff & Pinion Guards. The severity of this clearance issue can vary depending on many factors including Rear Upper & Lower Arm Lengths, Control Arm Positioning, Pinion Alignment & Manufacturing Tolerances in the OE Diff Housing.

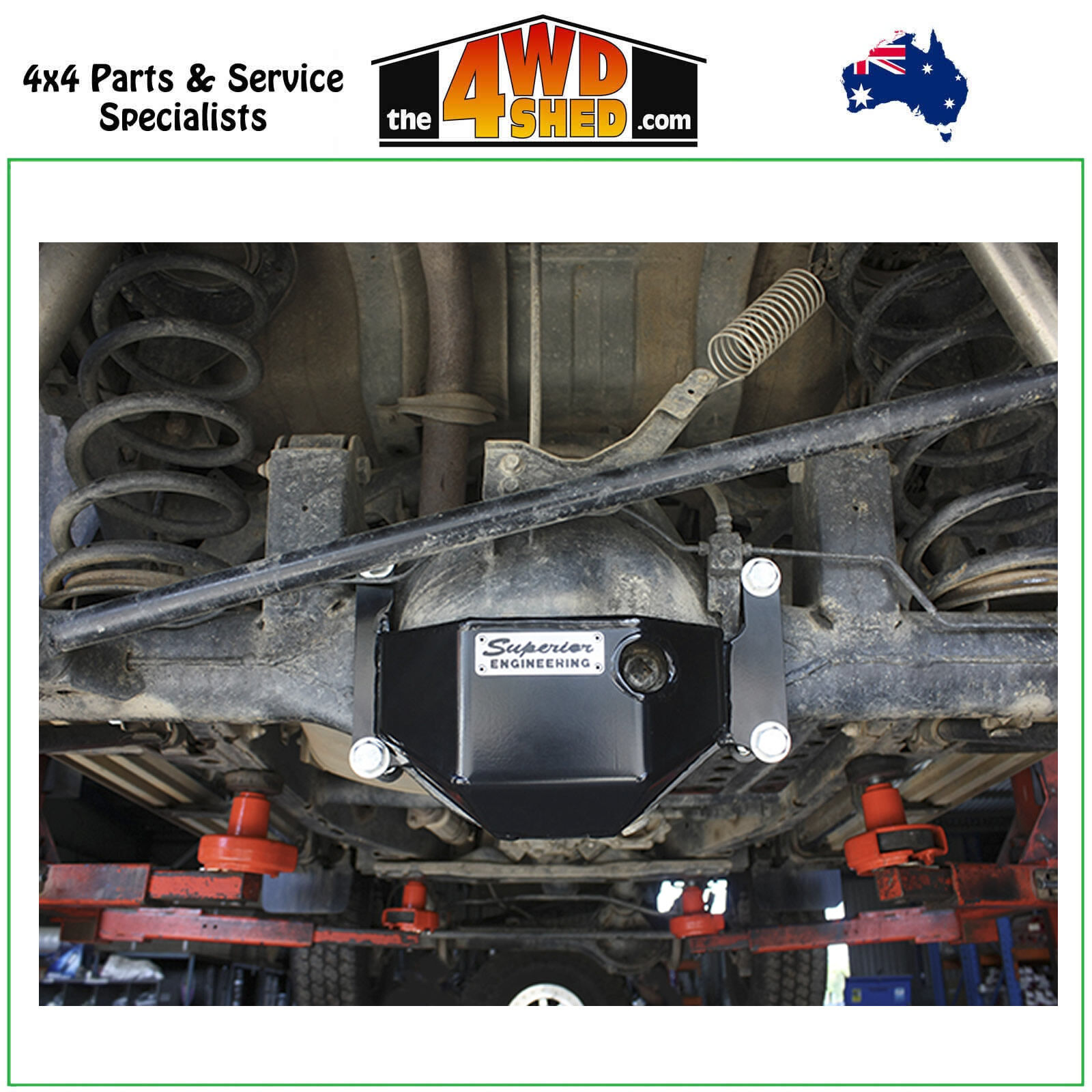

Superior Engineering's Stealth Rear Diff Guard is a 100% Bolt-On Underbody Differential Guard designed Suitable For both GQ and GU Nissan Patrols that are fitted with H233B rear diffs.
These are 100% bolt-on protection made from 250 Grade steel in 6mm steel for the ultimate protection of your ring gear.

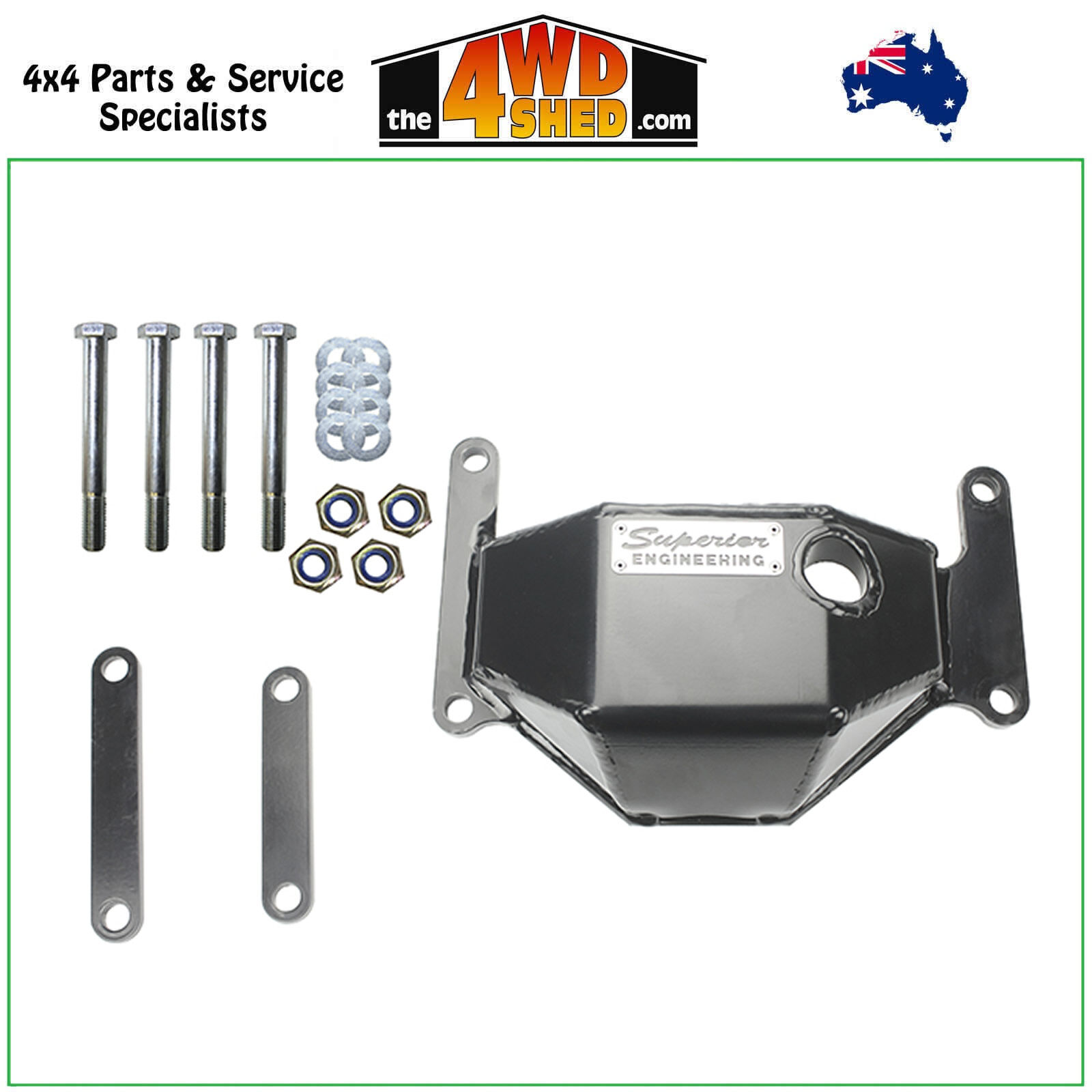

These guards simply bolt onto your diff housing utilising the supplied hardware.
The Stealth Diff guard uses the supplied bolts and clamp brackets to secure the guard to the Main Axle tube creating very strong Mounting points.
To further add to the Protection, the Diff Guard also has a profile of the diff housing that fits snuggly against the housing to help share the impact load.
Manufactured to sit as close to the original housing as possible there will be sufficient clearance for aftermarket Panhard rods.
There is no other bolt-on Diff Guard on the market that has complete coverage like the Superior Engineering Stealth Diff Guards.
By using Stealth diff guards you know your rear diff can handle anything it impacts.
Finished in a Hard-wearing Powder coat and 100% made in Australia.
Sold Each.
Note: Will not fit with factory diff lockers.
The 4WD Shed is an Authorised Stockist for Superior Engineering.
Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If its not listed on our website please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.
(SE-45557)
The 4WD Shed is an Authorised Stockist for Superior Engineering.
We stock, supply & fit a large range of items that can be found on Superior Engineering BUT in some instances there may be delays in stock or if it is a special order item.
We aim to ship items within 1-3 business days but if your order contains any items that fall under the above conditions we will contact you to notify you. If you wish to check availability before purchase you can call us or send an email.
Due to the weight of Superior products we may be required to quote freight on multiple items. We will contact you before beginning to process your order otherwise you can contact us for a freight estimate. We will try & keep costs down where we can so this may mean that we split your order over 2 parcels in order to keep weight & costs down.
Please make sure you have a valid contact number in your order details for us to contact you regarding any delays.
| SKU | SE-45557 |
| Brand | Superior Engineering |
| Shipping Weight | 7.0000kg |
