XD Baroud 270 Awning Adaptor
More infoRacksbrax XD Baroud 270 Awning Adaptor
WHY AN XD BAROUD 270 ADAPTOR?
The RacksBrax XD Hitch is designed to permit the fast release or fast loading of wing style awnings with vertically spaced mounting points in the range of 100mm to 120mm. A number of awnings do not fit this requirement, including the Baroud 270 and the Baroud Frontier awnings. The XD Hitch, in combination with the XD Baroud 270 Adaptor (DOUBLE) 9116, enables these awnings unique mounting points and M10 fasteners to be fitted to the XD Hitch.

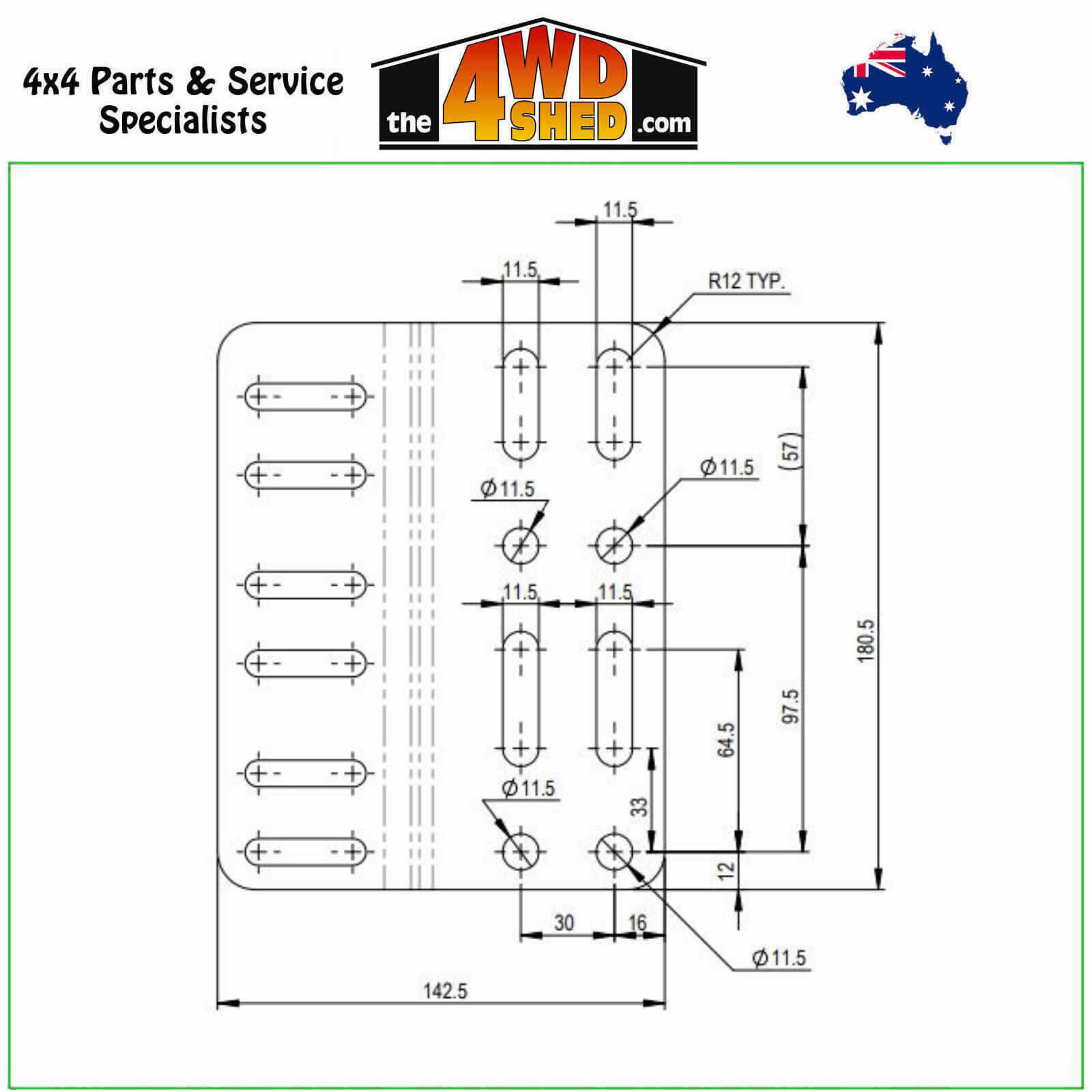

For dimensional details on the XD Baroud 270 Adaptor see Figure 2. Note that the XD Hitch does not fit to the James Baroud brackets. RacksBrax recommend the RacksBrax XD Adjustable Bracket Range (DOUBLE) or the RacksBrax XD Side Twist Range (DOUBLE) for this. See more information below relating to the correct bracket for your roof rack.
NOTE: Read these instructions in conjunction with the instructions for the RacksBrax XD Hitch RB-INS-009 supplied with the RacksBrax XD Hitch. Some fasteners supplied with the XD Hitch are used in the attachment of the Adaptor to the XD Hitch Holder.
HOW MANY XD HITCHES/XD BAROUD 270 ADAPTORS?
Racksbrax XD Hitches and the XD Baroud 270 Adaptors are sold as separate products. The James Baroud 270 Awning and the James Baroud Frontier Awning require 2 brackets, 2 Hitches and 2 Baroud 270 Adaptors.
The 4WD Shed is an Authorised Dealer of RacksBrax products!
(9116)
| SKU | 9116 |
| Brand | RacksBrax |
| Shipping Weight | 1.0000kg |
