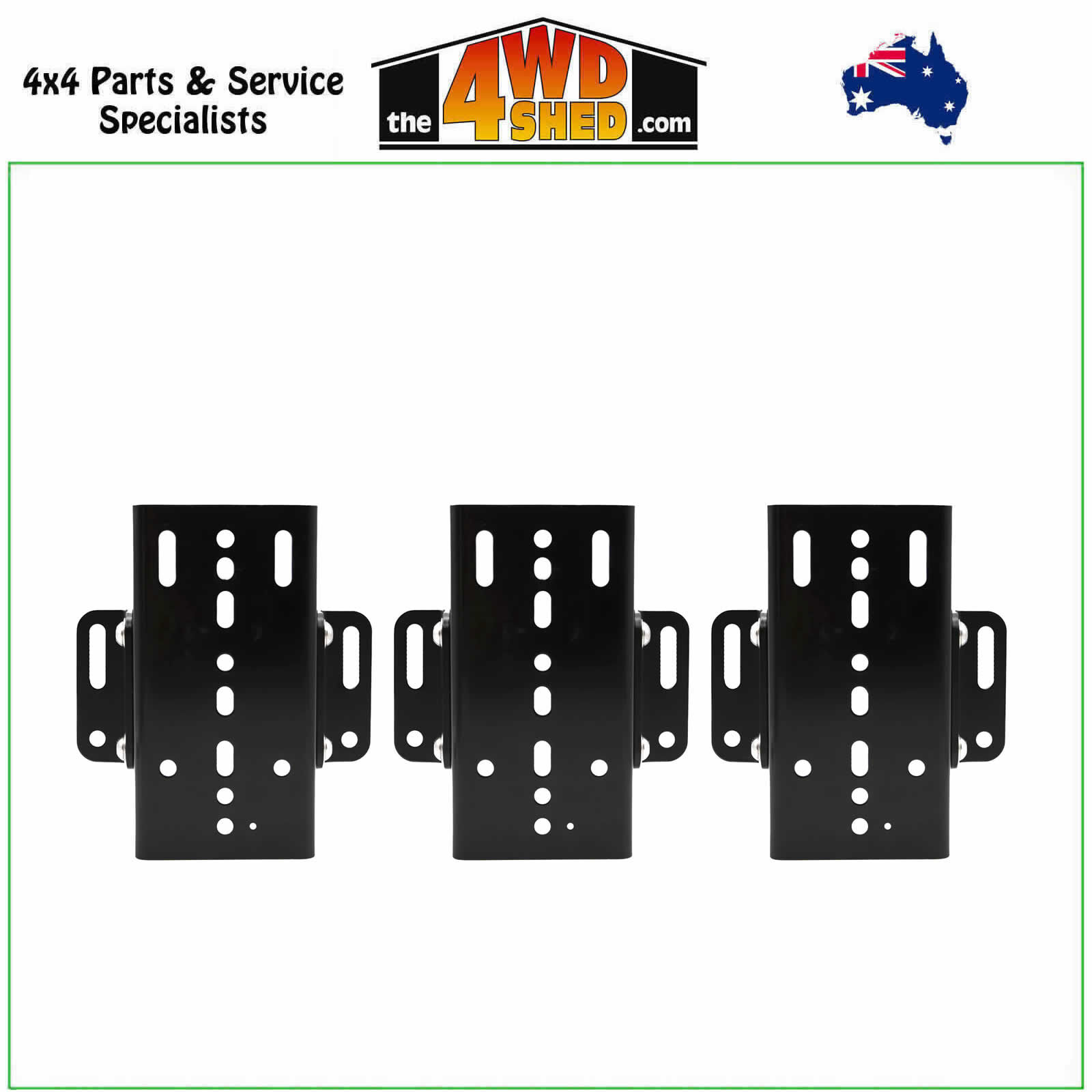

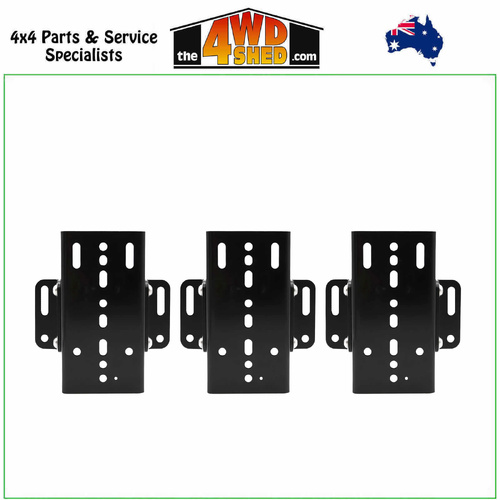

XD Roof Top Tent Adjustable Awning Bracket - Triple
More infoRacksbrax XD Roof Top Tent Adjustable Awning Bracket - Triple
The RacksBrax XD RTT Adjustable Awning Brackets are crafted from stainless steel, powder coated black. Brackets are designed for a load of 20kg (44lbs) per bracket, and can be fitted to channels on the side of many roof top tents. Loads are subject to the RTT (Roof Top Tent) manufacturer’s permitted tent load per mounting position. Brackets permit M8 fasteners to attach the bracket to the RTT channels where channels are provided.
Upgrade your rooftop tent setup with our XD RTT Adjustable Awning Bracket
What else do I need for the bracket?

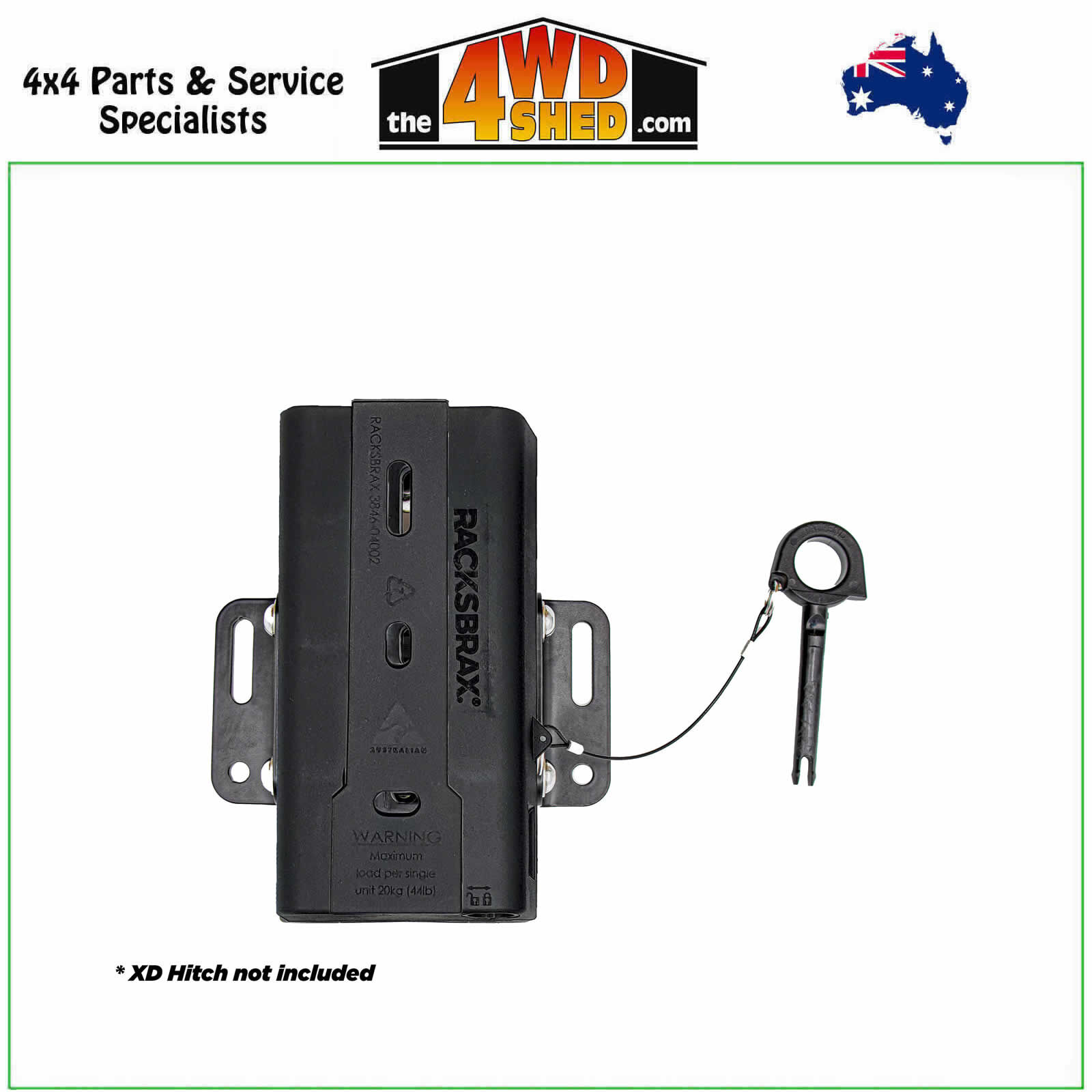

The brackets are designed to be fitted with a RacksBrax quick release XD Hitch (Double) 9000 for double brackets and XD Hitch (TRIPLE) 9001 for triple brackets. XD Hitches allow the quick removal of awnings and some shower tents from the side of roof top tents for out of weather storage when not in use.
To determine suitability for your awning or shower tent, check the RacksBrax “Works With” guides by awning/shower tent manufacturer to ensure that they are suited to a XD Hitch (DOUBLE) 9000 or XD Hitch (TRIPLE) 9001.
What are the advantages?

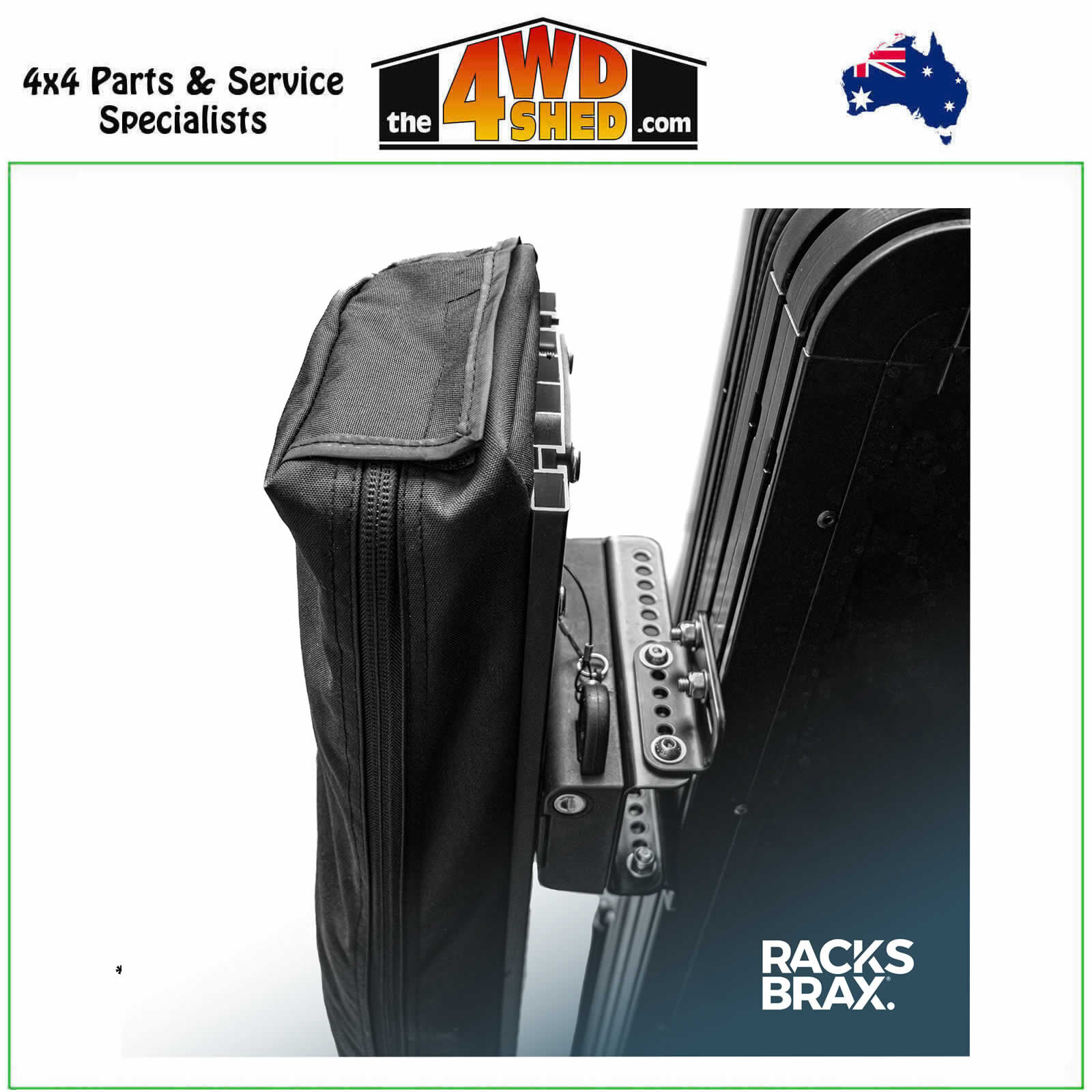

When the brackets are fitted with a RacksBrax quick release XD Hitch (either double or triple), removal of a shower tent or awning (when not required) lightens the load on the vehicle saving fuel and allowing the shower tent/awning relief from the weather.
Additionally, if the RTT is to be removed from a vehicle, the prior quick removal of the shower tent/ awning substantially reduces RTT weight making it safer and easier to remove the RTT.
Height Adjustment

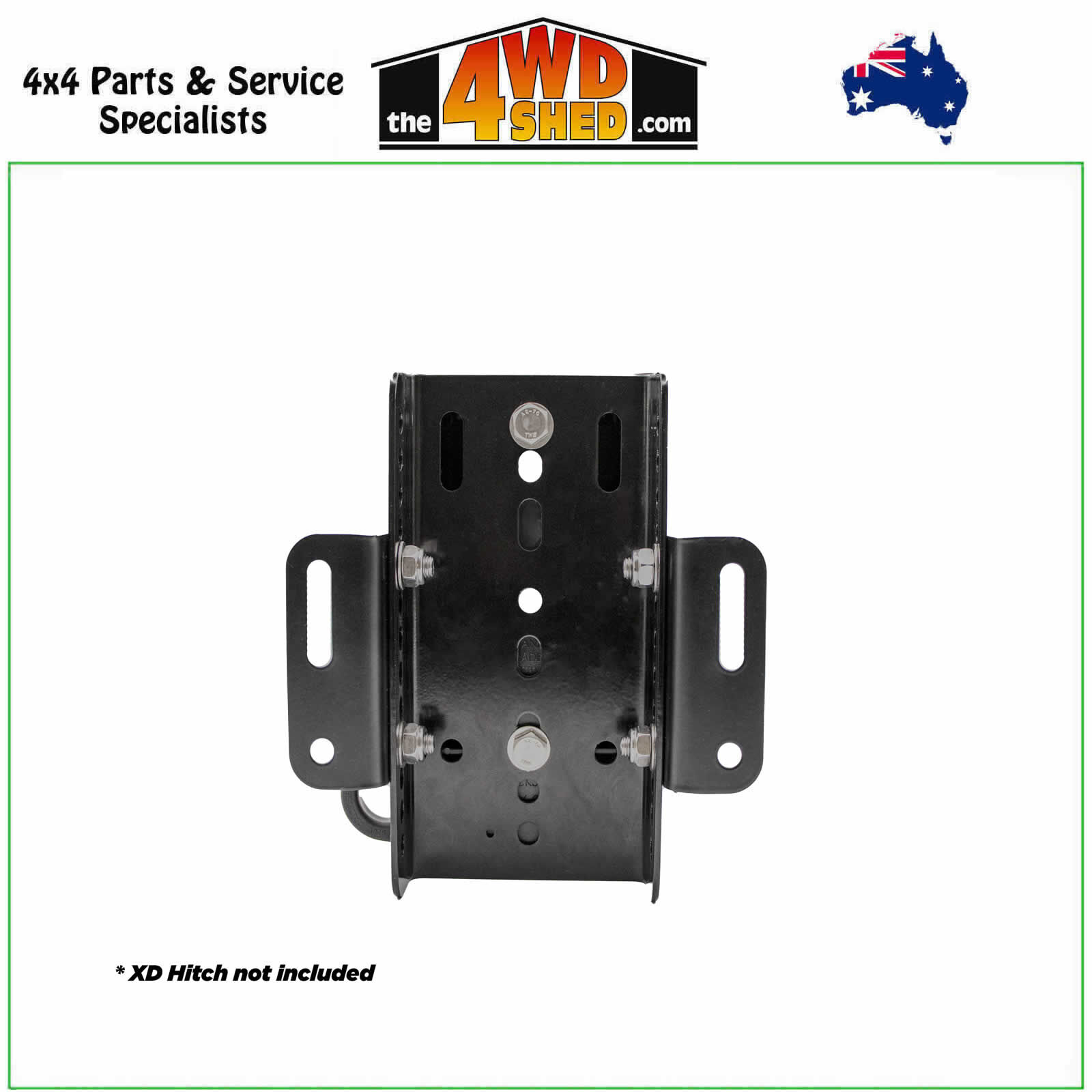

Bracket height is adjustable by locating the upright portion of each bracket at higher or lower levels ensuring that 2 No M8 socket head screws per HD/XD Upright Mounting Angle are located as far apart, i.e. at the extreme ends of each Upright Mounting Angle.
The 4WD Shed is an Authorised Dealer of RacksBrax products!
(9109)
| SKU | 9109 |
| Brand | RacksBrax |
| Shipping Weight | 1.0000kg |
