Gigglepin Hurricane Gear Set
Please note if you are fitting this kit to a standard Warn 8274 lower housing that has not already been fitted with a Gigglepin SuperShaft you will require our Gigglepin Shim Kit (G19008) in order to install this gearset.
The “All NEW” Hurricane gear set from Gigglepin offers extra speed and increased Winch strength. Surpassing the old Hellfire gears GP Hurricane Gears offer more strength whilst delivery the speed.
Manufactured from heat treated EN36 they have been designed for the harsh demands of modern winch competitions.

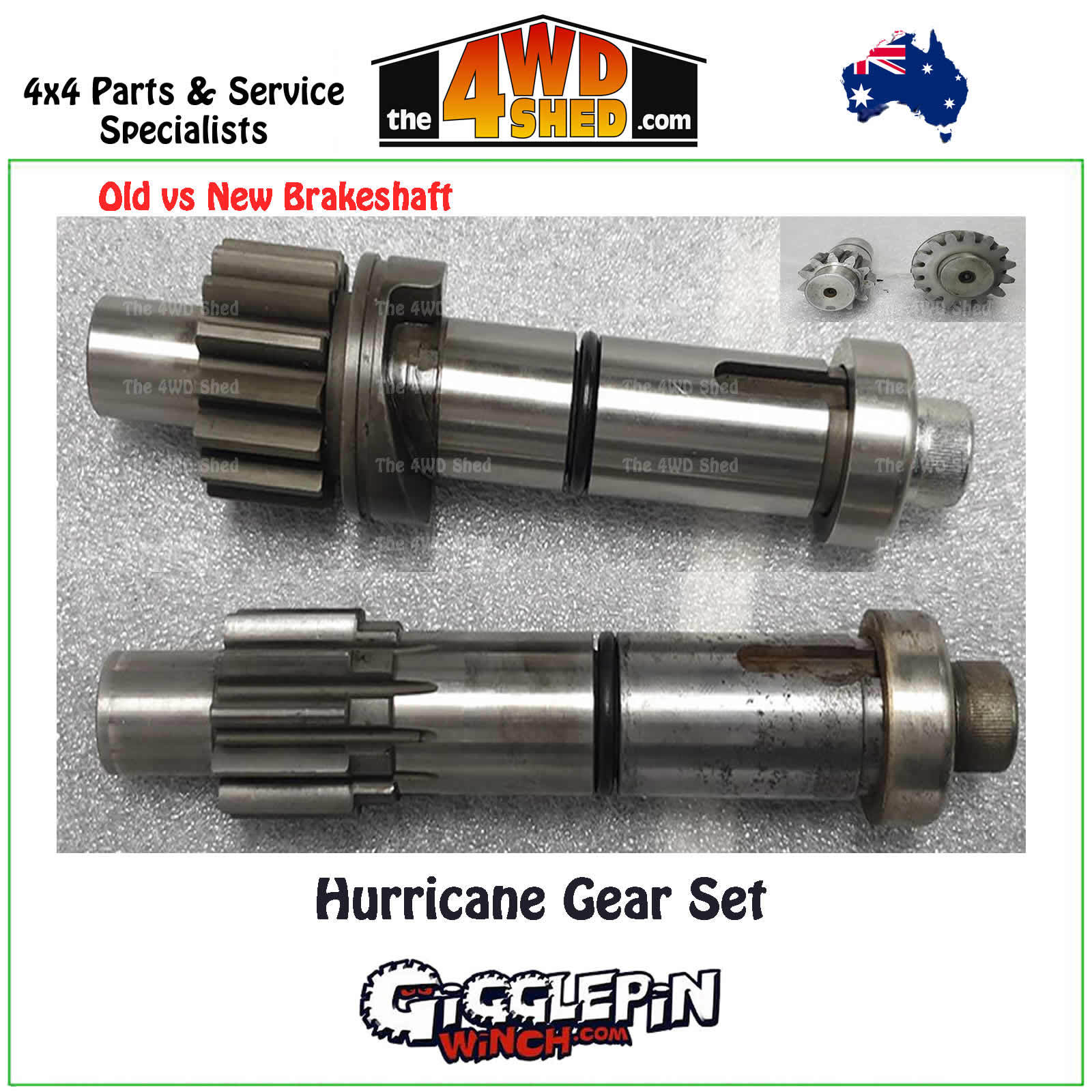

The SuperShaft now has
- 15 teeth
- built in small cam gear to give increased tooth contact and strength
- New Main gear designed to mesh with new tooth count.
**Note these must be installed as a pair as individually they will not work.**

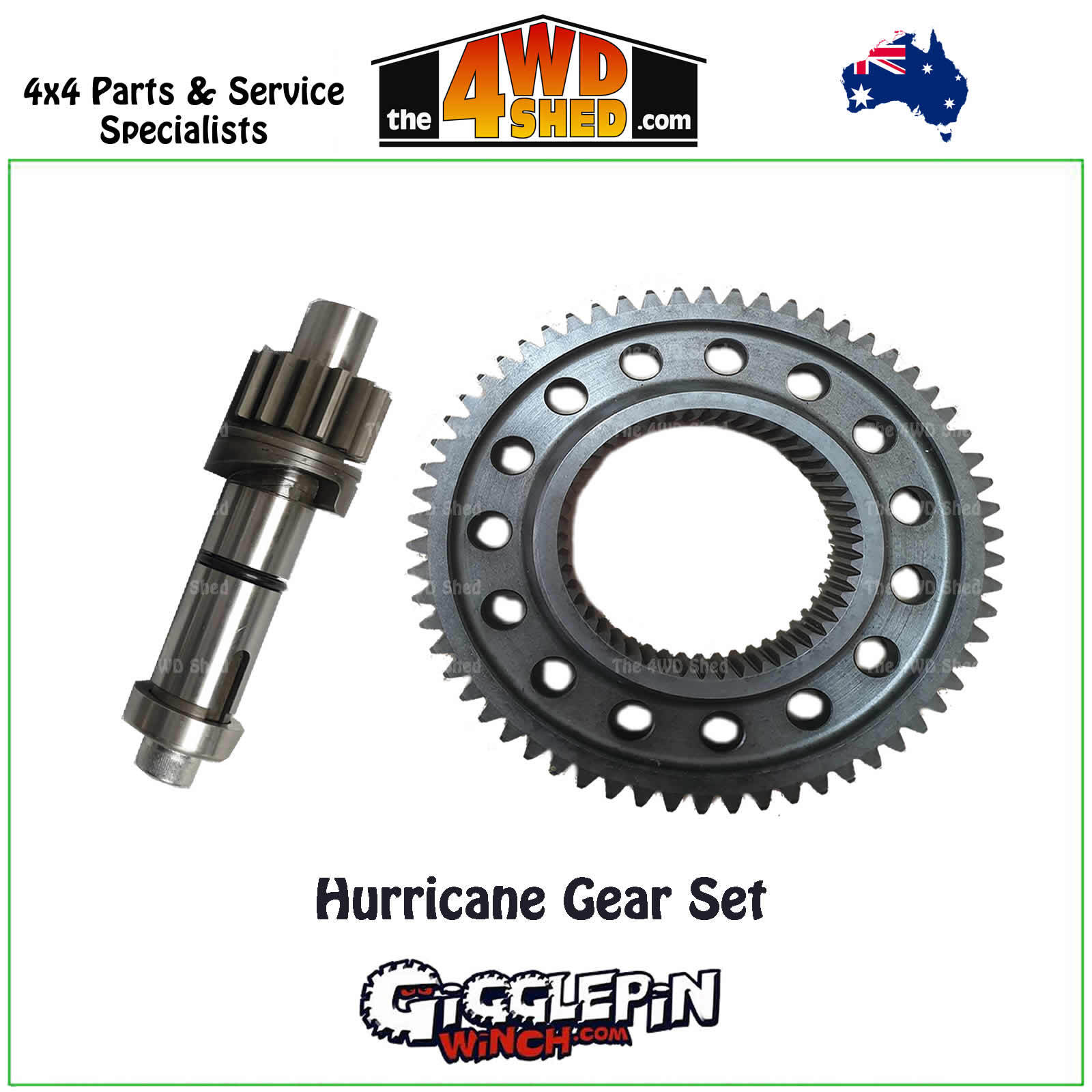

This set of two gears replaces the MainShaft & the lower drive gear (7550) in your 8274 or GP winch. The new 15 tooth MainShaft offers improved tooth contact & has a built in small cam gear for enhanced reliability. The large drive gear has been reduced to from 66 to 62 teeth & offers the following speed increases:
Standard ratios Fitted with Hurricane gears
- STD 133.28:1 Becomes +31% 91.82:1
- + 15% 115.41:1 Becomes +40% 79.50:1
- + 25% 100.94:1 Becomes +48% 69.53:1
- + 40% 83.75:1 Becomes +57% 57.69:1
- + 50% 66.56:1 Becomes +66% 45.86:1
- + 60% 53.68:1 Becomes +72% 36.98:1
The Hurricane gears will fit all GP100, GP50, GP25, GP80 and 8274 winches.
NOTE: It is also worth noting that these gears when used with a with lower top ratio gears set to create +40% will provide improved strength - Ideal for heavy expedition vehicles.
Please note these are only compatible with the Gigglepin Large Cam Gear.
The 4WD Shed stock, supply & fit a huge range of parts & accessories for your winch.
Fitting is available at The 4WD Shed, additional costs may apply.
